51 45 180 Removing and installing/replacing trim for instrument panel, bottom left (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Turn rotary clips (1) through 90° and remove. Pull trim (2) downwards/backwards to remove.

NOTE: Do not damage the guides (3).

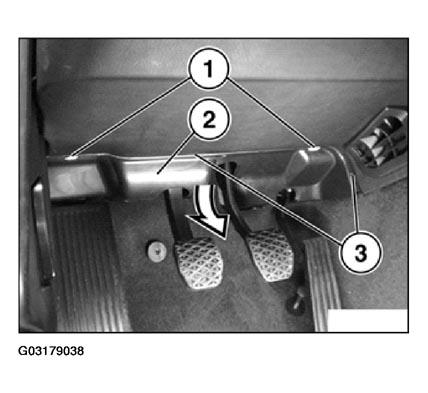

Fig 1: Identifying Rotary Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on the trim (2) must not be damaged.

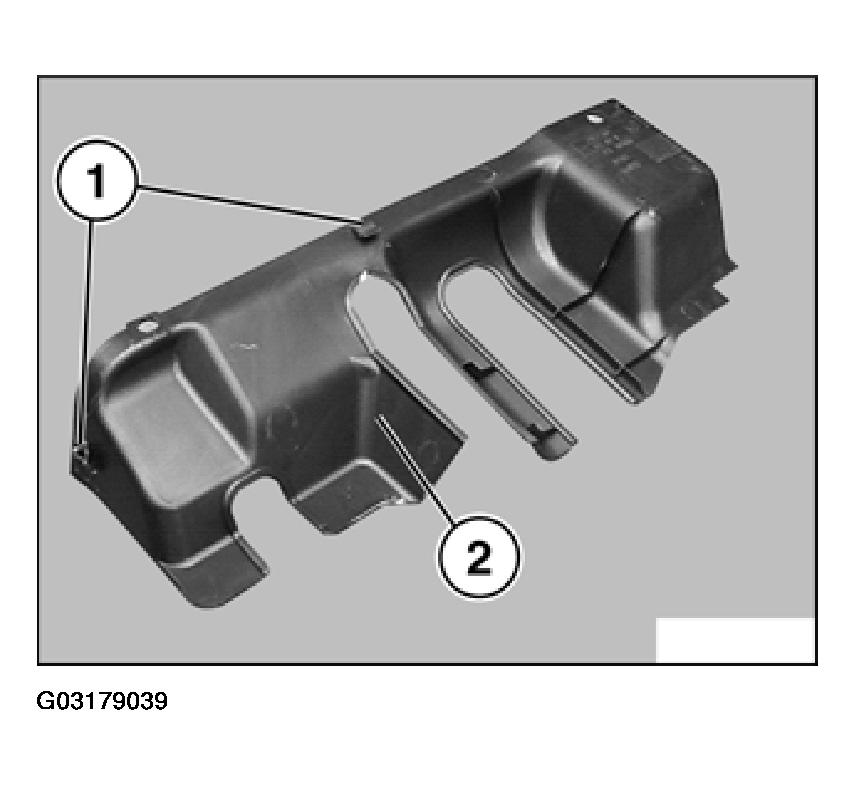

Fig 2: Identifying Trim Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Remove caps (1) and screws. Unscrew trim (2) and pull outwards/downwards to remove from oddments tray (3).

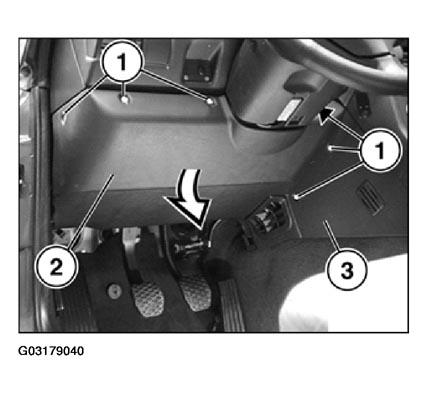

Fig 3: Removing Trim From Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace defective covers (1).

Installation:

Slide on speed nuts (1). Fit seal (2) on steering column and seal (3) on air outlet (heating) correctly.

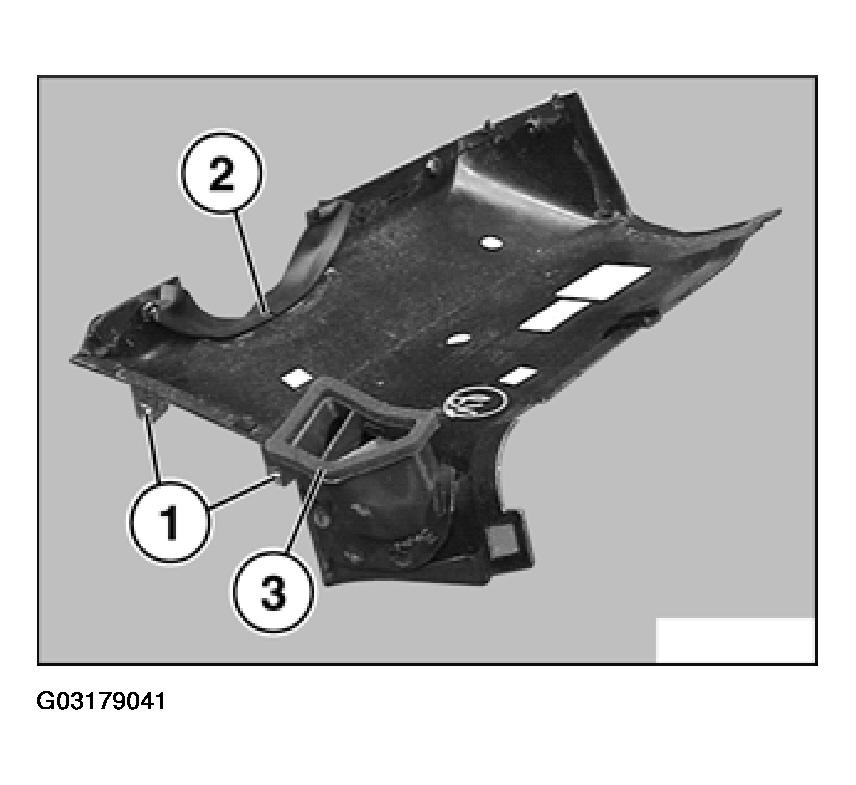

Fig 4: Installing Steering Column Seal

Courtesy of BMW OF NORTH AMERICA, INC.
