51 45 031 Replacing trim for instrument panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

Remove trim for instrument panel, refer to 51 45 030 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

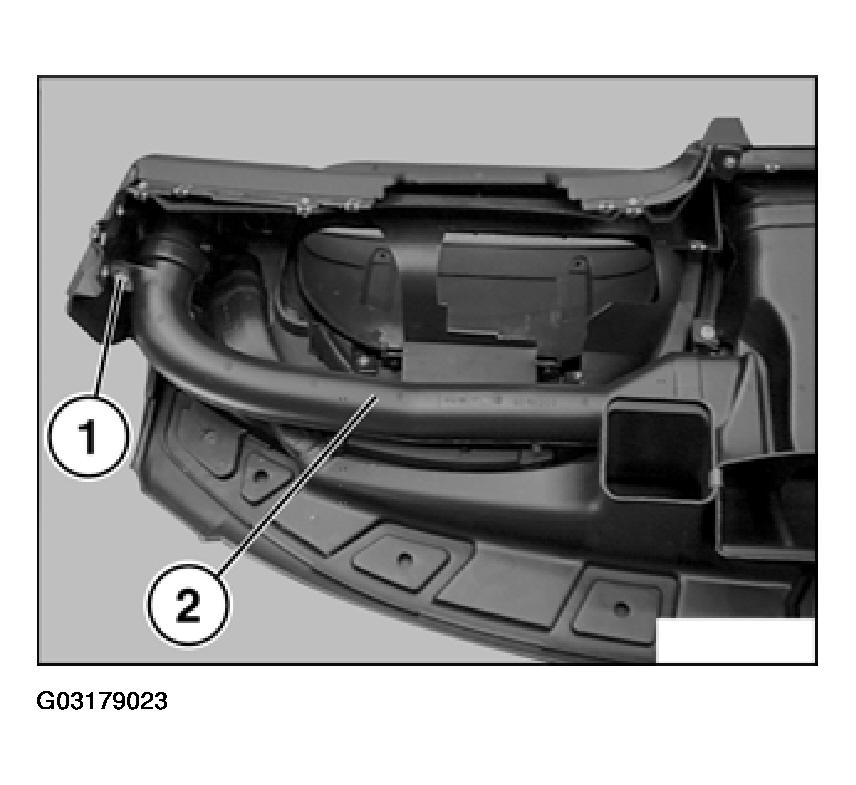

Unfasten left/right screw (1) and remove left/right air guide (2).

Fig 1: Removing Left/Right Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

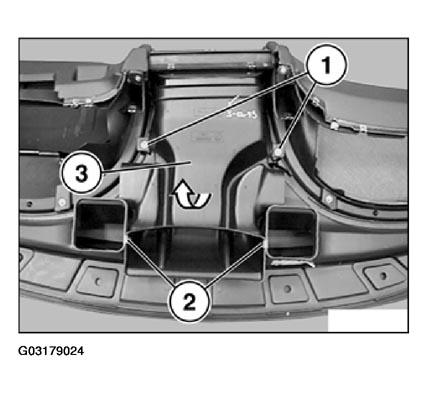

Unfasten screws (1) and metal tabs (2) and remove center of air guide (3).

Fig 2: Removing Center Of Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

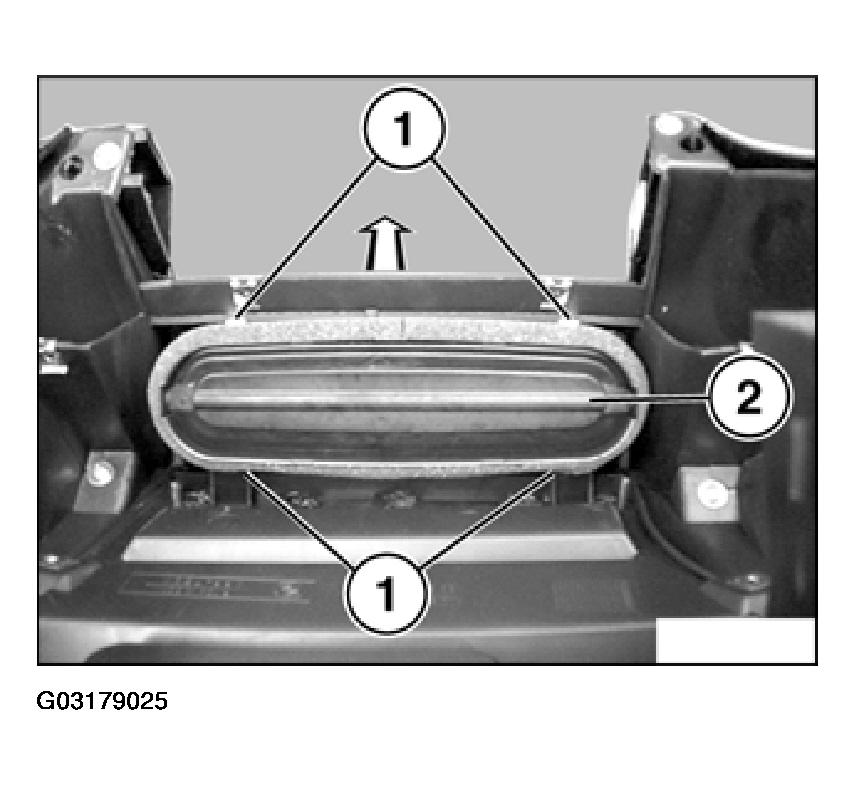

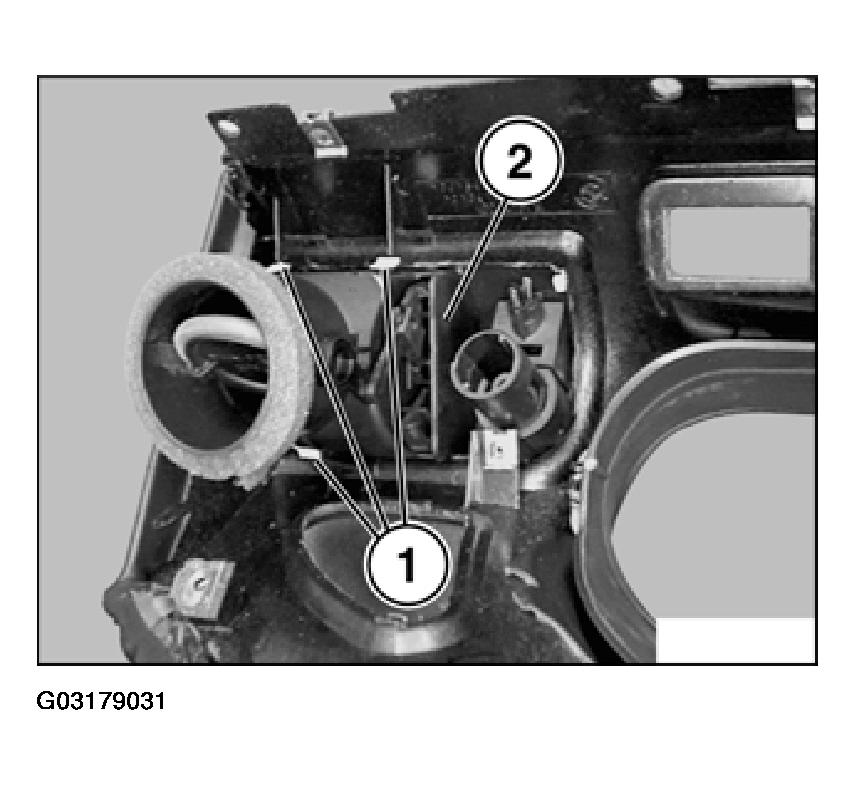

Lift out interlock (1) and pull out center of air vent (2).

Fig 3: Removing Center Of Air Vent

Courtesy of BMW OF NORTH AMERICA, INC.

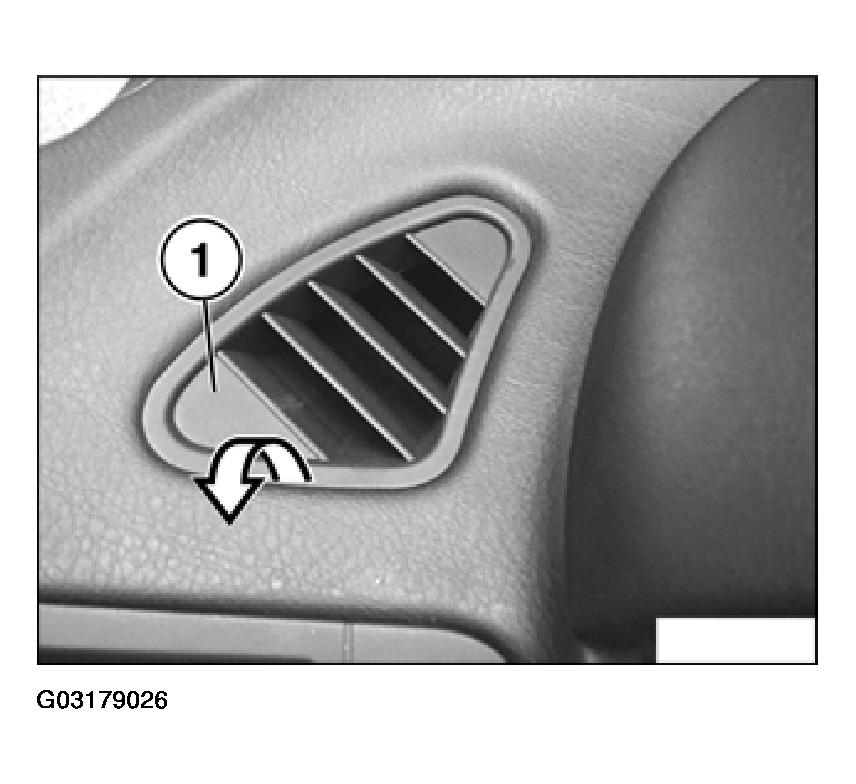

Pull left/right air vent (1) downwards (with feeler gauge) and remove.

Fig 4: Removing Left/Right Air Vent

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

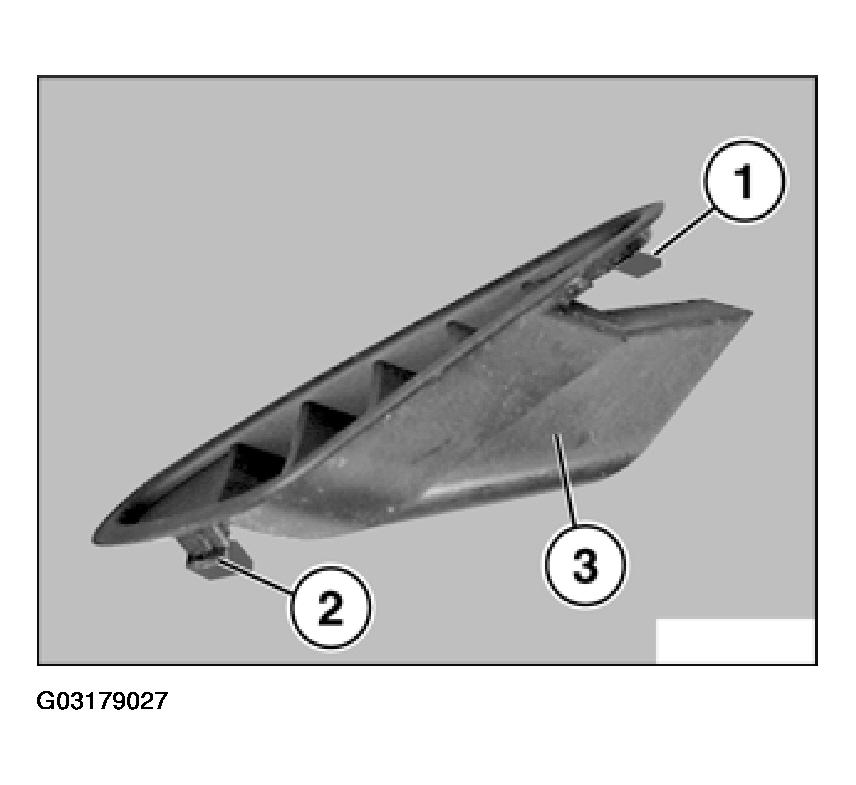

Interlock (1) and guide (2) on air vent (3) must not be damaged.

Fig 5: Installing Guide On Air Vent

Courtesy of BMW OF NORTH AMERICA, INC.

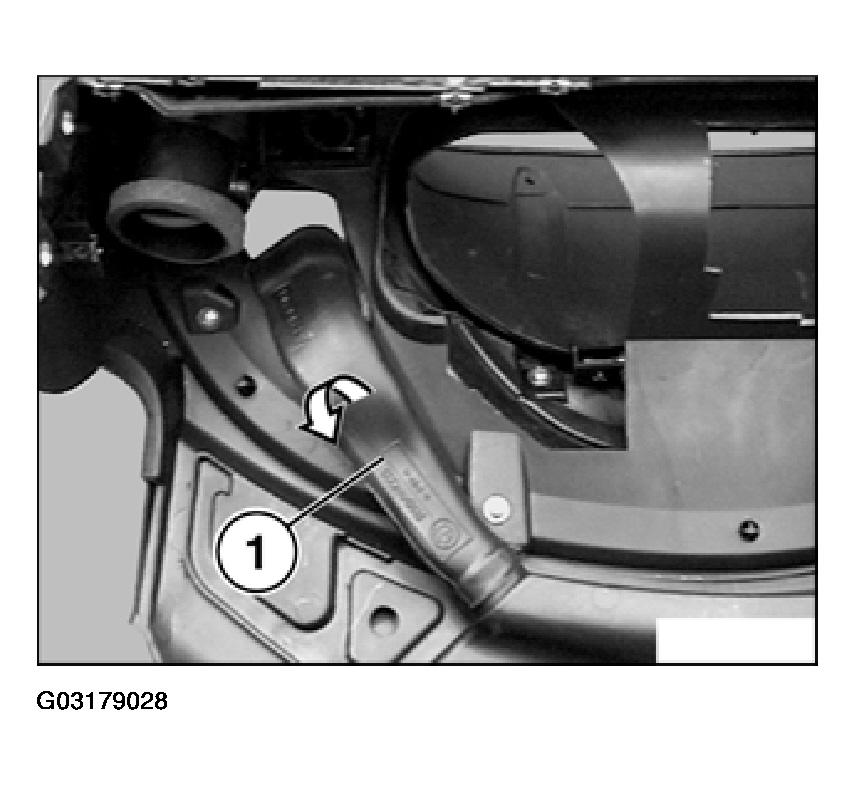

Pull left/right air guide (1) forwards to remove.

Fig 6: Removing Left/Right Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

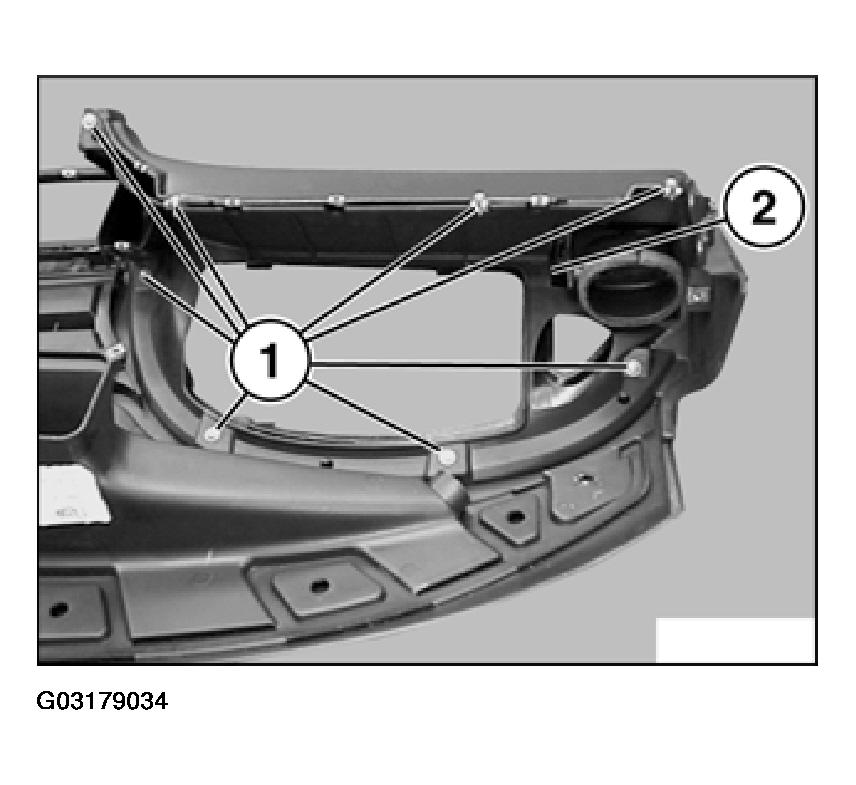

Unfasten screws (1) and lift off insert (2).

Fig 7: Removing Insert

Courtesy of BMW OF NORTH AMERICA, INC.

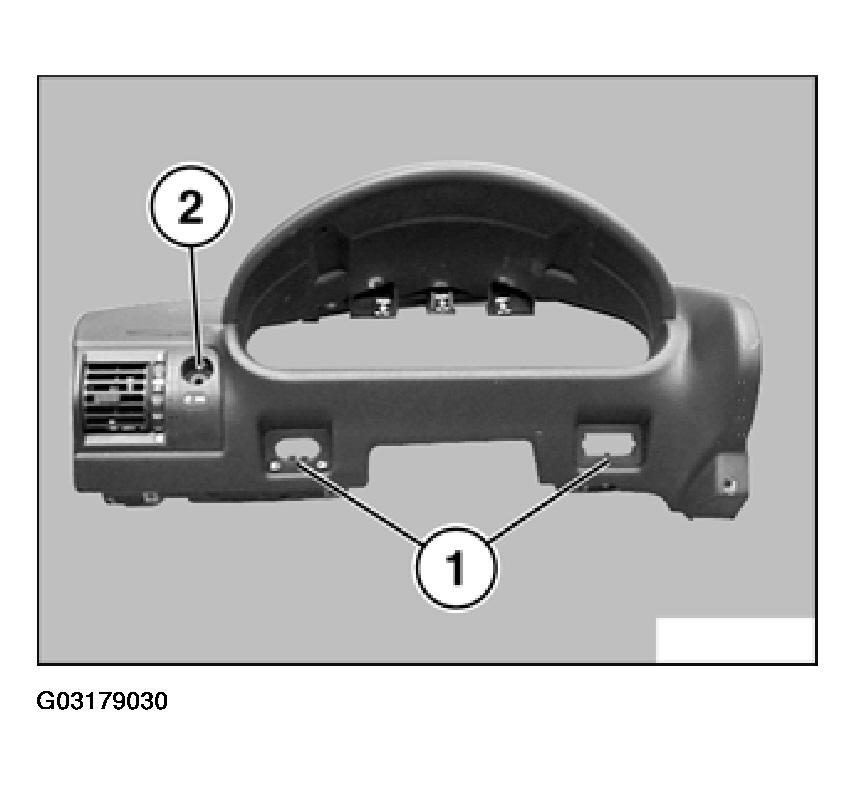

Lift off finisher strips (1) and unfasten screw (2).

Fig 8: Removing Finisher Strips

Courtesy of BMW OF NORTH AMERICA, INC.

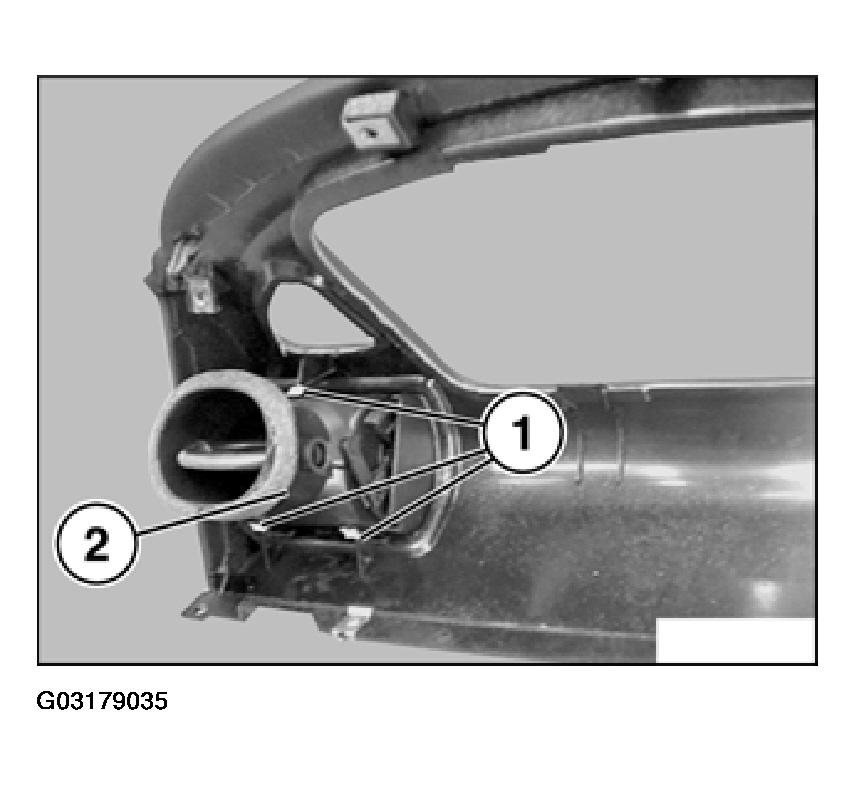

Lift off interlocks (1) and pull air vents (2) forwards to remove.

Fig 9: Removing Air Vents

Courtesy of BMW OF NORTH AMERICA, INC.

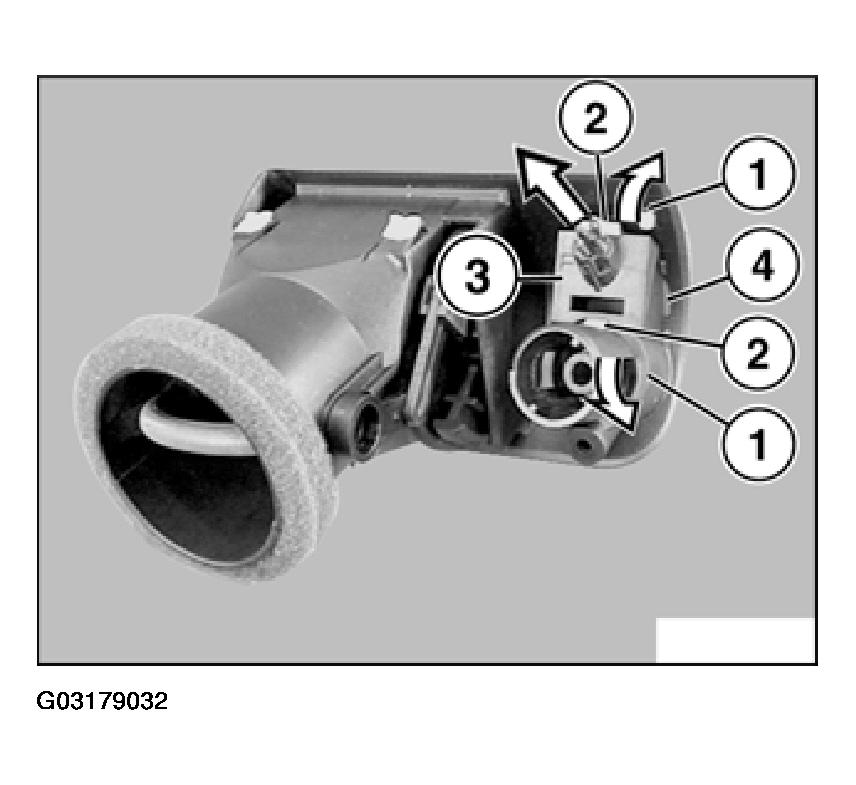

Press air vents (1) apart until the interlocks (2) are released and remove light insert (3).

If necessary, remove symbol disc (4).

Fig 10: Removing Symbol Disc

Courtesy of BMW OF NORTH AMERICA, INC.

Remove speed nuts (1).

Fig 11: Removing Speed Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and lift off frame (2).

Fig 12: Removing Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off interlocks (1) and remove air vents (2).

Fig 13: Removing Air Vents

Courtesy of BMW OF NORTH AMERICA, INC.

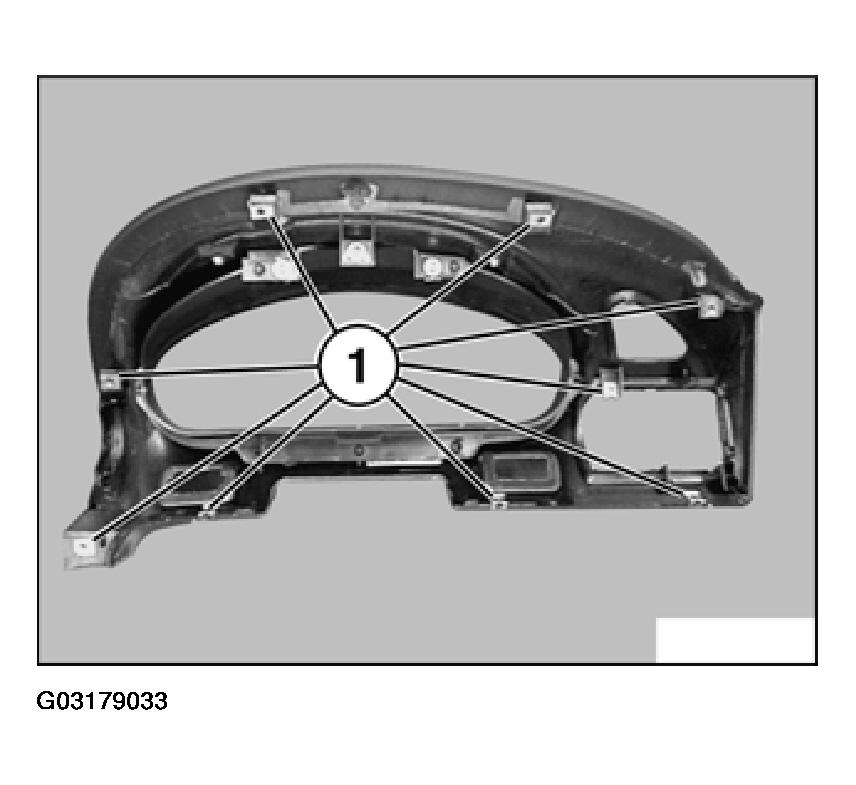

Remove speed nuts (1).

Fig 14: Removing Speed Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

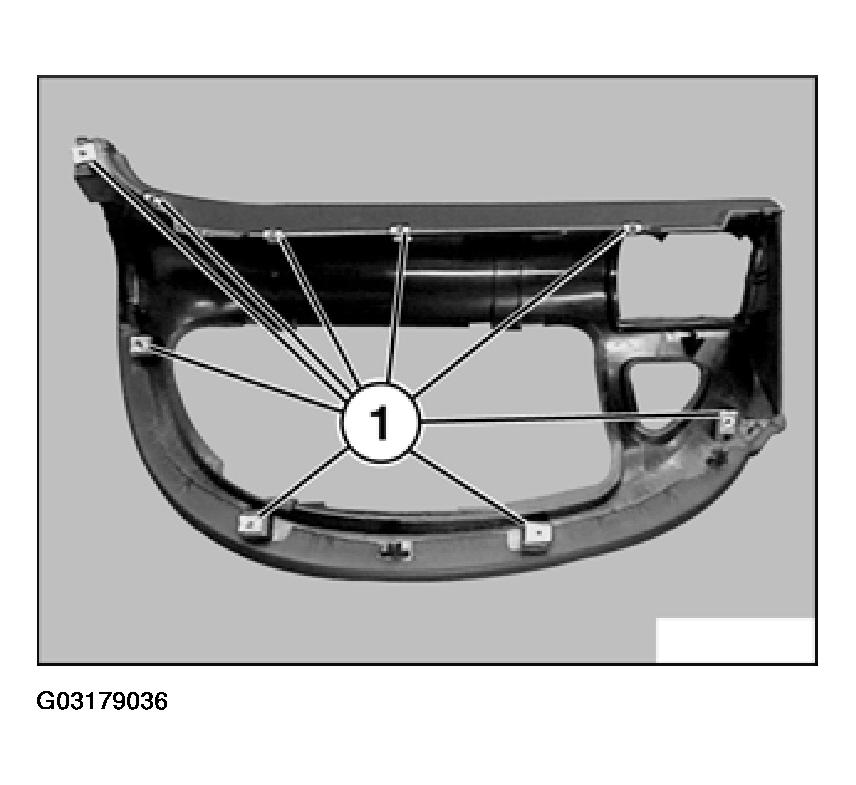

Remove speed nuts (1).

Fig 15: Removing Speed Nuts From Frame

Courtesy of BMW OF NORTH AMERICA, INC.
