51 21 300 Removing and installing or replacing window recess cover strip on outside of left or right front door

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

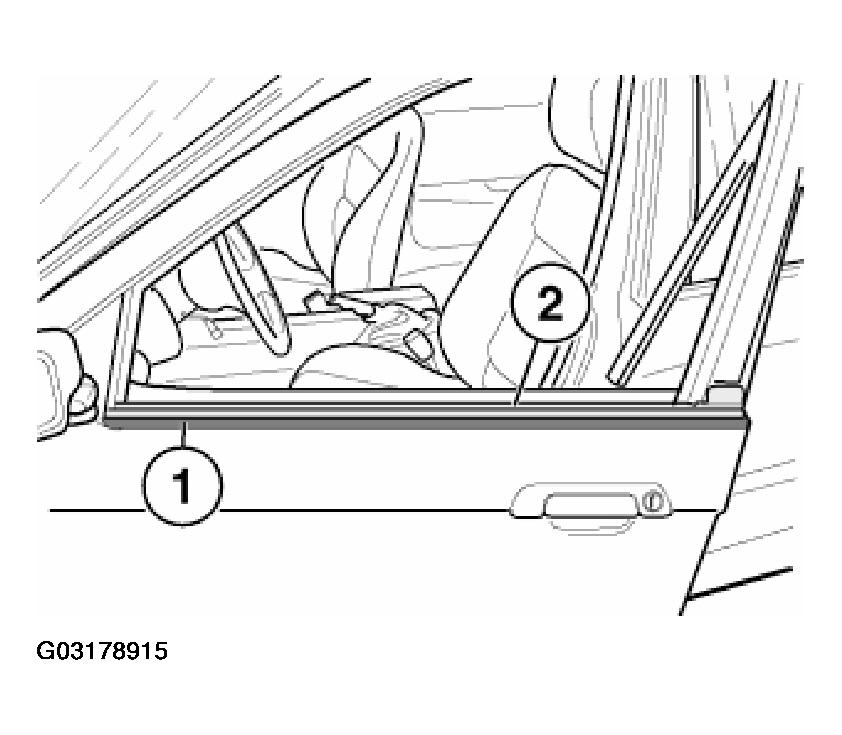

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

Fig 1: Identifying Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

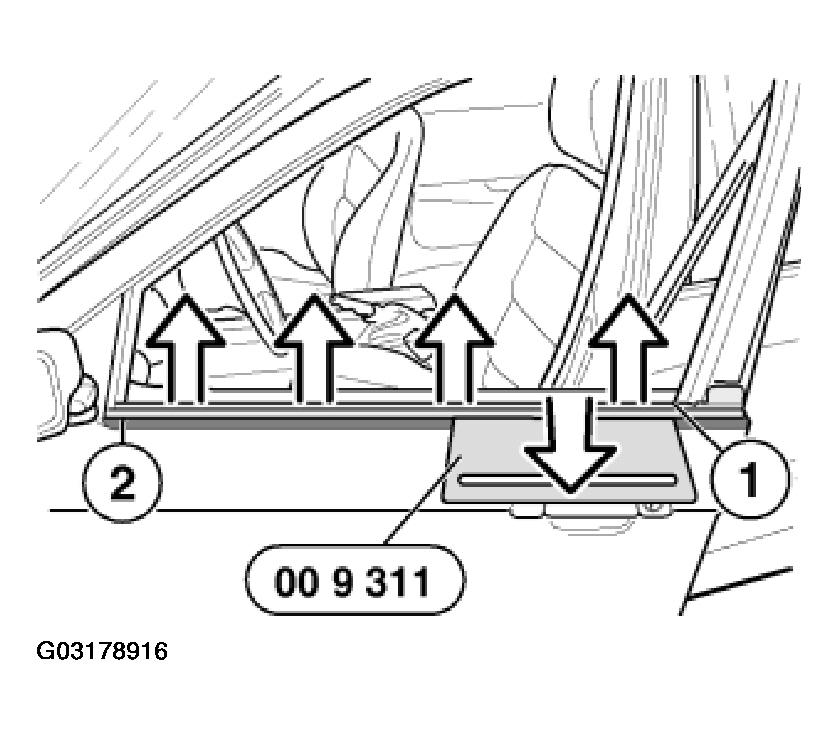

Using special tool 00 9 311, starting at back, (1) and moving to front (2), lift out window cavity cover strip.

Fig 2: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
