51 47 000 Removing and installing/replacing entrance cover strip (interior), front left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

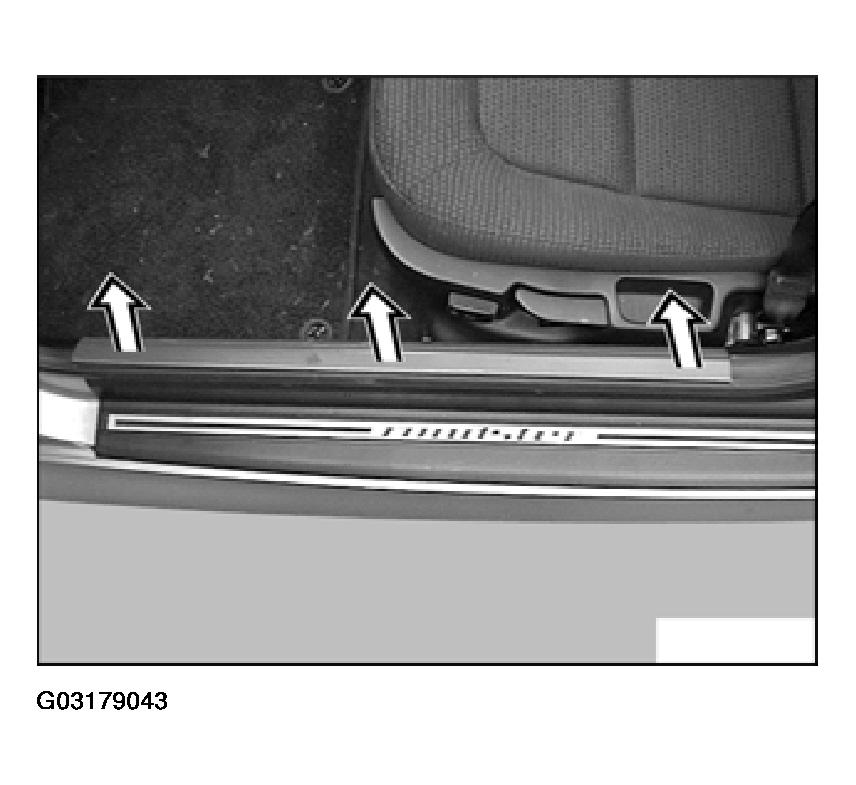

Pull rocker panel strip upwards to unclip.

Fig 1: Removing Rocker Panel Strip Upwards To Unclip

Courtesy of BMW OF NORTH AMERICA, INC.

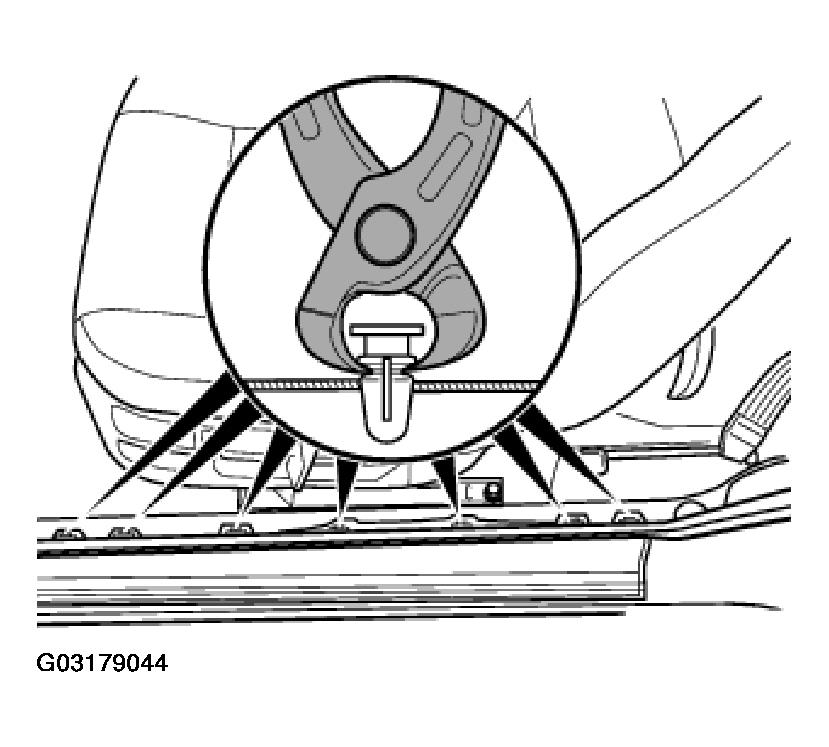

If necessary, squeeze clips together with pliers and lift out (head of pliers ground smooth).

Fig 2: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Soak clips in water for a short time.

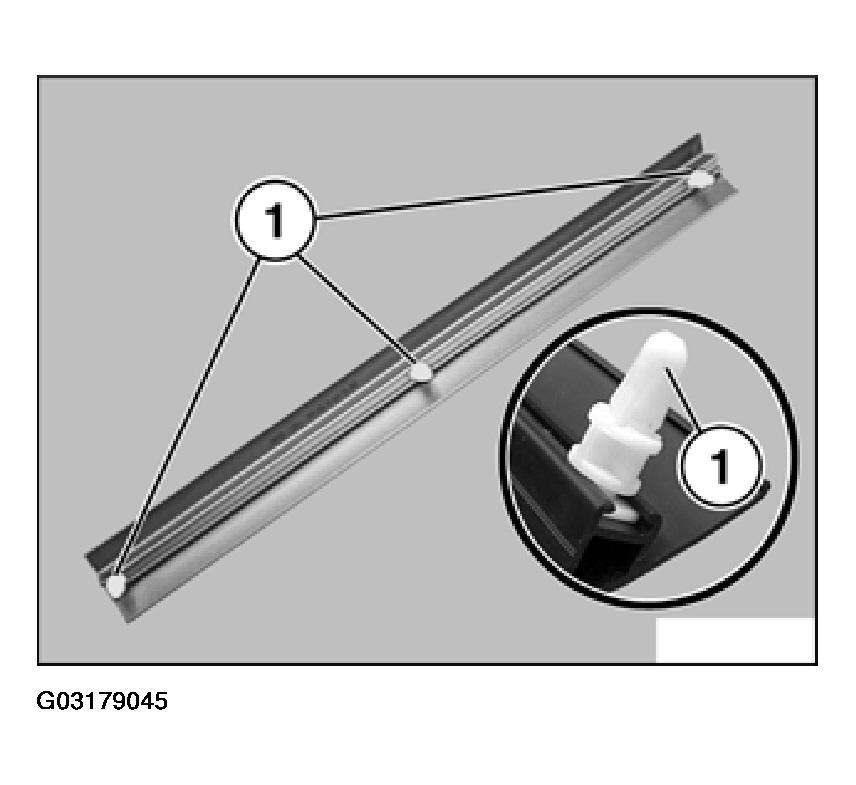

Slide on clips (1) and align.

Fig 3: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace damaged clips.
