Checking vacuum valve in cap

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Screw cap (1) onto special tool 17 0 007 and connect to vacuum hose of vacuum pump.

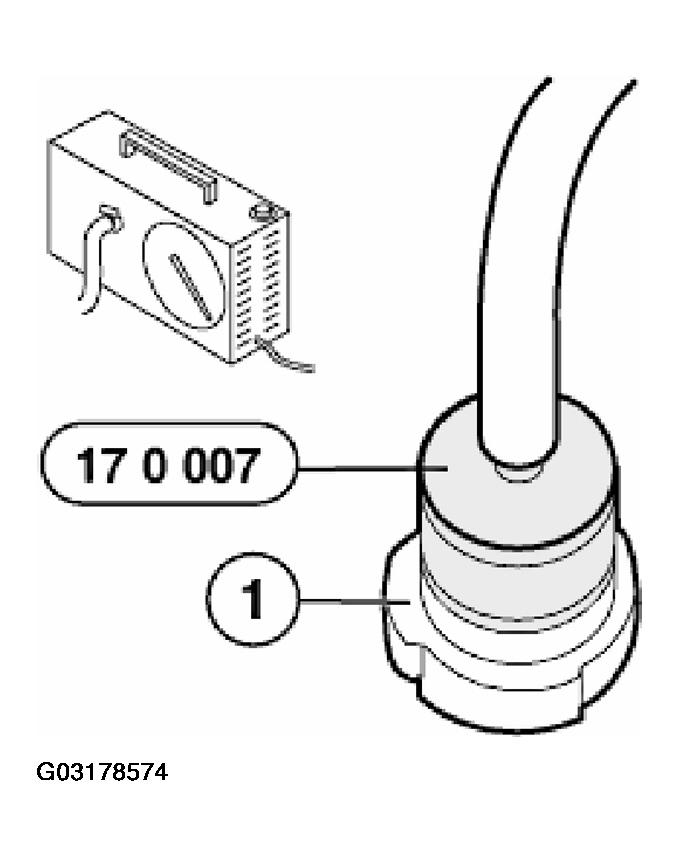

Fig 1: Installing Cap Onto Special Tool And Connecting To Vacuum Hose Of Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Sourcing reference: BMW Parts Service.

Feed vacuum pump with battery positive voltage.

Slowly apply partial vacuum to cap.

Compare opening pressure of vacuum valve. Refer to 17 11 RADIATOR AND MOUNTING PARTS M52TU / M54 or 17 11 RADIATOR AND MOUNTING PARTS E36 / M50 / M52 / M54 .
