17 00 005 Draining and topping up coolant: M52

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles with M52 engines, also unfasten additional vent screw.

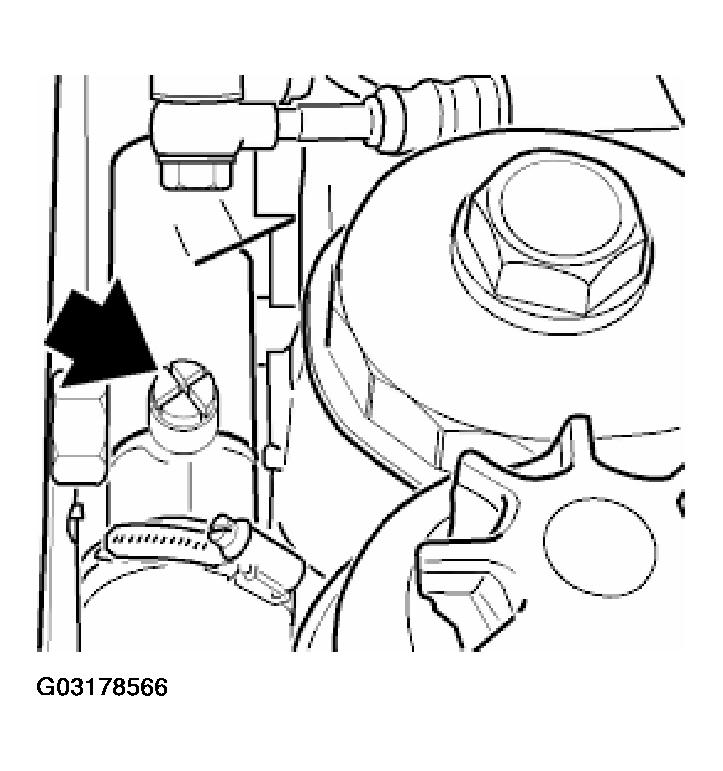

Fig 1: Removing Additional Vent Screw On Thermostat Housing (M52)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before filling, switch on ignition, set heater control to maximum temperature and set fan to low speed. This opens heating valves and installed auxiliary water pump runs if necessary.

Perform filling operation slowly.

Fill expansion tank completely and wait until coolant emerges at vent point(s) without bubbles. Close bleed screw(s).

NOTE: Only use specified coolant.

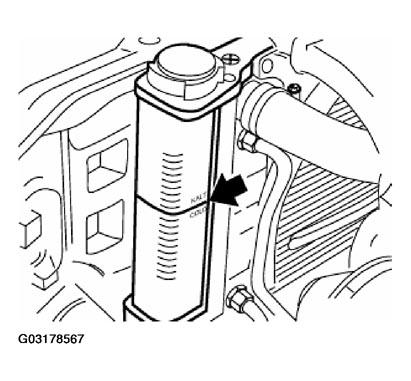

Fig 2: Locating Vent Point

Courtesy of BMW OF NORTH AMERICA, INC.
