Disassembly of fast-release coupling

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

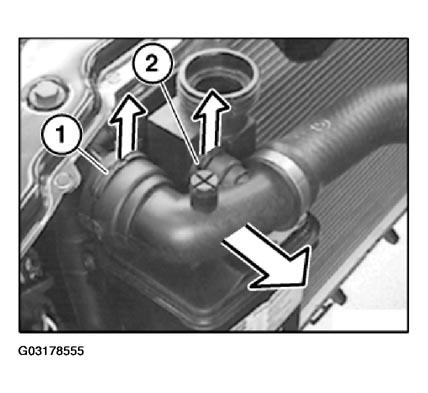

Withdraw lock (1/2), disconnect hose.

Fig 1: Disconnecting Hose

Courtesy of BMW OF NORTH AMERICA, INC.
