16 12 010 Removing and installing/replacing carbon canister (Z3)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unlock and disconnect plug connection (1) of vent line to expansion tank.

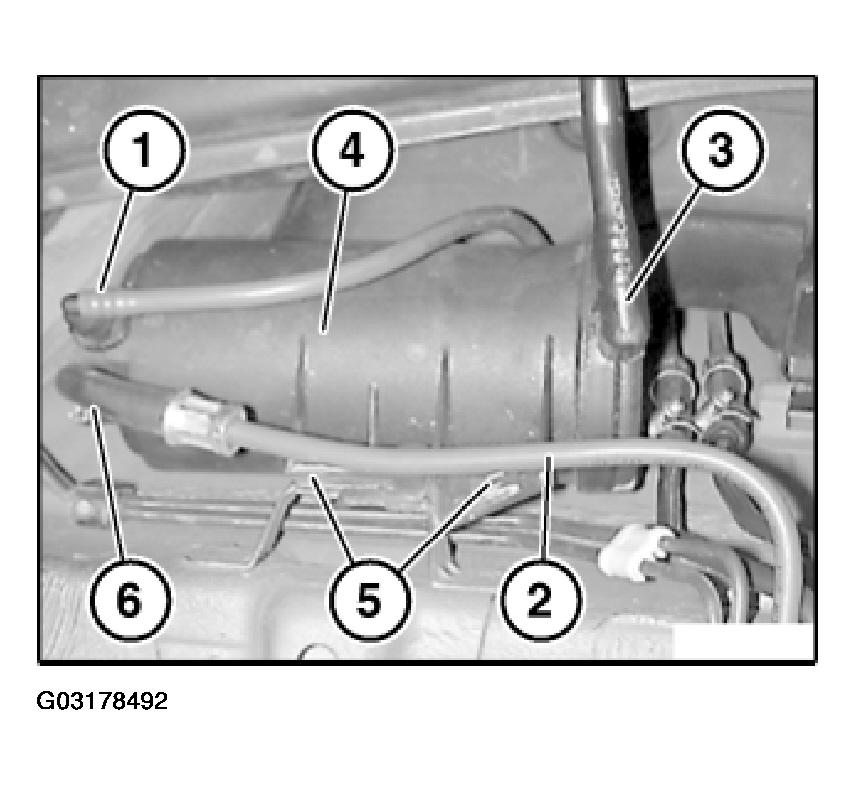

Fig 1: Disconnecting Plug Connection Of Vent Line To Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Open hose clip (6) and pull off scavenging line (2). Detach evaporation line (3) from carbon canister (4).

Release screws (5). Lift carbon canister (4) out of metal bracket.

Installation:

Make sure plug connection (1) engages properly.

Replace hose clip (6).

Tightening torque, refer to 16 12 7AZ in FUEL TRANSFER SENSOR .
