13 90 500 Replacing tank venting valve (M52TU, M54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Location:

Tank venting valve (2) is fitted at front below intake air manifold (1).

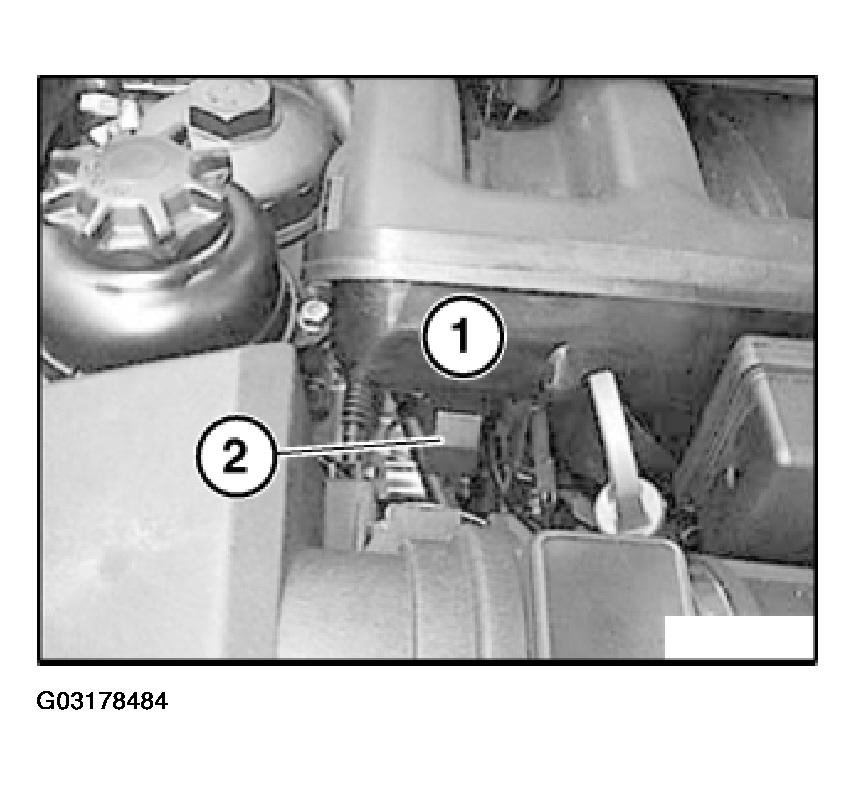

Fig 1: Locating Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Z3, E39 And E46:

Remove intake filter housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54) .

E53/M54 Only:

Remove intake hose. Refer to 13 54 250 REPLACING INTAKE HOSE (BETWEEN AIR-MASS FLOW SENSOR AND CONNECTING PIECE) (M54) .

Z3, E39, E46 And E53:

Disconnect plug connection (1).

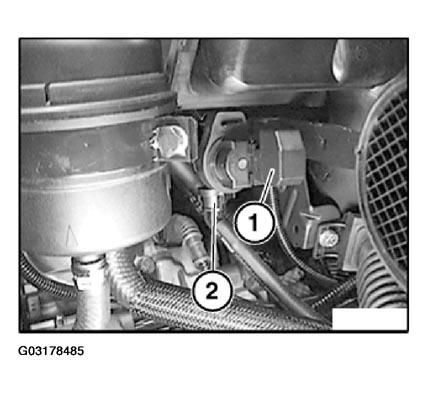

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release vent hose (2). To do so, press locking bar and detach vent hose.

Detach hose (1) from tank venting valve (2).

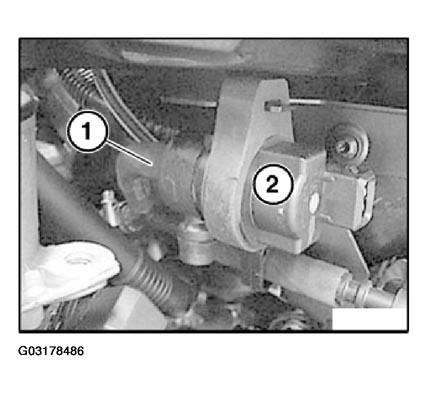

Fig 3: Detaching Hose From Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows removed supply tank for power steering.

NOTE: Interrogate fault memory of DME control module. Check stored fault messages. Rectify faults. Then clear fault memory.
