Special Tools

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Drive Fork (31 1 430)

G00148270

Courtesy of BMW OF NORTH AMERICA, INC.

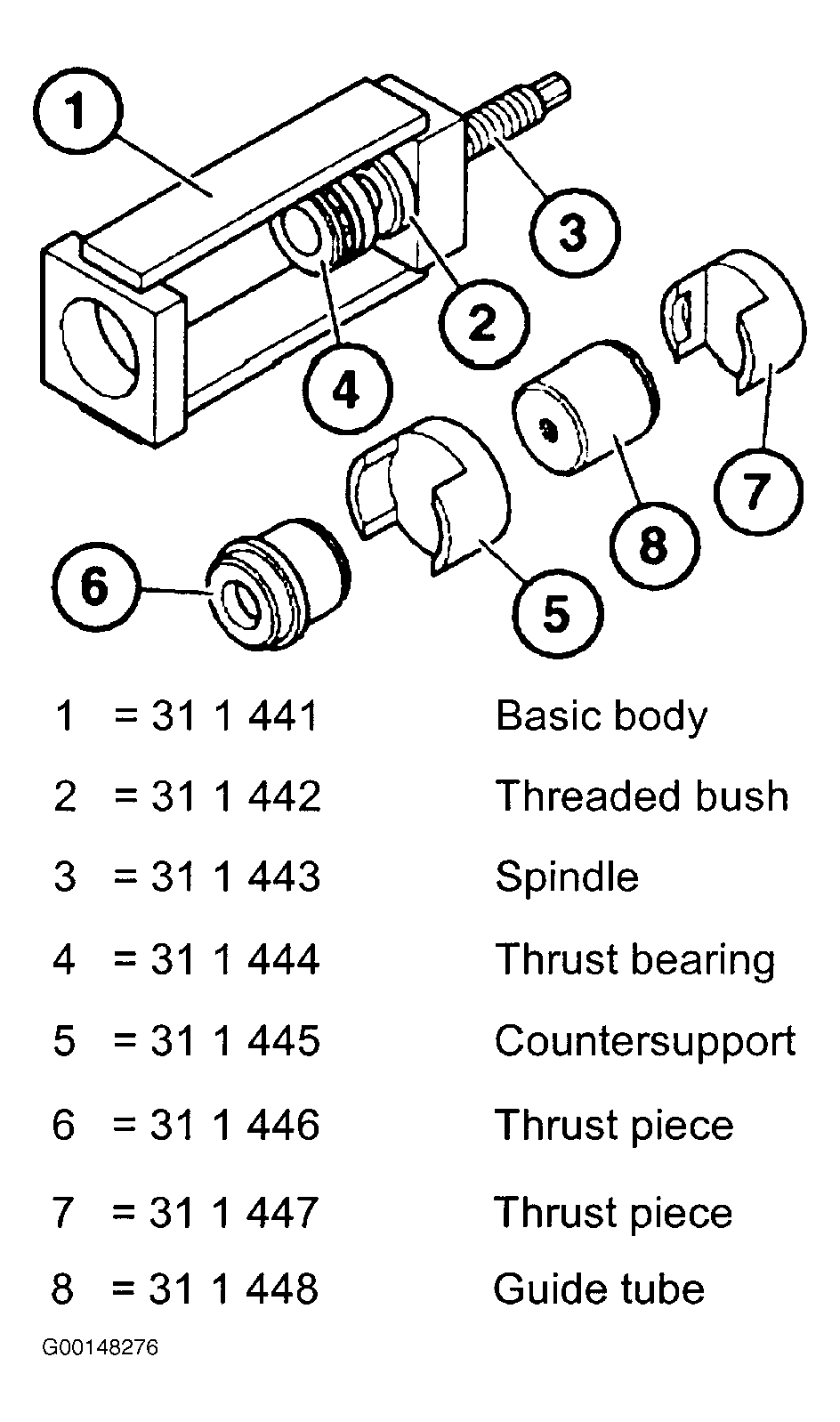

Fig 2: Identifying Fixture (31 1 440)

G00148276

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Puller Fixture (33 4 400)

G00148271

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Removal & Installation Tool (33 2 110)

G00103357

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Removal & Installation Tool (31 2 130)

G00148274

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Identifying Set Of Tools (33 4 200)

G00148272

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Identifying Spring Holder Set (31 3 350)

G00148275

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Identifying Wrench Socket (31 2 080)

G00148273

Courtesy of BMW OF NORTH AMERICA, INC.
