Wheel Bearing: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support front of vehicle. Remove wheel assembly.
  2. Remove brake caliper and wire aside.
  3. Remove ABS sensor and brake rotor. See appropriate article in BRAKES.
  4. Remove hub grease cap and discard. See Fig 1 .
  5. Unlock axle hub collar nut stakes using a hammer and chisel. See Fig 2 .
  6. Using Socket (31 2 080), remove collar nut and discard. See Fig 3 .
  7. Using wheel lug bolts, attach Fixture (33 2 116) to front hub. Attach Puller (33 4 201/202/203) to fixture and remove hub assembly. See Fig 4 .
  8. When inner bearing race remains on stub axle, remove dust guard plate. See Figure .
  9. Using Puller (00 7 500) and Adapter (31 2 106), pull inner bearing race off stub axle. See Fig 5 .
Fig 1: Removing Grease Cap
G00148264Courtesy of BMW OF NORTH AMERICA, INC.

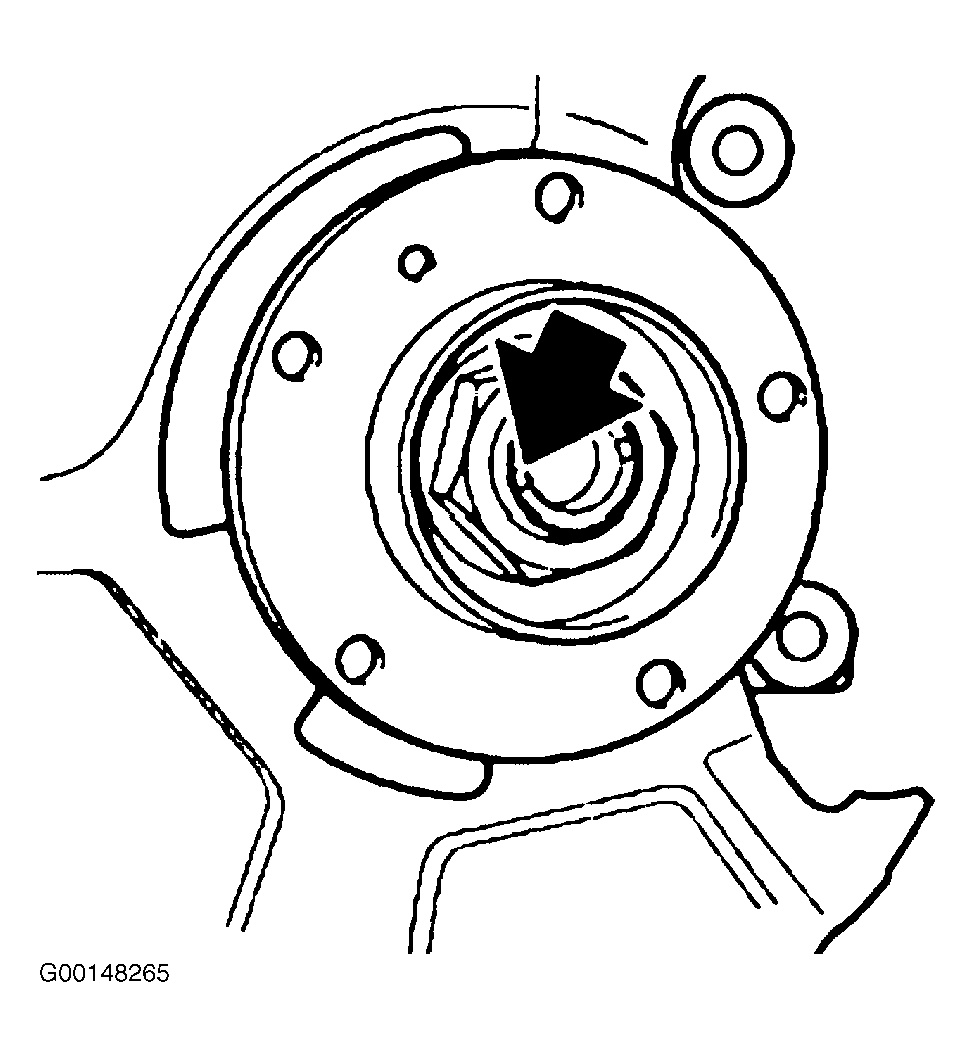

Fig 2: Unlocking Collar Nut
G00148265Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Unscrewing Collar Nut
G00148266Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Removing Drive Flange
G00103328Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Removing Inner Bearing Race
G00079068Courtesy of BMW OF NORTH AMERICA, INC.
