Strut Assembly: Removal
WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When replacing strut, ensure replacement strut is marked with the same code (K) as the old strut. See Fig 1
.
- Raise and support vehicle. Remove front wheel assembly.
- Remove wire harness and brake lines from strut assembly.
- Screw in a wheel lug bolt and suspend wheel bearing assembly from body with wire.

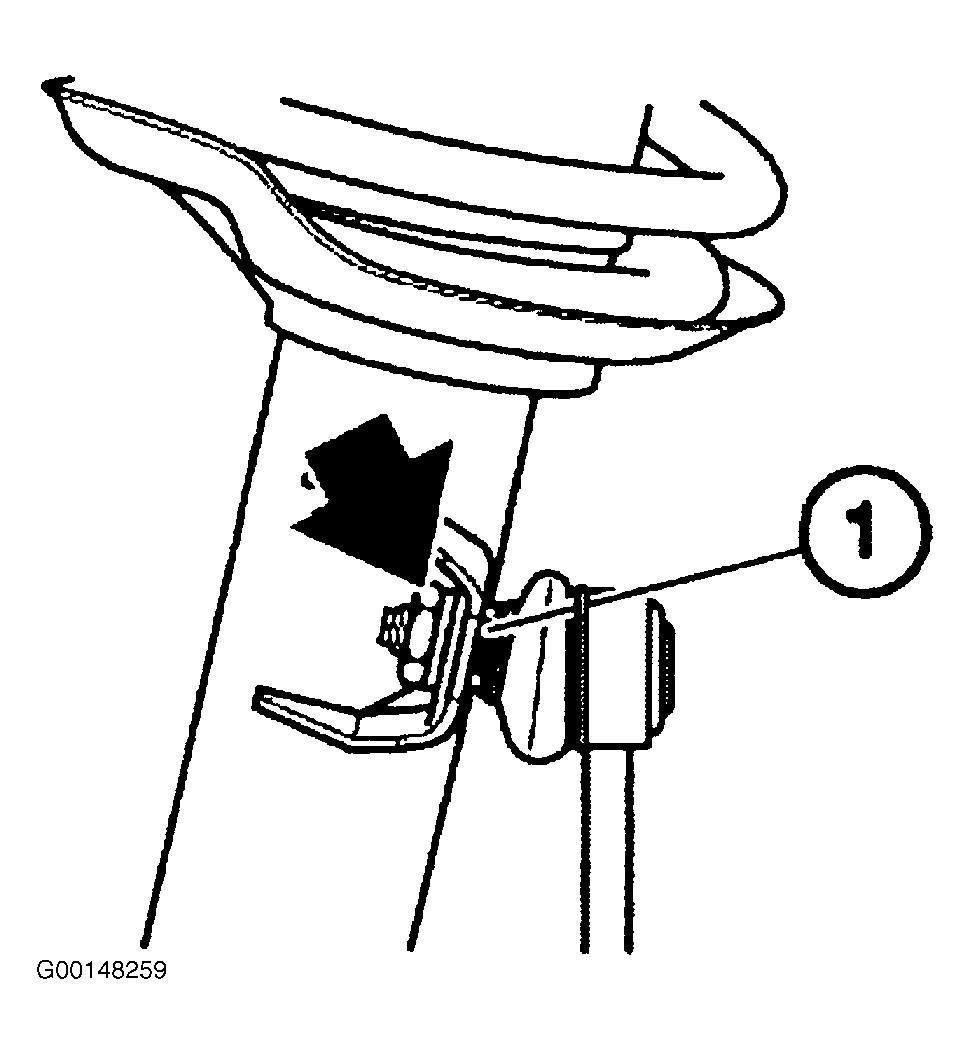

- Disconnect stabilizer bar link from strut. See Fig 2 .
- Remove 2 strut-to-steering knuckle bolts and discard. See Figure .
- Remove upper strut-to-steering knuckle bolt and lock nut. See Figure .
- Remove 3 strut retaining nuts from top of strut tower. See Figure .
- Remove strut assembly.
