Control Arm: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support front of vehicle. Remove front wheel.
  2. Disconnect stabilizer bar link from control arm. Release nut (1). See Figure .
  3. Install one wheel lug bolt and install a piece of wire from lug bolt to coil spring to prevent brake hose damage. See Fig 1 .
  4. Loosen nut until it contacts spring strut. See Fig 2 .
  5. Remove 2 strut-to-steering knuckle bolts and discard. See Fig 3 .
  6. Remove upper strut-to-steering knuckle bolt and lock nut. Remove control arm-to-steering knuckle ball joint nut and discard. See Fig 4 .
  7. Using Ball Joint Separator (31-2-160), separate control arm-to-steering knuckle ball joint. Remove grease from bore and pin. See Fig 5 .
  8. Remove tie-rod from control arm and suspend tie-rod aside. Remove control arm bracket-to-subframe bolts. See Figure .
  9. Unscrew nut and knock ball joint loose with a plastic hammer. Remove control arm. See Fig 6 .
  10. Remove grease from bore and pin.

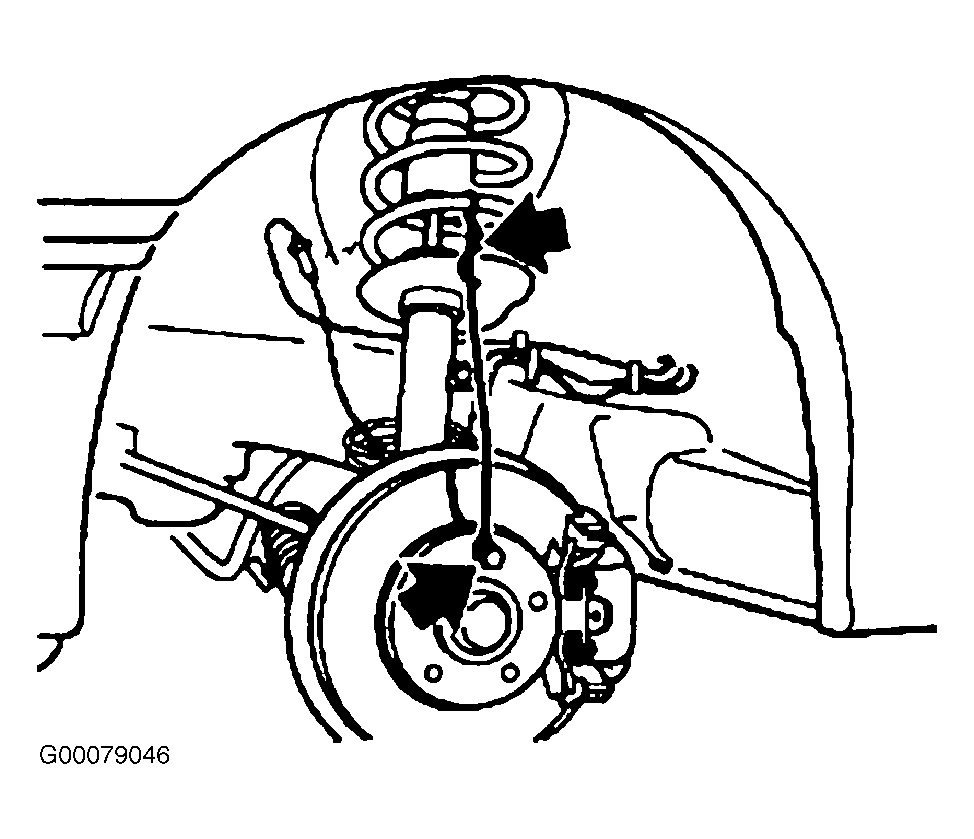

Fig 1: Suspending Spindle
G00079046Courtesy of BMW OF NORTH AMERICA, INC.

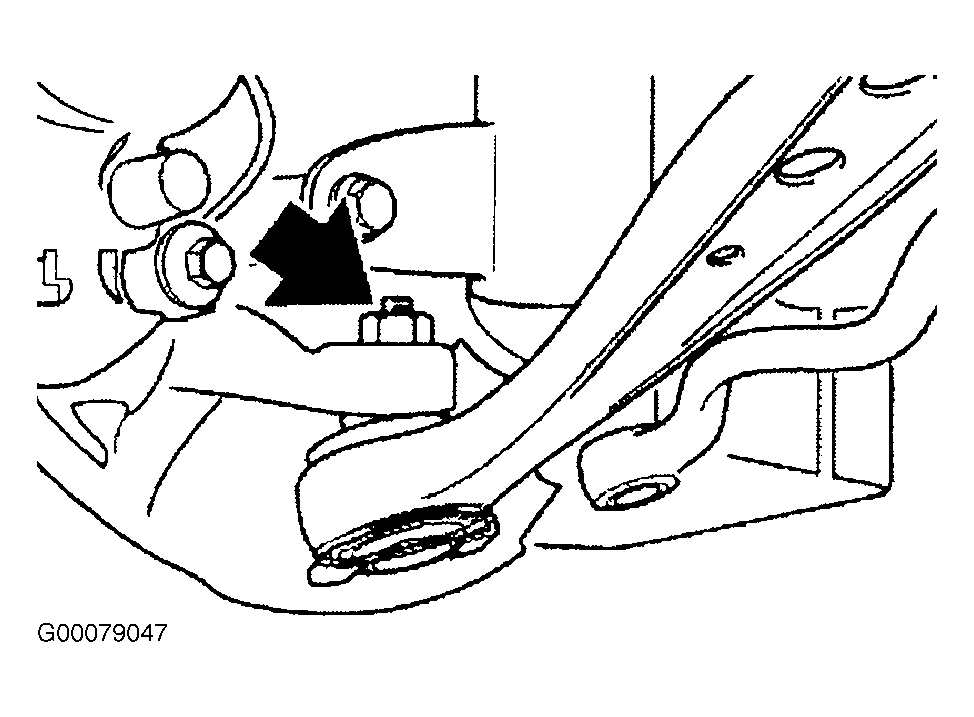

Fig 2: Locating Control Arm-To-Steering Knuckle Ball Joint
G00079047Courtesy of BMW OF NORTH AMERICA, INC.

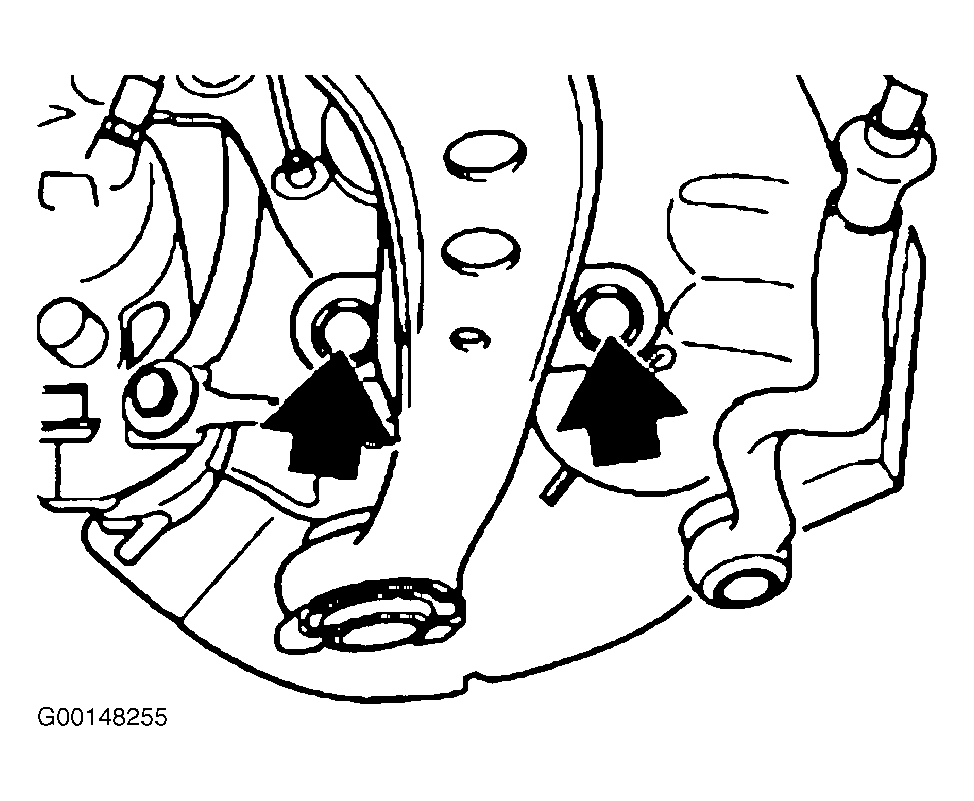

Fig 3: Removing Bolts In Steering Knuckle
G00148255Courtesy of BMW OF NORTH AMERICA, INC.

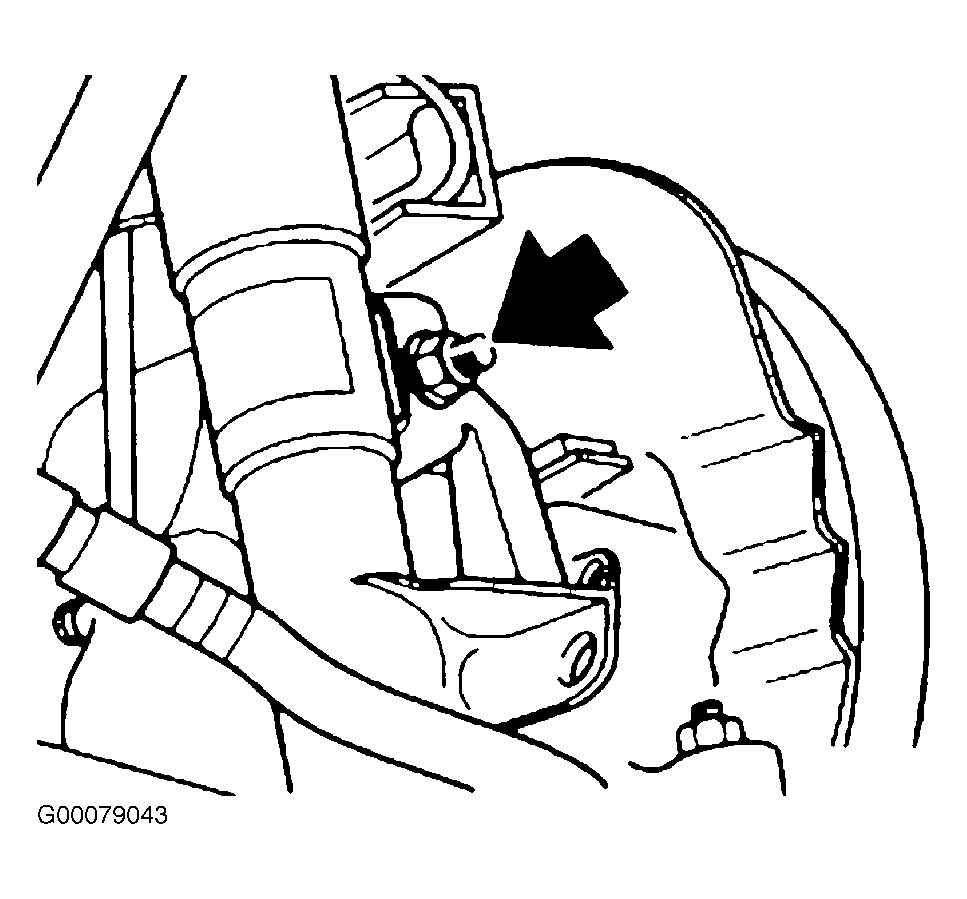

Fig 4: Locating Upper Strut-To-Steering Knuckle Bolt
G00079043Courtesy of BMW OF NORTH AMERICA, INC.

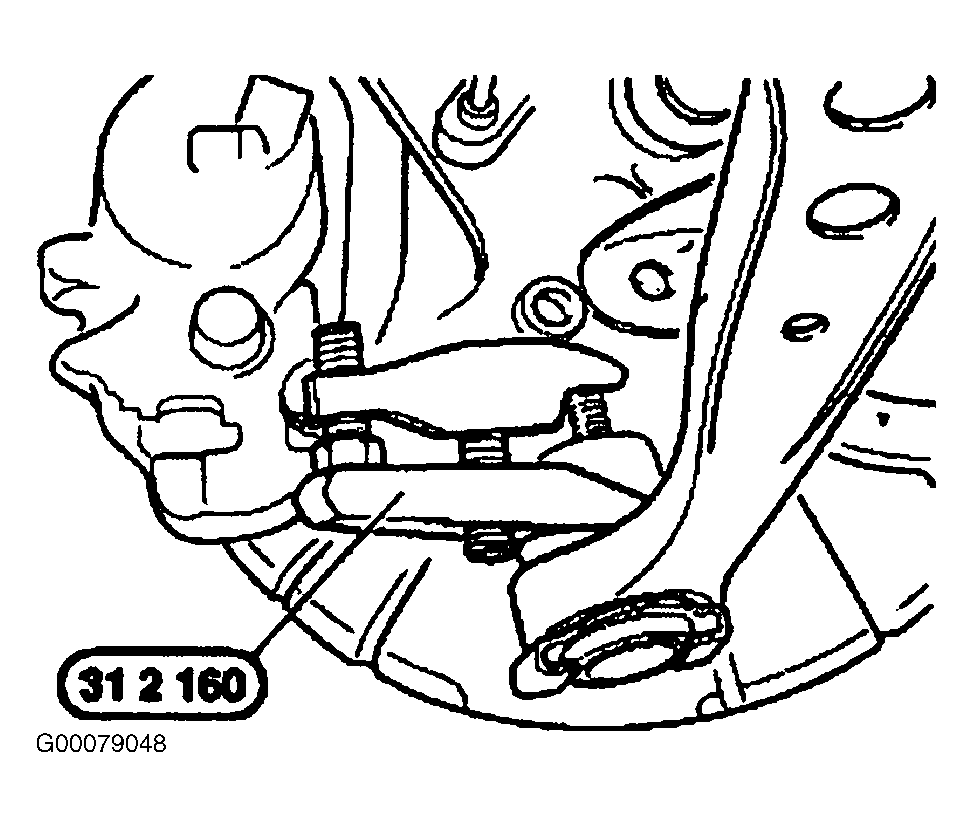

Fig 5: Separating Control Arm-To-Steering Knuckle Ball Joint
G00079048Courtesy of BMW OF NORTH AMERICA, INC.

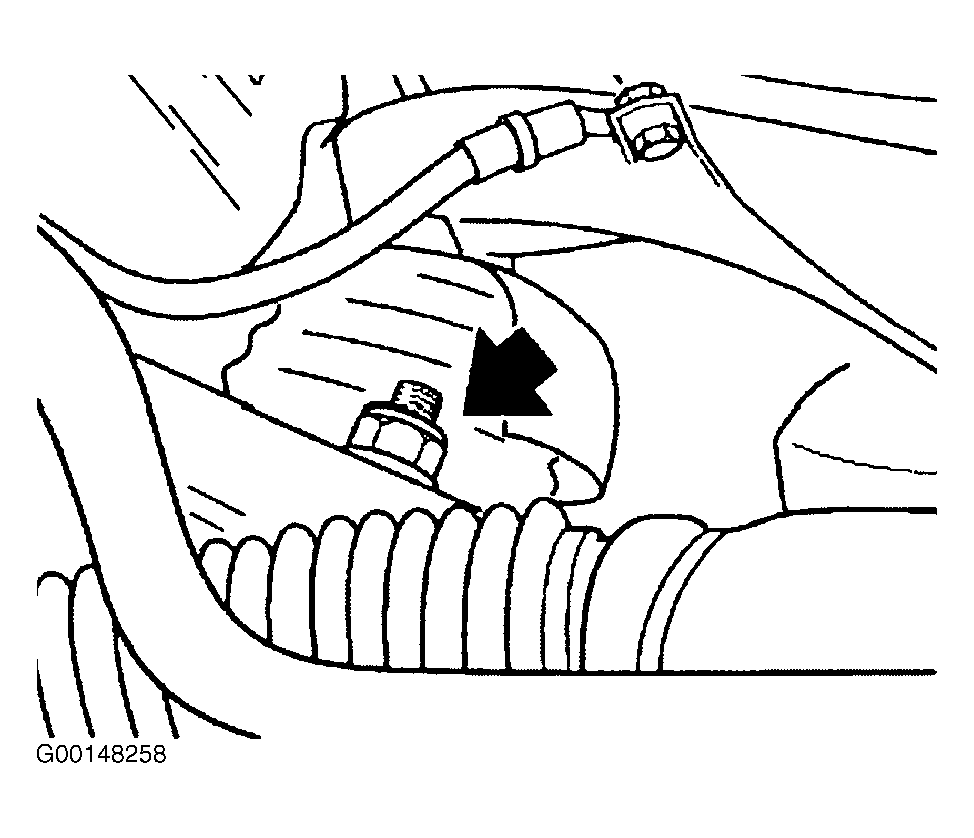

Fig 6: Locating Control Arm Nut
G00148258Courtesy of BMW OF NORTH AMERICA, INC.
