Control Arm Bushings: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control arm. See CONTROL ARM  .
  2. Center punch control arm pin. See Fig 1 .
  3. Unfasten bolts. See Fig 2 .
  4. Mark, measure and note bracket/bushing installation position for installation purposes. See Fig 3 .
  5. Using Puller (00-7-500) and Adapter (31 2 151), remove control arm bracket with bushing. See Fig 4 .
  6. Using a press and Adapter (31 2 130), press bushing out of bracket. See Fig 5 .
Fig 1: Center Punching Control Arm Pin
G00079057Courtesy of BMW OF NORTH AMERICA, INC.

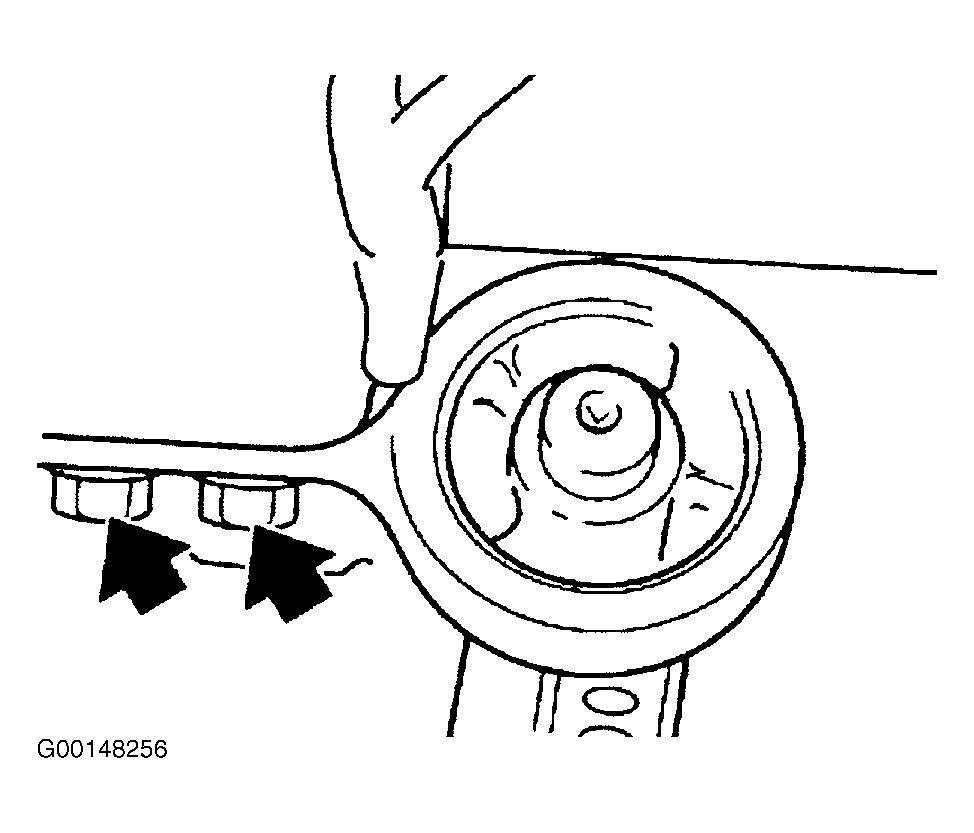

Fig 2: Locating Bushing Bracket Bolts
G00148256Courtesy of BMW OF NORTH AMERICA, INC.

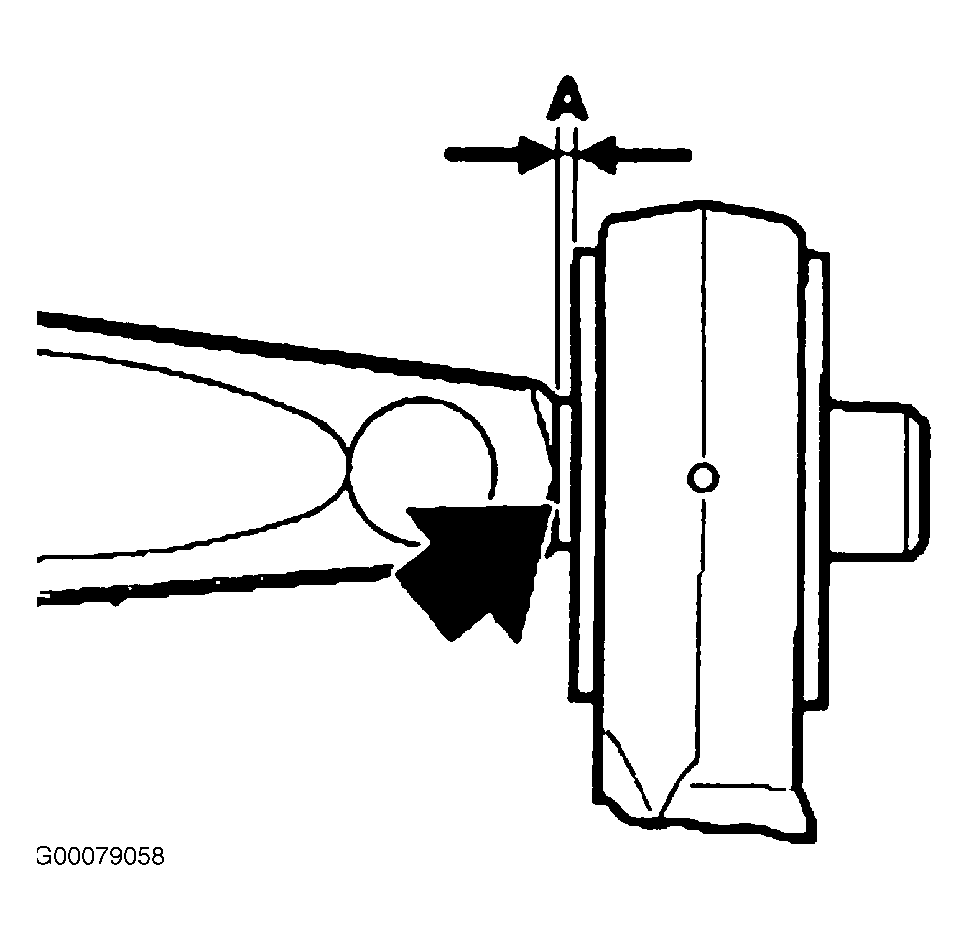

Fig 3: Measuring Bushing Installation Position
G00079058Courtesy of BMW OF NORTH AMERICA, INC.

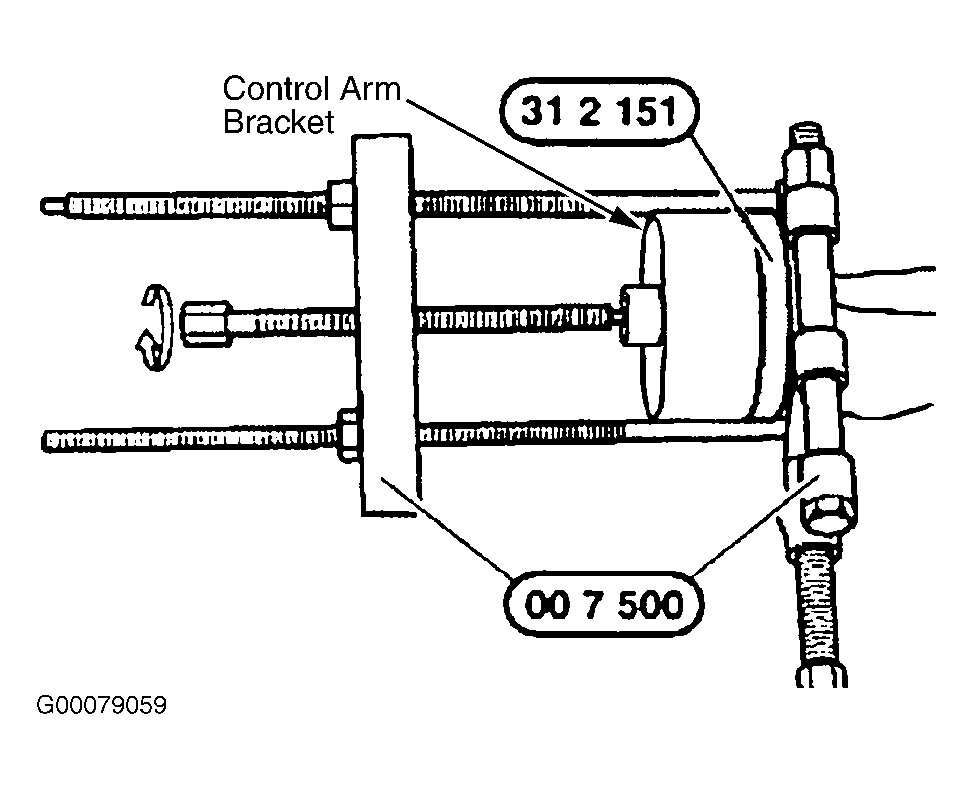

Fig 4: Removing Control Arm Bracket
G00079059Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Removing Control Arm Bushing
G00079060Courtesy of BMW OF NORTH AMERICA, INC.
