Control Arm Bushings: Installation

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean bushing bore in bracket. Align arrow on bushing with mark on bracket and press bushing into beveled bore in bracket using a press and Adapter (31 2 130). See Fig 1 .
  2. Ensure bushing protrusion is equal on both sides of bracket.
  3. Check rubber mounts (except M3). With vehicle in normal position and using a feeler gauge, measure gap in bushing. If gap "A" is not .01-.05" (0.3-1.3 mm), replace bushing. See Fig 2 .
  4. Coat control arm pin with anti-friction agent (turpentine substitute). Using Installer (31 2 152/153/154 and 00 7 501), install bracket and bushing onto control arm pin to previously measured position. See Fig 3 .
  5. Ensure bracket centering bores point toward engine carrier. See Fig 4 .
  6. CAUTION: Use washers, tighten control arm bracket bolts and lower vehicle to normal position immediately to prevent serious impairment of handling.
  7. Install control arm to vehicle, tighten control arm bracket bolts to specification and immediately lower vehicle to normal position. Leave vehicle in normal position for at least 30 minutes. After 30 minutes, anti-friction agent will be evaporated and control arm will fit tightly and be correctly positioned.
  8. To complete installation, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  .

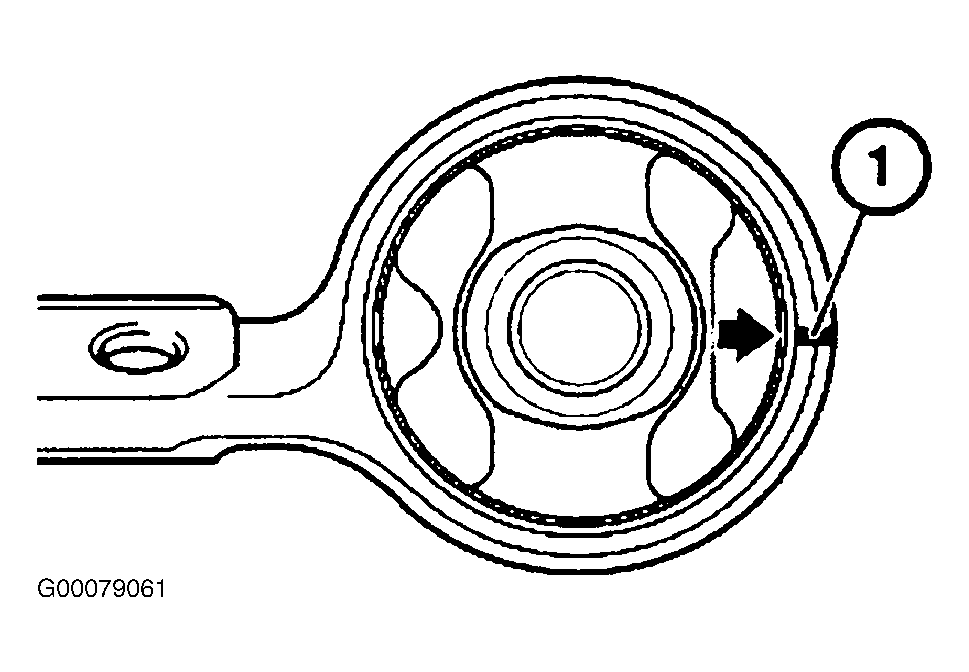

Fig 1: Aligning Bushing & Bracket
G00079061Courtesy of BMW OF NORTH AMERICA, INC.

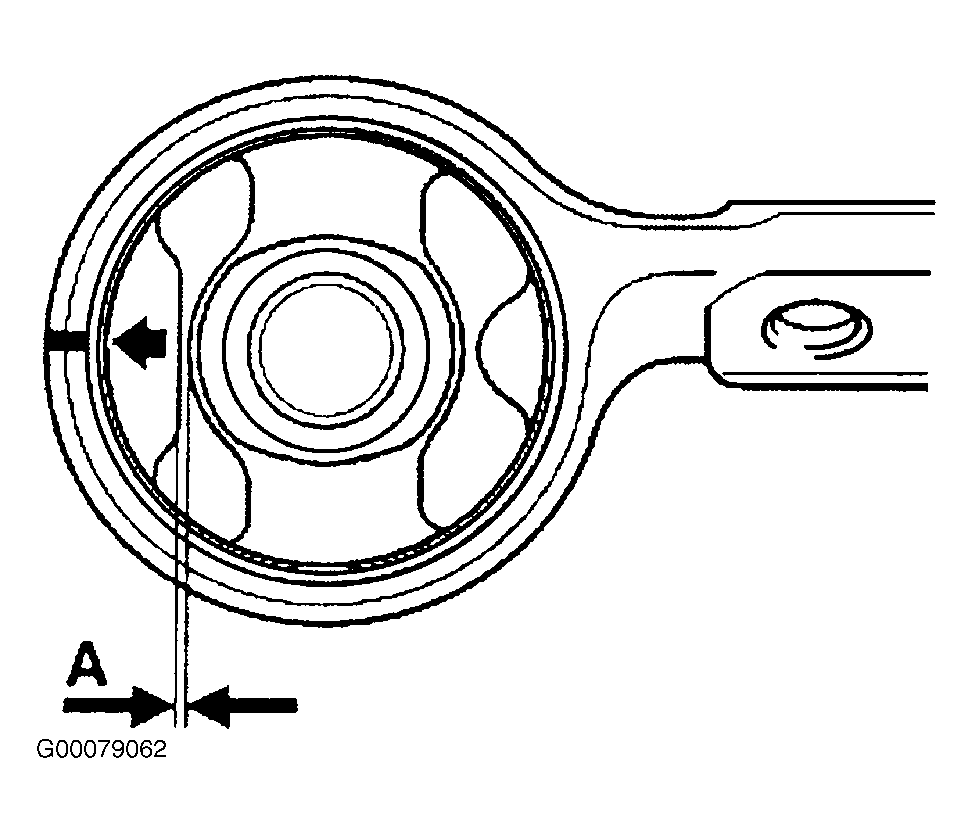

Fig 2: Measuring Bushing Gap
G00079062Courtesy of BMW OF NORTH AMERICA, INC.

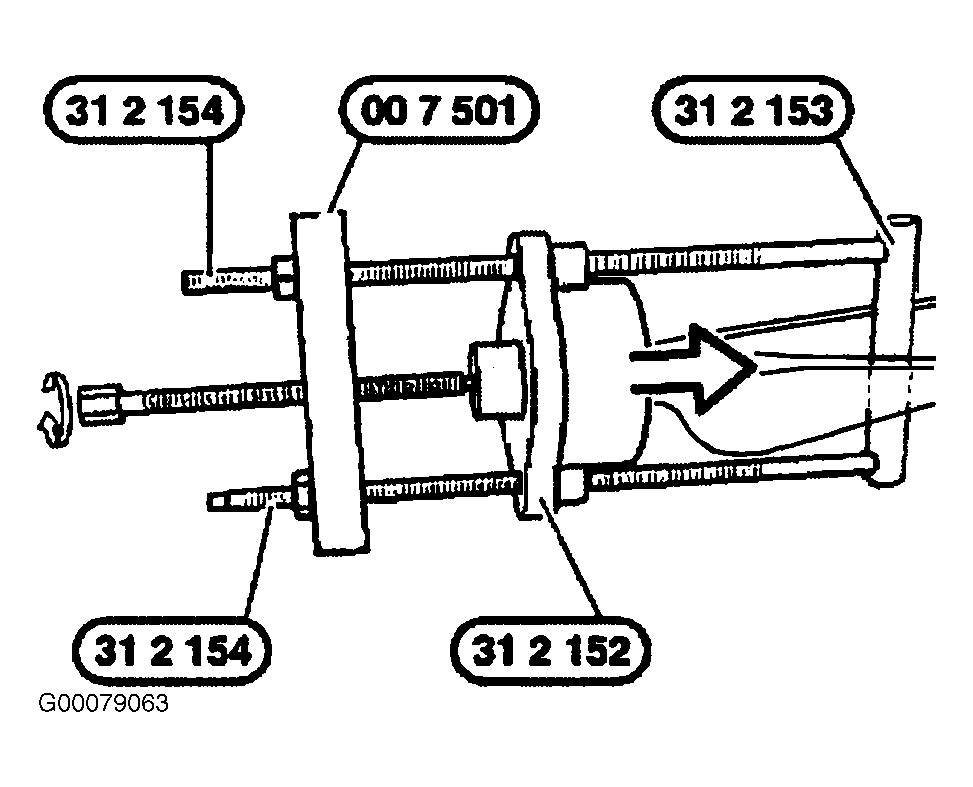

Fig 3: Installing Control Arm Bracket
G00079063Courtesy of BMW OF NORTH AMERICA, INC.

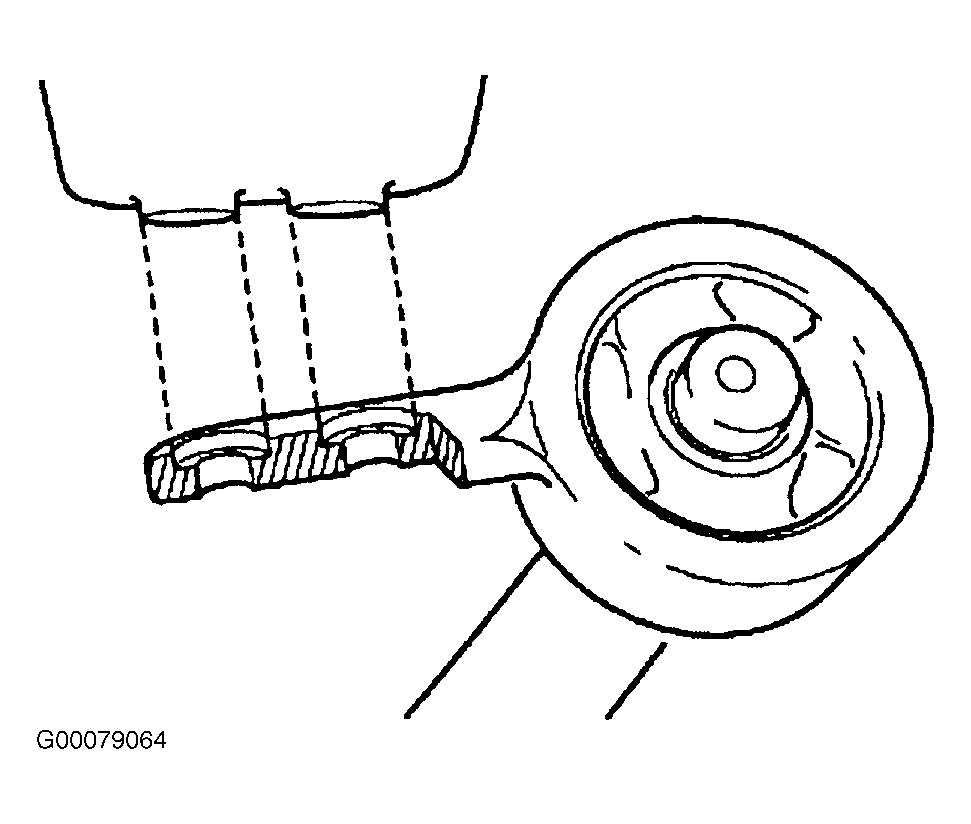

Fig 4: Aligning Bracket Centering Bores
G00079064Courtesy of BMW OF NORTH AMERICA, INC.
