Ball Joint: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support front of vehicle. Remove front wheel assembly. Disconnect stabilizer bar link from control arm. See Fig 1 .
  2. Loosen control arm-to-steering knuckle ball joint nut (1) until it contacts strut. See Fig 2 .
  3. Using a hammer and special tool (31 1 430), with slant of fork (2) facing downward, separate control arm from steering knuckle. See Fig 2 .
  4. Mark ball joint installation position for installation purposes. See Fig 3 .
  5. Remove nut and discard.
  6. Pull axle assembly outward and place a bar or similar device in place to hold assembly out for ball joint access. See Fig 4 .
  7. Using Ball Joint Remover/Installer (31 1 441/443/445/446), remove ball joint. See Fig 5 .
Fig 1: Exploded View Of Stabilizer-To-Control Arm
G00079045Courtesy of BMW OF NORTH AMERICA, INC.

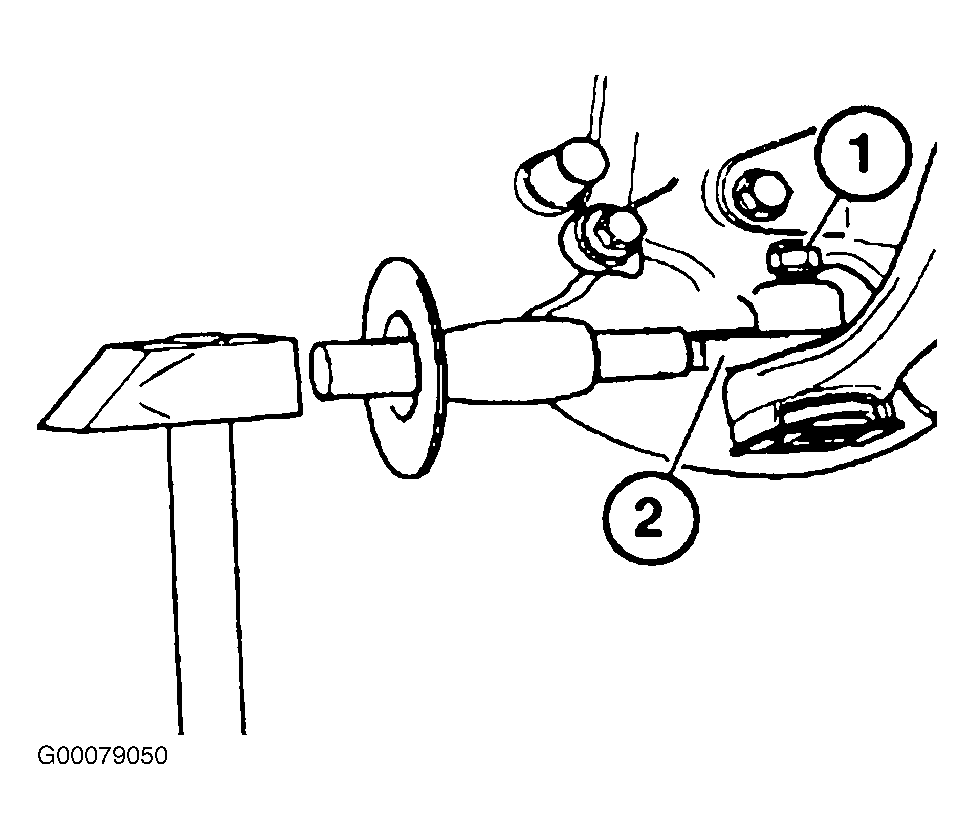

Fig 2: Separating Control Arm From Steering Knuckle
G00079050Courtesy of BMW OF NORTH AMERICA, INC.

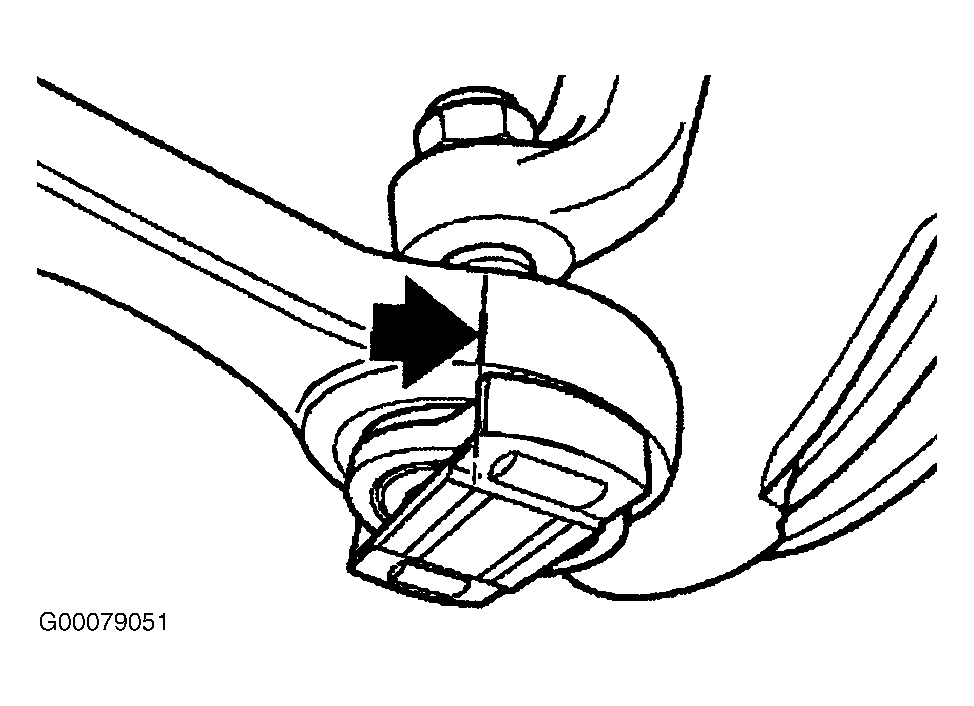

Fig 3: Marking Ball Joint Installation Position
G00079051Courtesy of BMW OF NORTH AMERICA, INC.

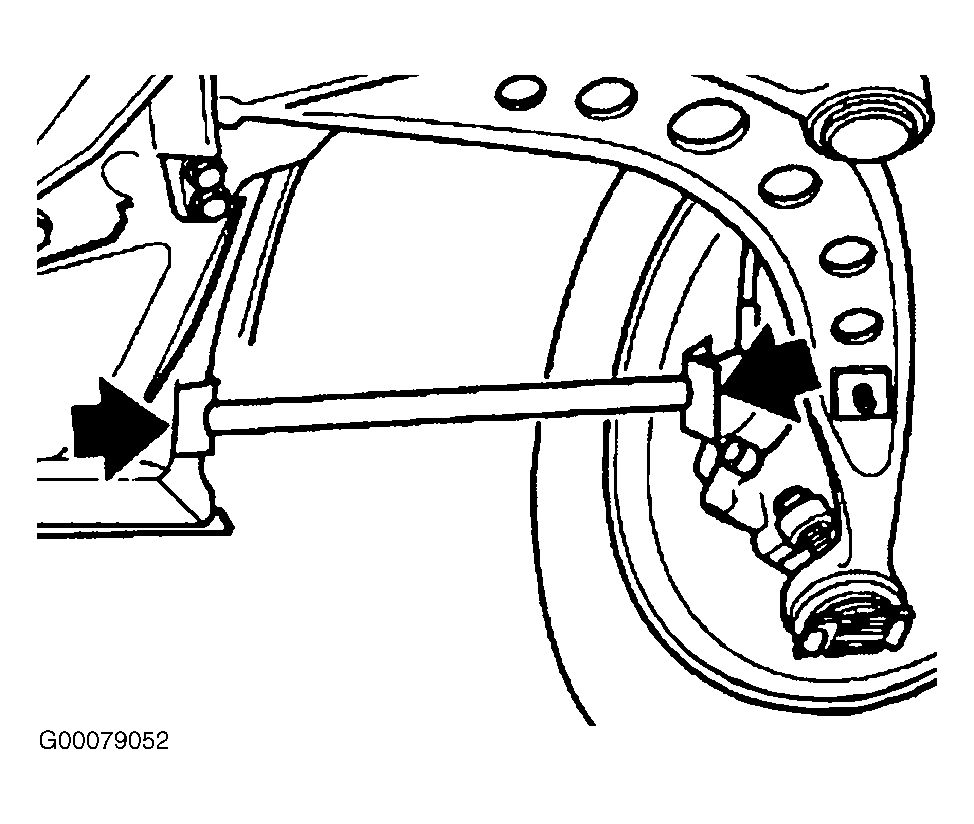

Fig 4: Inserting Bar
G00079052Courtesy of BMW OF NORTH AMERICA, INC.

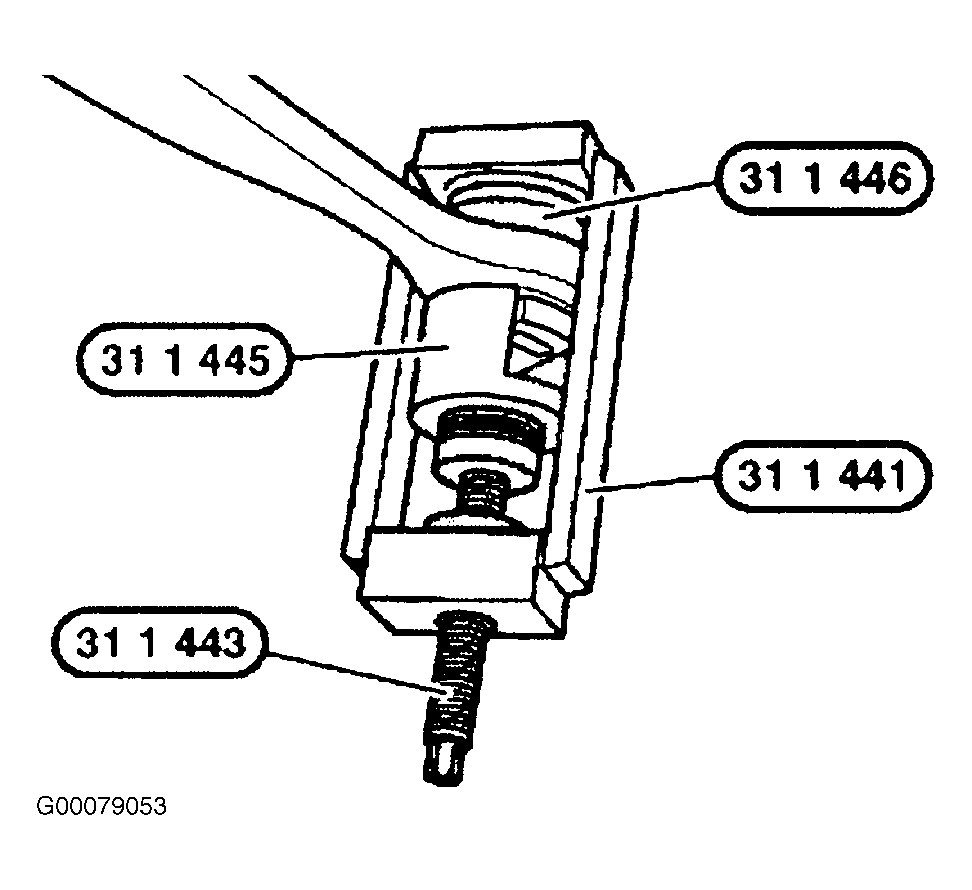

Fig 5: Removing Ball Joint
G00079053Courtesy of BMW OF NORTH AMERICA, INC.
