Section 50 (Front Suspension - Repair - E36): Description
WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

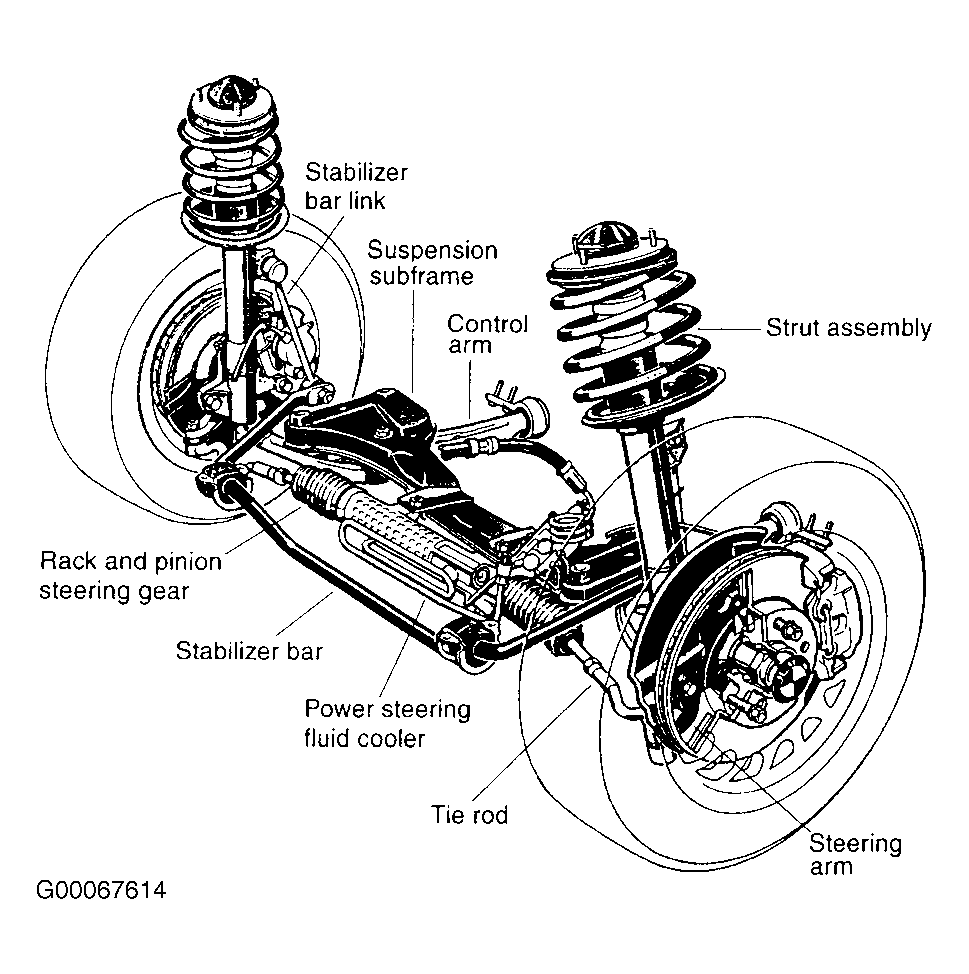

All models use MacPherson strut type front suspension systems, which consist of vertically mounted strut assemblies directly attached to steering knuckles. Steering knuckles are connected to the axle carriers through control arms. See Fig 1 . A stabilizer bar is attached through links to the strut assembly and the control arm.
