12 42 510 Replacing battery positive lead Z3 M54 (between starter motor and B+ support point)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Read fault memory. Switch off ignition.

Observe safety instructions for handling vehicle battery. Refer to 61 00 ... SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .

Remove front underbody protection.

Observe instructions for disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect battery negative lead from battery and lay to one side.

Unclip battery positive lead by undoing clips.

Feed battery positive lead (1) out of cable duct.

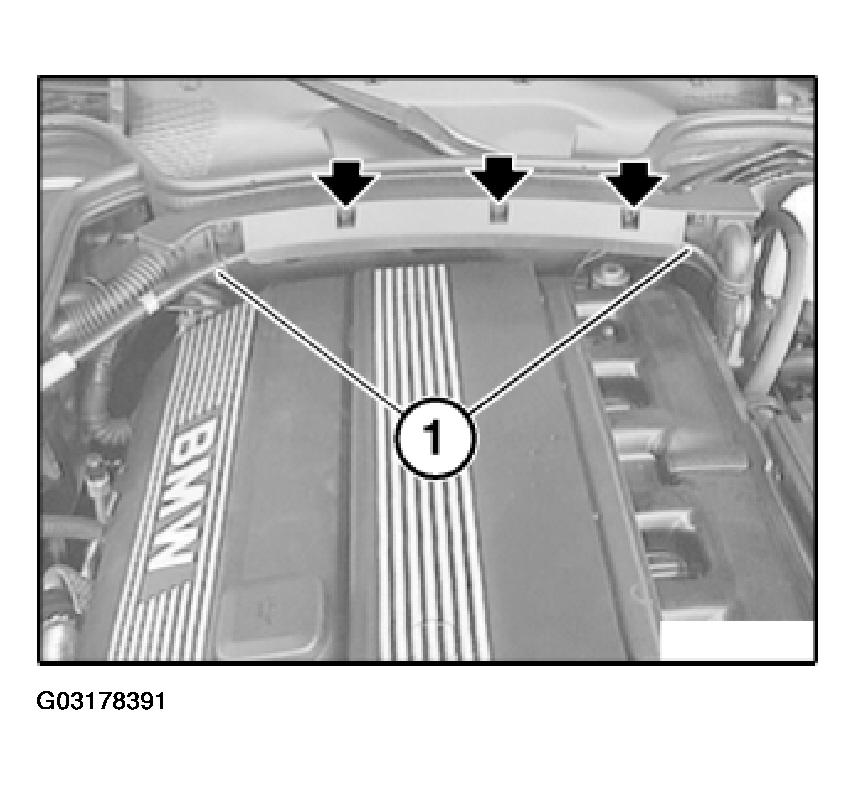

Fig 1: Feeding Battery Positive Lead Out Of Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Fold cover cap (1) down.

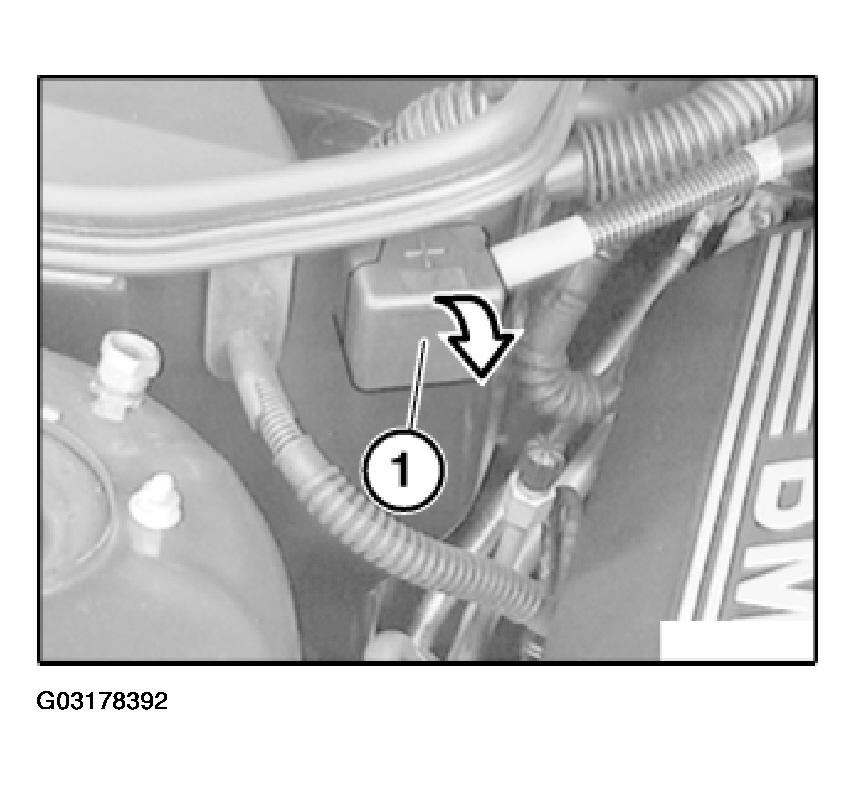

Fig 2: Folding Cover Cap Down

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2).

Installation:

Tightening torque, 12 51 4AZ. Refer to 12 51 ENGINE WIRING HARNESS .

Disconnect battery positive lead (3) from connection point.

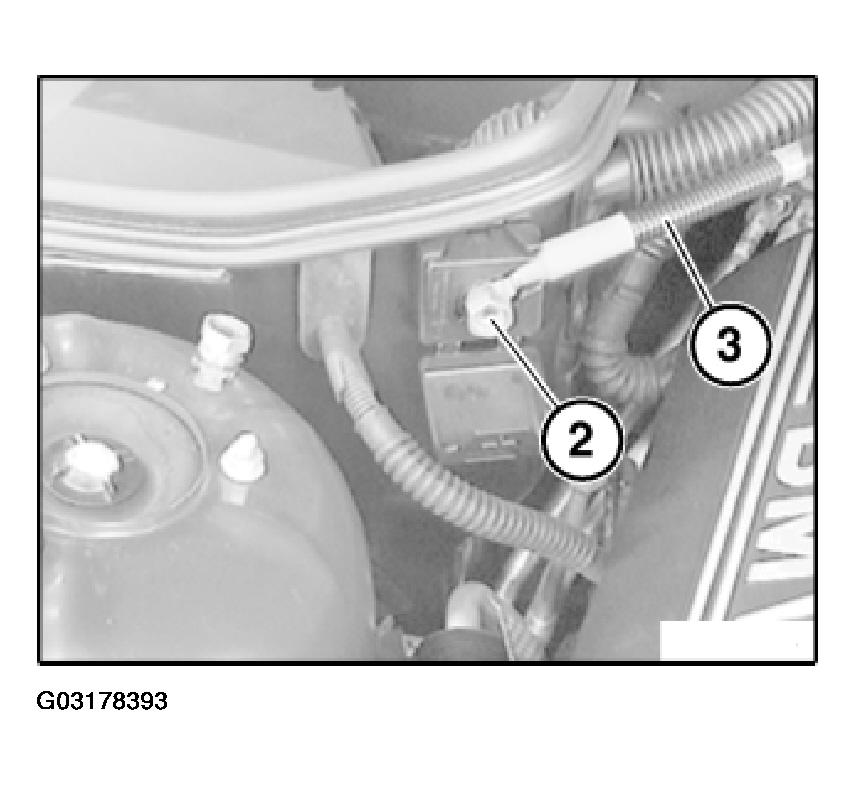

Fig 3: Disconnecting Battery Positive Lead From Connection Point

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1).

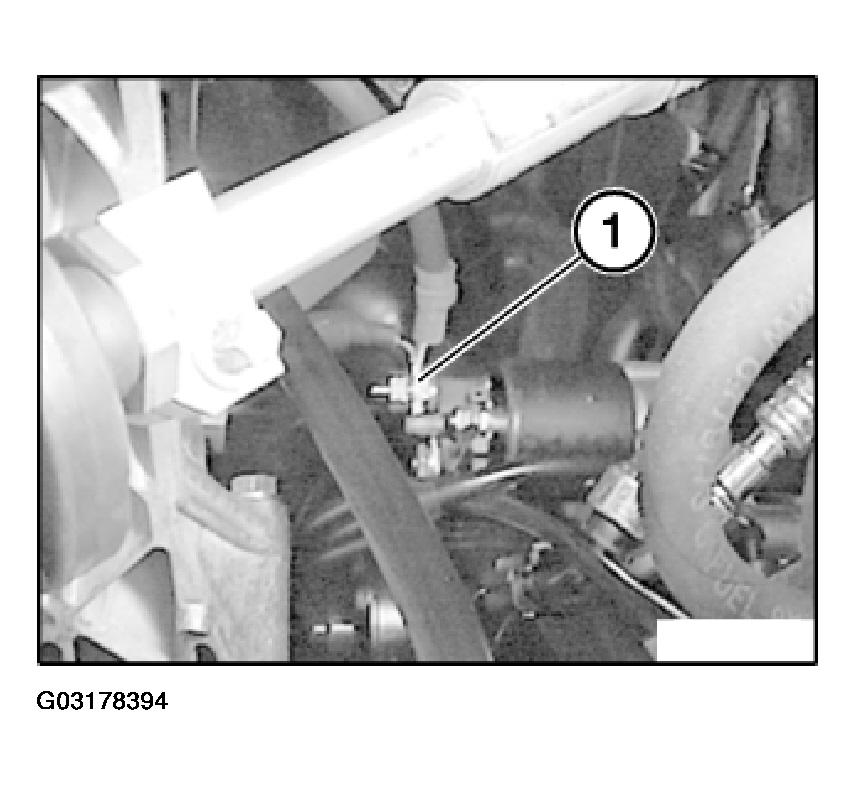

Fig 4: Disconnecting Battery Positive Lead From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 12 41 4AZ. Refer to 12 41 STARTER AND MOUNTING PARTS .

Disconnect battery positive lead from starter motor.

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
