11 13 000 Removing and installing oil sump (M52 / S52 / M52TU / M54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To remove the oil sump, you must lower the front axle support. There is no need to perform a front axle alignment check.

Remove intake filter housing with air-mass flow sensor.

Remove engine splash guard.

Drain engine oil. Refer to 00 00 250 BMW ENGINE OIL SERVICE INCL. SUPPLEMENTARY SERVICE (M54 / M56) .

Loosen guide tube for dipstick.

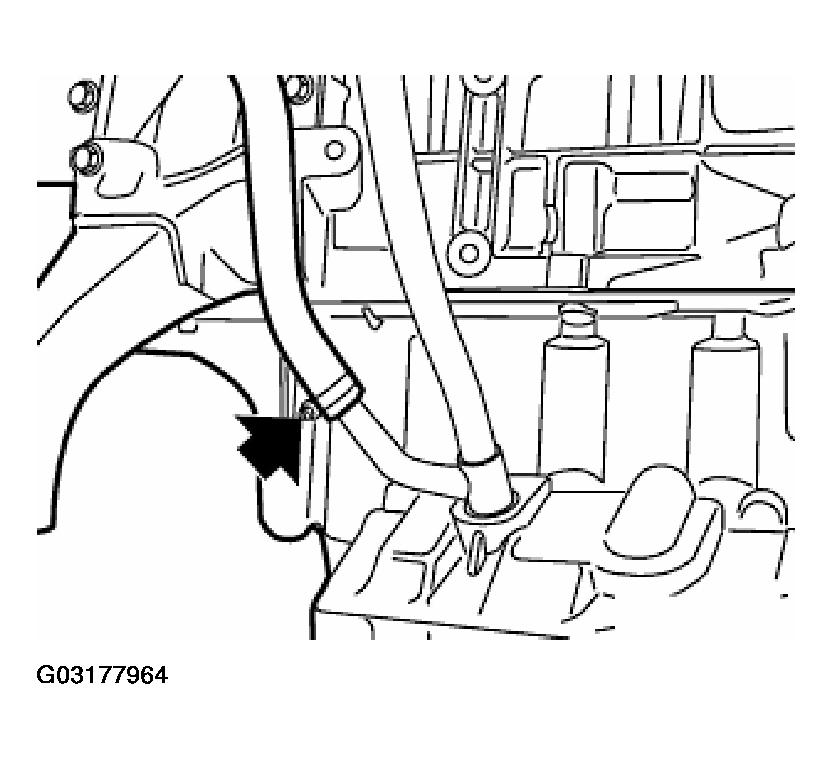

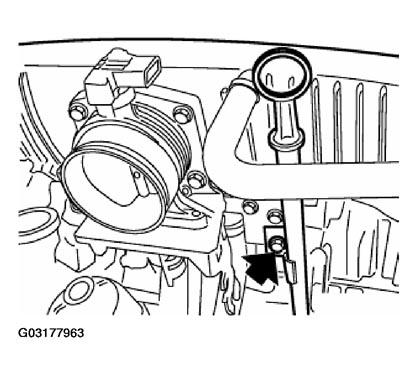

Fig 1: Loosening Guide Tube For Dipstick

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil return hose from cyclone oil separator on guide tube for oil dipstick.

Pull out guide tube for oil dipstick.

Fig 2: Removing Oil Return Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-ring.

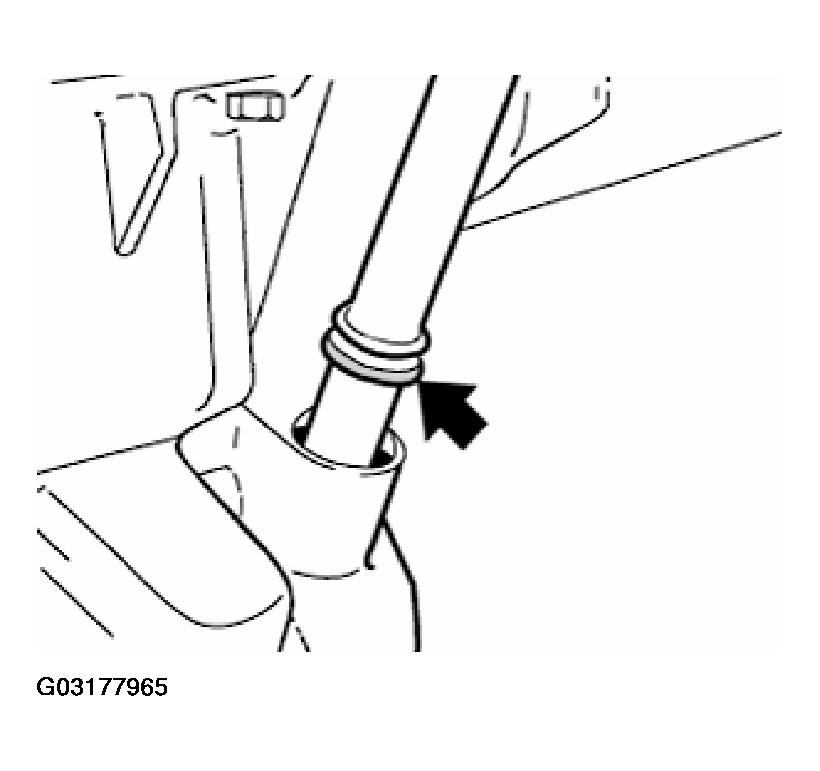

Fig 3: Locating O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 00 0 200, consisting of special tool 00 0 201/202/204/206.

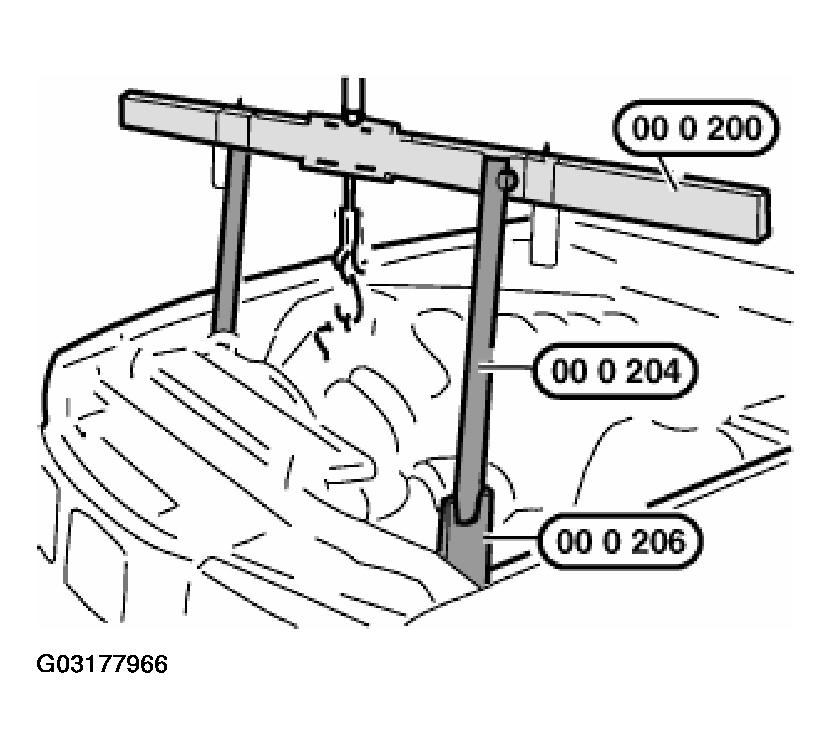

Fig 4: Preparing Special Tool 00 0 200

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip oil lines for power steering unit from bracket on engine support and place to one side.

Fit special tool 00 0 206 to engine mounting.

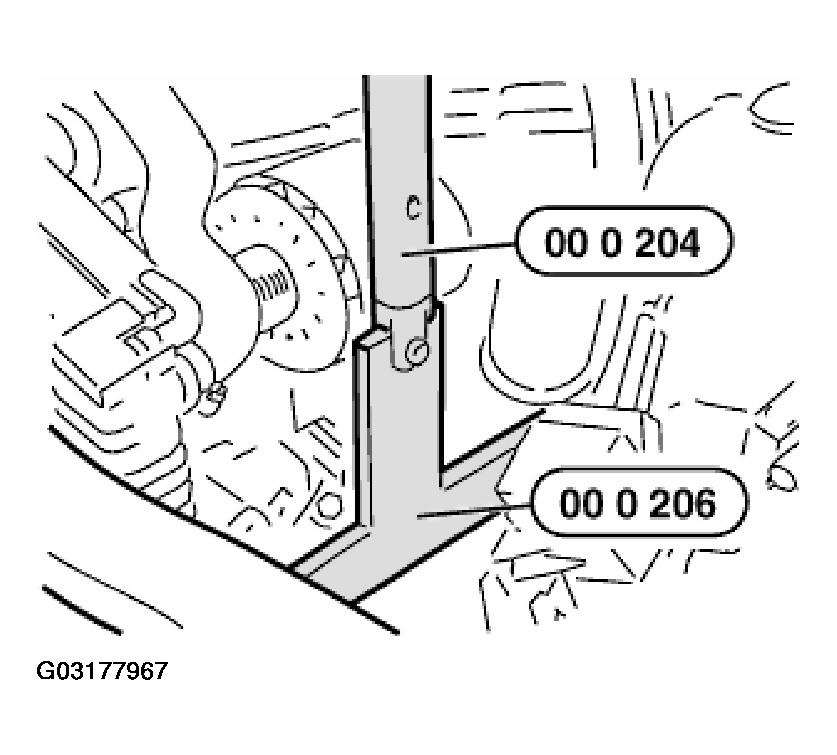

Fig 5: Fitting Special Tool 00 0 206 To Engine Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift engine approx. 5 mm.

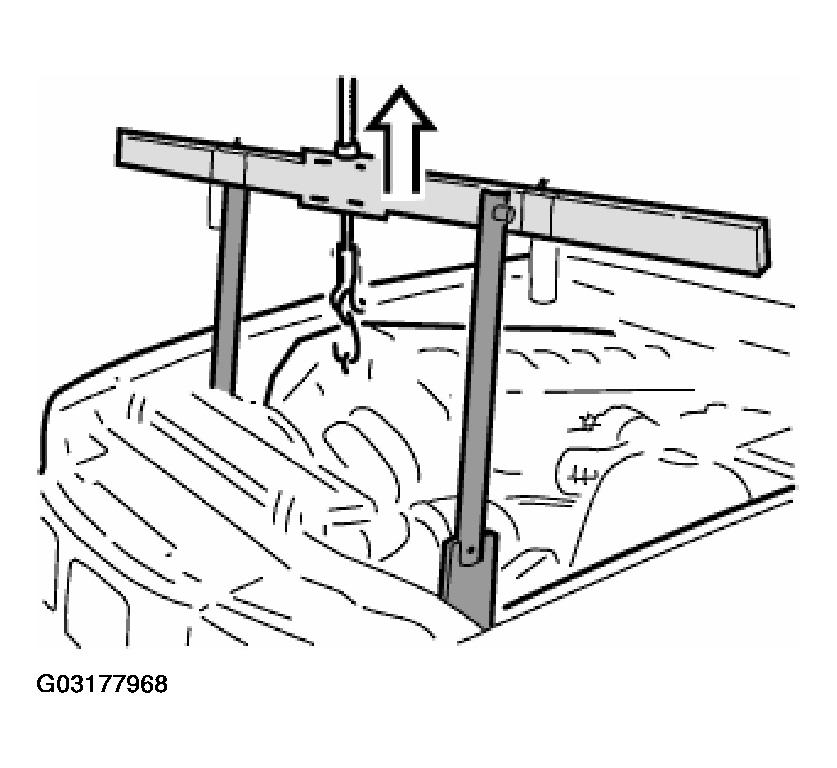

Fig 6: Lifting Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten steering spindle from steering gear. Refer to POWER STEERING GEAR .

Remove vane pump for power steering unit (lines remain connected).

Drain power steering supply tank and tie back to one side (lines remain connected).

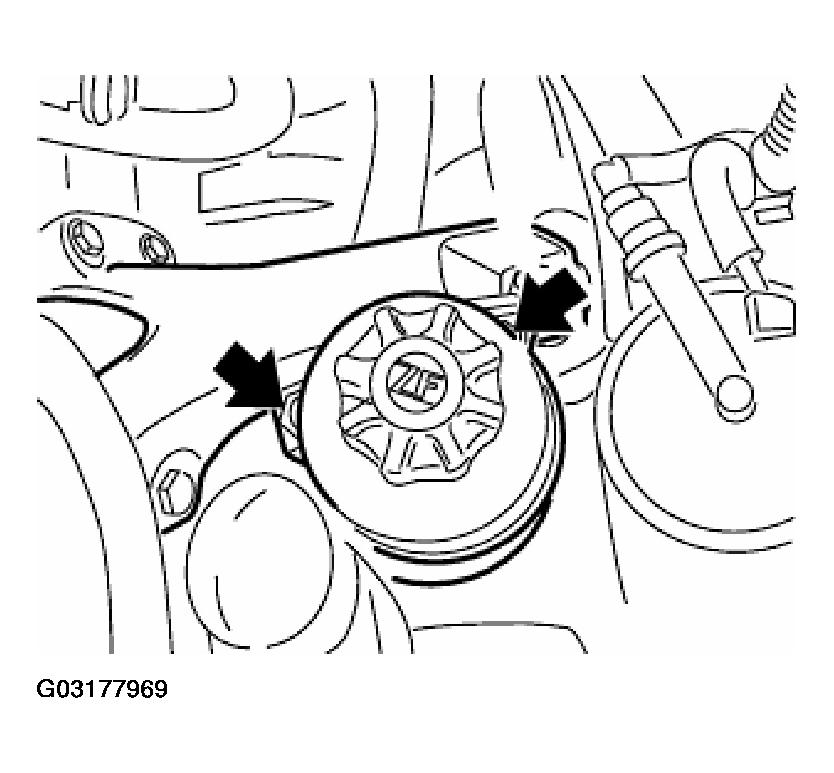

Fig 7: Identifying Power Steering Supply Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen top and unfasten bottom of left and right engine mounts.

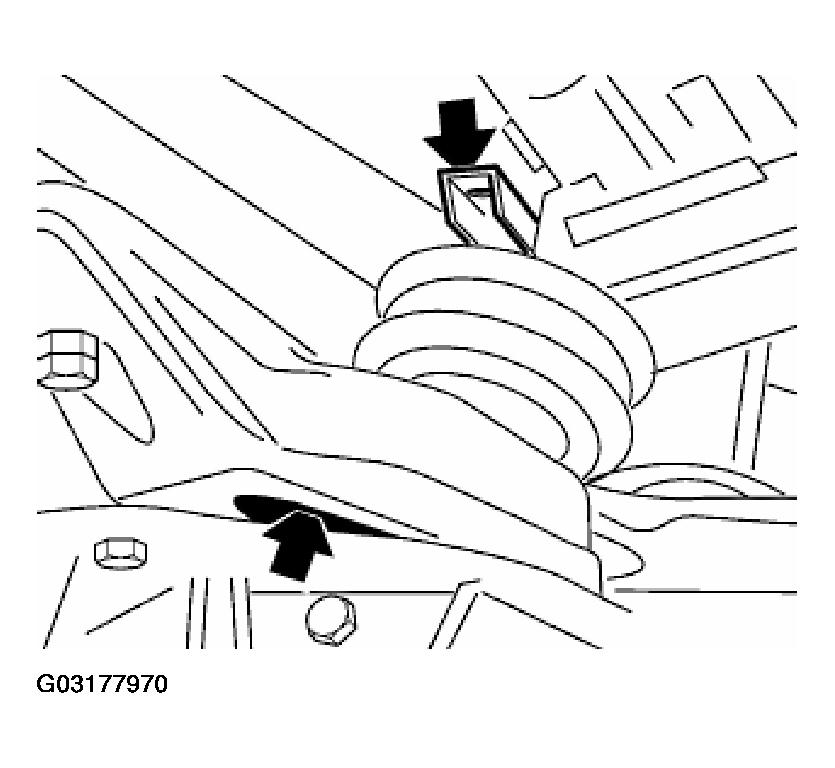

Fig 8: Identifying Bottom Left And Right Engine Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left and right control arm from engine carrier. Unfasten screw connection on front axle support and lower the front axle support. Refer to BALL JOINT .

NOTE: There is no need to detach the steering gear from the front axle support.

Automatic transmission:

Remove oil pipes from oil pan.

Unfasten oil pan screws at transmission and engine ends.

Lower oil pan and pull forwards to remove.

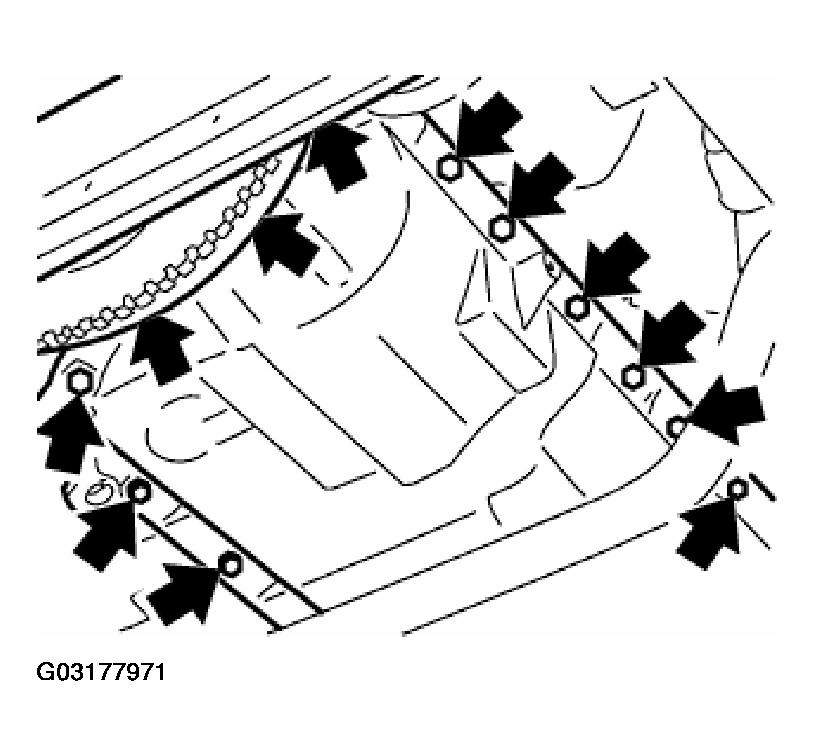

Fig 9: Unfastening Oil Pan Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing faces clean and free of seal debris.

Apply Drei Bond 1209 sealing compound to area around joint approx. 3 mm wide and 2 mm high.

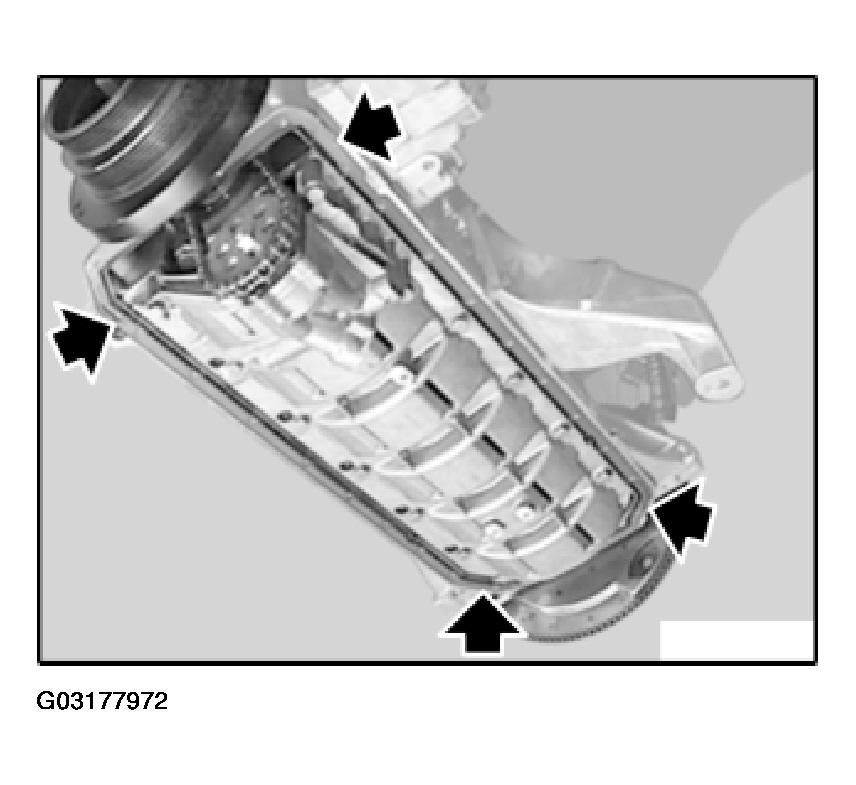

Fig 10: Identifying Sealing Faces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace gasket.
Install oil sump. Refer to 11 13 000 REMOVING AND INSTALLING OIL SUMP (M52 / S52 / M52TU / M54) or 11 13 000 REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (M52TU / M54 / M56) .
Insert all oil sump screws.
Insert screws in transmission end without preload at this stage.
Tighten down screws in engine end.
Tighten down screws in transmission end.
