11 12 600 Reaming a valve guide (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

00 4 210

(Valve removed)

NOTE: In event of excessive clearance between valve stem and valve guide:

Valve guide is reamed and a repair valve with a larger stem diameter is installed.

Assemble reaming tool and guide taper (1) from special tool kit 00 4 210 depending on stem diameter. Press guide taper (1) onto valve seat. Starting from combustion chamber side, ream valve guide dry. Rotate reaming tool once in downwards direction.

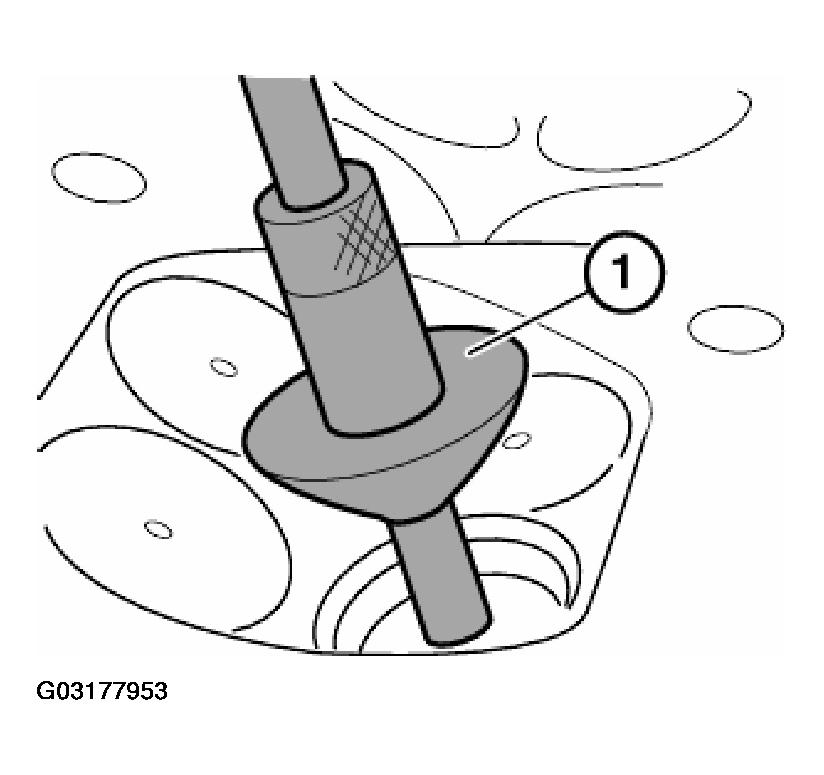

Fig 1: Assembling Reaming Tool And Guide Taper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remachine valve seat after reaming. Refer to 11 12 527 REMACHINING A VALVE SEAT (M52 / S52 / M52TU / M54 / M56) .
