11 31 001 Replacing camshaft (M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

00 9 250
11 2 300
11 3 240
11 3 244
11 3 250
11 3 260
11 3 292
11 4 220
11 6 150
11 6 180

(If necessary inlet or exhaust side)

The inlet or exhaust camshaft can be replaced in the vehicle.

Important!

Incorrect assembly/removal without special tools exposes the camshaft to the risk of preliminary damage or breakage. The valves may also be bent by contact with the piston crown. Comply without fail with the job instructions, recommended special tools and work sequence.

Removal

Removal of camshafts is described separately from installation.

The assembly sequence for removal and installation is different.

Remove VANOS adjustment unit. Refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56) .

Important!

Cylinder for chain tensioning piston is under spring pressure.

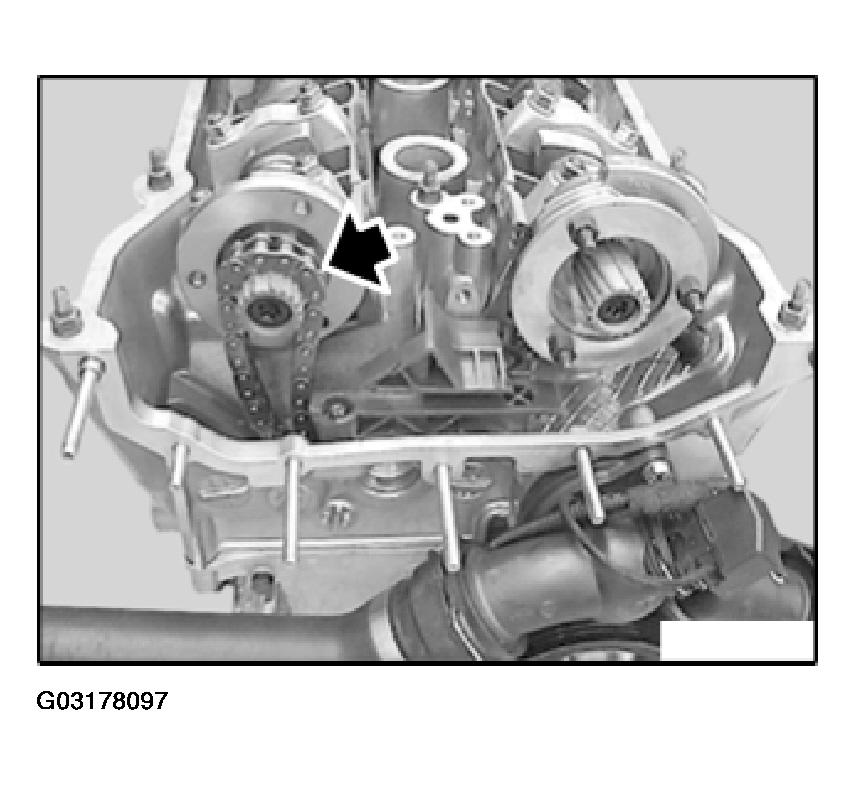

Unfasten cylinder for chain tensioning piston.

Fig 1: Identifying Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

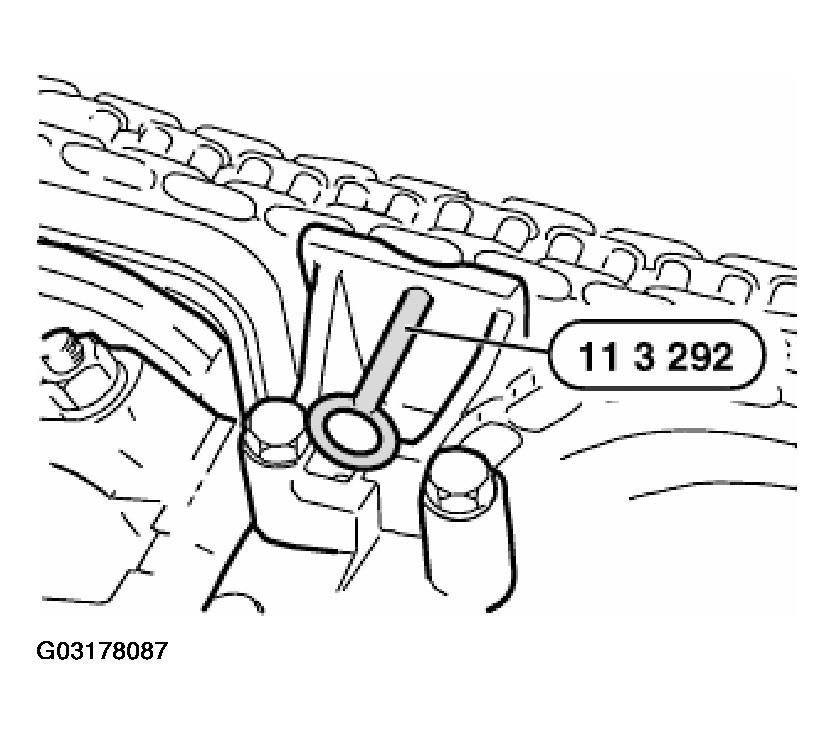

Press down secondary chain tensioner at top and lock with special tool 11 3 292.

Fig 2: Pressing Down And Locking Secondary Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

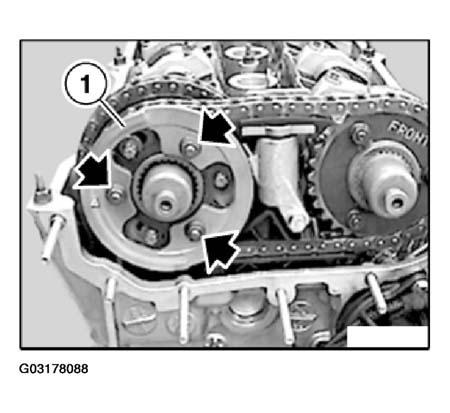

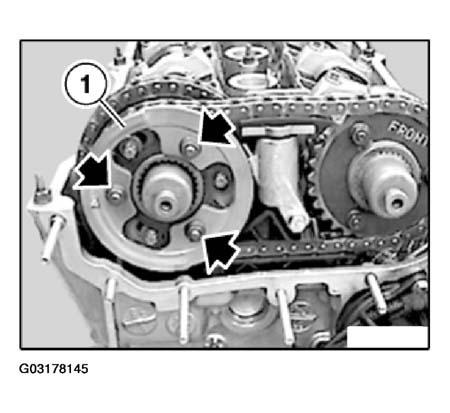

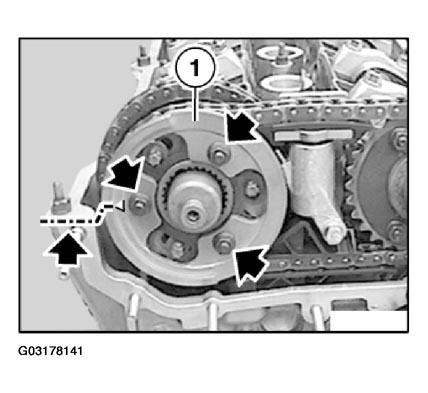

Release nuts, remove sensor gear (1).

Fig 3: Removing Nuts Of Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plate spring (2).

Fig 4: Identifying Plate Spring

Courtesy of BMW OF NORTH AMERICA, INC.

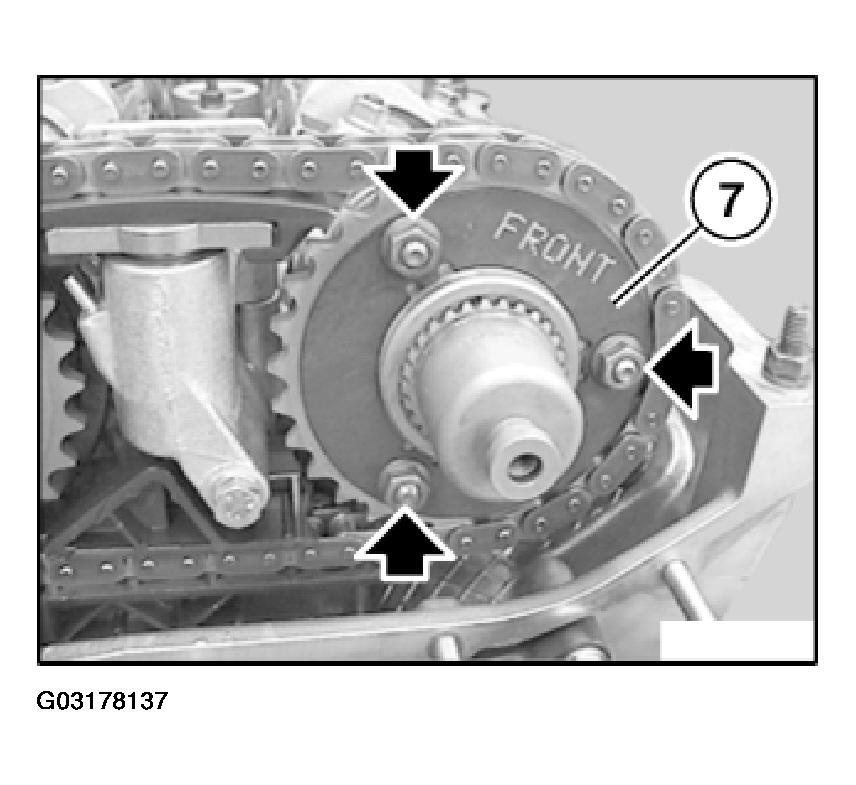

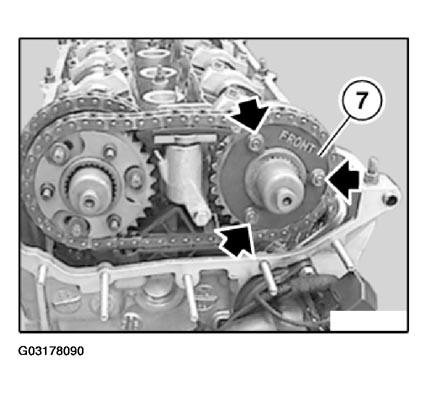

Release nuts on inlet side and remove corrugated washer (7).

Fig 5: Locating Nuts On Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

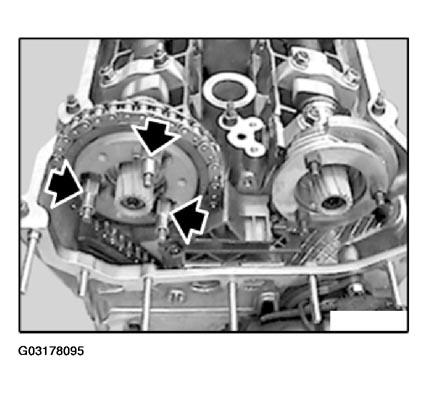

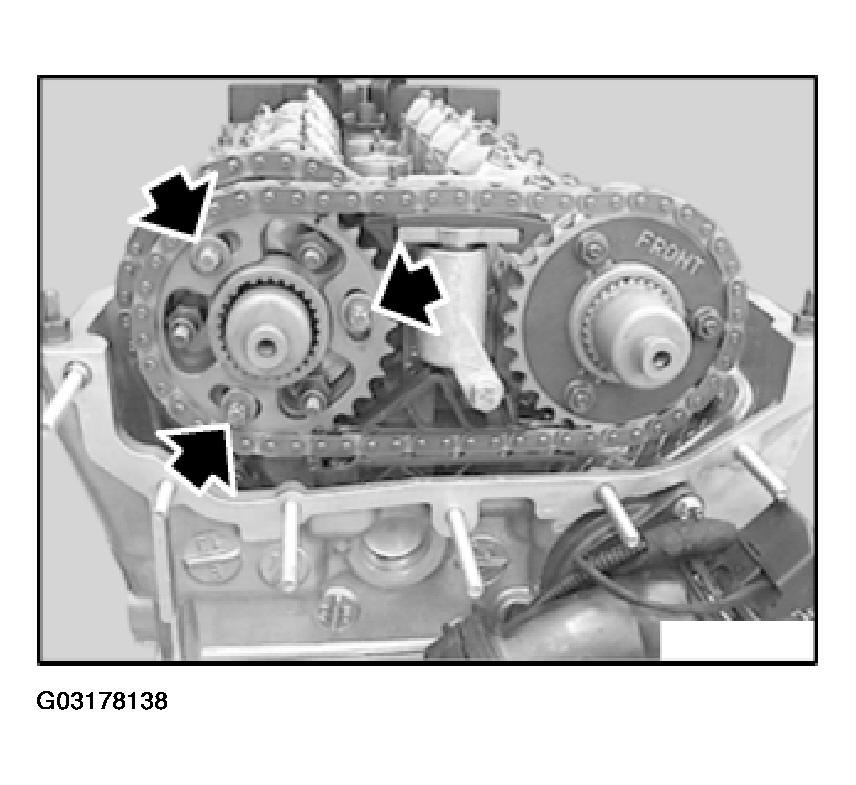

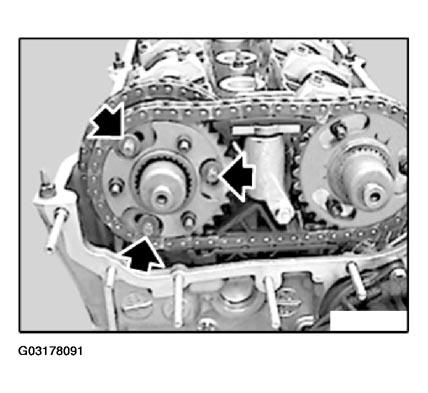

Unfastening screws.

Fig 6: Identifying Chain Wheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

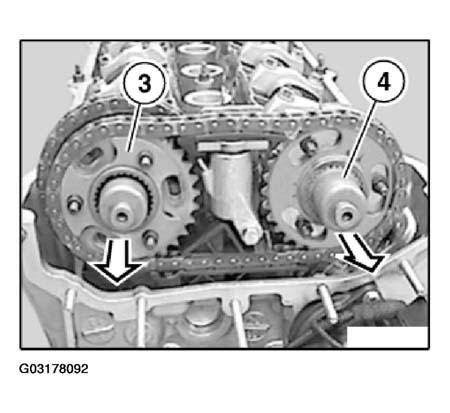

Lift off exhaust and inlet chain wheels together with chain, friction washer (3) and toothed shaft (4).

NOTE: Toothed shaft (4) is and identical part for exhaust and inlet sides. Store used toothed shafts in order and reinstall on the same side only.

Fig 7: Identifying Friction Washer And Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

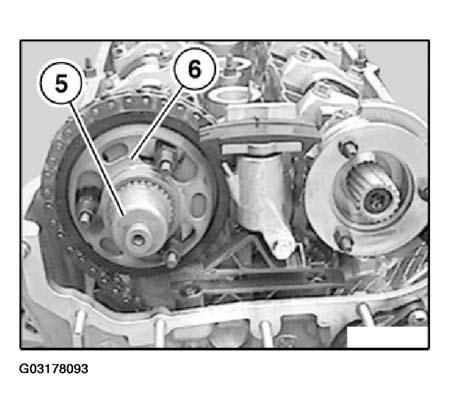

Remove toothed shaft (5) with toothed sleeve (6).

Fig 8: Removing Toothed Shaft With Toothed Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

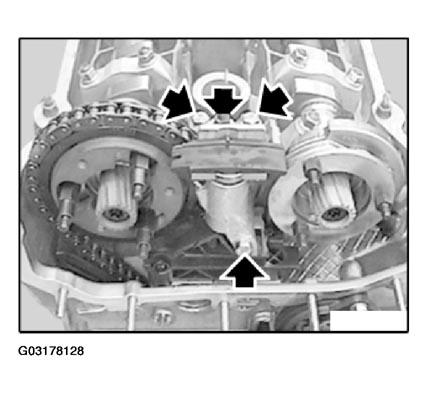

Unfasten screws. Remove secondary chain tensioner.

Fig 9: Removing Secondary Chain Tensioner Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw-in pin.

Fig 10: Locating Screw-In Pin

Courtesy of BMW OF NORTH AMERICA, INC.

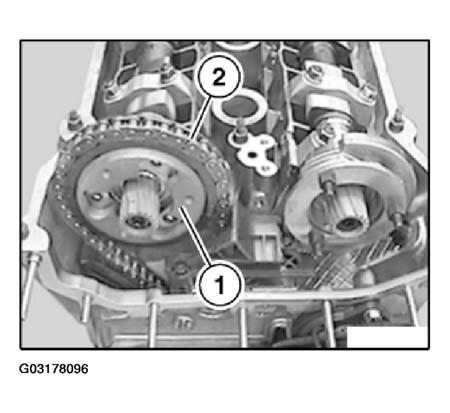

Feed chain wheel (1) towards front out of timing chain (2).

Fig 11: Identifying Chain Wheel And Front Of Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

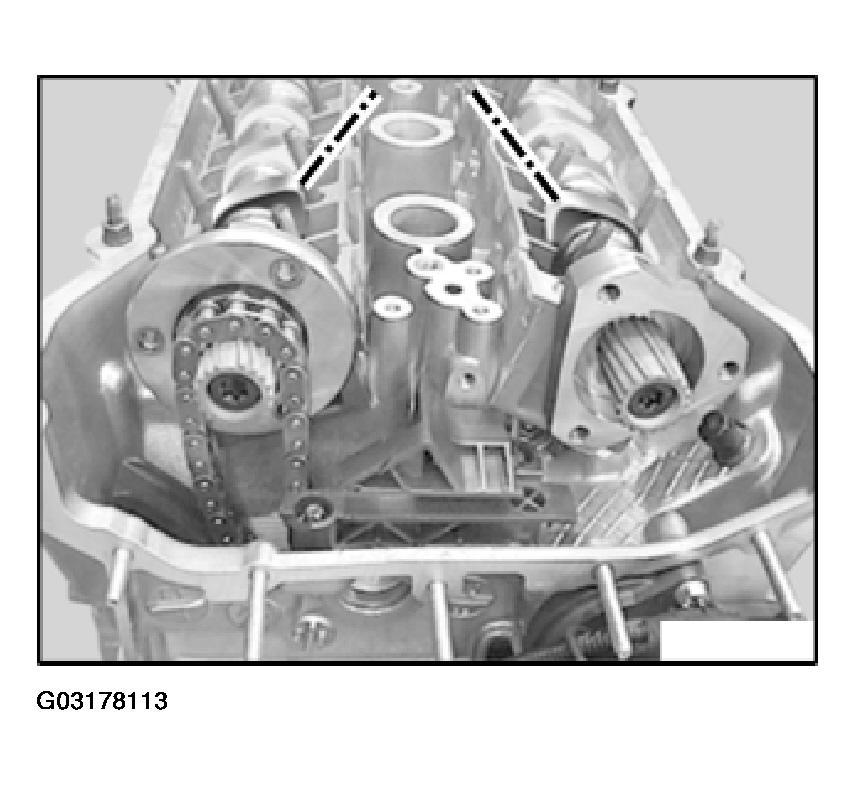

NOTE: Timing chain remains positioned over exhaust camshaft.

Fig 12: Identifying Timing Chain Positioned Over Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release screw-in pin on inlet side.

Remove thrust washer.

Fig 13: Locating Screw-In Pin On Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sensor gears.

Fig 14: View Of Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

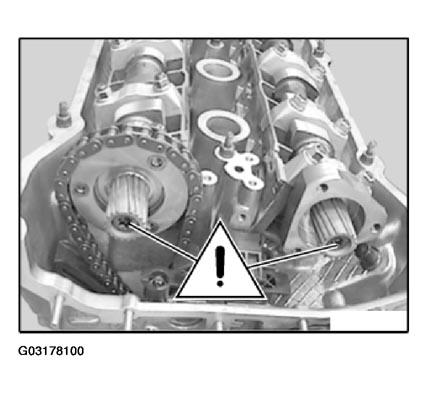

Important!

Do "not" release these screws.

Fig 15: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew studs.

Fig 16: Unscrewing Studs

Courtesy of BMW OF NORTH AMERICA, INC.

Pull special tool 11 2 300 back until flywheel is no longer secured in position.

Fig 17: Releasing Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

To prevent damaging valves when fitting the camshafts, no pistons should be in TDC position.

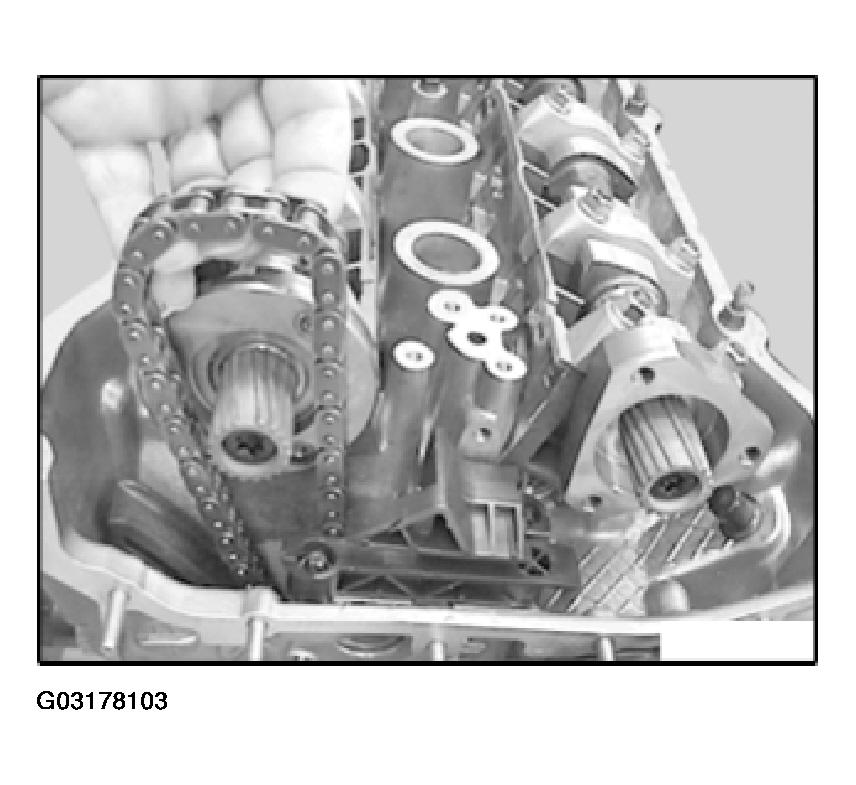

Lift timing chain and hold under tension.

Rotate engine against direction of engine rotation approx. 30° using the central bolt.

Fig 18: Lifting Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

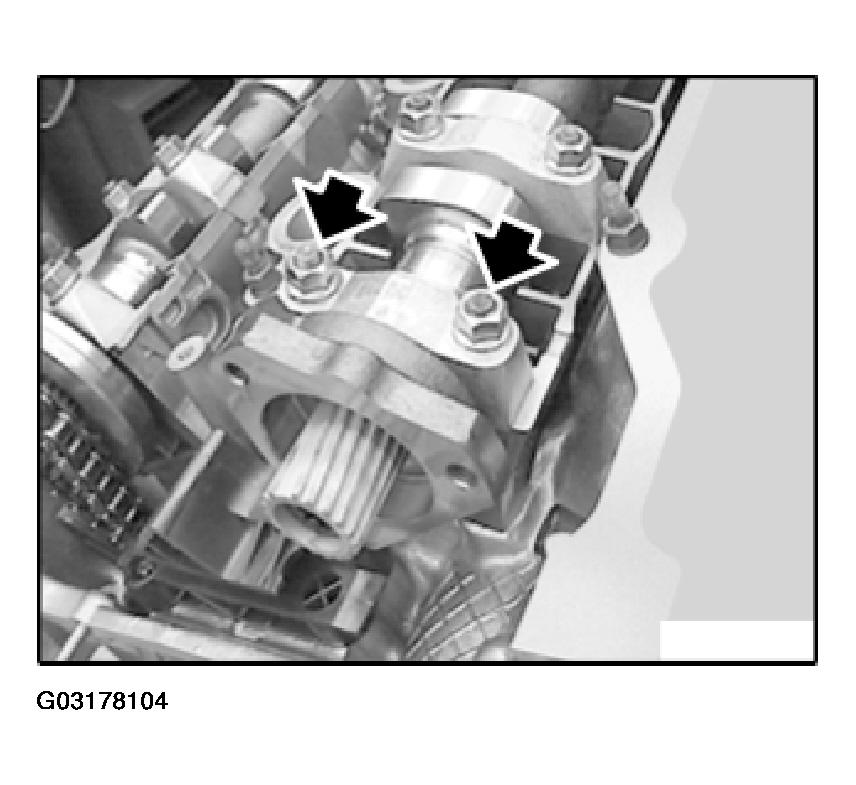

Important!

Bearing cap 1 of inlet camshaft is centered with adapter sleeves.

To prevent inlet camshaft from tilting in bearing strip, release nuts and remove bearing cap 1.

Fig 19: Identifying Bearing Cap Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

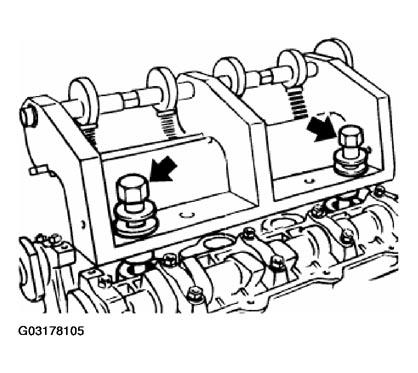

Fit special tool 11 3 260 to cylinder head and screw into spark plug threads in cylinders 1 and 4.

Fig 20: Fitting Special Tool 11 3 260 Into Spark Plug Threads

Courtesy of BMW OF NORTH AMERICA, INC.

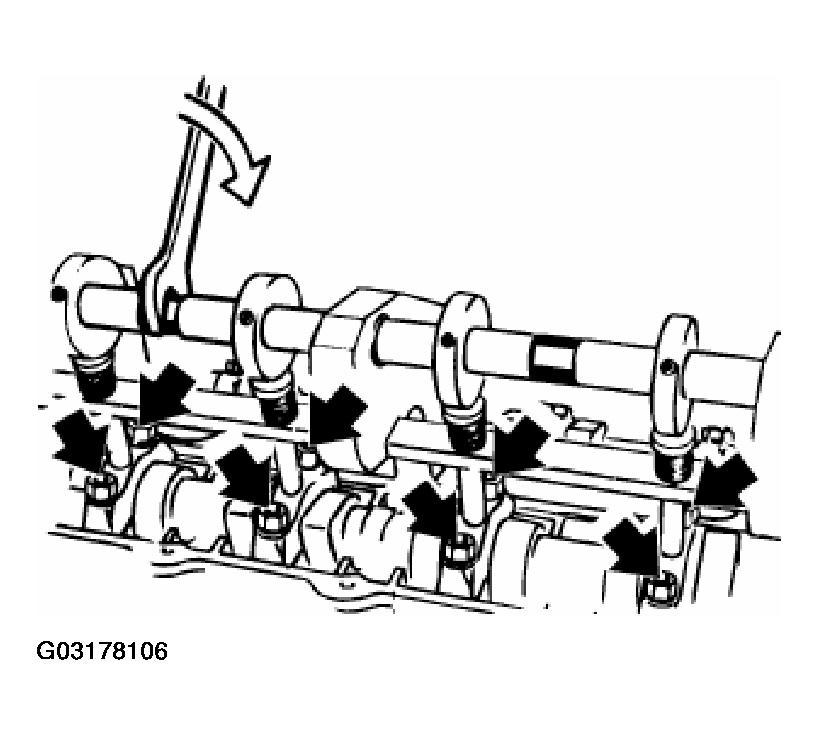

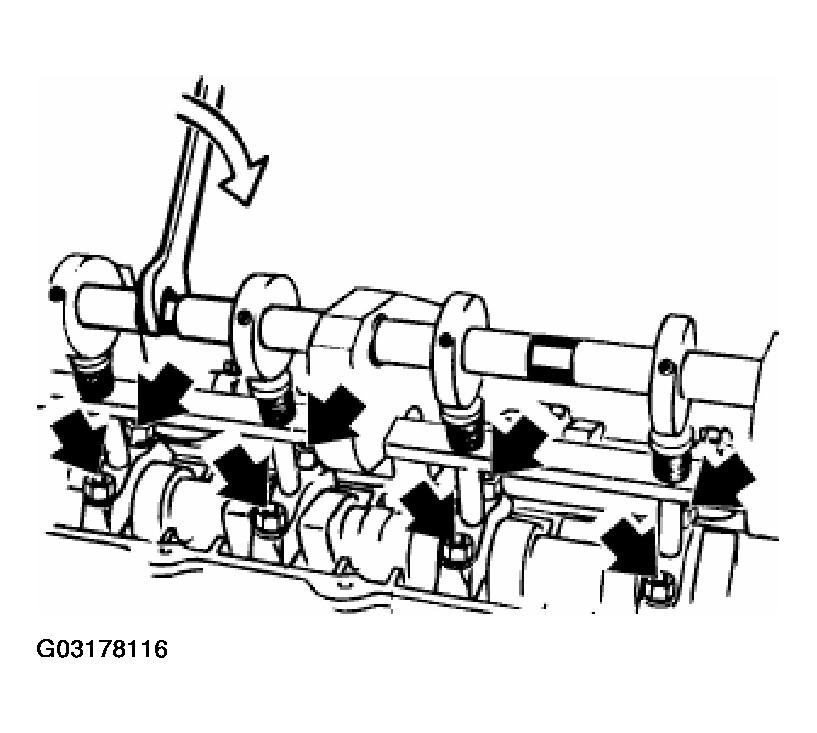

Turn the eccentric shaft to tension the bearing caps. Unfasten nuts on bearing cover.

Fig 21: Locating Nuts On Bearing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Relieve tension on eccentric shaft and remove special tool 11 3 260.

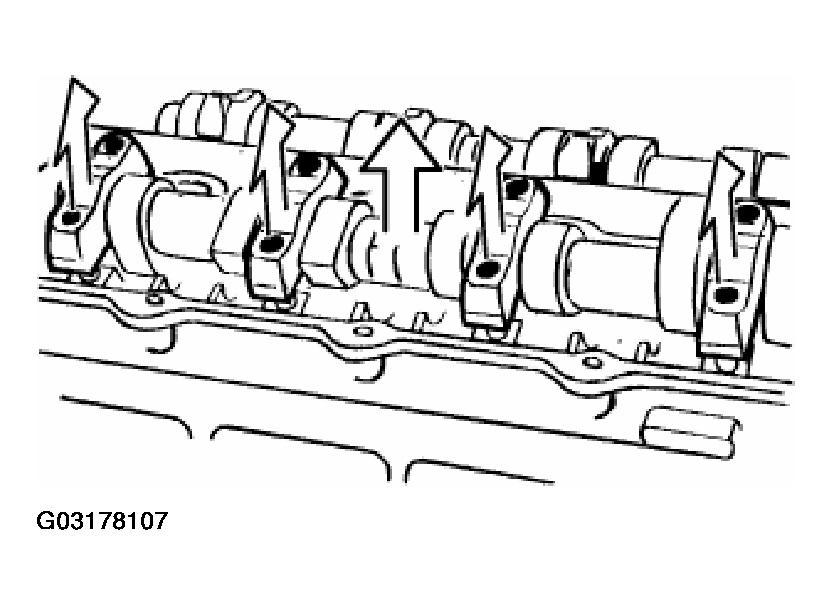

Remove bearing covers and place to one side in orderly fashion. Remove camshaft.

Fig 22: Removing Bearing Covers

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the cylinder head is then to be removed, remove complete bearing strip with bucket tappets.

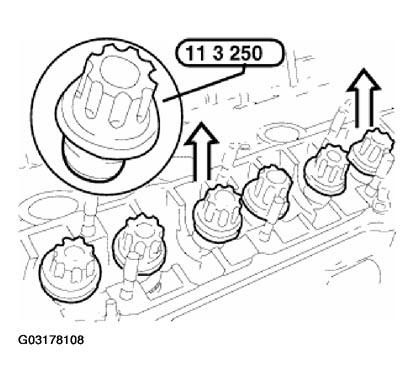

Locate bucket tappets in bearing strip with special tool 11 3 250.

Lift out complete bearing strip with bucket tappet.

NOTE: Only re-use used bucket tappets in the same tappet bore.

Fig 23: Identifying Special Tool 11 3 250

Courtesy of BMW OF NORTH AMERICA, INC.

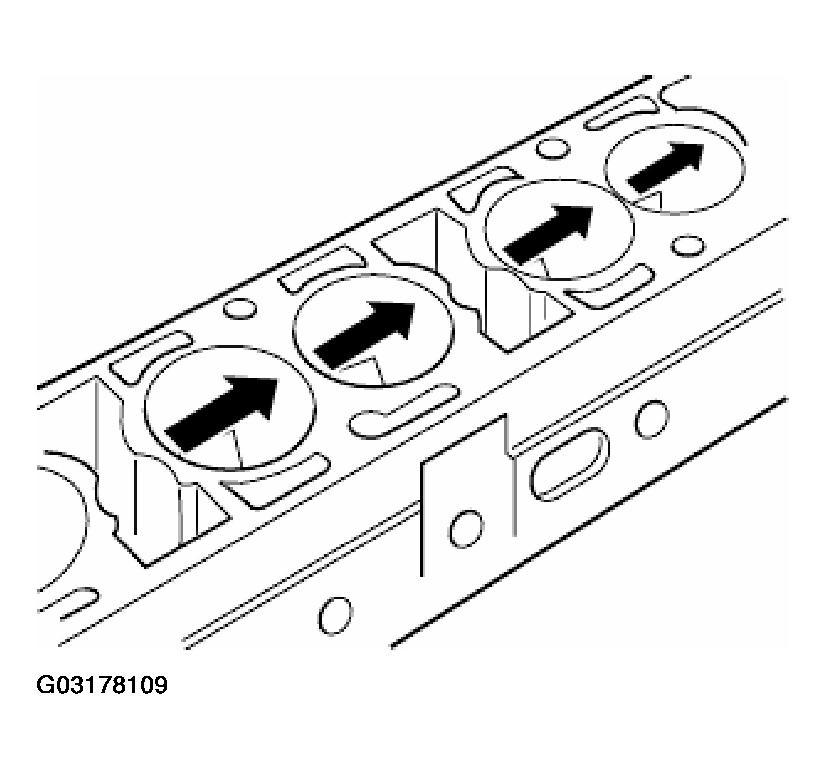

Check bearing points on bucket tappets for signs of wear (scoring).

Fig 24: Checking Bearing Points On Bucket Tappets For Signs Of Wear (Scoring)

Courtesy of BMW OF NORTH AMERICA, INC.

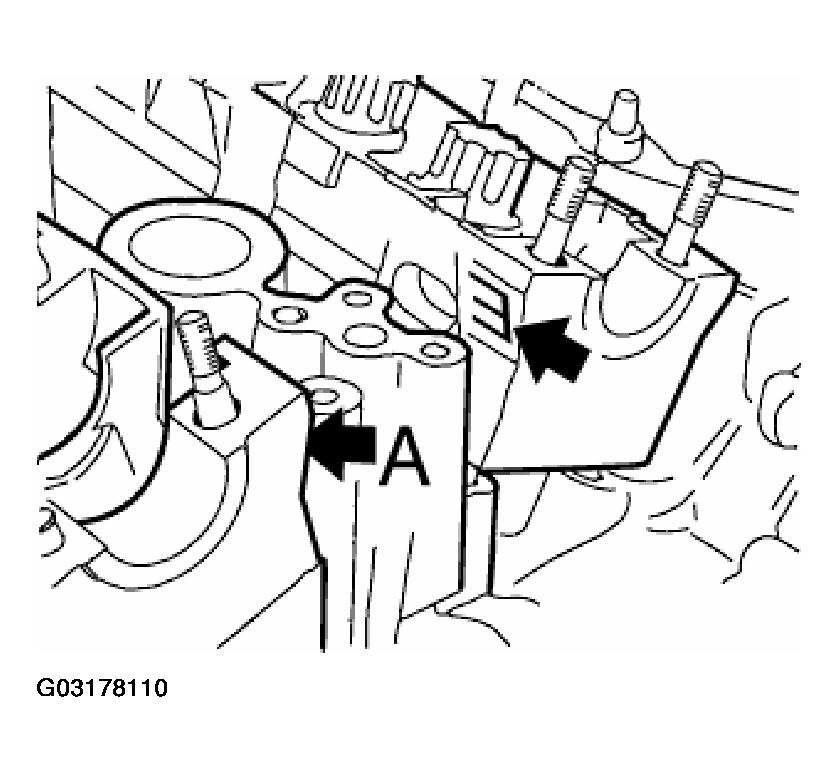

Bearing strips are marked "A" for exhaust side and "E" for inlet side.

Fig 25: Identifying Bearing Strips Marked "A" For Exhaust Side And "E" For Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

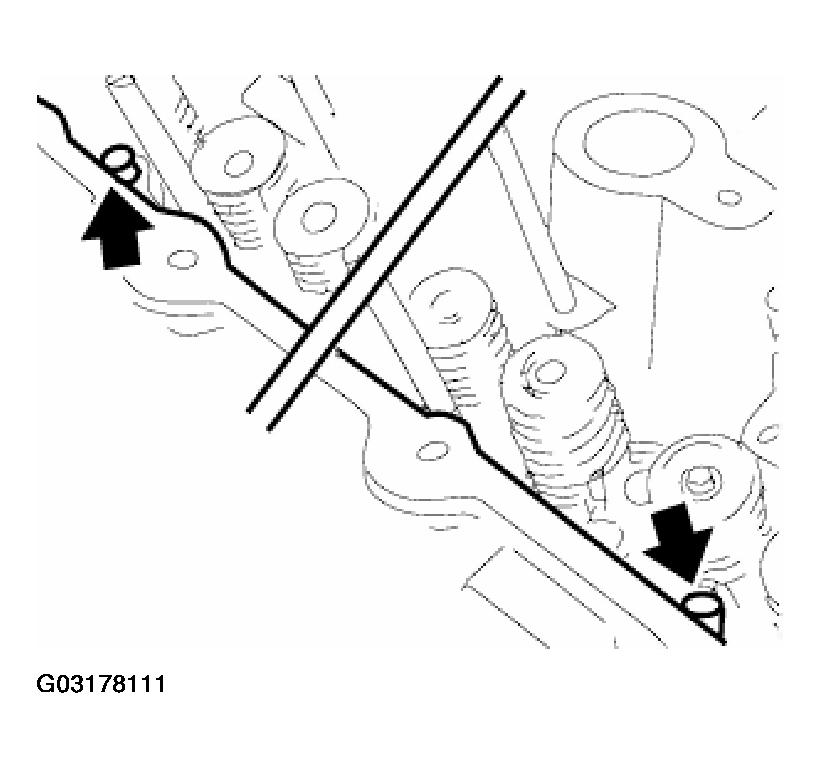

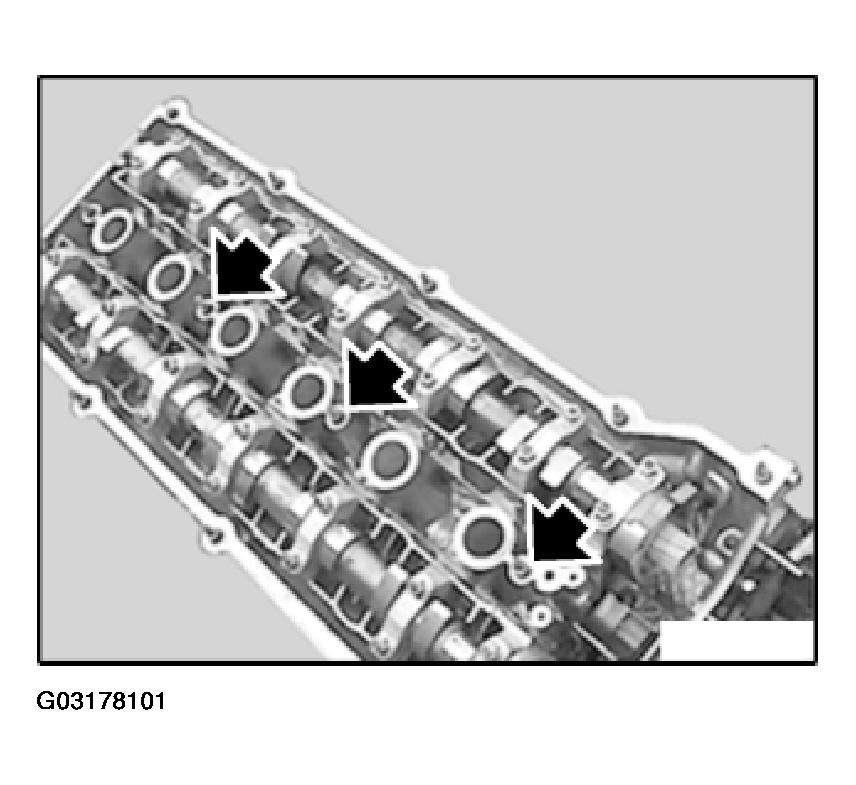

Note centering dowels on retaining pins at bearing points 2 and 7.

Fig 26: Locating Centering Dowels

Courtesy of BMW OF NORTH AMERICA, INC.

Install bearing strips.

Installation:

Installation of camshafts is described separately from removal.

The assembly sequence for removal and installation is different.

NOTE: Camshafts, bearings and bearing caps, friction washers, all splines on toothed shafts and spline hubs must be oiled before installation.

Important!

The bucket tappets expand when not subjected to load by the camshaft and therefore require some time before they can be pushed back down. During a rapid assembly sequence, the "closed" valves may still be open and be in contact with the piston.

Comply with following waiting periods after installing camshaft and before cranking engine back to TDC position.

Room temperature (20°C) 4 mins.
10°C ... 20°C 11 mins.
0°C ... 10°C 30 mins.

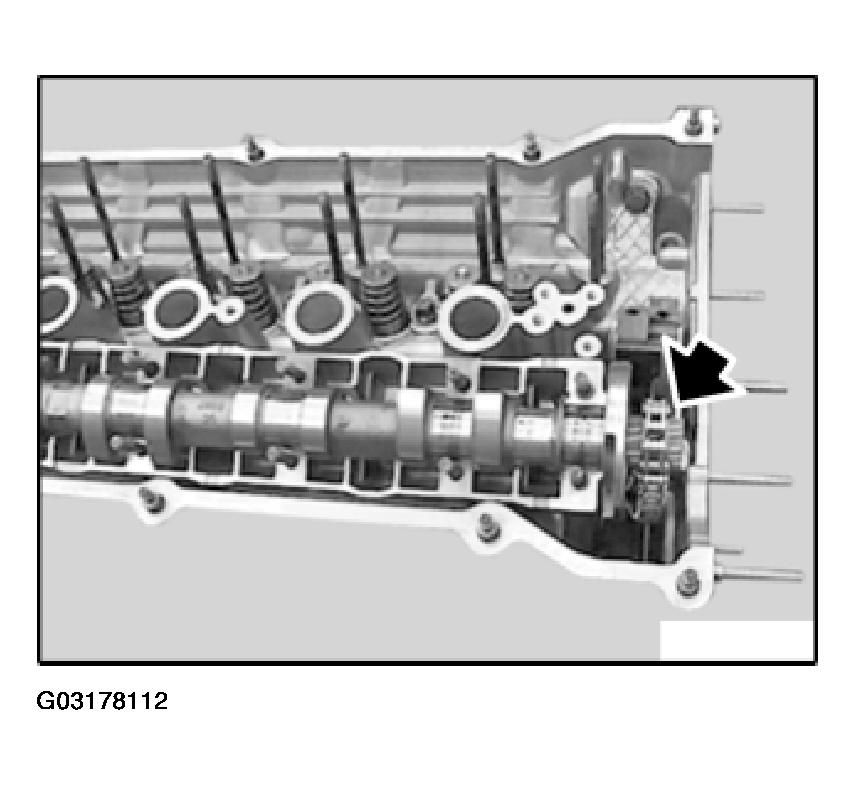

Pull up timing chain and feed in exhaust camshaft.

Position timing chain on exhaust camshaft.

Fig 27: Positioning Timing Chain On Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Install camshafts so that cam tips on inlet and exhaust valves on 1st cylinder face one another. Refer to 11 31 001 REPLACING CAMSHAFT (M52TU / M54 / M56) .

Fig 28: Installing Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Fit bearing cover.

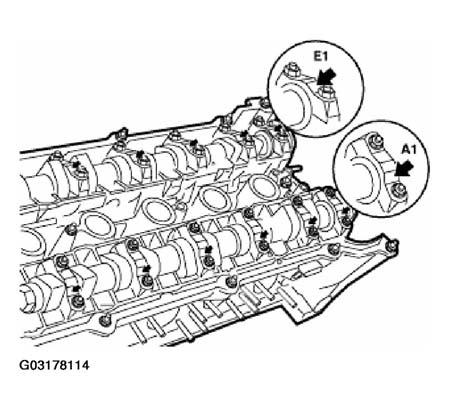

NOTE: Bearing caps are marked from exhaust side:

A1 ... A7 for exhaust side.

E1 ... E7 for inlet side.

Fig 29: Identifying Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

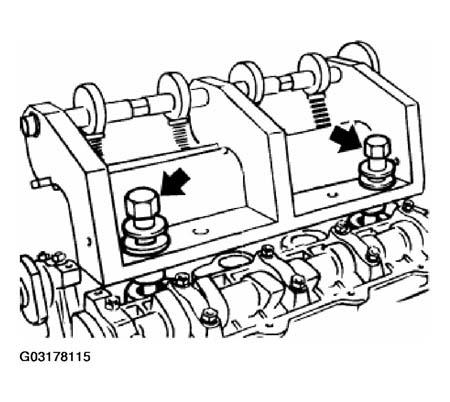

Fit special tool 11 3 260 to cylinder head and screw into spark plug threads in cylinders 1 and 4.

Fig 30: Fitting Special Tool 11 3 260 Into Spark Plug Threads

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the eccentric shaft to tension the bearing caps.

Tighten down bearing cover.

Tightening torque, refer to 11 31 1AZ in CAMSHAFT .

Fig 31: Tightening Down Bearing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 3 260.

Important!

Do not damage the cylinder head.

If necessary, machine open-end wrench accordingly.

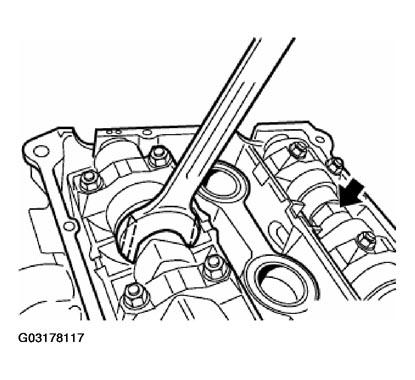

Align camshafts with open-end wrench.

Fig 32: Aligning Camshafts With Open-End Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

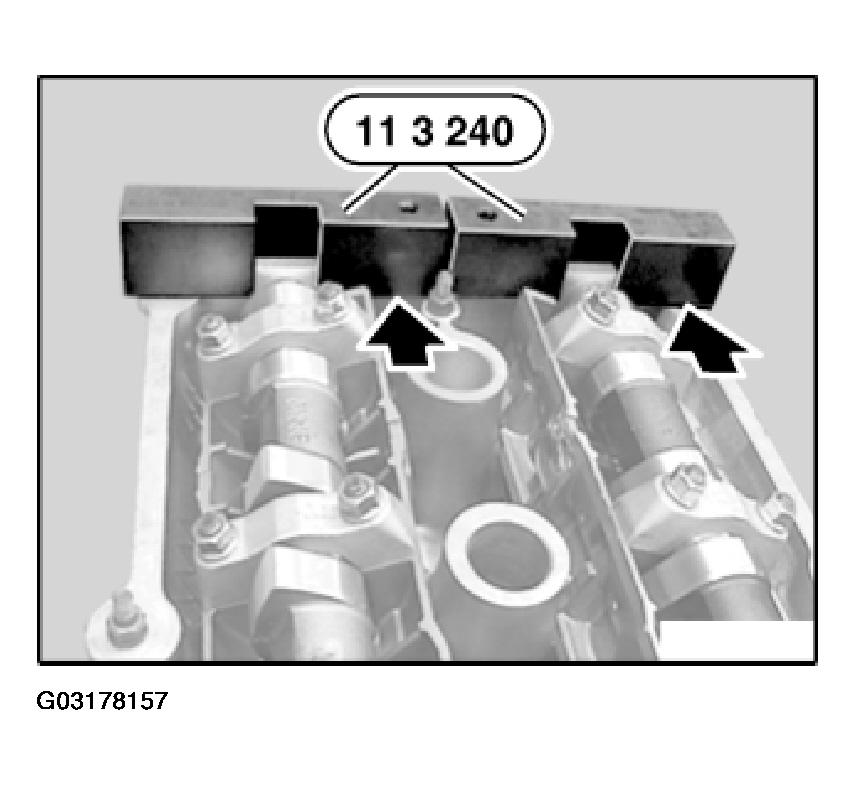

Fit special tool 11 3 240 to camshafts on cylinder 6. Align camshafts so that special tool 11 3 240 rests without gaps on cylinder head.

Fig 33: Fitting Special Tool 11 3 240 To Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

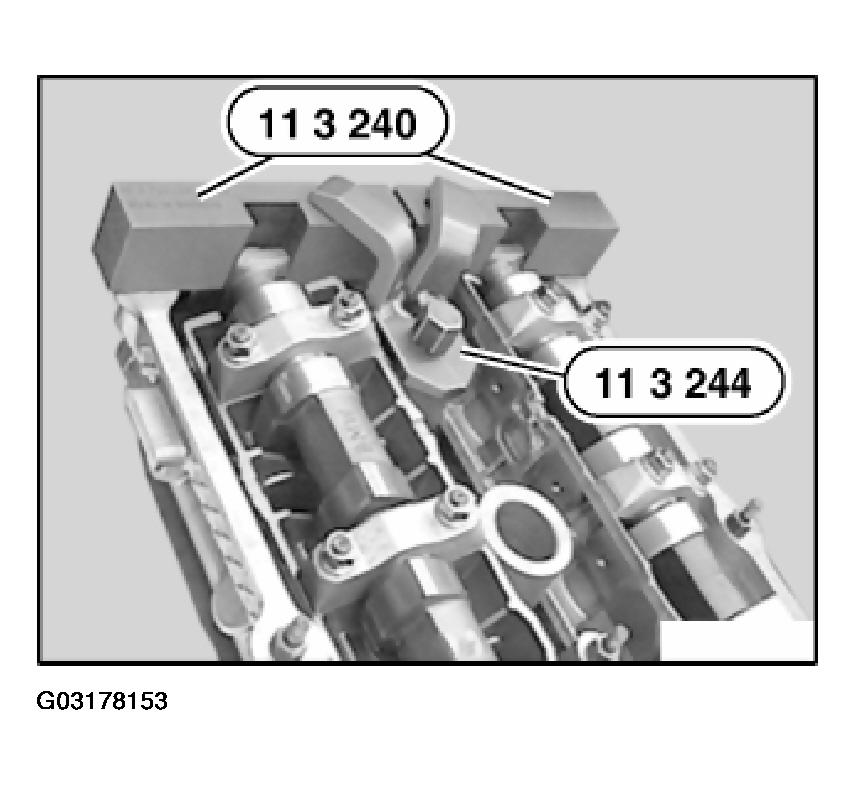

Attach special tool 11 3 244 to special tool 11 3 240 and locate by way of spark plug thread.

Fig 34: Attaching Special Tool 11 3 244 To Special Tool 11 3 240

Courtesy of BMW OF NORTH AMERICA, INC.

Lift timing chain and hold under tension.

Fig 35: Lifting Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Turn engine from 30° before TDC position in direction of rotation as far as TDC position.

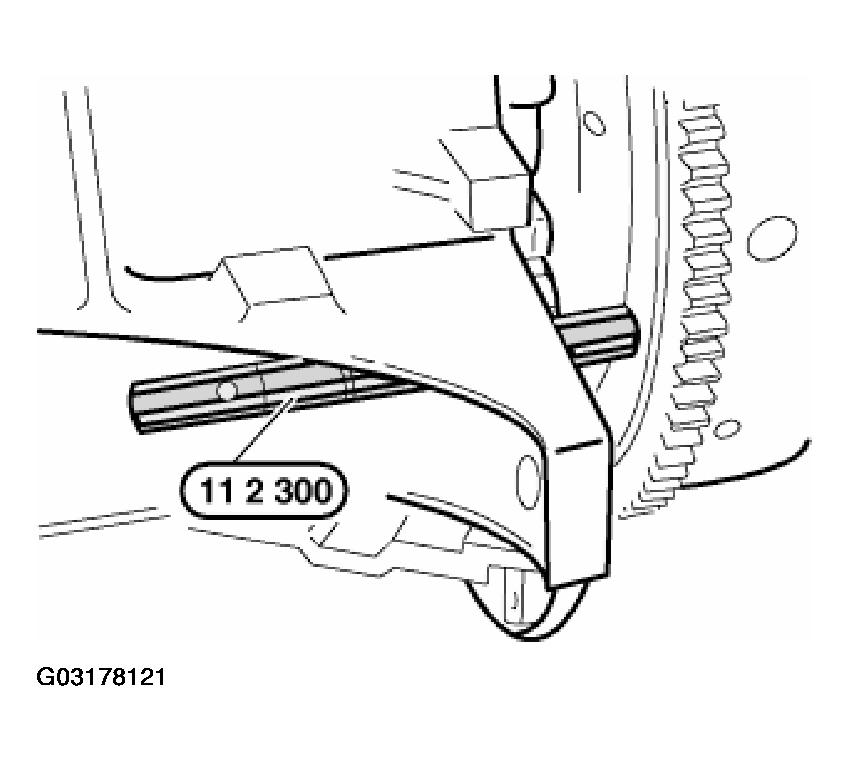

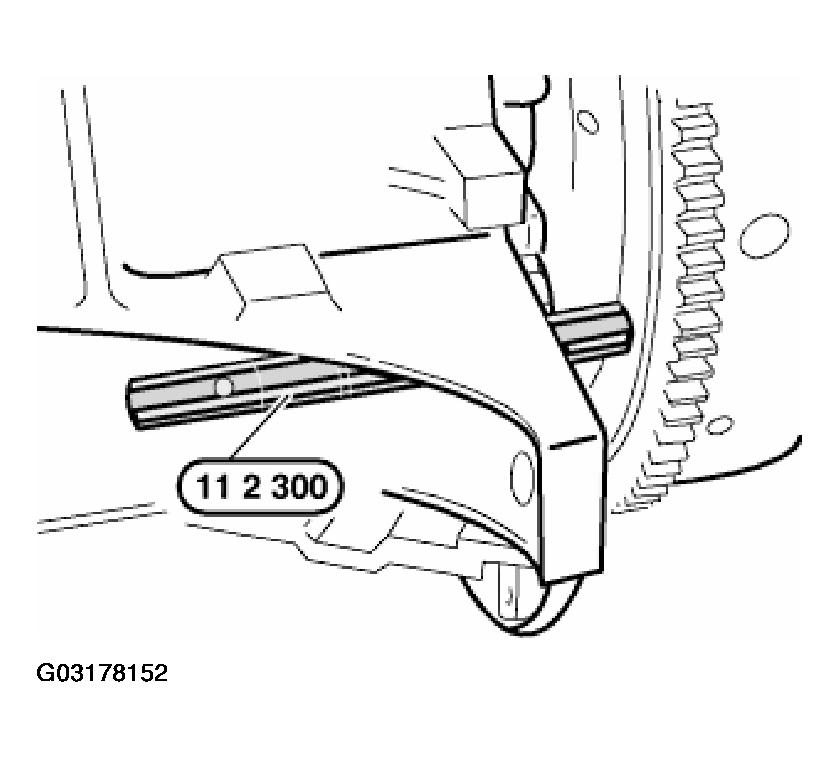

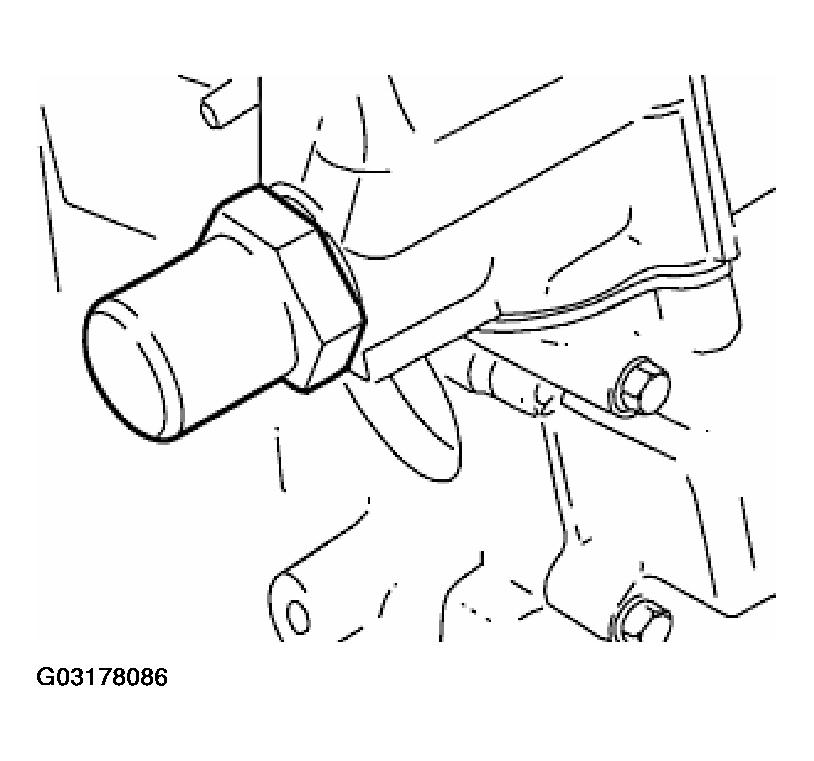

Secure crankshaft in firing TDC position with special tool 11 2 300.

Important!

Remove special tool 11 2 300 before starting engine.

Fig 36: Securing Crankshaft In Firing TDC Position With Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic Transmissions Only:

Illustration does not show automatic transmission.

Important!

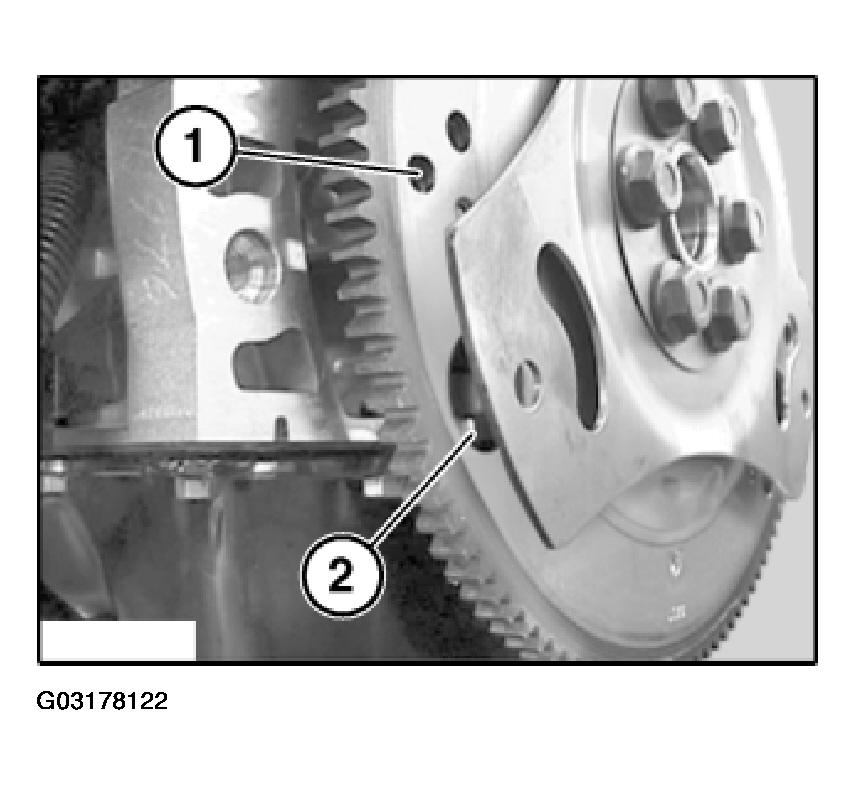

On engines with automatic transmissions, there is shortly before the special tool bore (1) a large bore (2) which can be confused with the special tool bore.

Fig 37: Identifying Special Tool Bore And Large Bore

Courtesy of BMW OF NORTH AMERICA, INC.

If special tool 11 2 300 is secured in the correct bore (1), the engine can no longer be cranked at the central bolt.

Position sensor gear on inlet camshaft.

Fig 38: Positioning Sensor Gear On Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

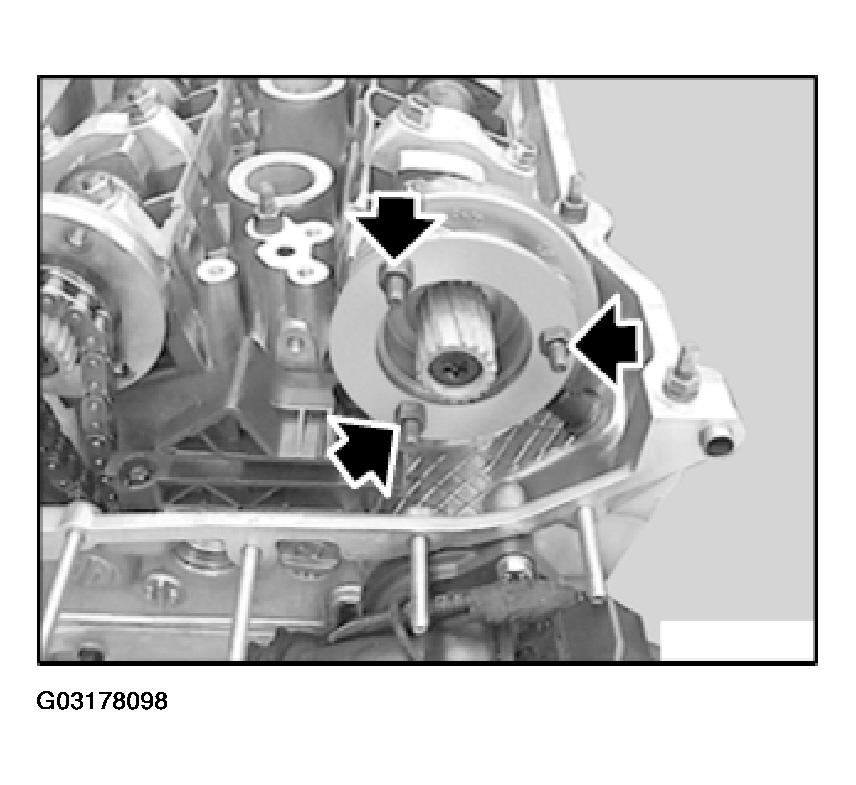

Fit thrust washer and tighten down with dowels.

Tightening torque, refer to 11 31 1AZ in CAMSHAFT .

Fig 39: Tightening Thrust Washer Dowels

Courtesy of BMW OF NORTH AMERICA, INC.

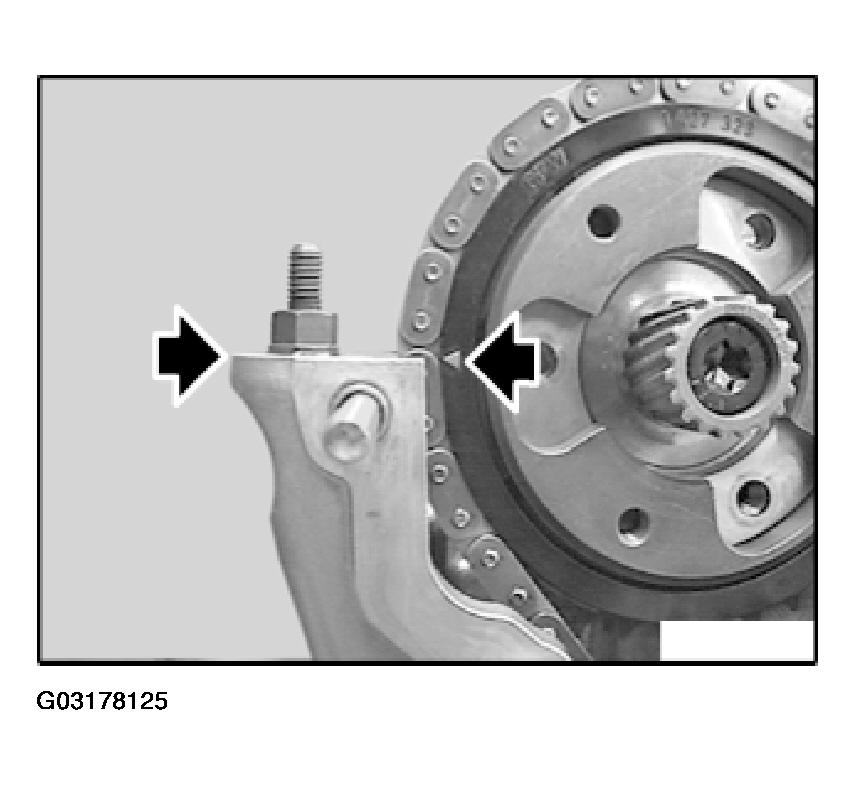

Feed chain wheel onto timing chain so that arrow on chain wheel faces separating face of upper side of cylinder head.

Fig 40: Aligning Arrow On Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

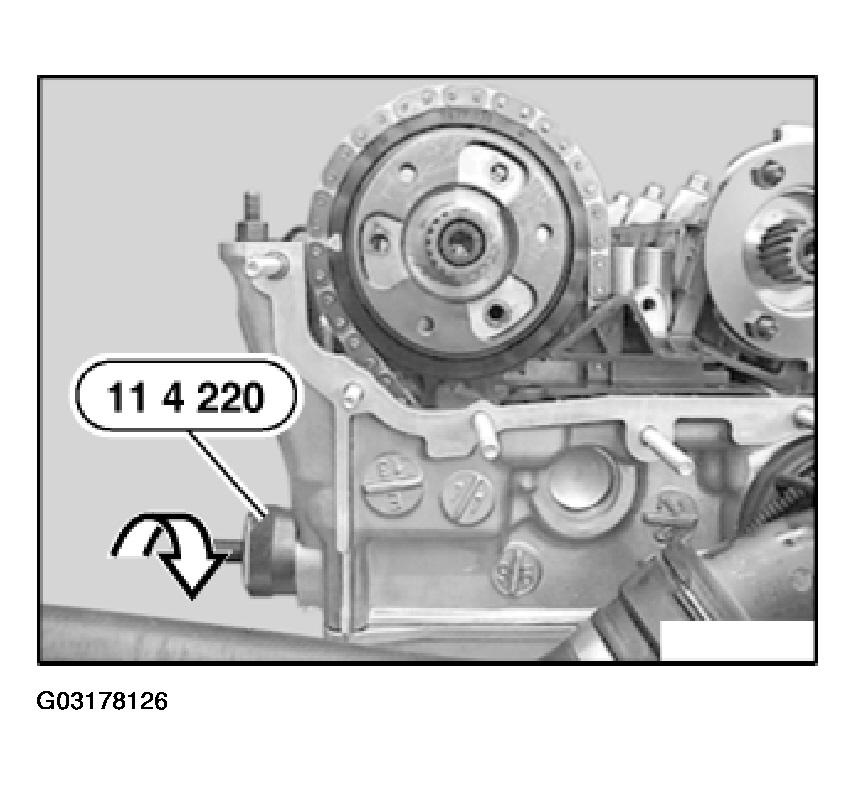

Insert special tool 11 4 220 in cylinder head and bring adjustment screw into contact with tensioning rail, but do not pretension timing chain yet.

Check arrow on chain wheel to separating face of upper side of cylinder head, reposition chain wheel if necessary.

Fig 41: Inserting Special Tool 11 4 220 In Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten down screw-in pin.

Tightening torque, refer to 11 31 11AZ in CAMSHAFT .

Fig 42: Installing Screw-In Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Install secondary chain tensioner.

Fig 43: Installing Secondary Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

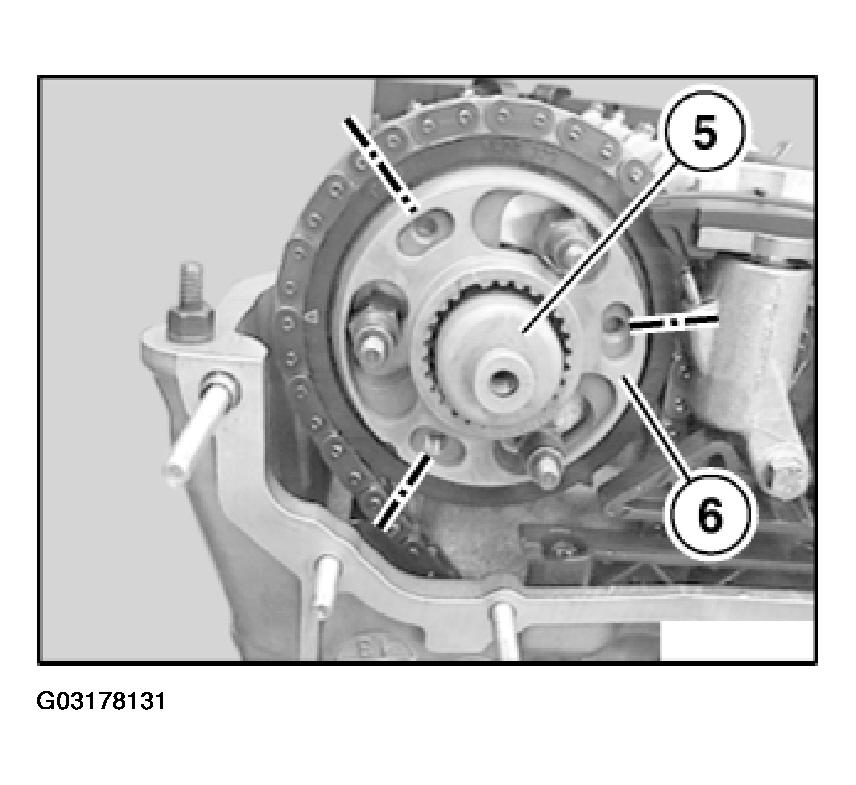

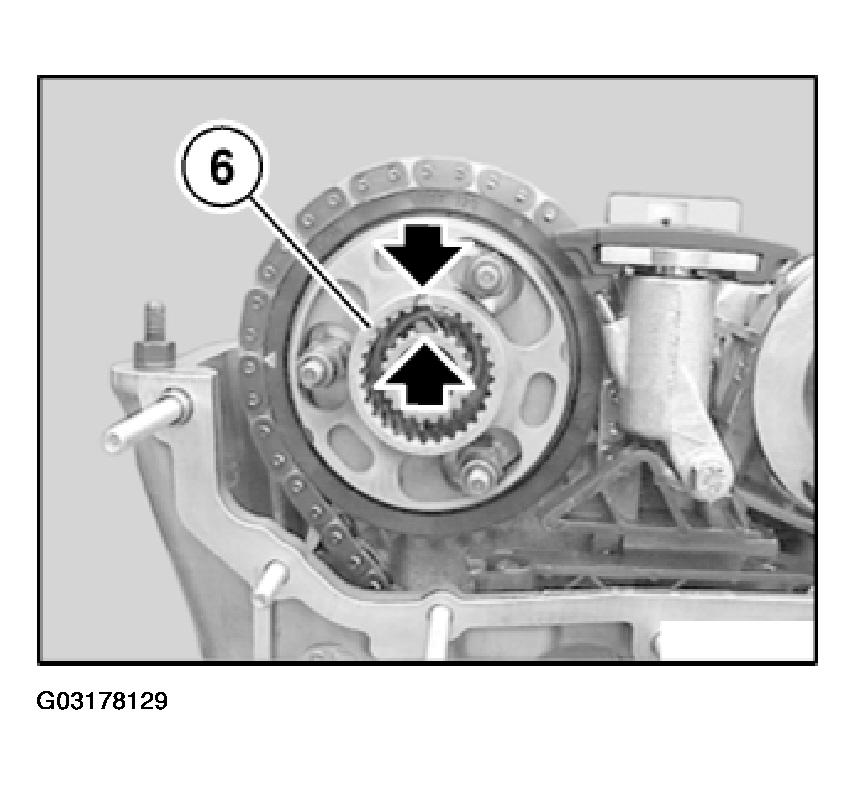

Fit toothed sleeve (6) and align to toothed shaft in camshaft so that tooth gaps are opposed.

Fig 44: Aligning Toothed Sleeve To Toothed Shaft In Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Secure toothed shaft (5).

Insert pin of toothed shaft (5) into tooth gaps of splines on camshaft and toothed sleeve (6).

Fig 45: Inserting Pin Of Toothed Shaft Into Tooth Gaps Of Splines

Courtesy of BMW OF NORTH AMERICA, INC.

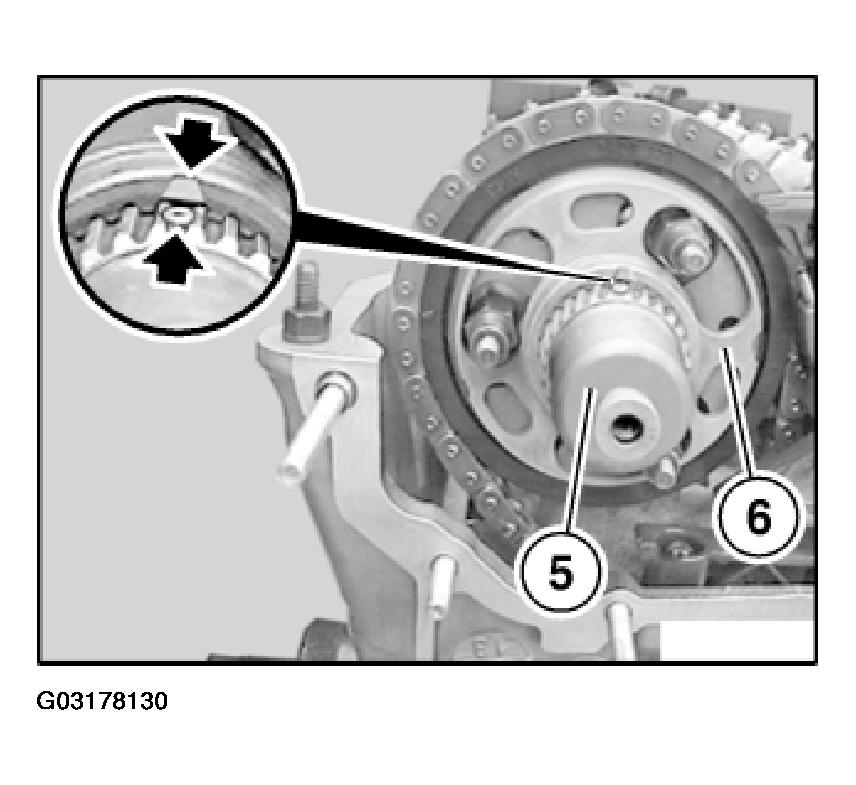

Push in toothed shaft (5) until the longitudinal holes in the toothed sleeve (6) are positioned centrally with respect to the thread.

Fig 46: Aligning Toothed Shaft And Holes In Toothed Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

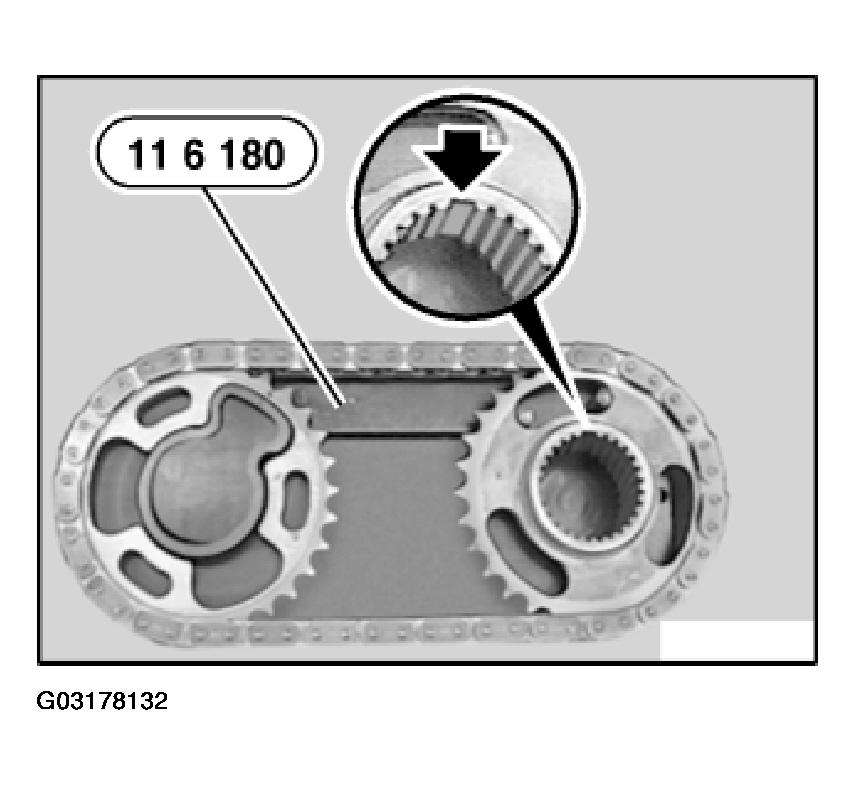

Place chain wheels in special tool 11 6 180, position tooth gap on inlet chain wheel as shown in illustration and feed on chain.

Fig 47: Aligning Tooth Gap On Inlet Chain Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Do not alter position of chain wheels with respect to chain when removing from special tool 11 6 180.

Remove chain with sprocket wheels positioned from special tool 11 6 180 and so that tooth spaces oppose each other on inlet side.

Fig 48: Positioning Tooth Spaces Opposite Each Other

Courtesy of BMW OF NORTH AMERICA, INC.

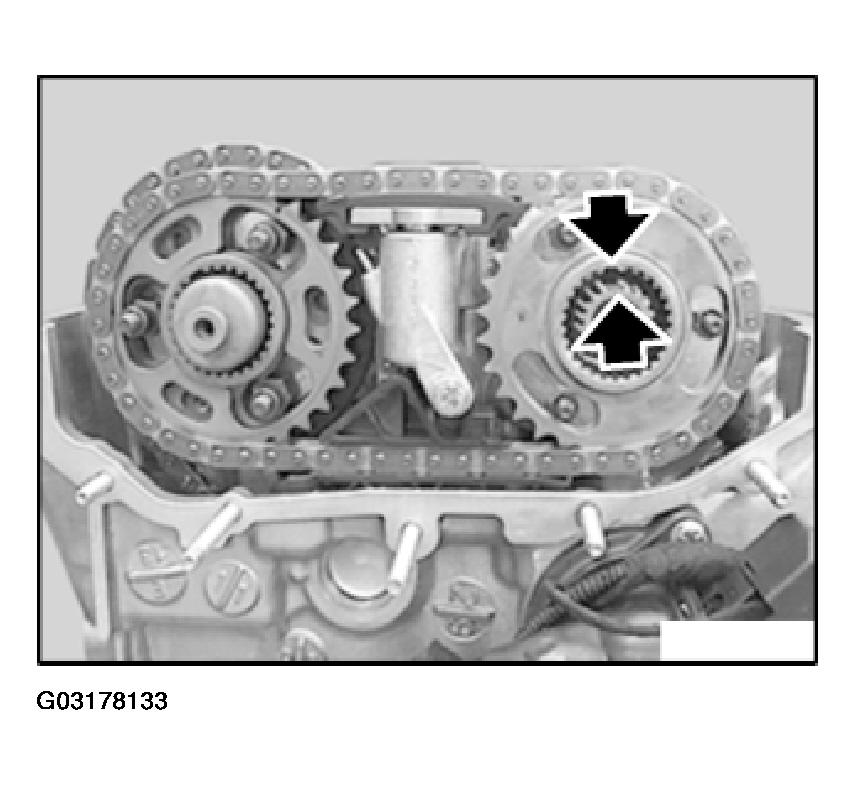

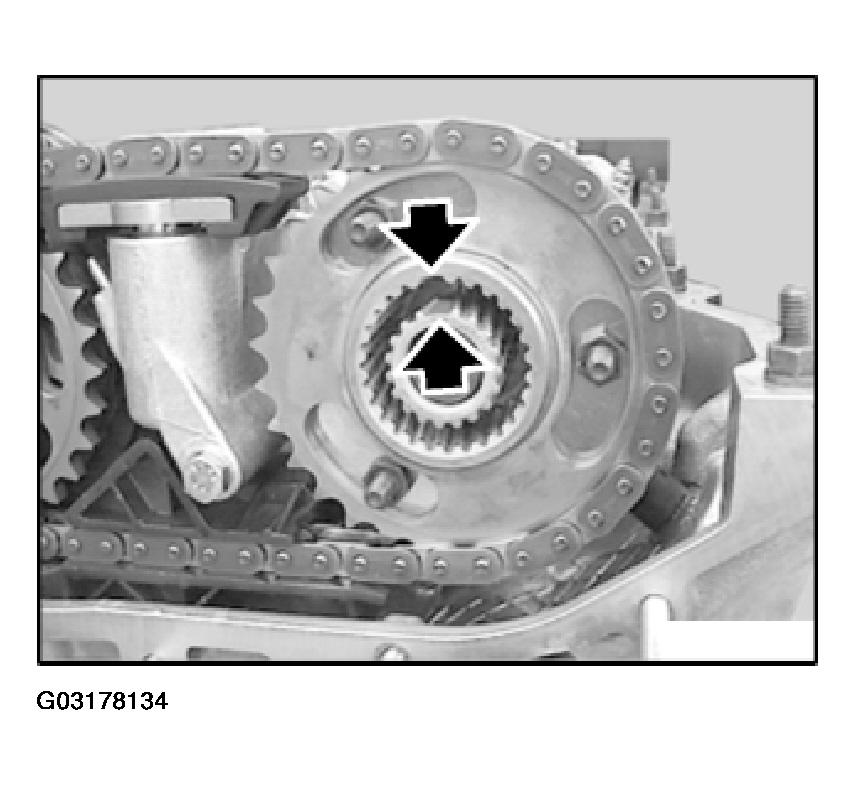

Align chain with sprocket wheels so that tooth spaces are positioned exactly over each other on inlet side.

Fig 49: Aligning Tooth Spaces Opposite Each Other

Courtesy of BMW OF NORTH AMERICA, INC.

Secure toothed shaft (4).

Insert pin of toothed shaft (4) into tooth gaps of splines on camshaft and chain wheel.

Fig 50: Inserting Pin Of Toothed Shaft Into Tooth Gaps Of Splines

Courtesy of BMW OF NORTH AMERICA, INC.

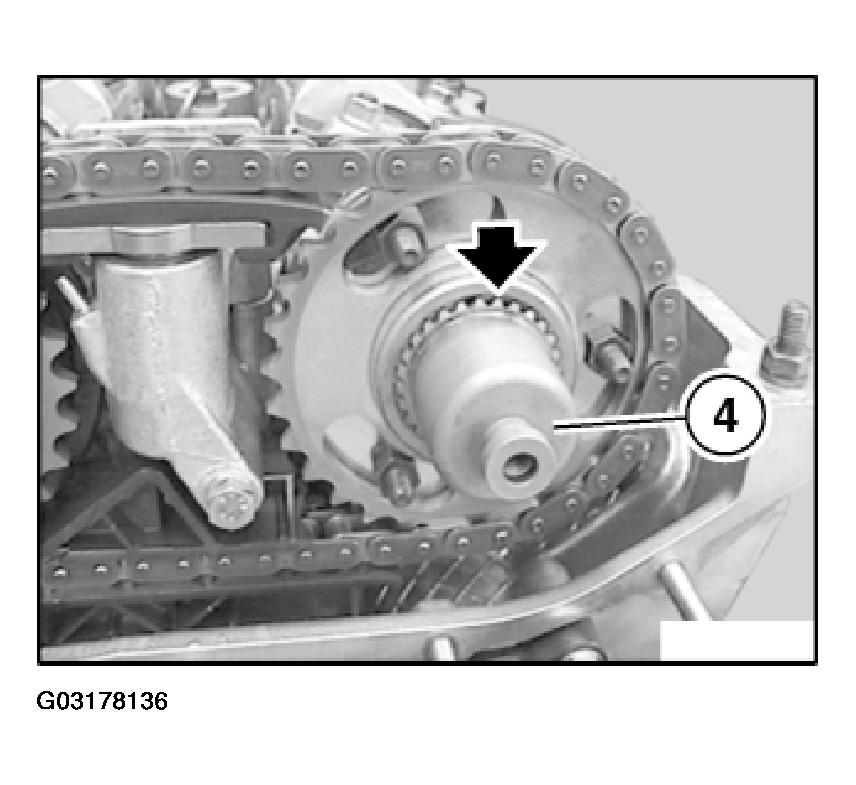

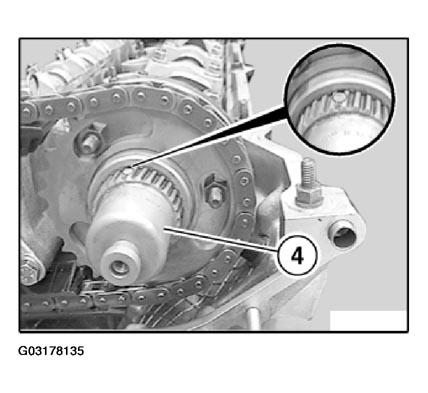

Push in toothed shaft (4) until approx. 1 mm of splines can still be seen.

Fig 51: Pushing In Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Note installation direction of corrugated washer (7), "FRONT" lettering must be visible.

Fig 52: View Of Lettering On Corrugated Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Install corrugated washer, tighten nuts by hand but do not tighten down fully yet.

Insert screws on exhaust side, initially tighten to approx. 5 Nm and then slacken off again half a turn.

Fig 53: Inserting Screws On Exhaust Side

Courtesy of BMW OF NORTH AMERICA, INC.

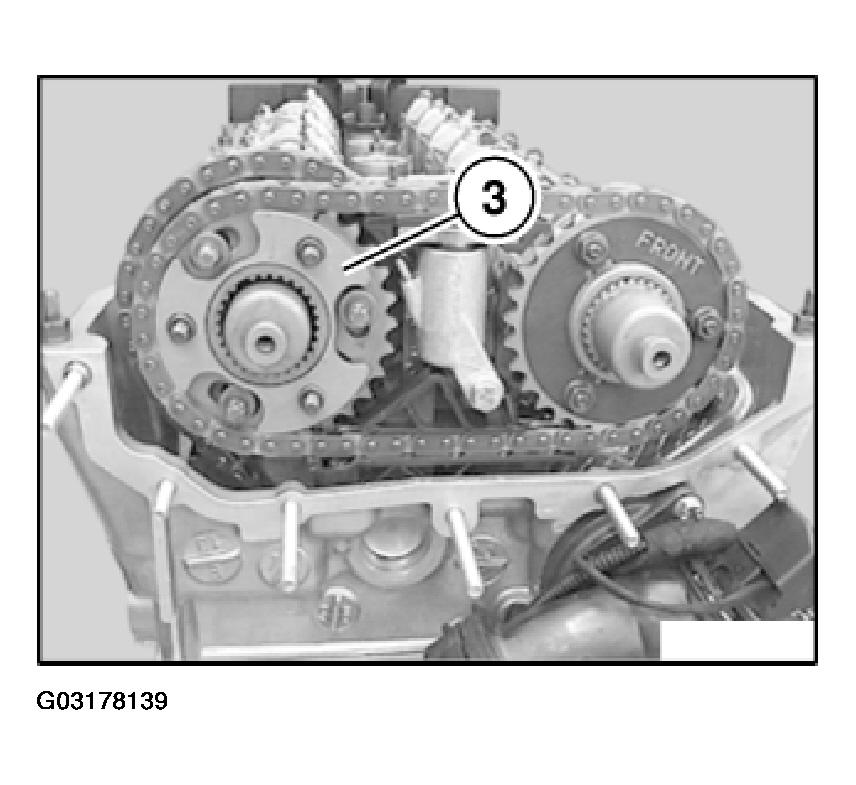

Fit thrust washer (3).

Fig 54: Fitting Thrust Washer

Courtesy of BMW OF NORTH AMERICA, INC.

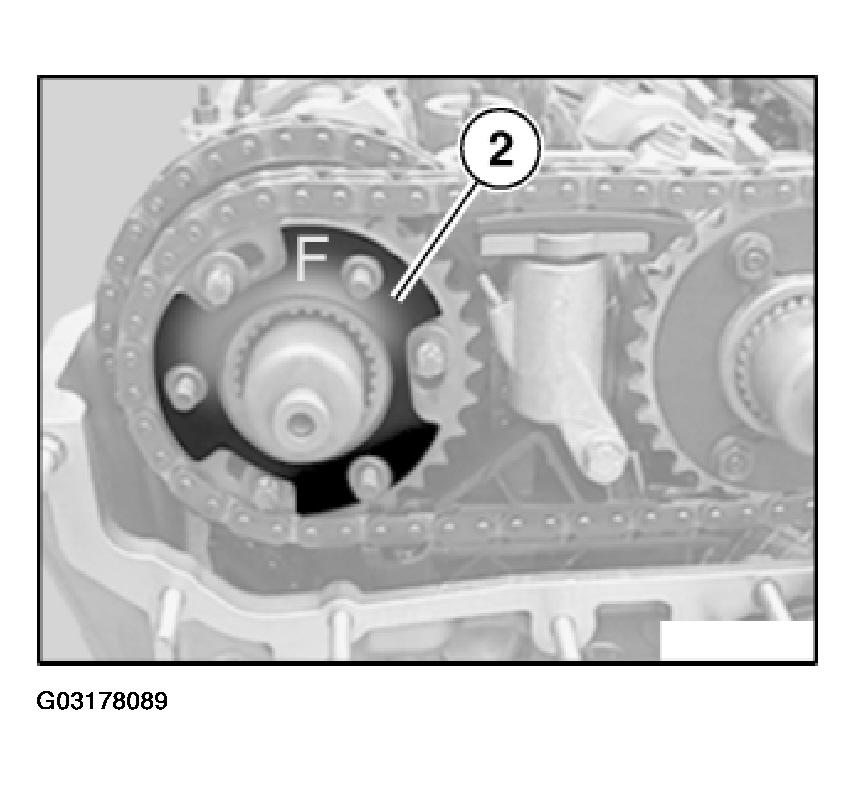

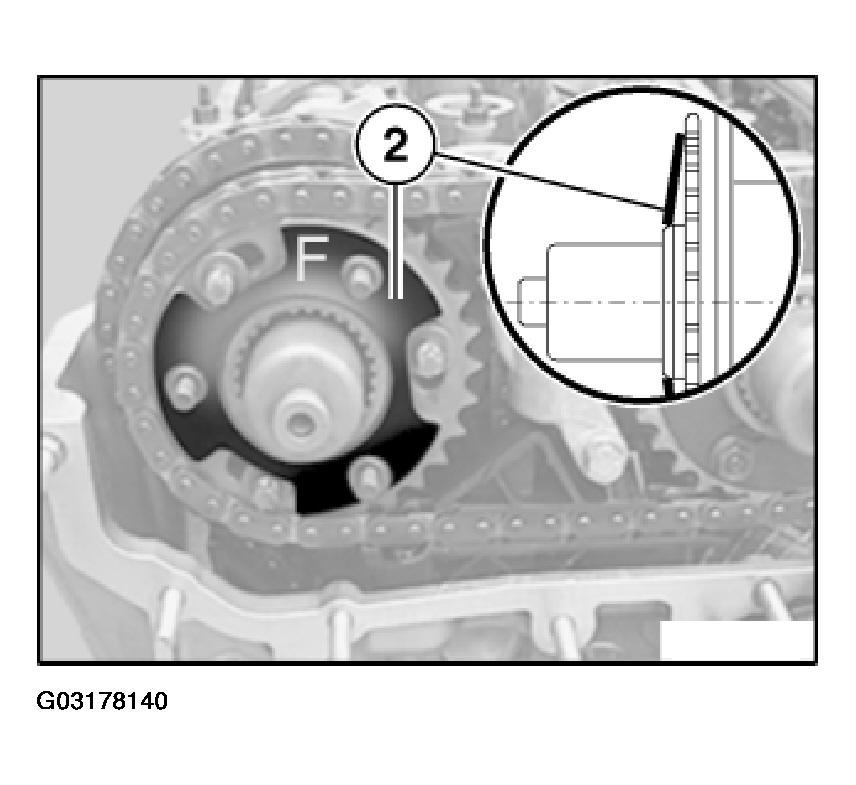

Note installation direction of cup spring (2), "F" lettering must be visible.

NOTE: If "F" lettering is no longer visible on an engine that has been run:

Install cup spring (2) so that small locating diameter of spring (2) points to sensor gear.

Fit cup spring (2) in position.

Fig 55: Installing Cup Spring

Courtesy of BMW OF NORTH AMERICA, INC.

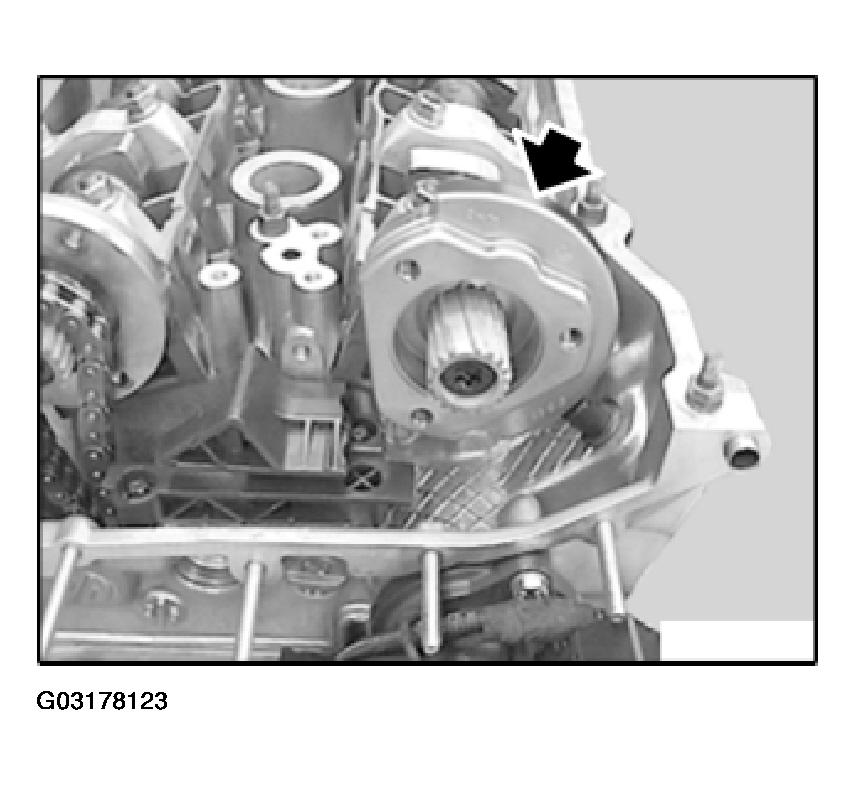

Position sensor gear (1) so that arrow on sensor gear faces separating face of upper side of cylinder head.

Install nuts and tighten by hand but do not tighten down fully yet.

Fig 56: Positioning Sensor Gear

Courtesy of BMW OF NORTH AMERICA, INC.

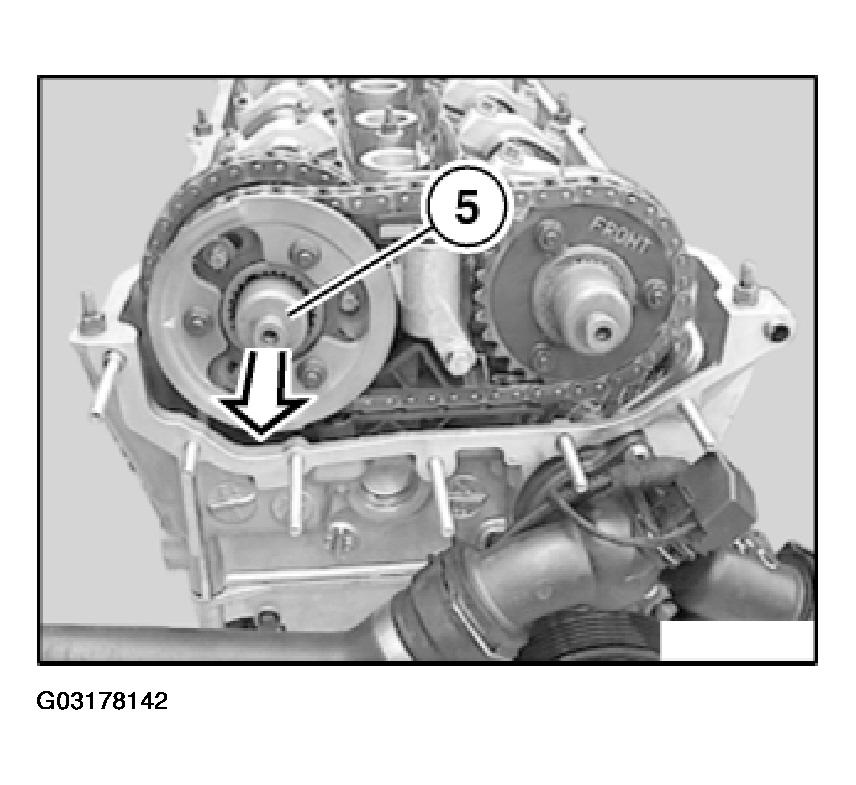

Withdraw toothed shaft (5) up to stop.

Fig 57: Positioning Toothed Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Press down secondary chain tensioner at top and remove special tool 11 3 292.

Fig 58: View Of Secondary Chain Tensioner And Special Tool 11 3 292

Courtesy of BMW OF NORTH AMERICA, INC.

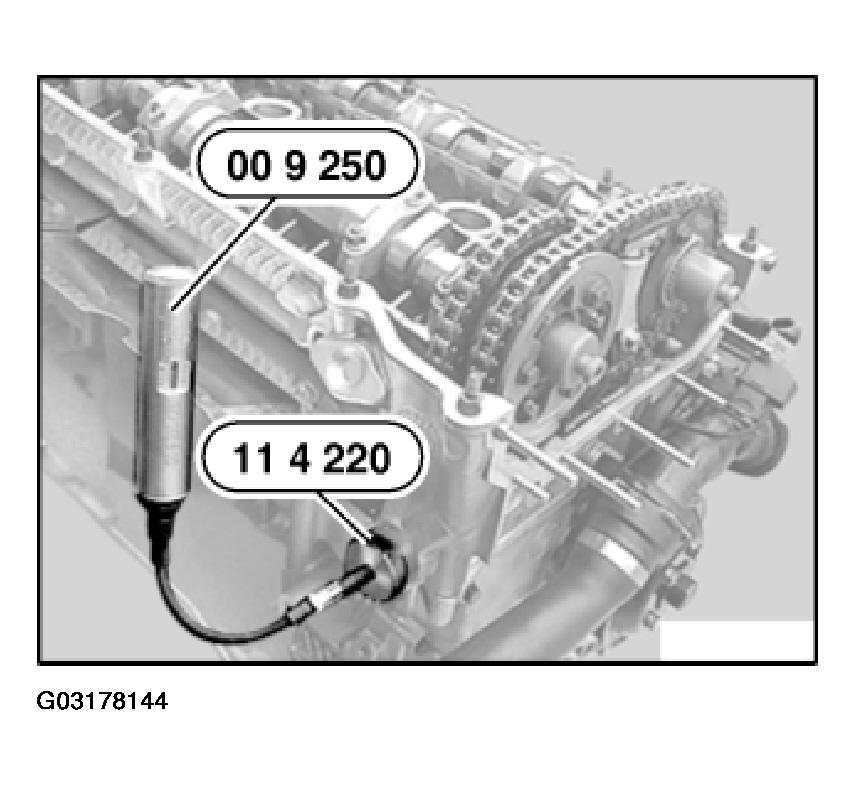

Preload tensioning rail with special tool 11 4 220 by rotating adjusting screw with special tool 00 9 250 or standard torque wrench to 0.7 Nm.

Fig 59: Identifying Special Tool 11 4 220 And Special Tool 00 9 250

Courtesy of BMW OF NORTH AMERICA, INC.

Preload cup spring slightly by pressing on sensor gear (1) and tighten nuts by hand.

Fig 60: Locating Sensor Gear Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Do not tighten down nuts fully.

Remove gasket.

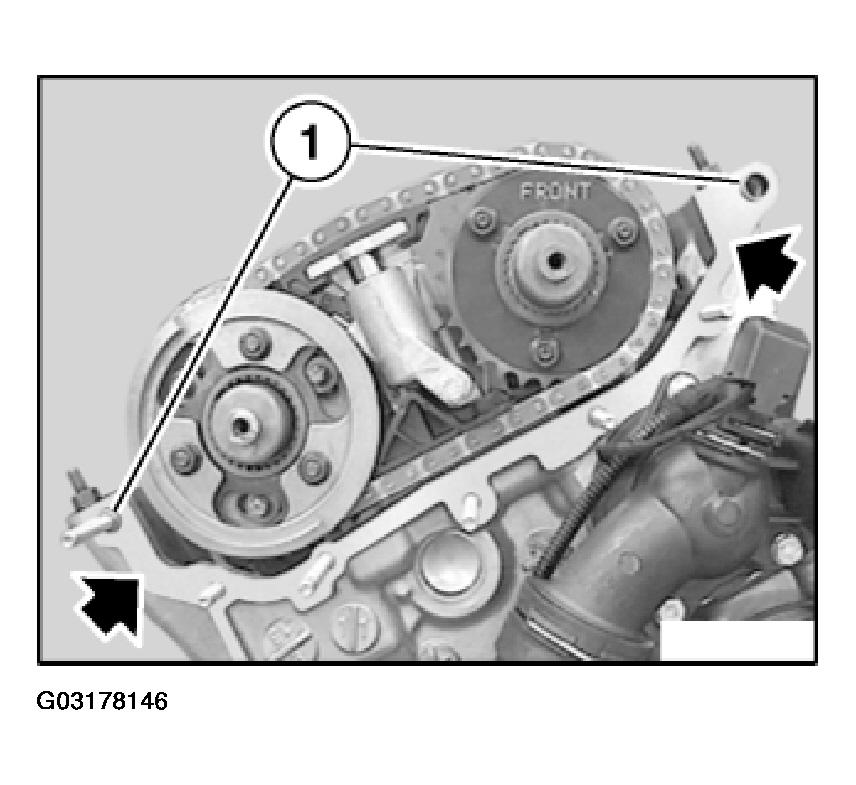

Check dowel sleeves (1) for damage and correct installation position.

Fig 61: Checking Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Keep sealing face clean and free of oil.

Important!

Fit special tool 11 6 150 "without gasket" only.

If gasket remains underneath special tool 11 6 150, camshaft timing will be "incorrectly" set.

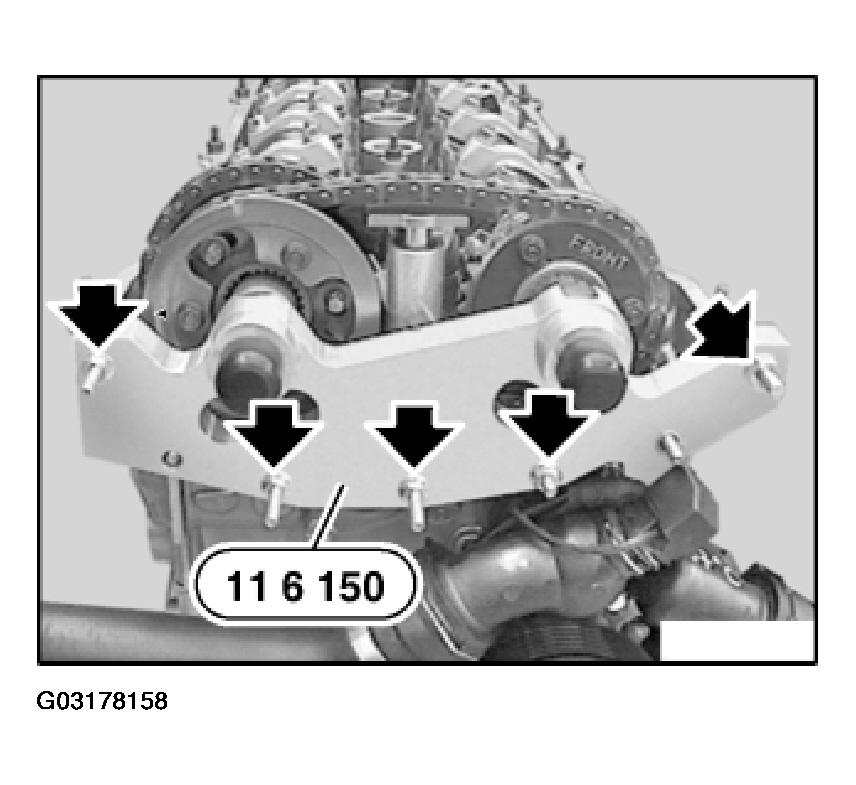

Attach special tool 11 6 150 "without gasket", tighten nuts by hand and then tighten down uniformly until special tool 11 6 160 is in full contact with cylinder head.

Fig 62: Locating Adjusting Plate Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

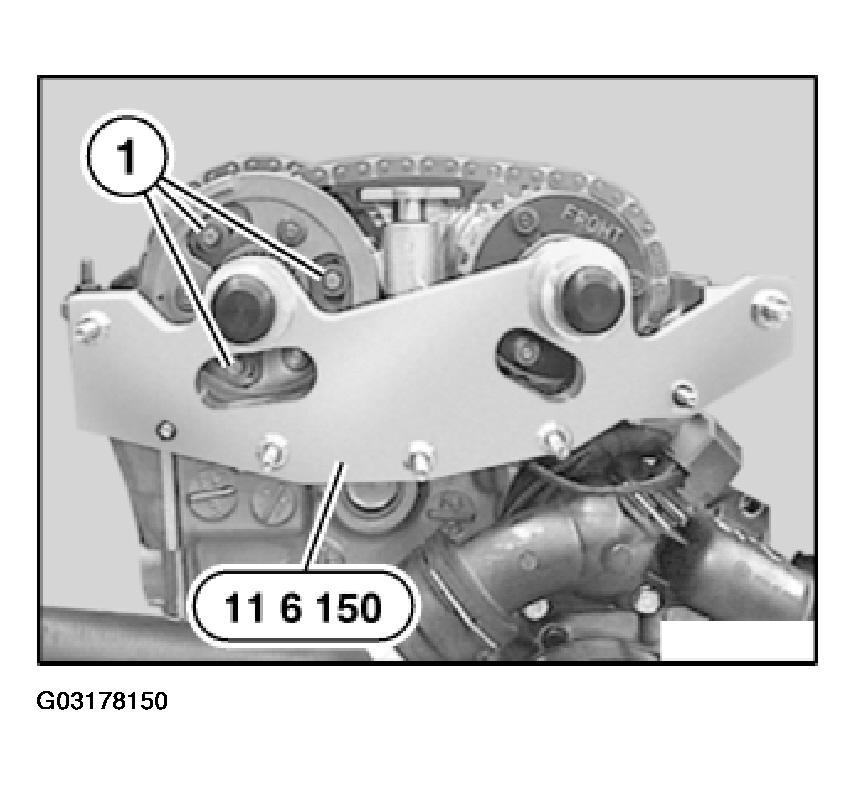

Insert screws (1) on exhaust side and initially tighten to approx. 5 Nm.

Fig 63: Inserting Screws On Exhaust Side

Courtesy of BMW OF NORTH AMERICA, INC.

Initially tighten nuts (2) on exhaust side and nuts (3) on inlet side to approx. 5 Nm.

Fig 64: Tightening Nuts On Exhaust Side And Nuts On Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) on exhaust side.

Tightening torque, refer to 11 31 3AZ in CAMSHAFT .

Fig 65: Tightening Screws On Exhaust Side

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (2) on exhaust side and nuts (3) on inlet side.

Tightening torque, refer to 11 31 11AZ in CAMSHAFT .

Fig 66: Tightening Nuts On Exhaust Side And Nuts On Inlet Side

Courtesy of BMW OF NORTH AMERICA, INC.

Pull special tool 11 2 300 back until flywheel is no longer secured in position.

Fig 67: Aligning Plug Mandrel And Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 3 244 and special tool 11 3 240.

Fig 68: Removing Special Tool 11 3 244 And Special Tool 11 3 240

Courtesy of BMW OF NORTH AMERICA, INC.

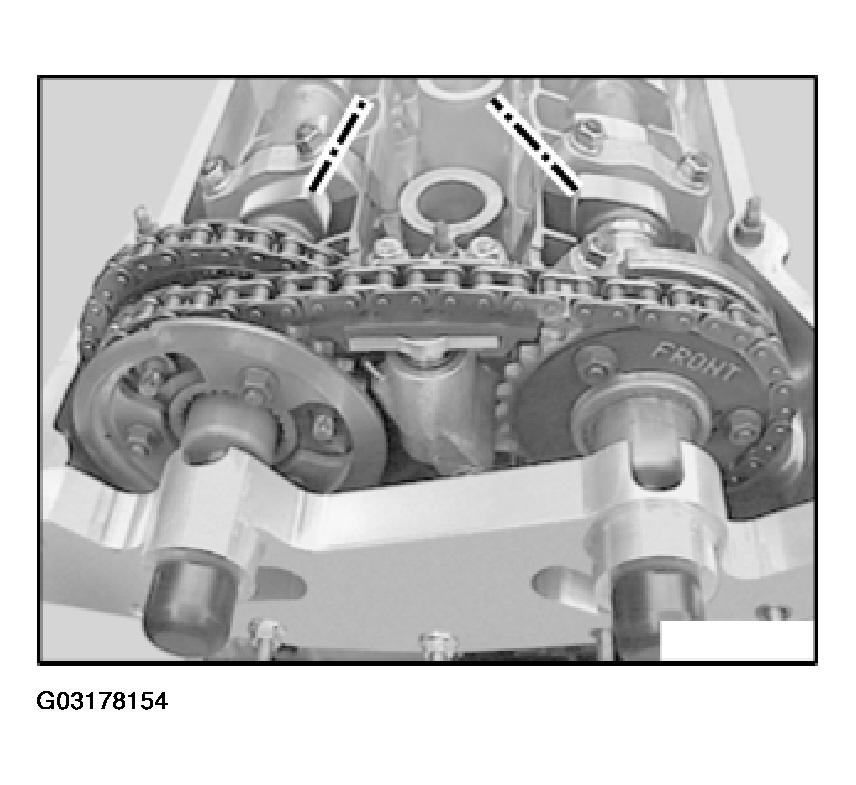

Crank engine twice in direction of rotation until cam tips on inlet and exhaust camshafts on 1st cylinder face one another.

Fig 69: Aligning Inlet And Exhaust Cam Tips

Courtesy of BMW OF NORTH AMERICA, INC.

Secure crankshaft in firing TDC position with special tool 11 2 300.

Important!

Do not turn the engine back.

Remove special tool 11 2 300 before switching on the engine.

Fig 70: Removing Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 3 240 to camshafts.

Fig 71: Fitting Special Tool 11 3 240 To Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The timing is correctly set if the special tool 11 3 240 rests without a gap on the cylinder head or protrudes up to 1 mm to the inlet side. The timing must be reset if the special tool 11 3 240 protrudes to the exhaust side.

Fig 72: Identifying Correct Fitting Of Special Tool 11 3 240 To Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 6 150.

Fig 73: Removing Special Tool 11 6 150

Courtesy of BMW OF NORTH AMERICA, INC.

Install VANOS adjustment unit. Refer to Refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56) .

Assemble engine.
