00 00 ... Power steering/ride-height control: visual inspection for leaks and fluid level, topping up fluid if necessary

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Visual Inspection And Leak Test:

Check connections, hoses and steering gear for traces of fluid.

Checking Fluid Level:

Carry out fluid level check with engine off at expansion tank of power steering/ride-height control; if necessary, top up hydraulic fluid to Max. marking (1).

NOTE: If the fluid level has dropped to the Min. marking (2), you must check the power steering and ride-height control for leaks and issue a separate invoice for this work. It is not enough merely to top up the fluid.

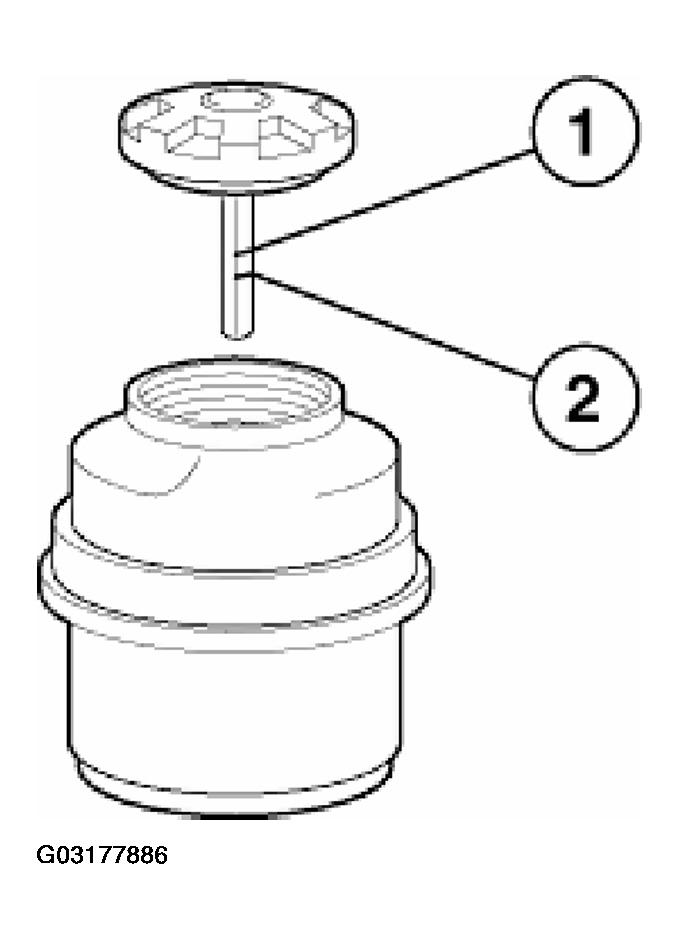

Fig 1: Identifying Min. And Max. Marking
G03177886Courtesy of BMW OF NORTH AMERICA, INC.
