Solenoids & Solenoid Valves
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 BMW 850Ci, 1997 BMW 840Ci, 1996 BMW 850Ci, 1996 BMW 840Ci, and 1995 BMW 850Ci. However, it is still accessible from the selected car via links, so may be relevant.
SOLENOIDS & SOLENOID VALVES
| Description (Component) | Location |
|---|---|
| Cruise Control Actuator (Tempomat) (M25) | LH side of engine compartment. |
| CYL. 1-6 Evaporative Emission Valve (Y6121) | Front RH side of engine compartment. See Figure . |

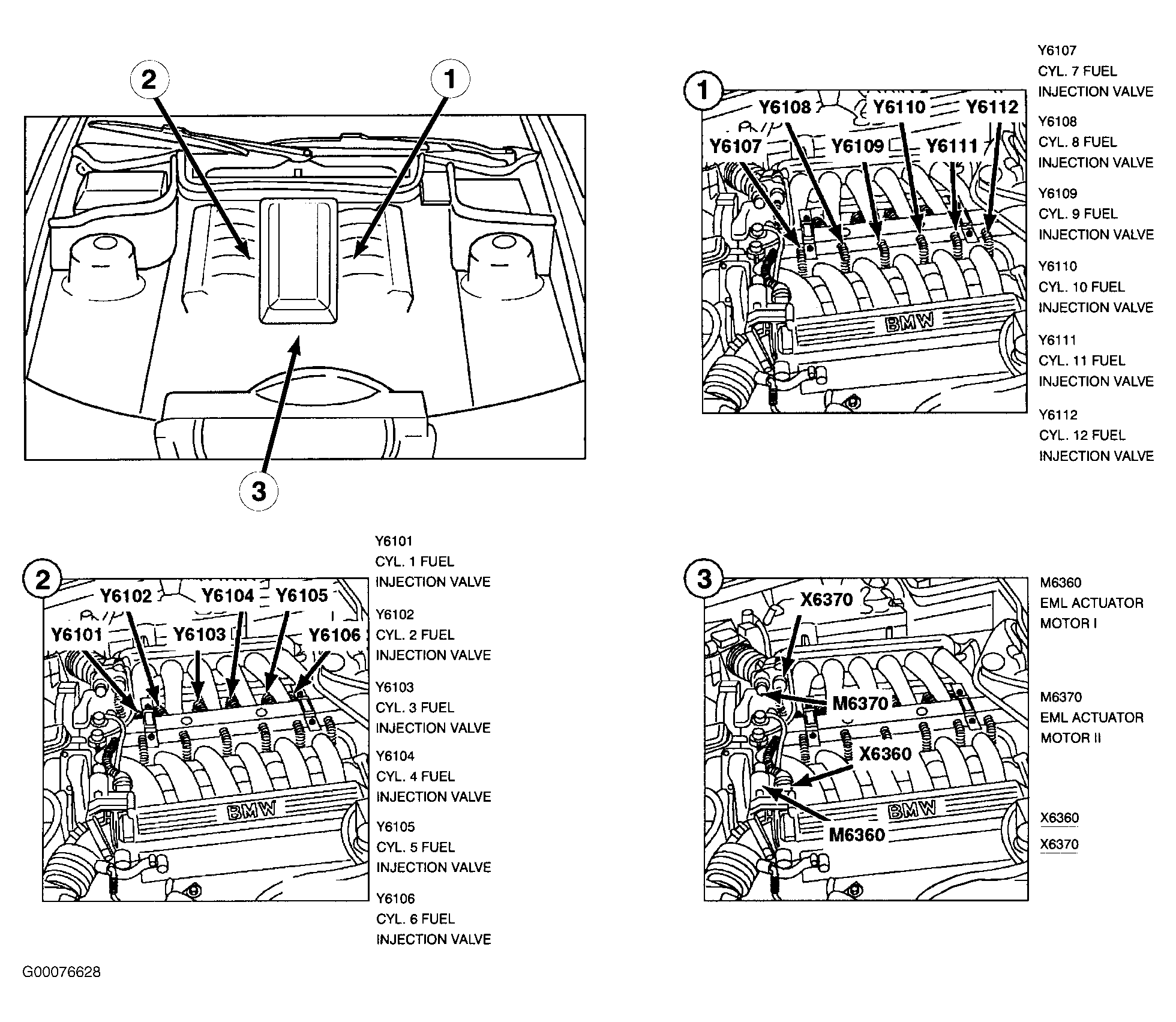

| CYL. 1-6 Fuel Injection Valve (Y6101-Y6106) | LH side of engine. See Figure . |
| CYL. 7-12 Evaporative Emission Valve (Y6122) | Front RH side of engine compartment. See Figure . |
| CYL. 7-12 Fuel Injection Valve (Y6107-Y6112) | RH side of engine. See Figure . |
| Evaporative Emission Valve (Y6120) | Front of engine. |
| Idle Speed Control Valve (Y6130) | Front of engine. See Figure . |
| Left Front EDC Valves (Y401z) | Behind LH front wheel. |
| Left Rear EDC Valves (Y403z) | Behind LH rear wheel. See Figure . |
| Mixing Actuator (R1) | Center of dash. |
| Right Front EDC Valves (Y402z) | Behind RH front wheel. See Figure . |
| Right Rear EDC Valves (Y404z) | Behind RH rear wheel. |
| Secondary Air Pump Valve (Y6164) | LH side of engine. |
| Transmission Valve Unit (Y8505w) | Under center of car. |
