SENDING UNITS & SENSORS
| Description (Component) | Location |
|---|---|

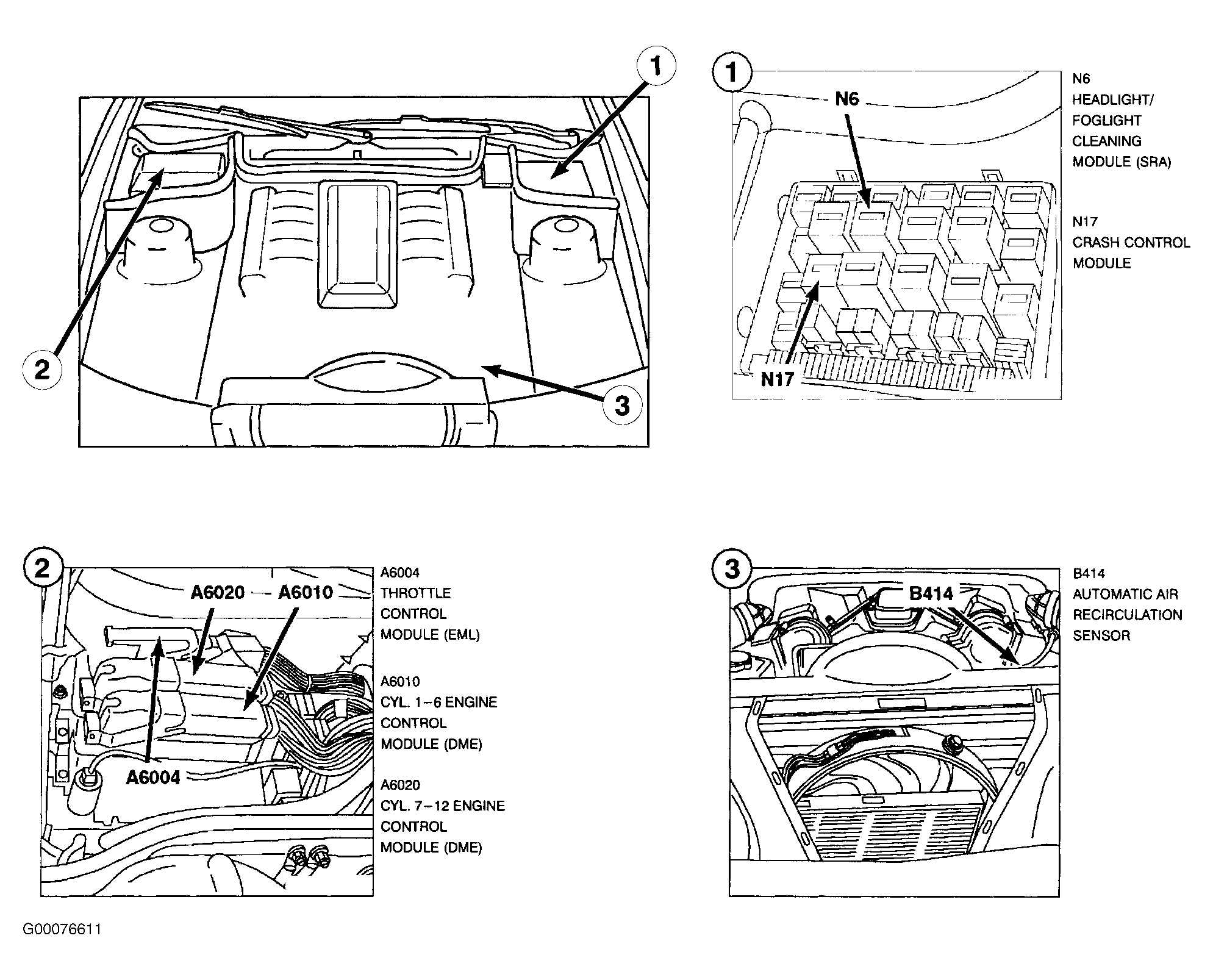

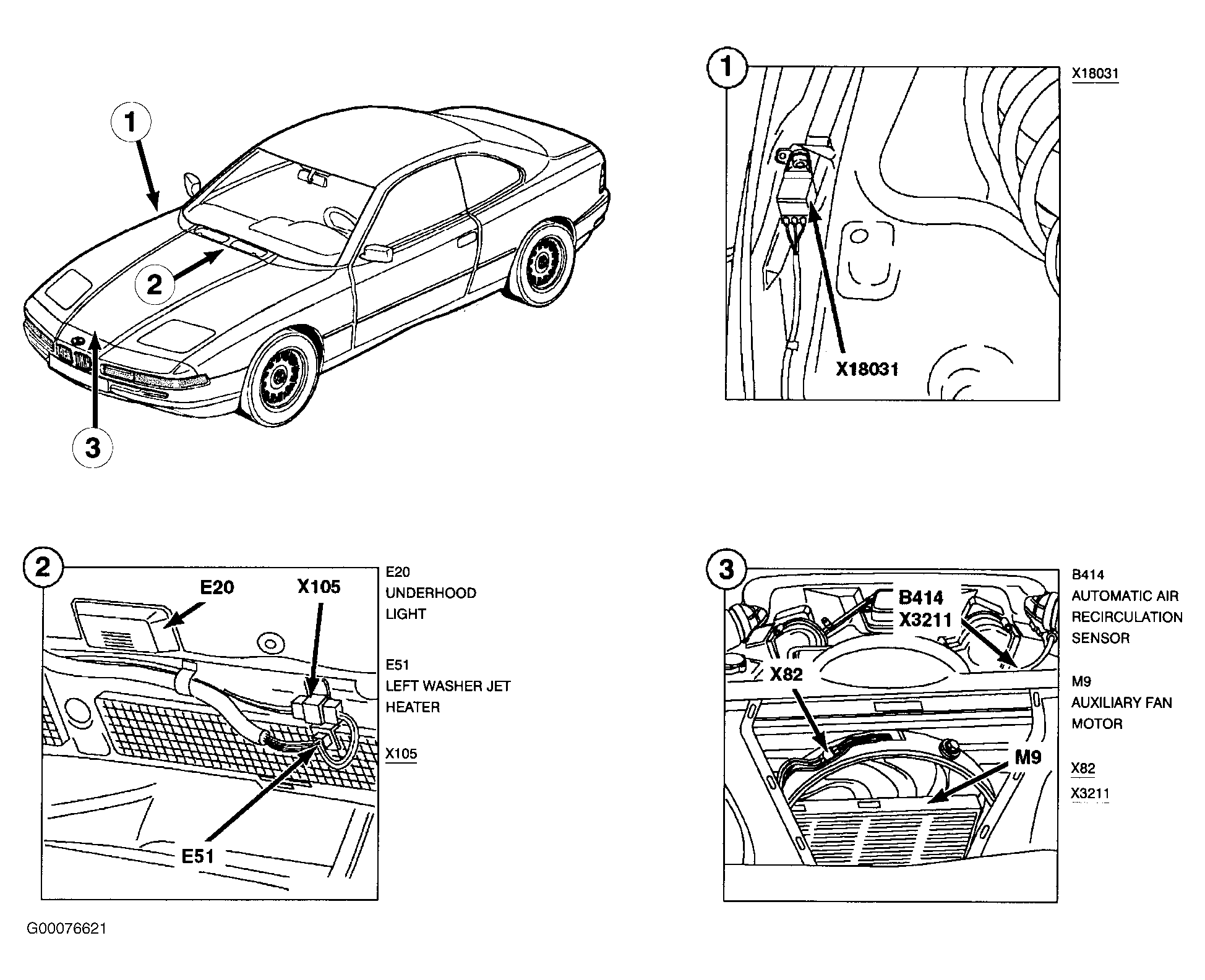

| Automatic Air Recirculation Sensor (B414) | Front LH side of engine compartment. See Figure & Figure . |
| Auxiliary Throttle Position Sensor (R6253) | Front of engine. See Figure . |
| Camshaft Position Sensor (Cylinder Identification) (B6204) | Front of engine. |

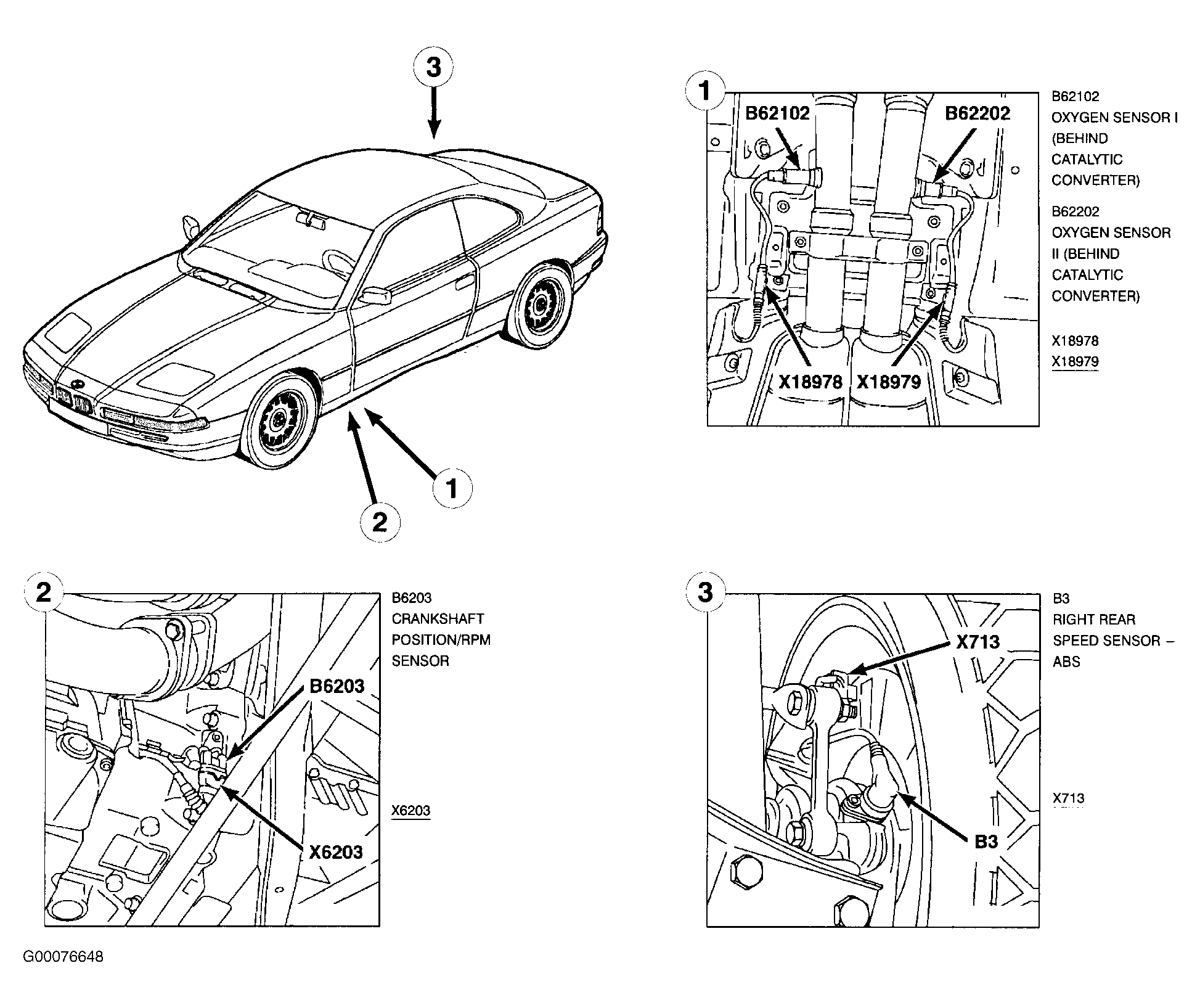

| Crankshaft Position/RPM Sensor (B6203) | Front of engine; on RH side of transmission (840Ci). See Figure . |
| Crankshaft Sensor I (B6213) | Rear RH side of engine compartment below. |
| Crankshaft Sensor II (B6223) | Rear LH side of engine compartment below. |

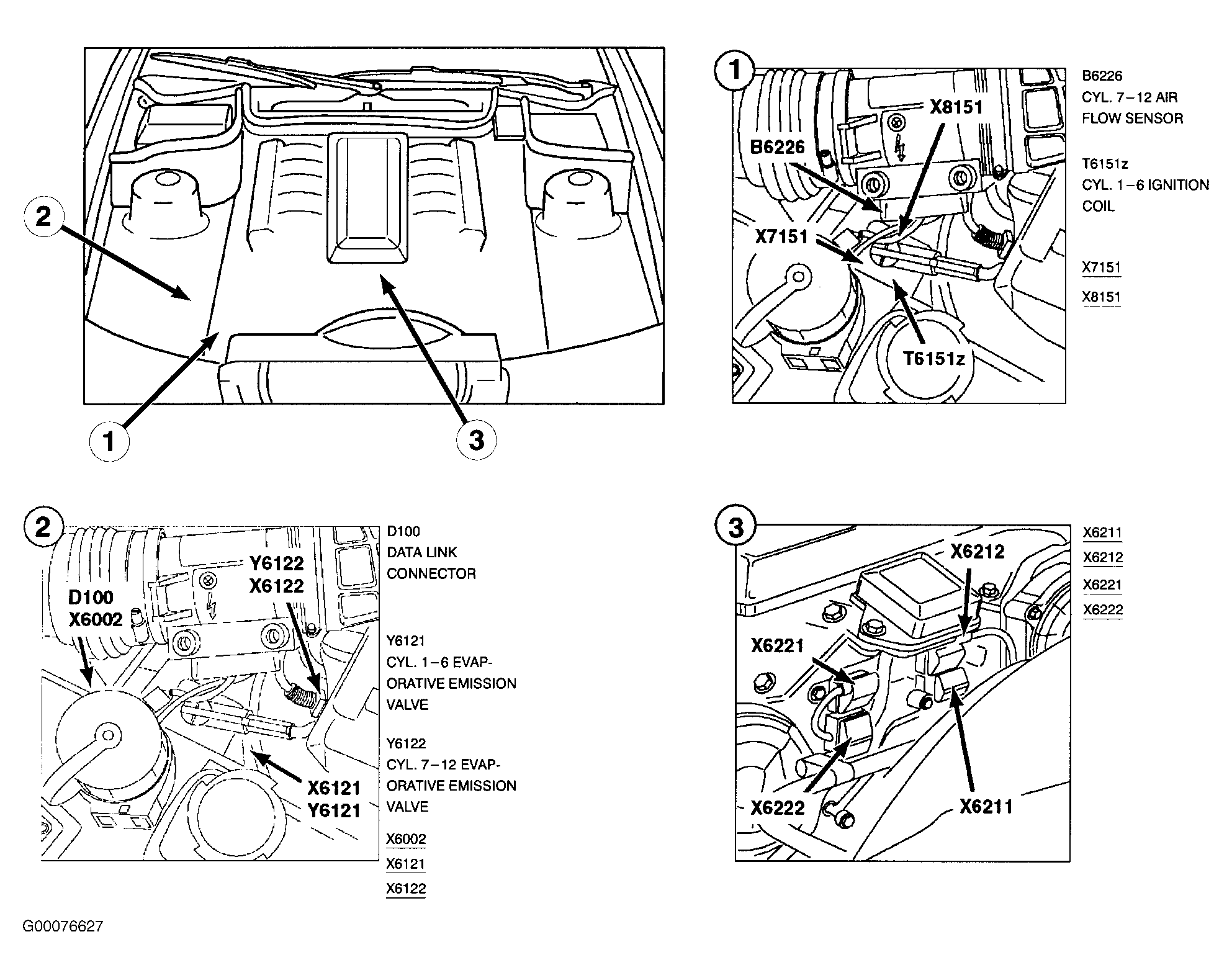

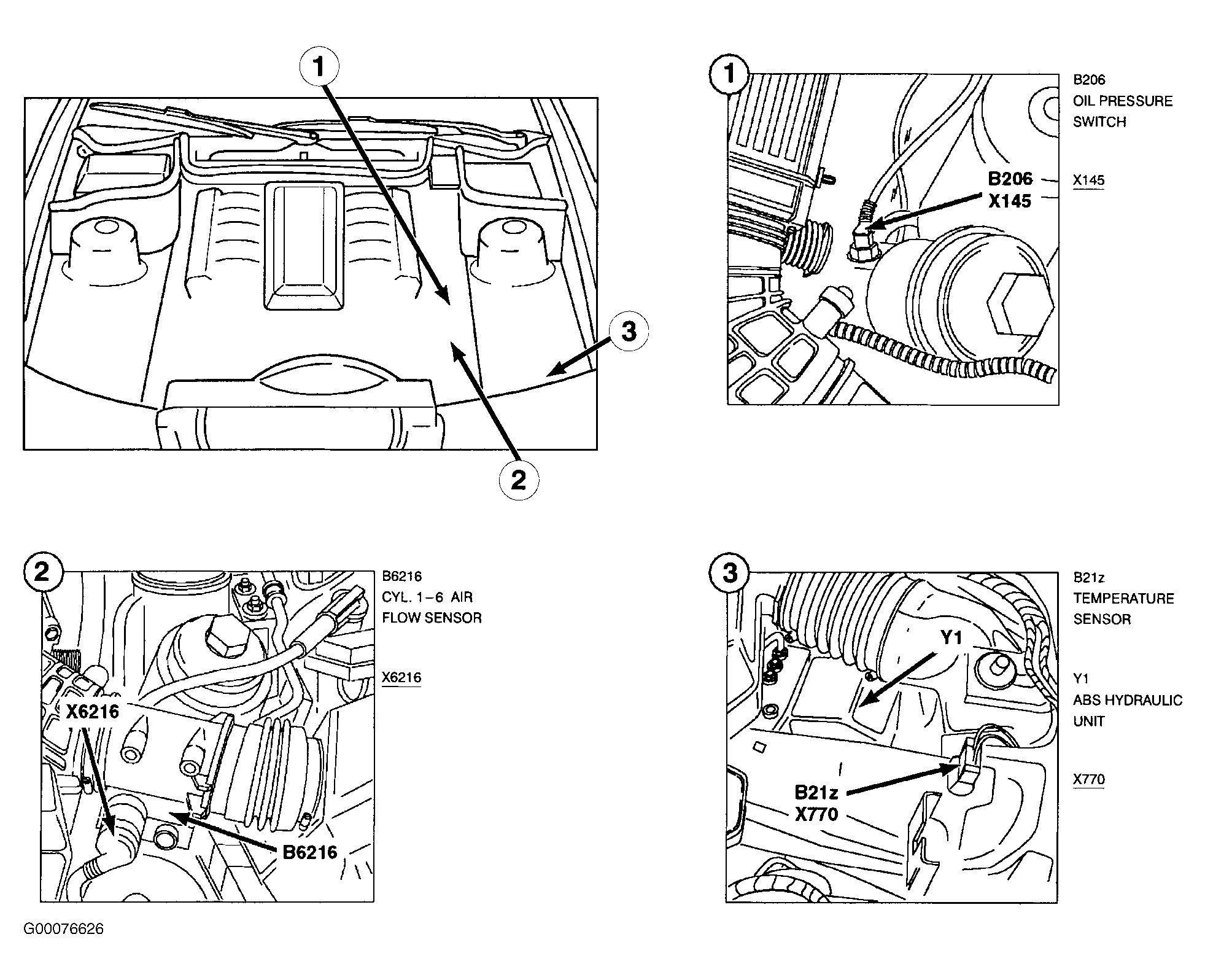

| CYL. 1-6 Air Flow Sensor (B6216) | LH side of engine compartment. See Figure . |
| CYL. 7-12 Air Flow Sensor (B6226) | RH side of engine compartment. See Figure . |
| CYL. 1-6 Air Temperature Sensor (B6215) | Rear of engine. |
| CYL. 7-12 Air Temperature Sensor (B6225) | Rear of engine. |
| CYL. 1-6 Crankshaft Position/RPM Sensor (B6212) | Front of engine compartment. |
| CYL. 7-12 Crankshaft Position/RPM Sensor (B6222) | Front of engine compartment. |
| CYL. 1-6 Cylinder Identification Sensor (B6211) | Front of engine left. |
| CYL. 7-12 Cylinder Identification Sensor (B6221) | Front of engine right. |
| CYL. 1-6 Heated Oxygen Sensor (B6210) | On catalytic converter. See Figure . |
| CYL. 1-4 Heated Oxygen Sensor (B6210w) | On catalytic converter. |
| CYL. 5-8 Heated Oxygen Sensor (B6220w) | On catalytic converter. |
| CYL. 7-12 Heated Oxygen Sensor (B6220) | On catalytic converter. See Figure . |
| CYL. 1-2 Knock Sensor (B6241) | LH cylinder head (840Ci). |
| CYL. 1-3 Knock Sensor (B6241w) | LH cylinder head (850Ci). |
| CYL. 3-4 Knock Sensor (B6242) | LH cylinder head (840Ci). |
| CYL. 4-6 Knock Sensor (B6242w) | LH cylinder head (850Ci). |
| CYL. 5-6 Knock Sensor (B6243) | LH cylinder head (840Ci). |
| CYL. 7-9 Knock Sensor (B6243w) | RH cylinder head (850Ci). |
| CYL. 7-8 Knock Sensor (B6244) | RH cylinder head (840Ci). |
| CYL. 10-12 Knock Sensor (B6244w) | RH cylinder head (850Ci). |

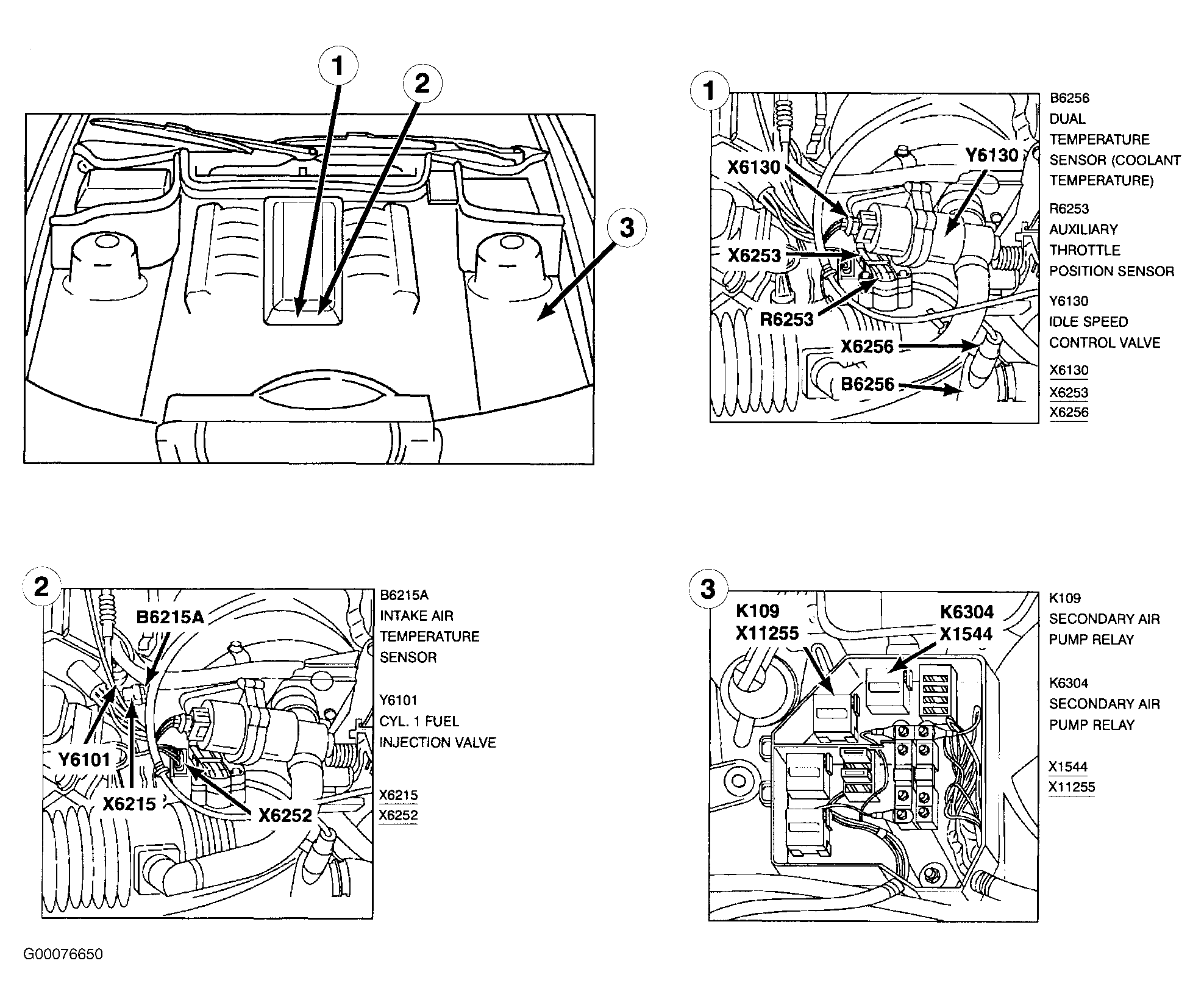

| Dual Temperature Sensor (Coolant Temperature) (B6256) | Front of engine. See Figure . |
| DSC Steering Wheel Angle Sensor (R26) | On steering column. |

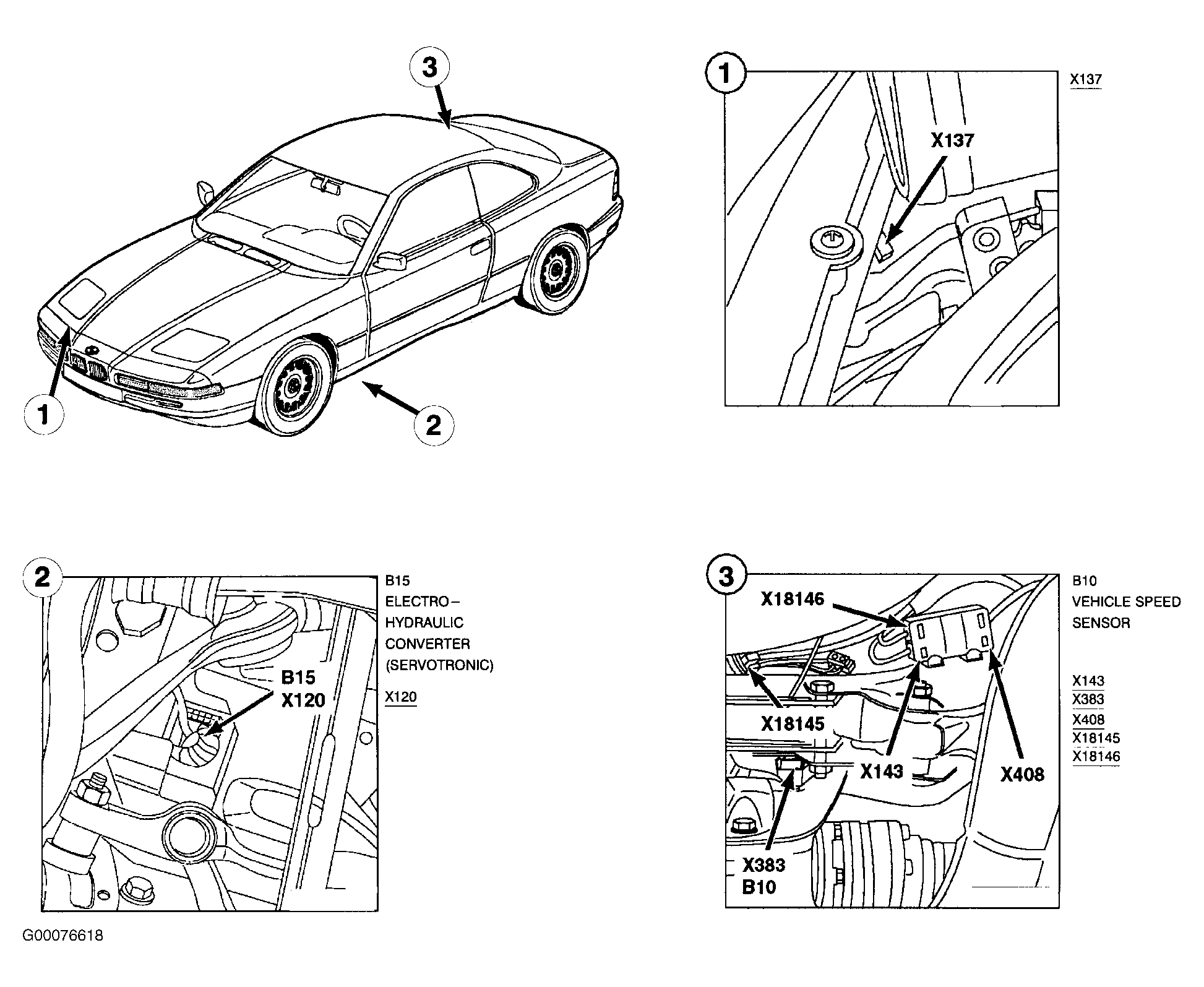

| Electro-Hydraulic Converter (Servotronic) (B15) | Under LH front of car. See Figure . |
| Engine Coolant Temperature Sensor (B6232 & B6236) | On coolant inlet. |
| Engine Coolant Temp. Sensor (EML) (B6234) | On coolant inlet. |
| Evaporator Temperature Sensor (B14) | RH side of LH footwell. |
| Front Acceleration Sensor (B41z) | RH front of wheel well above. |

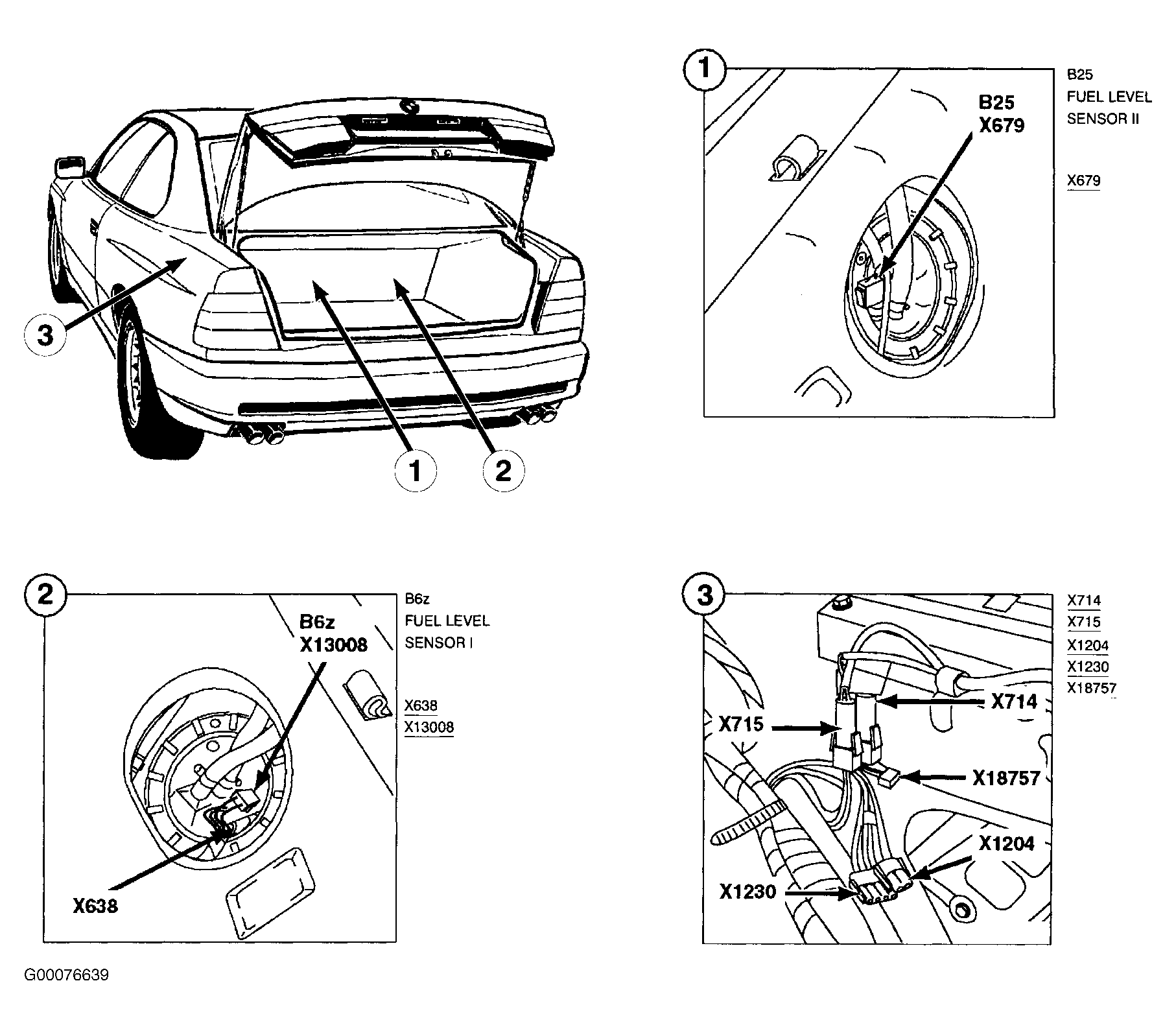

| Fuel Level Sensor I (B6z) | Under RH rear seat. See Figure . |
| Fuel Level Sensor II (B25) | Under LH rear seat. See Figure . |

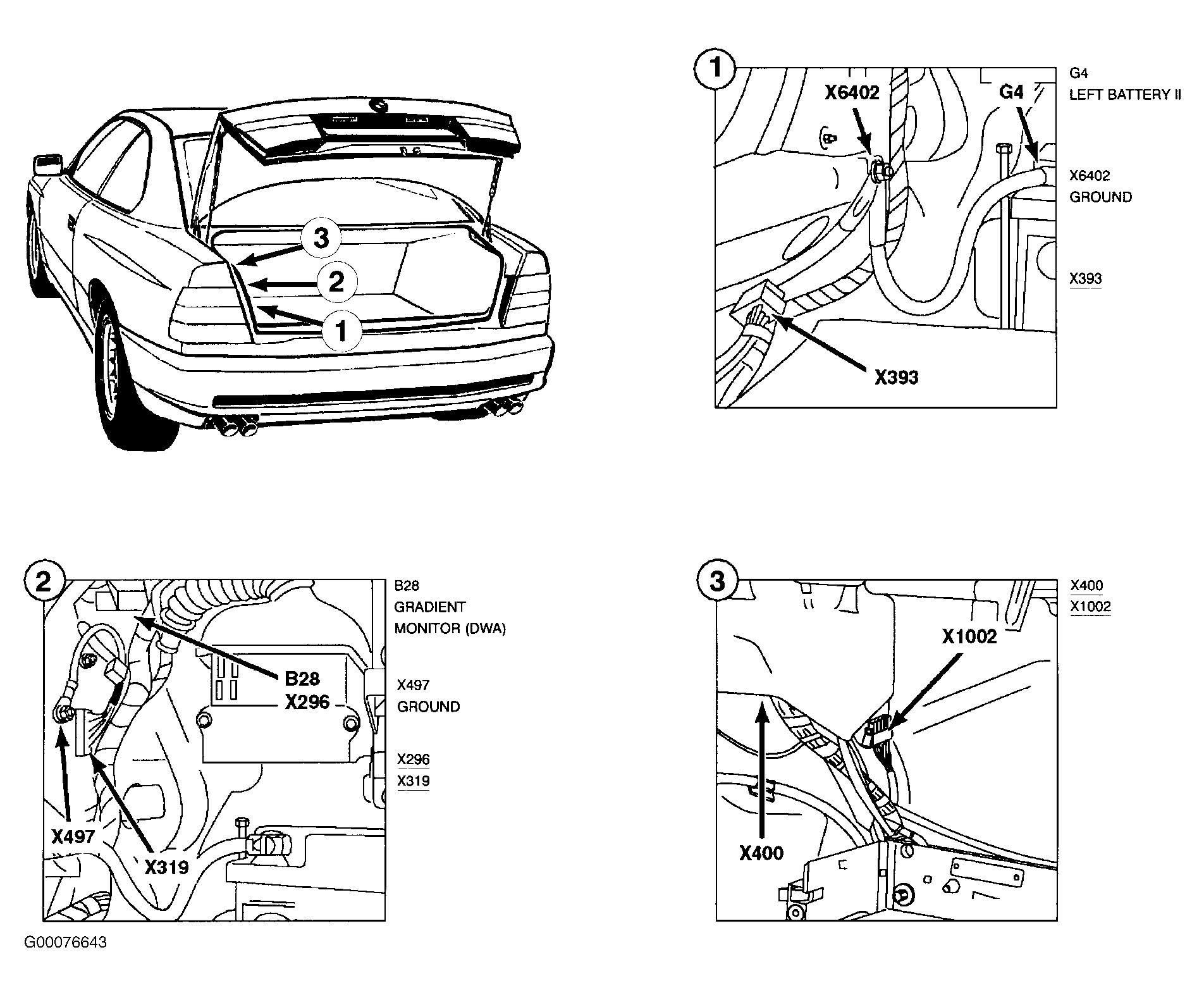

| Gradiant Monitor (DWA) (B28) | In LH rear side of luggage compartment. See Figure . |
| Hall Effect Camshaft Sensor (B6209) | Top center of engine. |
| Hall Effect Camshaft Sensor I (B6219) | Top RH side of engine. |
| Headlight Widening Potentiometer (R13) | LH side of dash. |
| Heat Exchanger Temperature Sensor, LH (B11) | Below LH side of dash. |
| Heat Exchanger Temperature Sensor, RH (B12) | Center console right behind radio. |
| Hot Film Air Mass Meter (B6217) | Front of engine. |
| Hot Film Air Mass Meter I (B6217w) | Front of engine (850Ci). |
| Hot Film Air Mass Meter II (B6227w) | RH side of engine compartment. |
| Intake Air Temperature Sensor (B6205) | Front RH side of engine compartment. |
| Intake Air Temperature Sensor (B6215A) | Front of engine (840Ci). See Figure . |

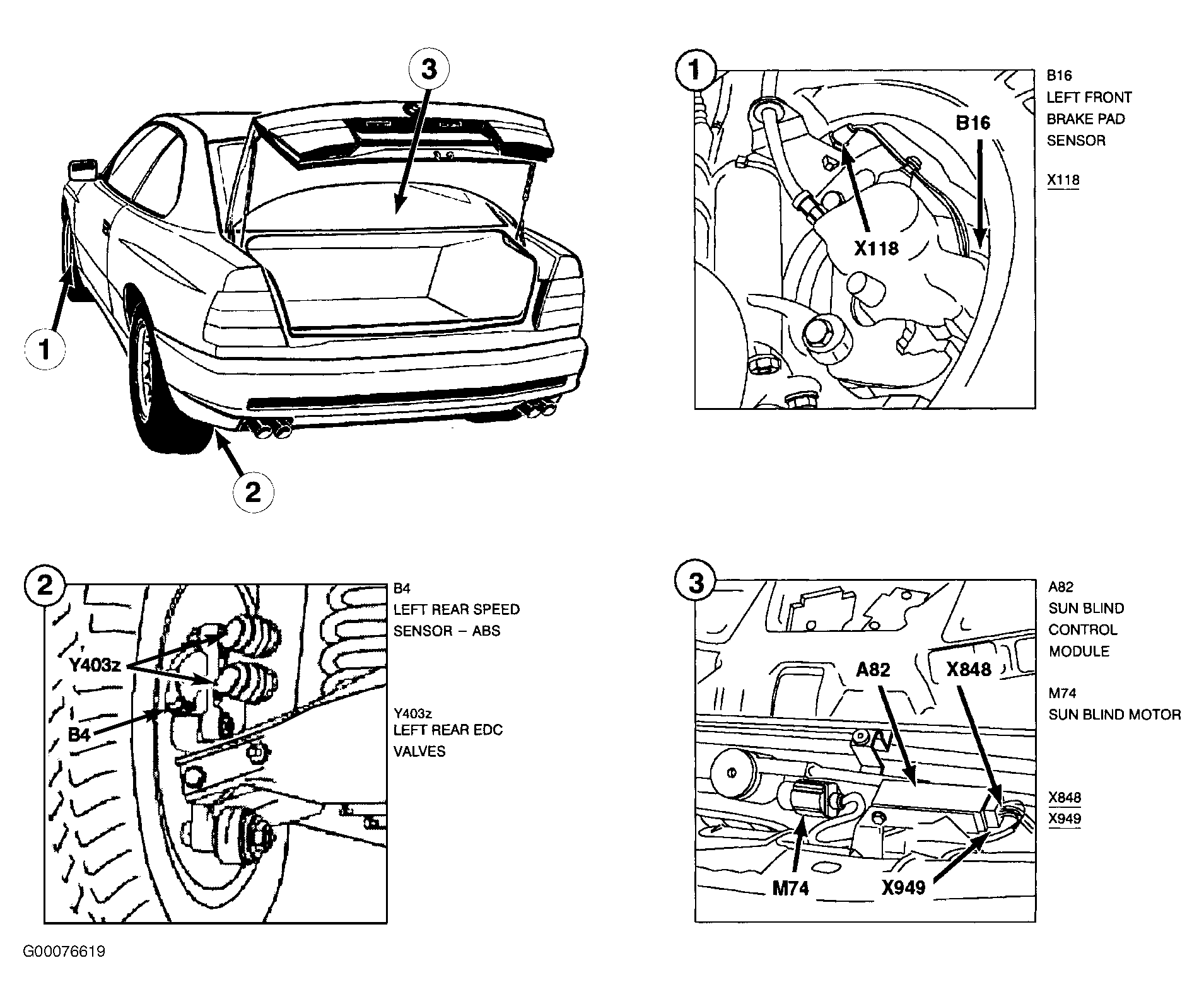

| Left Front Brake Pad Sensor (B16) | Behind LH front wheel. See Figure . |
| Left Front Impact Sensor (S71) | LH side of engine compartment. |
| Left Front Speed Sensor (ABS) (B2) | Behind LH front wheel. |
| Left Rear Speed Sensor (ABS) (B4) | Behind LH rear wheel. See Figure . |

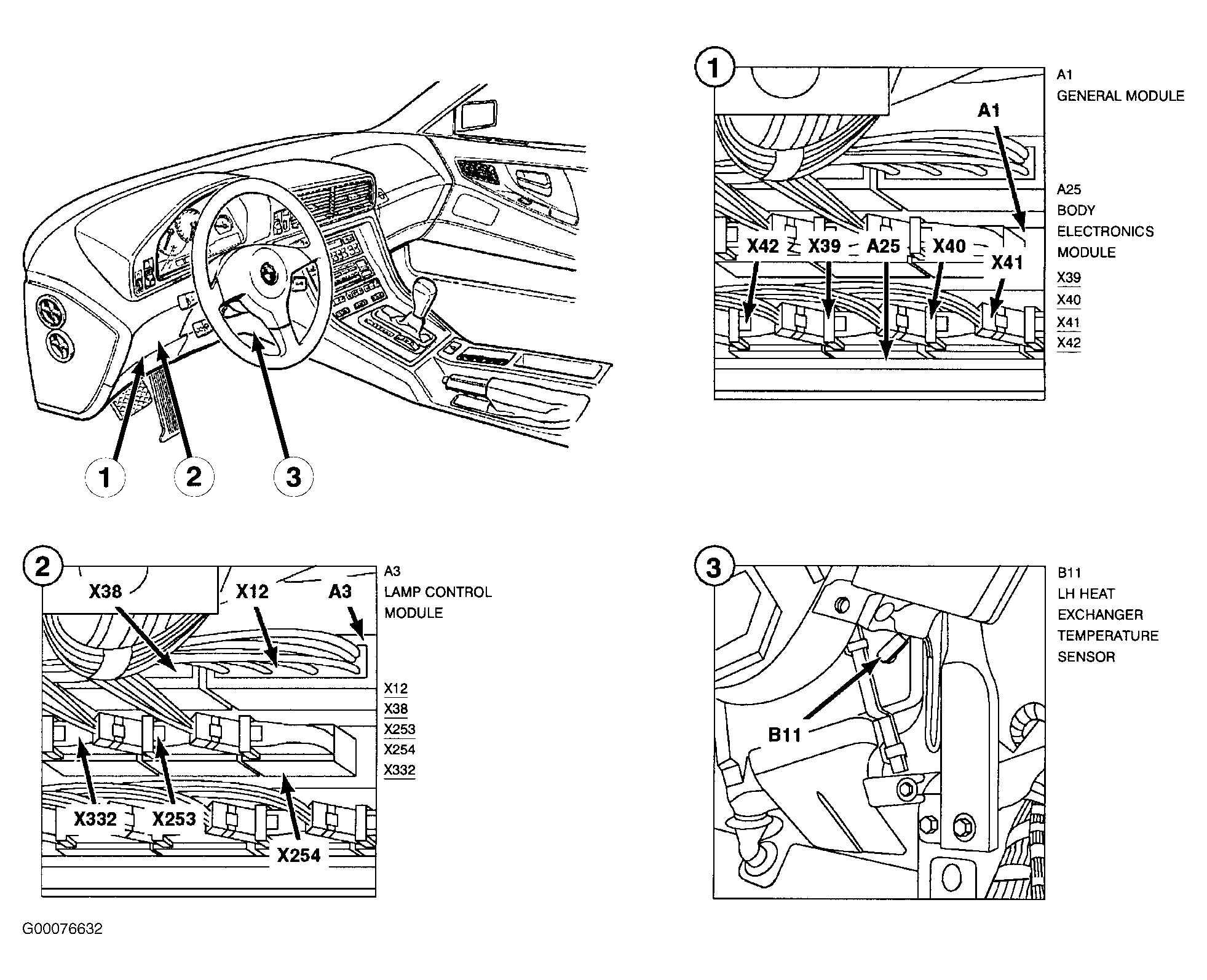

| LH Heat Exchanger Temperature Sensor (B11) | Below LH side of dash. See Figure . |

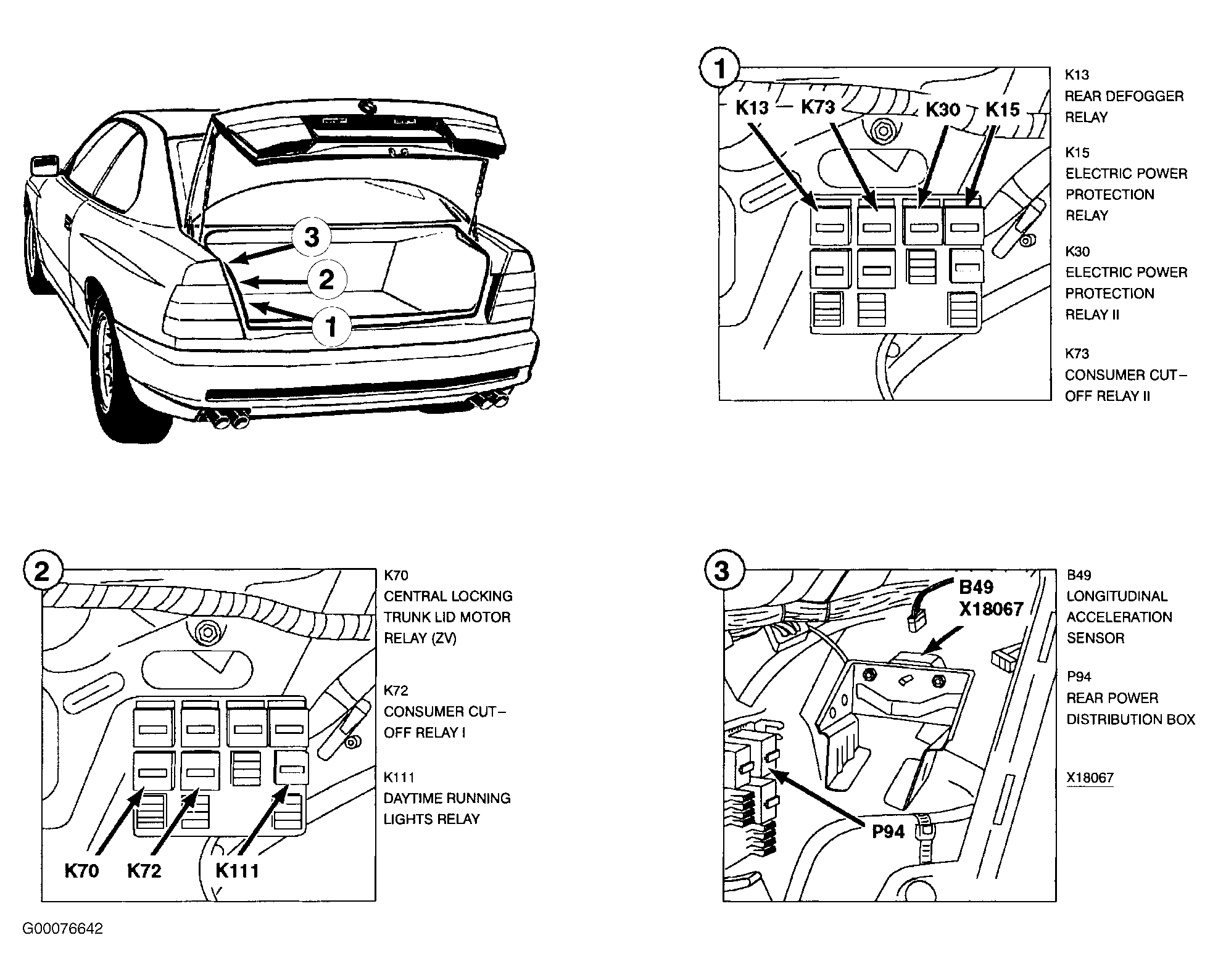

| Logitudinal Acceleration Sensor (B49) | In LH forward side of luggage compartment. See Figure . |

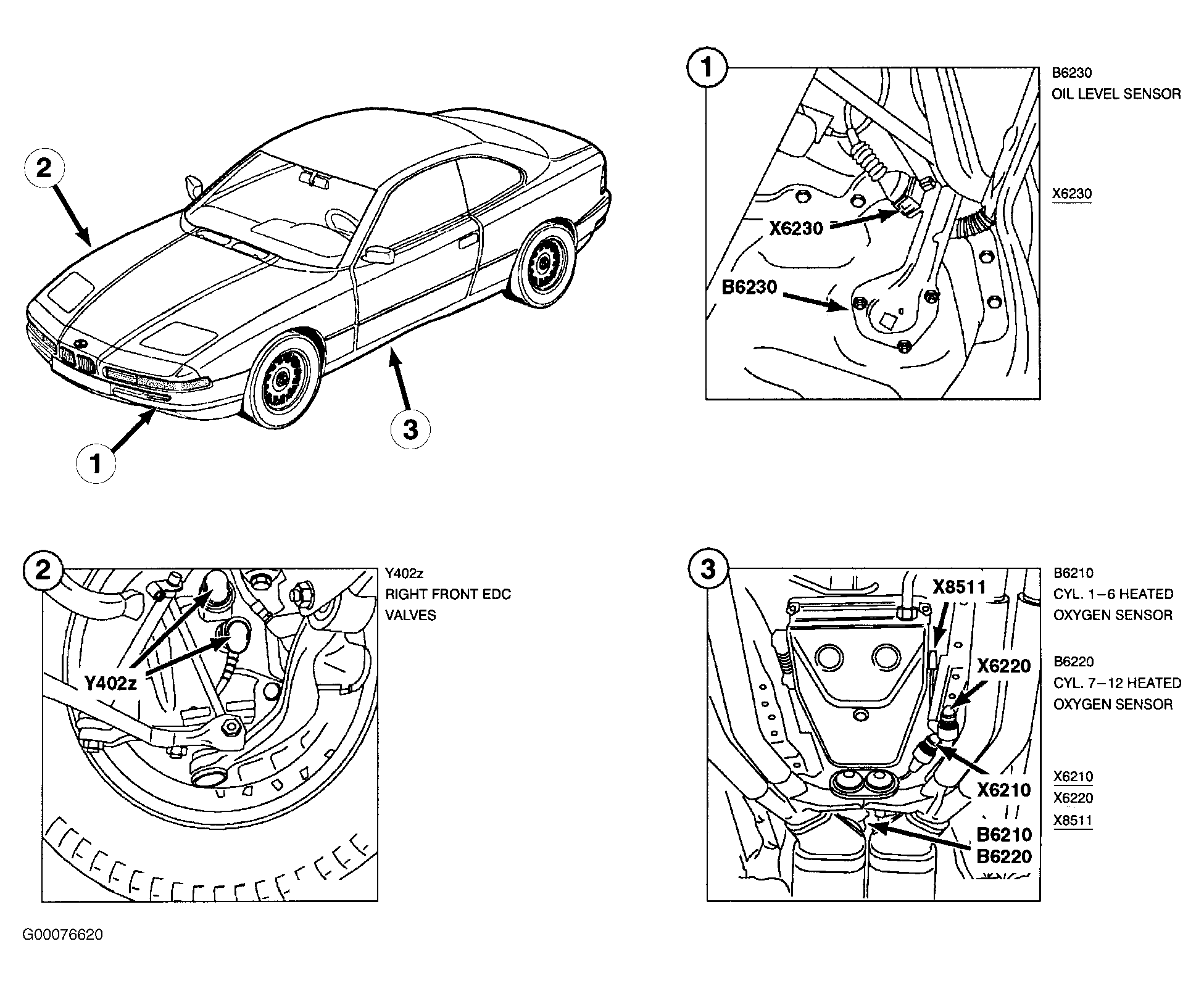

| Oil Level Sensor (B6230) | Under LH front of car. See Figure . |

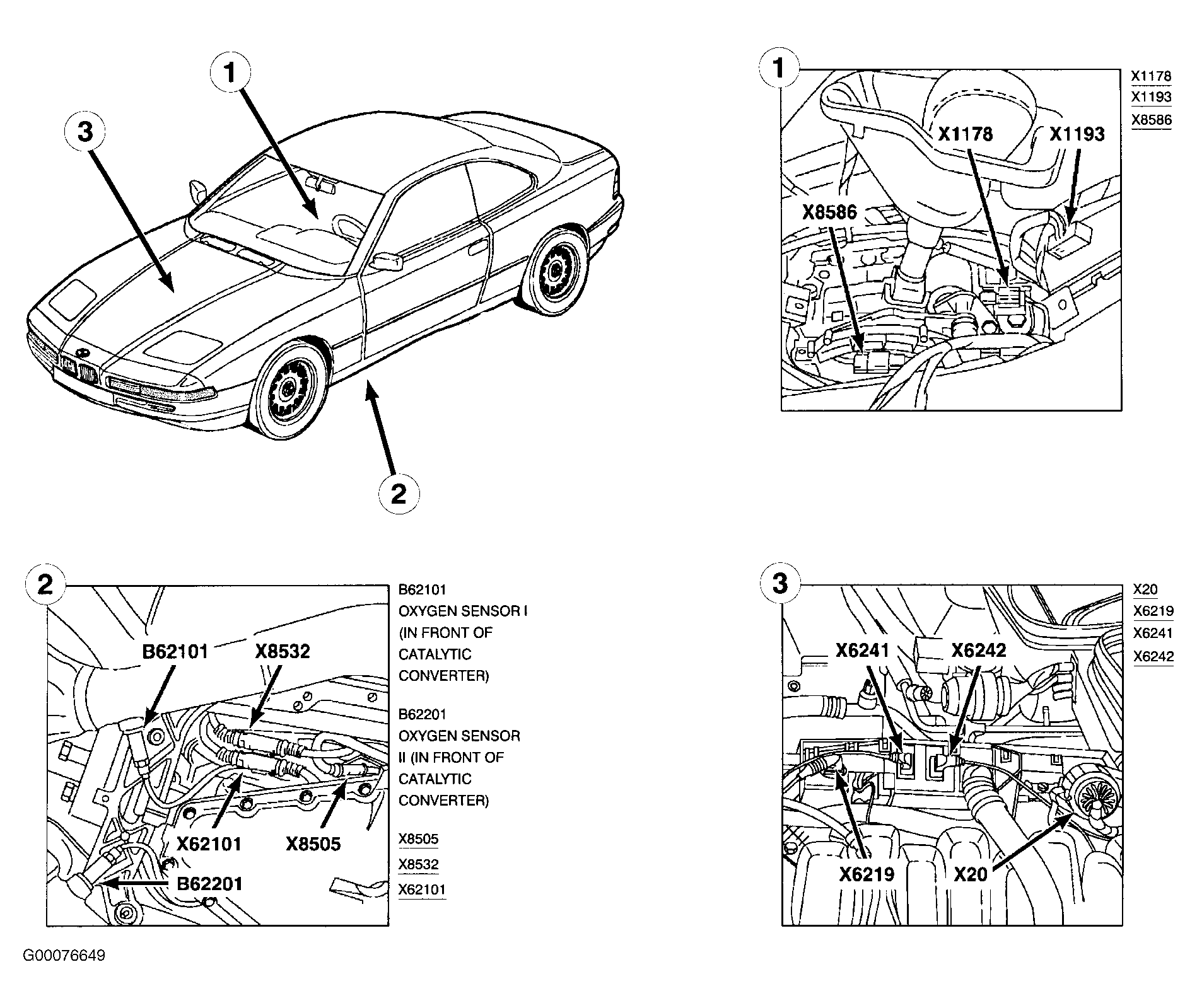

| Oxygen Sensor I (In Front Of Catalytic Converter) (B62101) | On catalytic converter; under center of car (840Ci). See Figure . |
| Oxygen Sensor I (Behind Catalytic Converter) (B62102) | Under center of car. See Figure . |
| Oxygen Sensor II (In Front Of Catalytic Converter) (B62201) | Under center of car. See Figure . |
| Oxygen Sensor II (Behind Catalytic Converter) (B62202) | Under center of car. See Figure . |
| Outside Temperature Sensor (B13) | Behind center of cowl. |

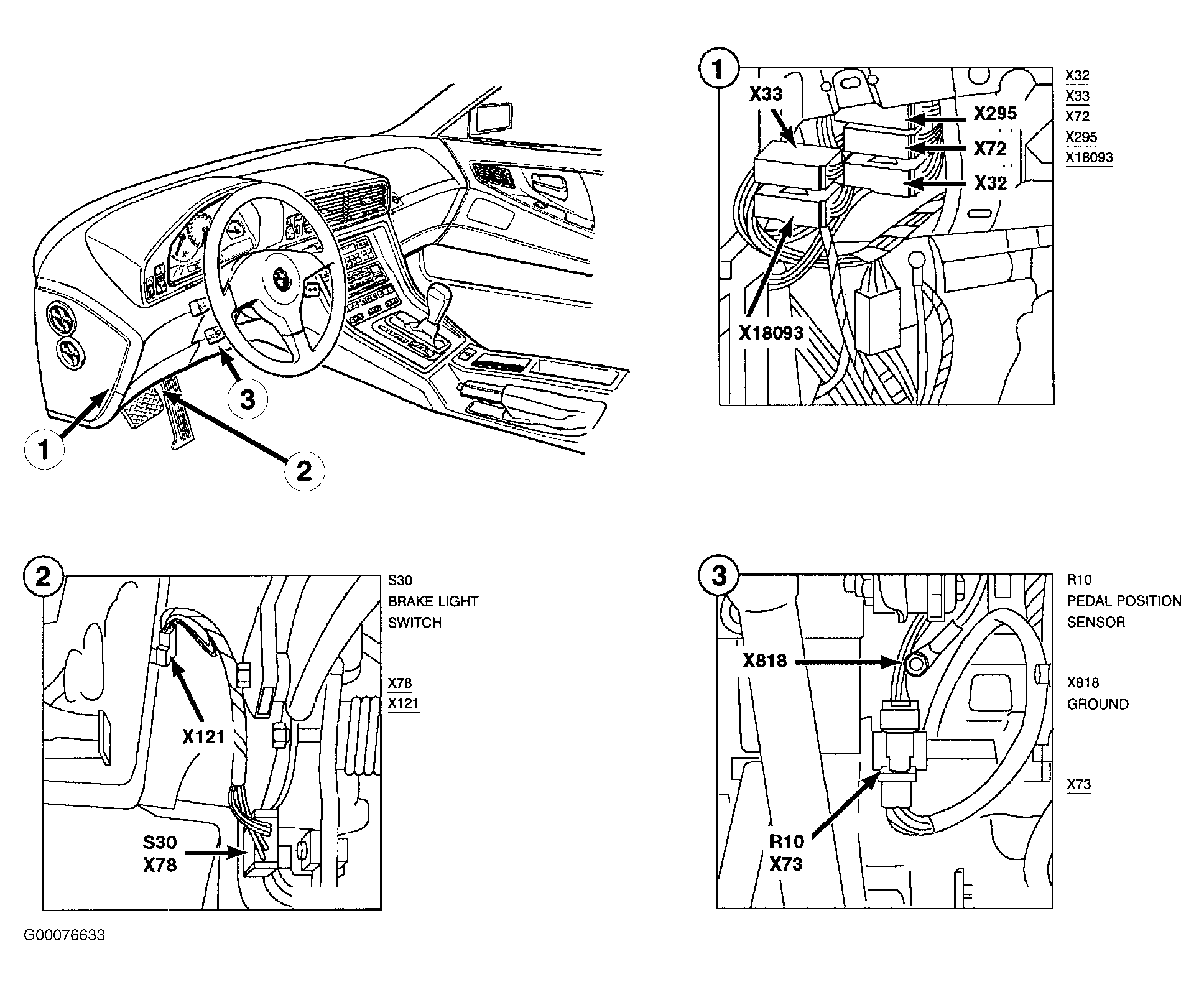

| Pedal Position Sensor (R10) | Below LH side of dash. See Figure . |
| Pressure Sensor/Plunger (Y16) | LH side of engine compartment. |
| RH Heat Exchanger Temperature Sensor (B12) | Center console right behind radio. |
| Right Front Impact Sensor (S72) | RH side of engine compartment near winshield washer reservoir. |
| Right Front Speed Sensor (ABS) (B1) | Behind RH front wheel. |

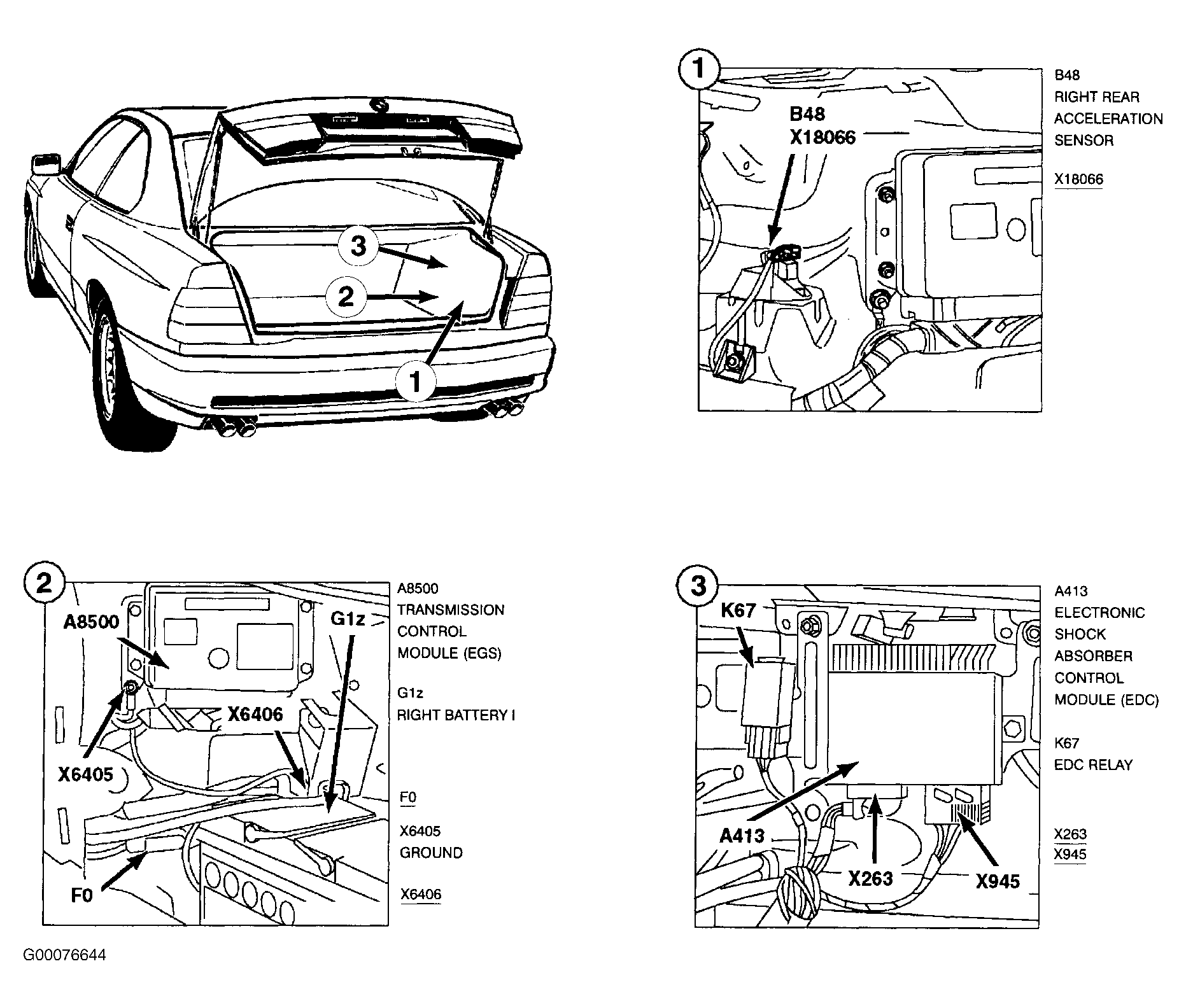

| Right Rear Acceleration Sensor (B48) | In RH rear side of luggage compartment. See Figure . |
| Right Rear Brake Pad Sensor (B17) | Behind RH rear wheel. |
| Right Rear Speed Sensor (ABS) (B3) | Behind RH rear wheel. See Figure . |
| Seatback Potentiometer (R7) | In lower LH front seatback. |
| Seat Cushion Movement Potentiometer (R9) | Under LH front seat. |
| Seat Cushion Rear Height Potentiometer (R8) | LH front seat. |
| Seat Height Potentiometer (R6) | LH front seat. |
| Series Resistor (For Secondary Air Pump) (R14) | LH side of engine compartment. |
| Steering Angle Sensor (B40) | On steering column. |
| Steering Column Angle Adjust Potentiometer (R19z) | Bottom of steering column. |
| Steering Column Length Adjust Potentiometer (R18z) | Bottom of steering column. |
| Temperature Sensor (B21z) | In ventilation duct left. See Figure . |
| Thigh Support Potentiometer (R15) | Under LH front seat. |
| Throttle Position Sensor (R6252) | Front of engine. |
| Vehicle Speed Sensor (B10) | On differential. See Figure . |
