Buzzers, Relays & Timers
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 BMW 850Ci, 1997 BMW 840Ci, 1996 BMW 850Ci, 1996 BMW 840Ci, and 1995 BMW 850Ci. However, it is still accessible from the selected car via links, so may be relevant.
BUZZERS, RELAYS & TIMERS
| Description (Components) | Location |
|---|---|
| Air Conditioning Relay (K33) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Anti-Theft Horn Relay (K91z) | Inside box on interior side of RH door sill. |
| Auxiliary Water Pump Relay (K8z) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Blower Relay (K4) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Central Locking Trunk Lid Motor Relay (ZV) (K70) | Rear Power Distribution in LH side of luggage compartment. See Figure . |
| Compressor Control Relay (K19) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Compressor Cut-Off Relay (K60) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Concealing Headlights Relay (K39) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Consumer Cut-Off Relay I (K72) | Rear Power Distribution in LH side of luggage compartment. See Figure . |
| Consumer Cut-Off Relay II (K73) | Rear Power Distribution in LH side of luggage compartment. See Figure . |

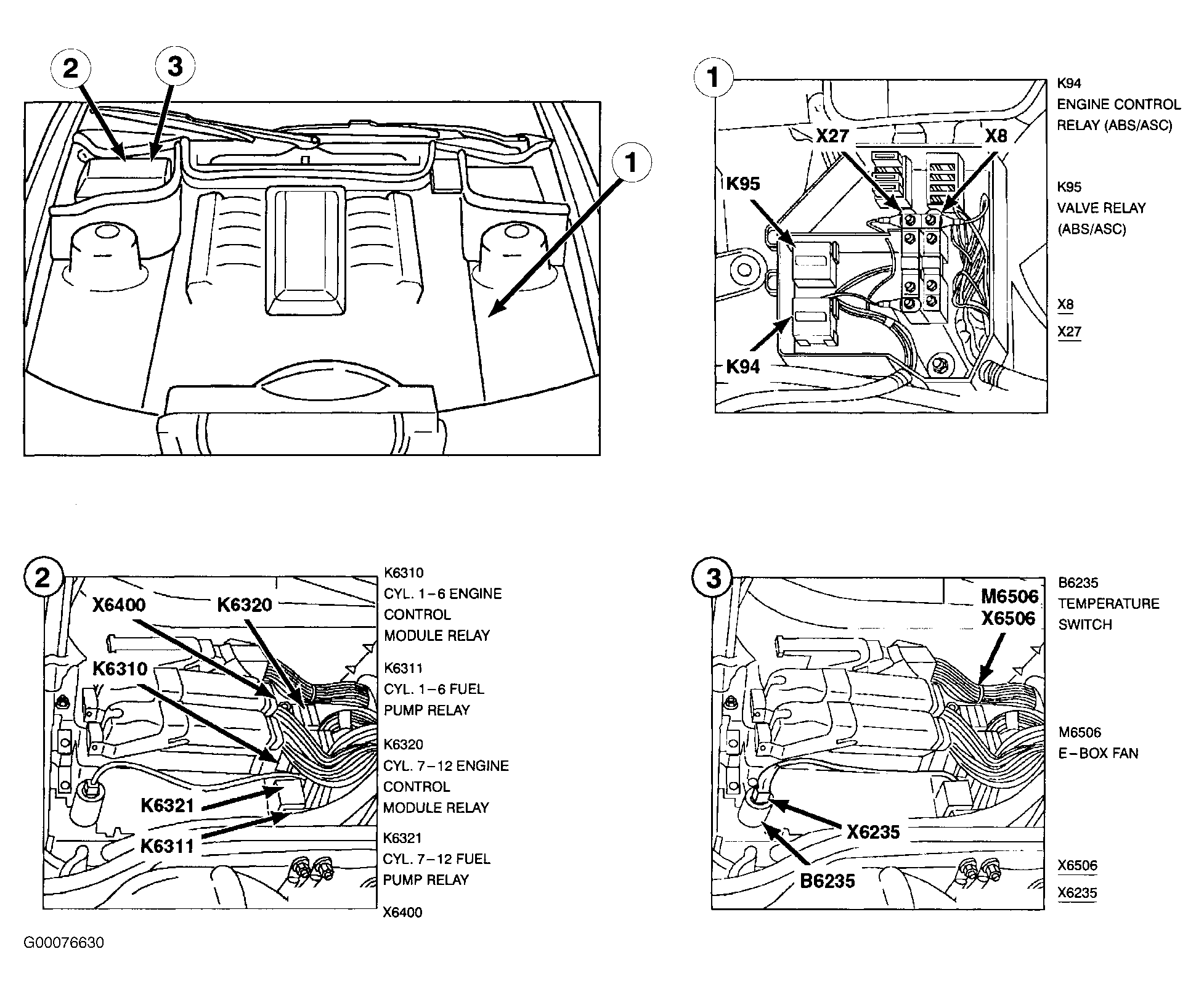

| CYL. 1-6 Engine Control Module Relay (K6310) | Rear RH side of engine compartment in E-Box. See Figure . |
| CYL. 7-12 Engine Control Module Relay (K6320) | Rear RH side of engine compartment in E-Box. See Figure . |
| CYL. 1-6 Fuel Pump Relay (K6311) | Rear RH side of engine compartment in E-Box. See Figure . |
| CYL. 7-12 Fuel Pump Relay (K6321) | Rear RH side of engine compartment in E-Box. See Figure . |
| Daytime Running Lights Relay (K111) | Rear Power Distribution in LH side of luggage compartment. See Figure . |
| EDC Relay (K67) | In RH side of luggage compartment. See Figure . |
| Electric Power Protection Relay (K15) | Rear Power Distribution Box in LH side of luggage compartment. See Figure . |
| Electric Power Protection Relay II (K30) | Rear Power Distribution in LH side of luggage compartment. See Figure . |
| Engine Control Module Relay (K6300) | In E-Box. |
| Engine Control Relay (ABS/ASC) (K94) | LH side of engine compartment. See Figure . |
| Flasher Light Relay (K52z) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Fuel Pump Relay (K6301w) | In E-Box. |
| Hazard Flasher Relay (K16) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |

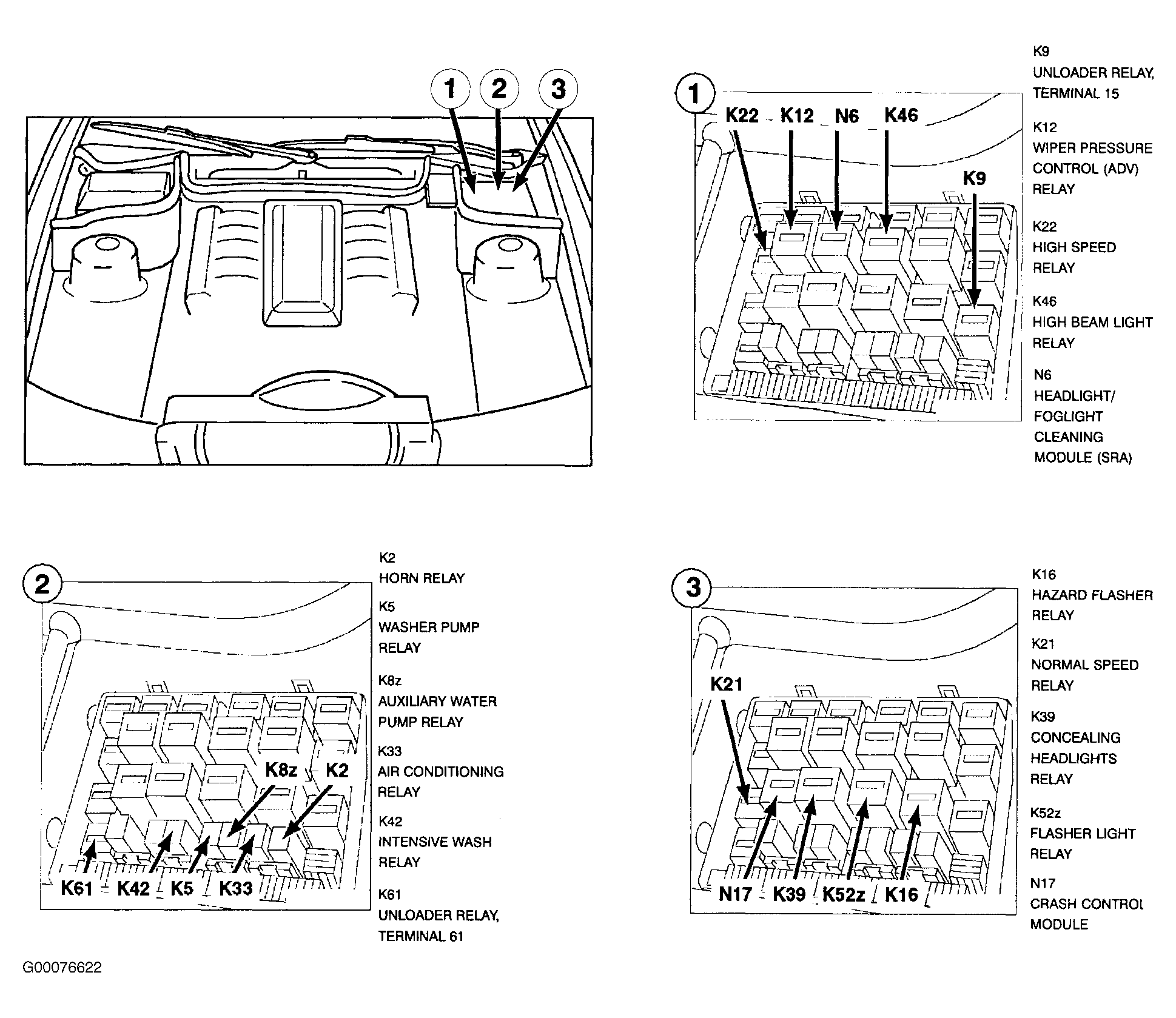

| High Beam Light Relay (K46) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| High Speed Relay (K22) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Horn Relay (K2) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Intensive Wash Relay (K42) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |

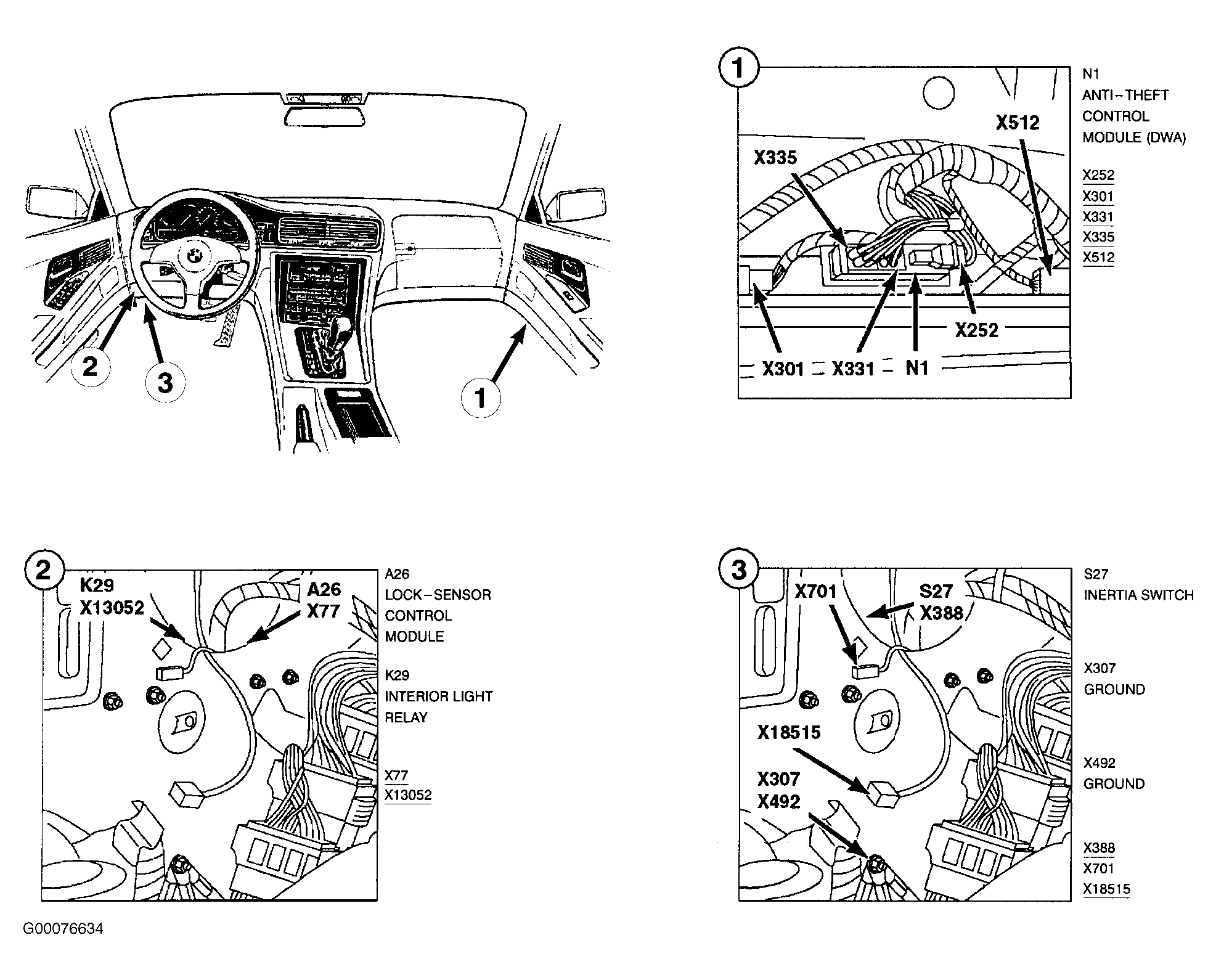

| Interior Light Relay (K29) | LH side of LH footwell. See Figure . |
| Jumper Plug For Horn/Telephone (K51) | Rear LH side of engine compartment in Front Power Distribution Box. |
| Left Park Light Relay (K26) | Below LH side of dash near hood release lever. |
| Normal Speed Relay (K21) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| On-Board Computer Horn Relay (K91) | Inside box on interior side of RH door sill. |
| Oxygen Sensor Relay (K6303) | In E-Box. |

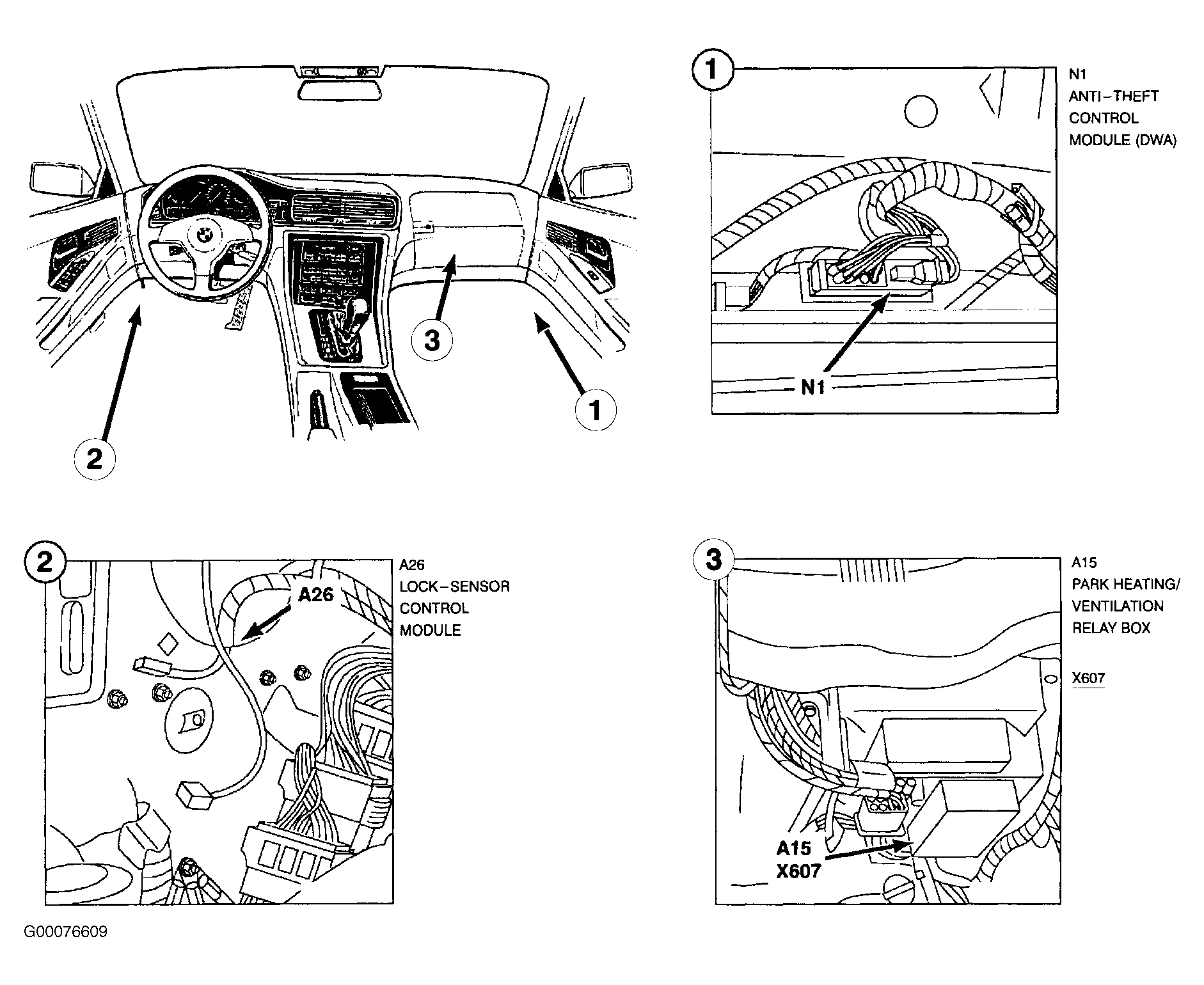

| Park Heating/Ventilation Relay Box (A15) | Below RH side of dash. See Figure . |
| Rear Defogger Relay (K13) | Rear Power Distribution Box in LH side of luggage compartment. See Figure . |
| Right Park Light/License Plate Light Relay (K25) | Below LH side of dash near hood release lever. |
| Secondary Air Pump Relay (K109 & K6304) | In auxiliary relay box LH front of engine compartment. See Figure . |

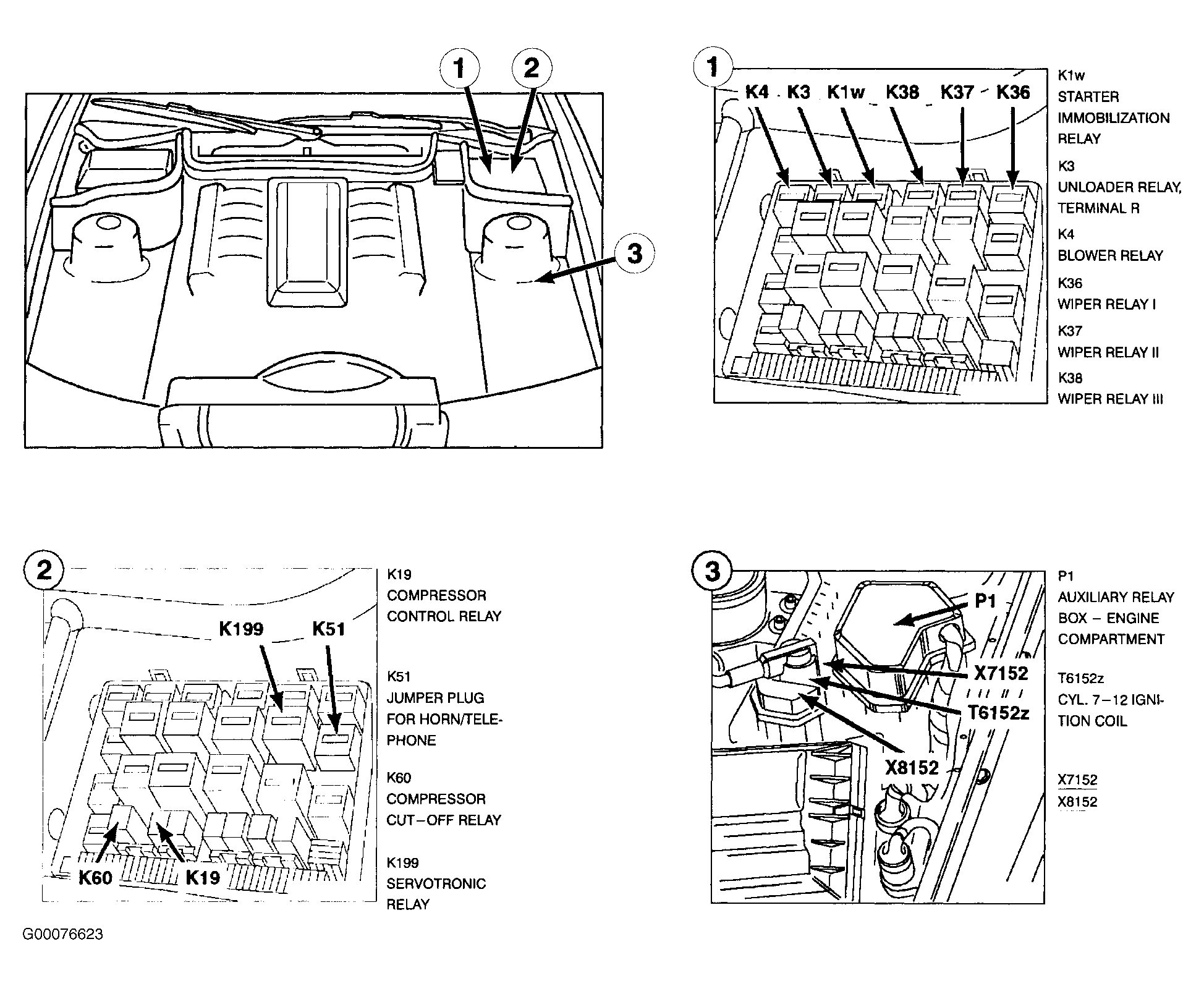

| Servotronic Relay (K199) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Starter Relay (K1) | Rear LH side of engine compartment in Front Power Distribution Box. |
| Starter Immobilization Relay (K1w) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Unloader Relay, Terminal R (K3). | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Unloader Relay, Terminal 15 (K9) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Unloader Relay, Terminal 61 (K61) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Valve Relay (ABS/ASC) (K95) | LH side of engine compartment. See Figure . |
| Washer Pump Relay (K5) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Wiper Pressure Control (ADV) Relay (K12) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Wiper Relay I (K36) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Wiper Relay II (K37) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
| Wiper Relay III (K38) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure . |
