Heater Circuit, Engine M57D30TU (IHKA High)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2008 BMW 760Li, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

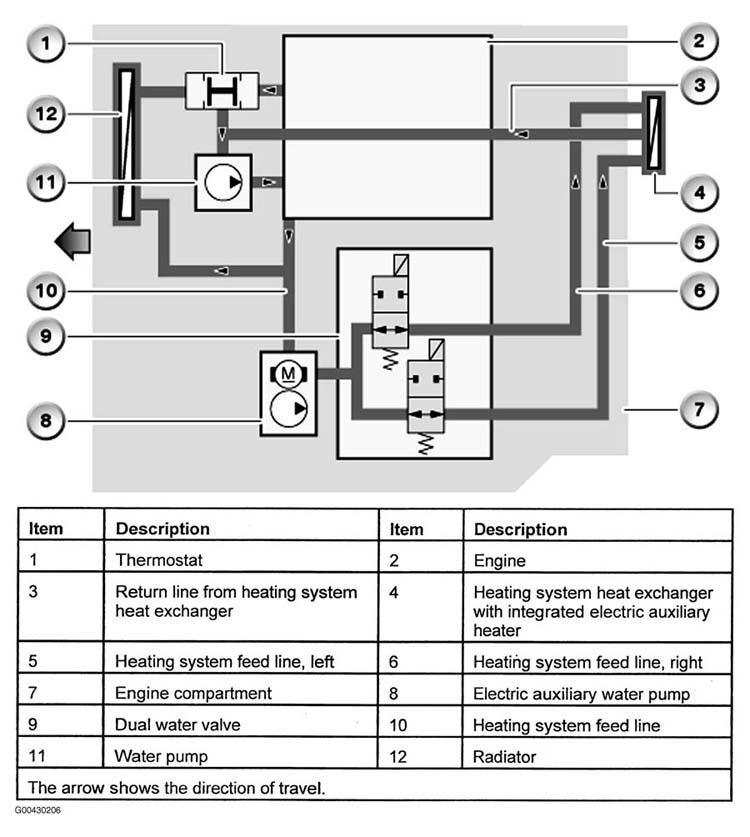

Fig 1: Heater Circuit, Engine M57D30TU (IHKA High)
G00430206Courtesy of BMW OF NORTH AMERICA, INC.
