Switching On The Headlight Flasher

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Headlight flasher only when the car is being driven on dipped lights.  When the main-beam assistant is active, the headlight flasher can be switched on only while the car is being driven on dipped lights. In other words, the main-beam headlights must be off. The headlight flasher cannot be switched on if the main-beam headlights are on.

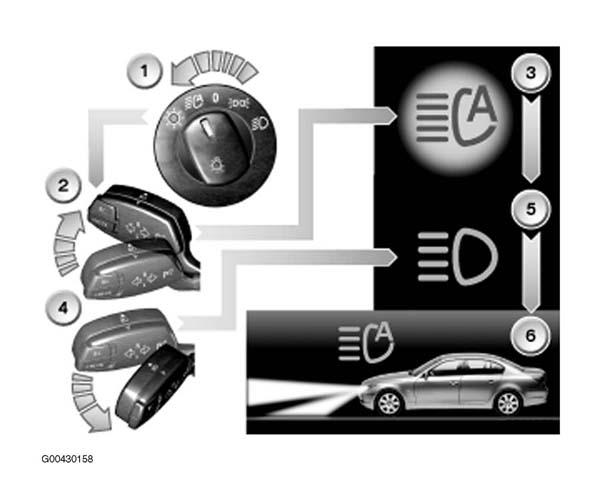

Fig 1: Switching On The Headlight Flasher
G00430158Courtesy of BMW OF NORTH AMERICA, INC.
  1. Turn the light switch to position "A" This switches on automatic headlight control. If it is dark enough, the low-beam headlights are switched on. The green indicator light in the light switch comes on.
  2. Push the direction indicator/main-beam switch forward. The main-beam assistant is activated.
  3. The FLA indicator light comes on, indicating that the main-beam assistant is active. The main-beam headlights are off at this time.
  4. Pull the direction indicator/main-beam switch back.
  5. The main-beam indicator light comes on briefly.
  6. The headlight flasher is switched on. The main-beam assistant remains active.
