Activating The Main-Beam Assistant
WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

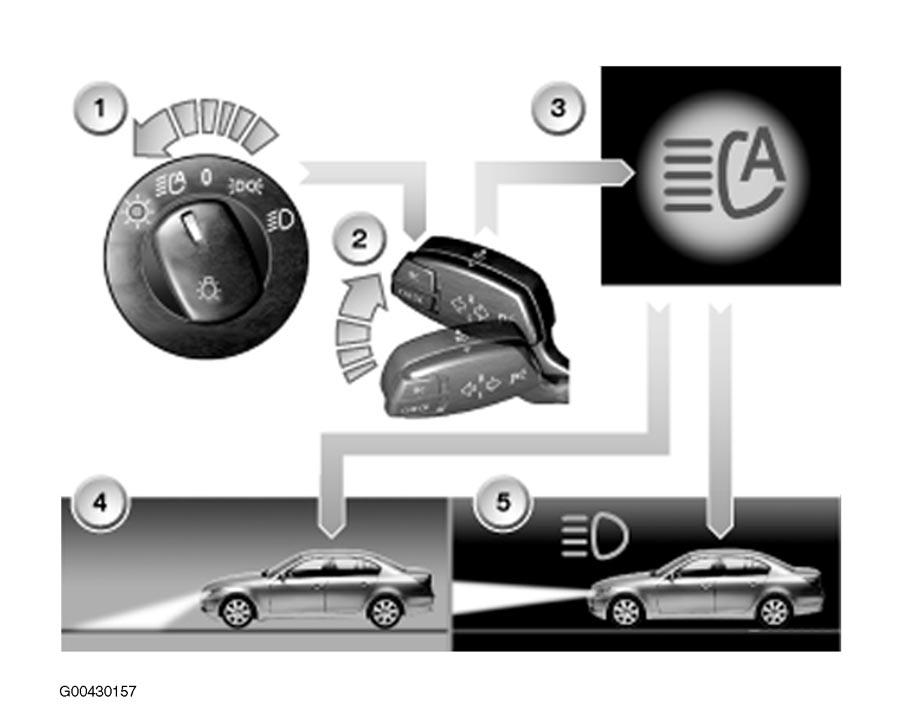

- Turn the light switch to position "A" This switches on automatic headlight control.
- Push the direction indicator/main-beam switch forward. This activates the main-beam assistant.
- The FLA indicator light comes on, indicating that the main-beam assistant is active.
- In twilight, only the low-beam headlights are switched on. The green indicator light in the light switch comes on.
- In the dark, the main-beam headlights are switched on as soon as the conditions required for switch-on for the main-beam assistant are satisfied.
The blue main-beam indicator light comes on.
The FLA indicator light comes on.
The conditions required for switch-on are as follows:
- Road speed greater than 50 km/h.
- Reverse gear must not be engaged.
- Image sensor does not detect an oncoming vehicle or a vehicle ahead.
- Image sensor does not detect an environment with adequately bright illumination.
