Visual Inspection Of Main-Beam Assistant
WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
In case of a malfunction in the main-beam assistant, first perform a visual inspection.
If a fault should develop in the main-beam assistant, first conduct a visual inspection of the main-beam assistant.
This is because: The base of the interior mirror can be twisted by applying mechanical force (e.g. if the windscreen is cleaned incorrectly, etc.). This will affect the operation of the main-beam assistant.

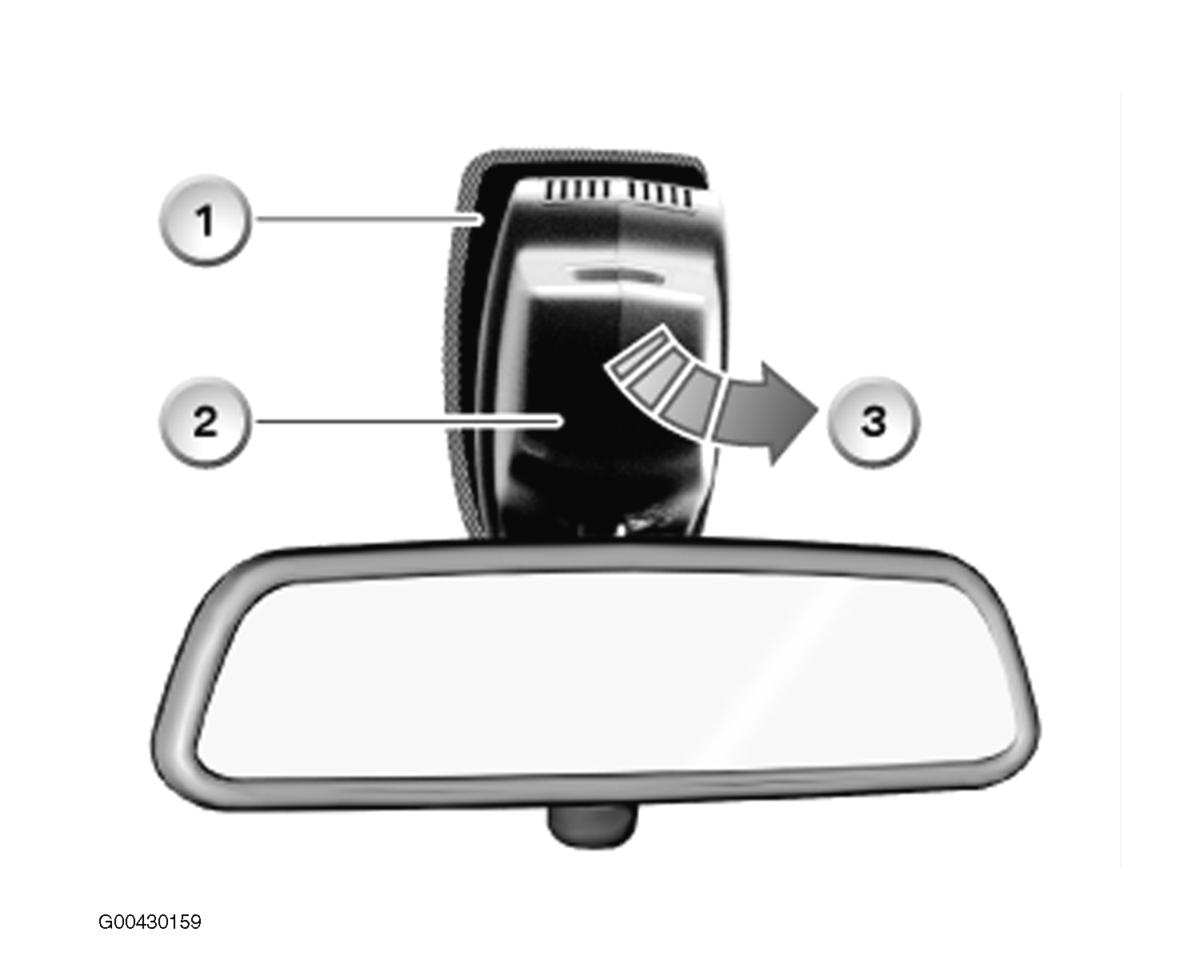

The illustration shows an interior mirror base twisted on the windscreen.
- Screen-printed border on windscreen
- Mirror base twisted on windscreen
- The mirror base has been mechanically twisted in this direction.
NOTE:
Aligning mirror base
The base of the interior mirror can be twisted by applying mechanical force. If the mirror base is not centred in the screen-printed border, recentralise the mirror base.
