Installation Location

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

The FLA control unit is installed in the inside mirror. The FLA control unit is connected to the image sensor by an LVDS data line (LVDS: Low Voltage Differential Signalling).

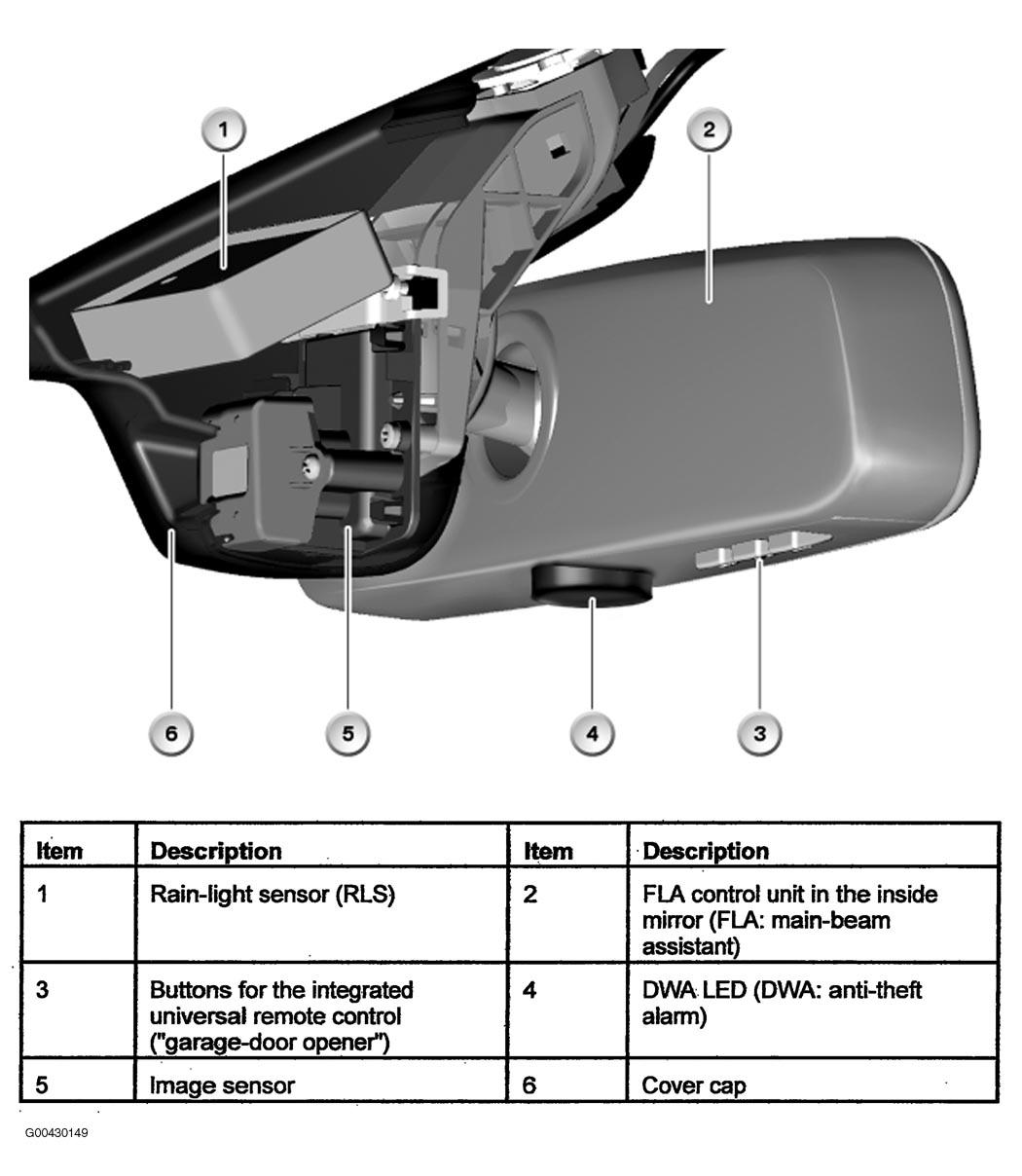

Fig 1: Locating FLA Control Unit
G00430149Courtesy of BMW OF NORTH AMERICA, INC.
