System Overview Of Adaptive Headlights (E60, E61, E63, E64, E65, E66 From 03/2005): Inputs/Outputs

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

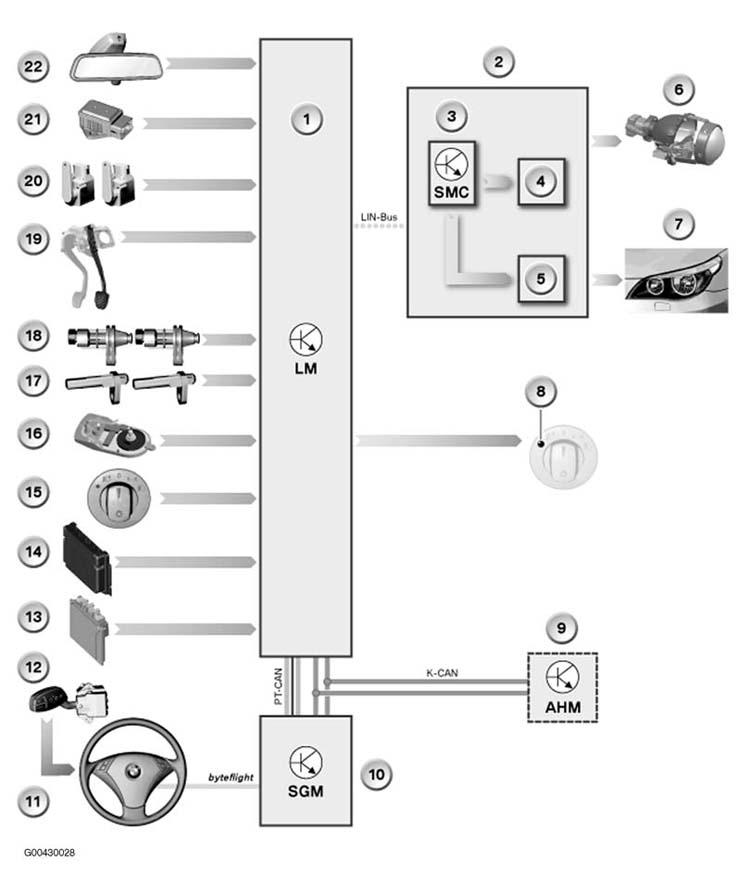

Fig 1: Adaptive Headlights Inputs/Outputs Schematic (E60, E61, E63, E64, E65, E66 From 03/2005)
G00430028Courtesy of BMW OF NORTH AMERICA, INC.

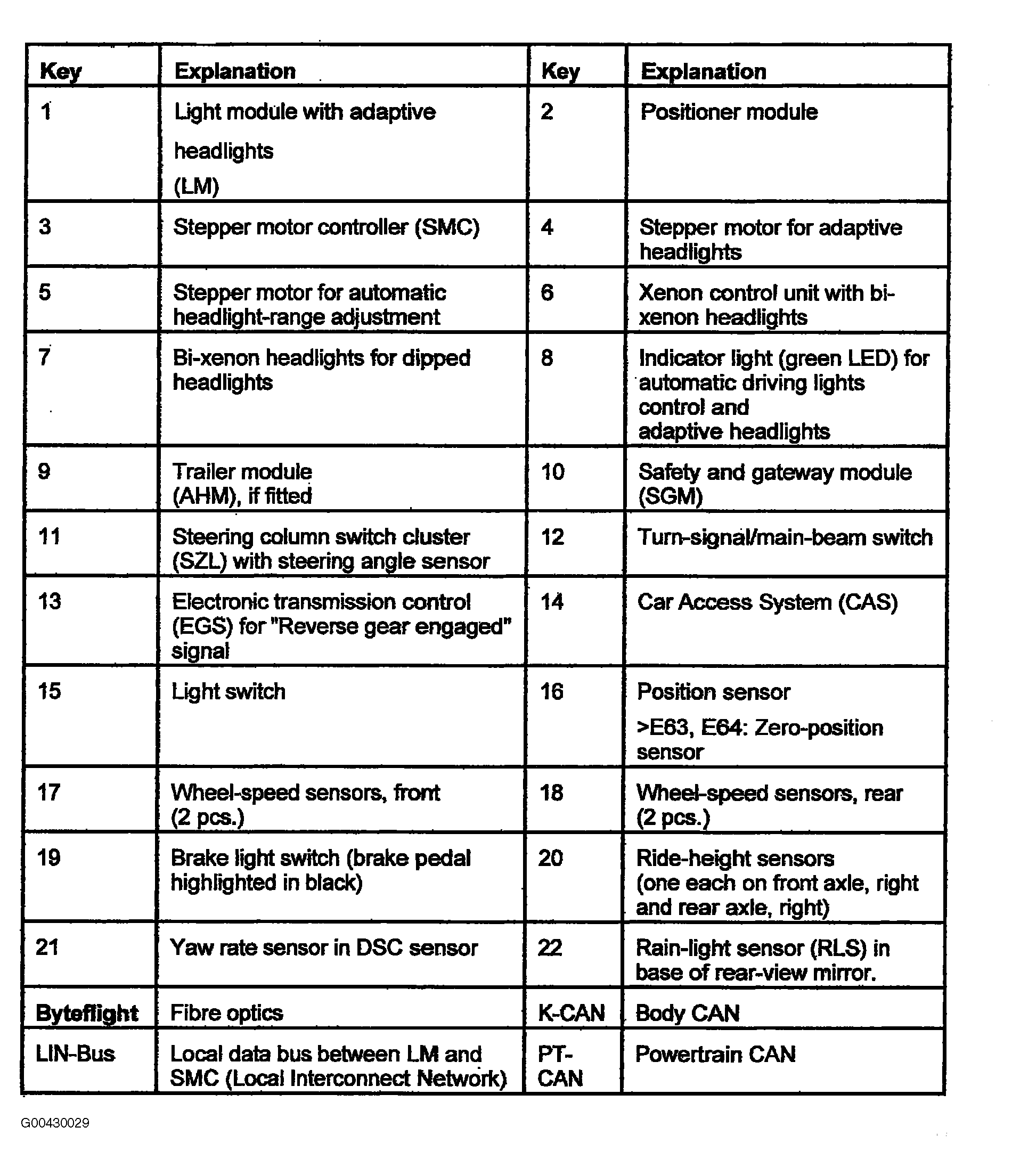

Fig 2: Legend For Adaptive Headlights Inputs/Outputs Schematic (E60, E61, E63, E64, E65, E66 From 03/2005)
G00430029Courtesy of BMW OF NORTH AMERICA, INC.
