E90 - System Overview Of Adaptive Headlights: Inputs/Outputs

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

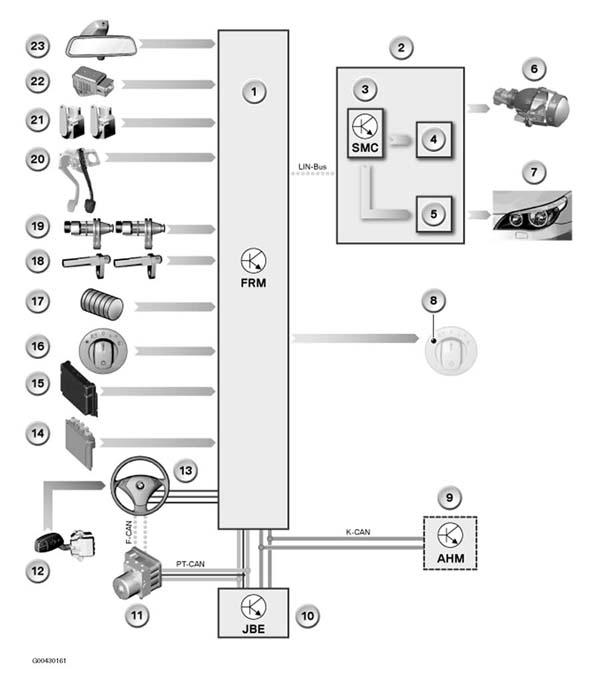

Fig 1: Adaptive Headlights Inputs/Outputs Block Diagram (E90)
G00430161Courtesy of BMW OF NORTH AMERICA, INC.

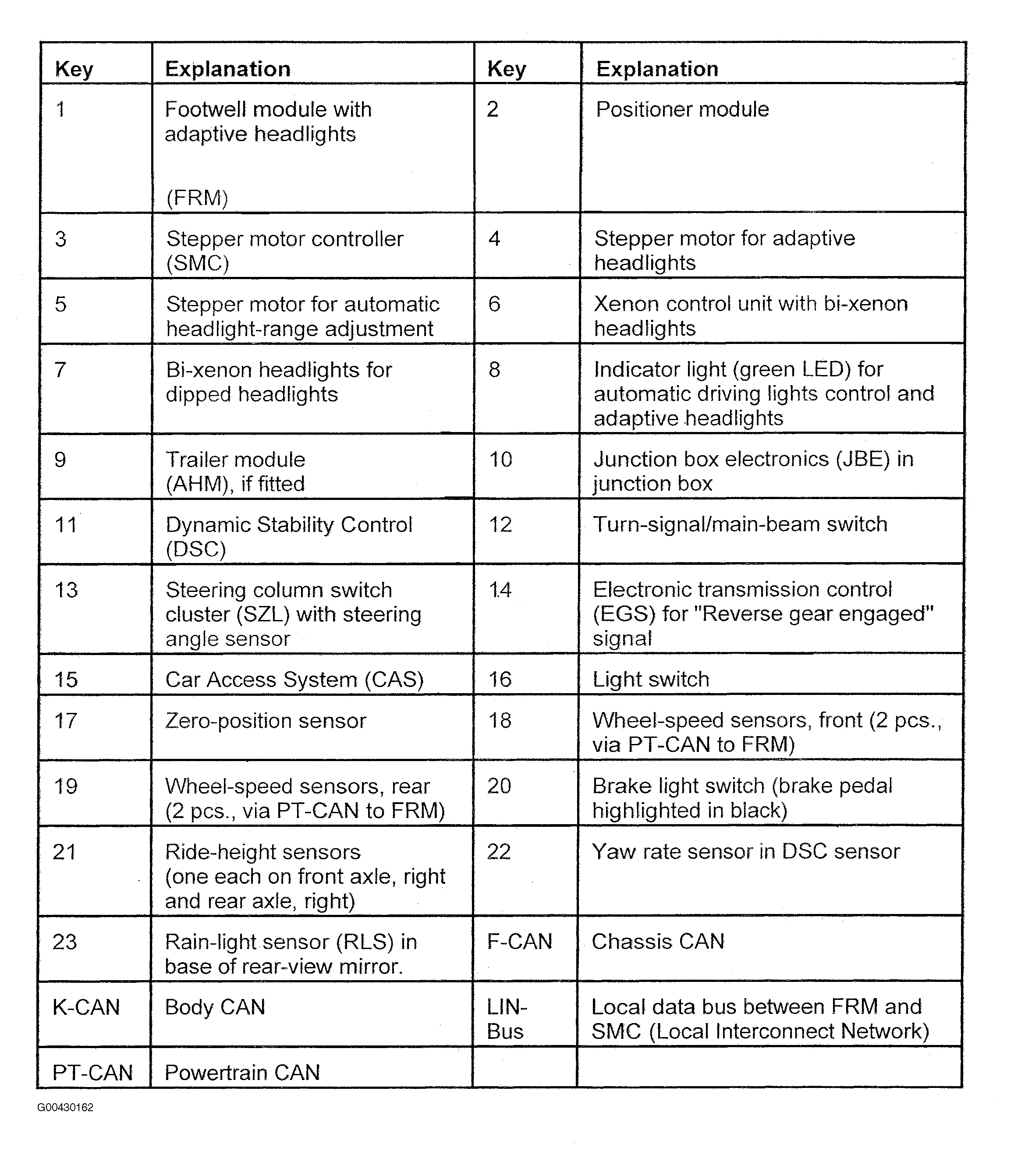

Fig 2: Legend For Adaptive Headlights Inputs/Outputs (E90)
G00430162Courtesy of BMW OF NORTH AMERICA, INC.
