Light Switch (E60, E61, E63, E64, E65, E66, E90)

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This enclosure describes the light switch on the E60, E61, E63, E64.

The contents also apply to the light switch on the E65, E66 and E90.

The switch for side lights and dipped headlights differs according to equipment level (adaptive headlights, automatic driving lights control or manual headlight-range adjustment).

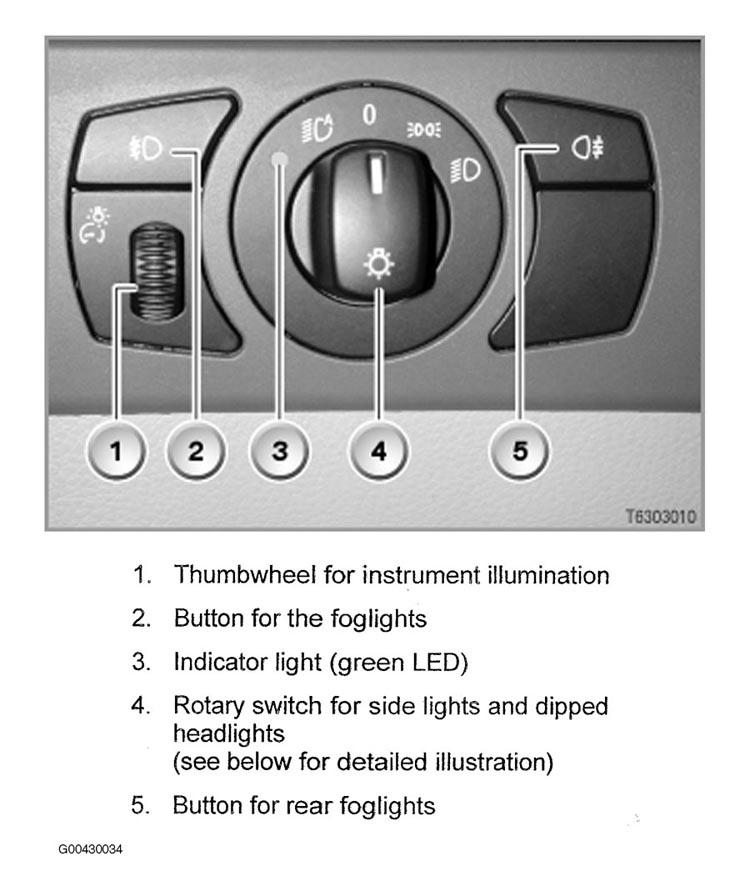

Light switch for vehicles with halogen headlights and manual headlight-range adjustment. (The illustration shows the light switch on the E60.)

Fig 1: Identifying Light Switch For Vehicles With Halogen Headlights And Manual Headlight-Range Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Light switch for vehicles with bi-xenon headlights, automatic headlight-range adjustment and adaptive headlights. (The illustration shows the light switch on the E60.)

Fig 2: Identifying Light Switch For Vehicles With Bi-Xenon Headlights, Automatic Headlight-Range Adjustment And Adaptive Headlights

Courtesy of BMW OF NORTH AMERICA, INC.

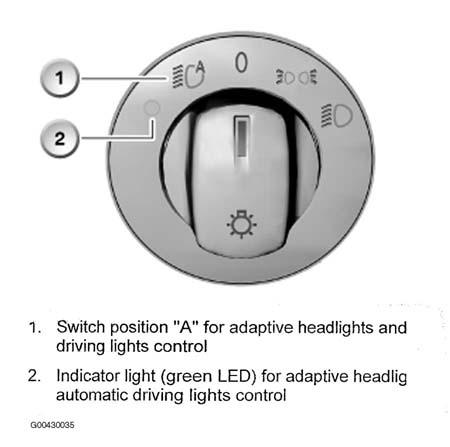

Rotary switch for side lights and dipped headlights (the illustration shown the light switch on the E60):

Fig 3: Identifying Rotary Switch For Side Lights And Dipped Headlights (E60 Shown)

Courtesy of BMW OF NORTH AMERICA, INC.
