E65, E66 (From 03/2005): Construction

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

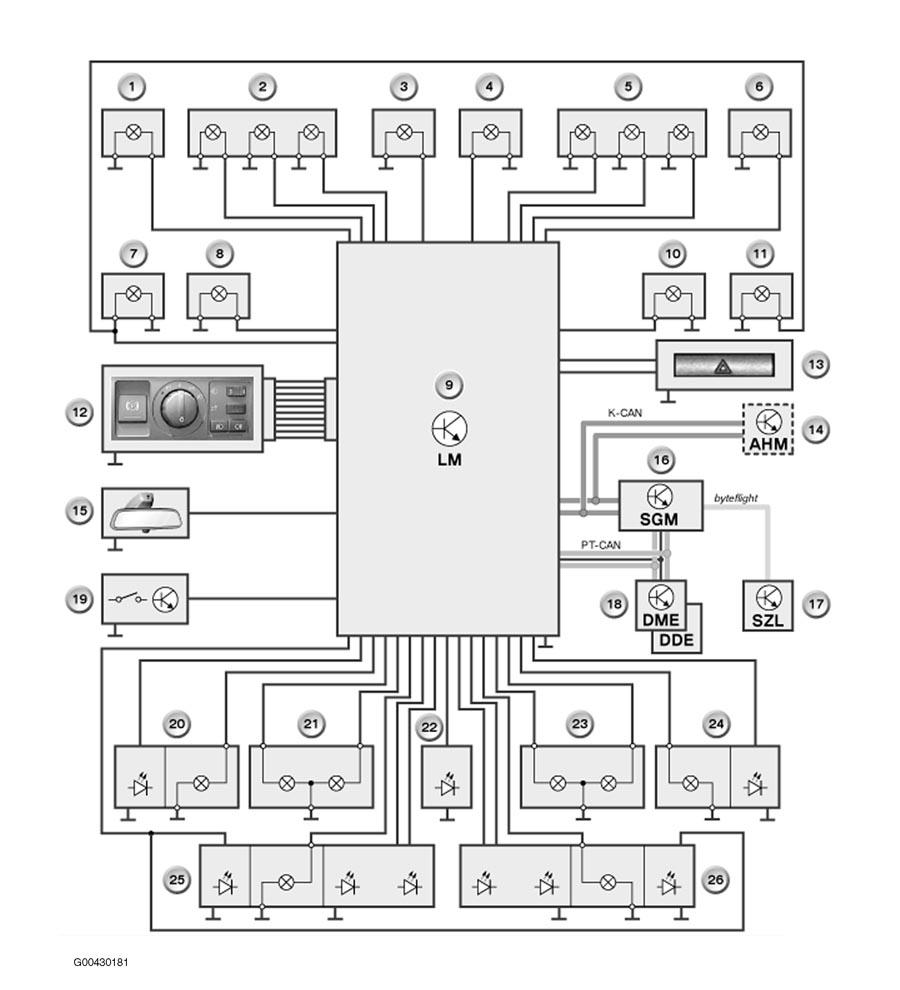

Fig 1: Light Module With Adaptive Headlights Circuit Block Diagram (E65, E66 From 03/2005)
G00430181Courtesy of BMW OF NORTH AMERICA, INC.

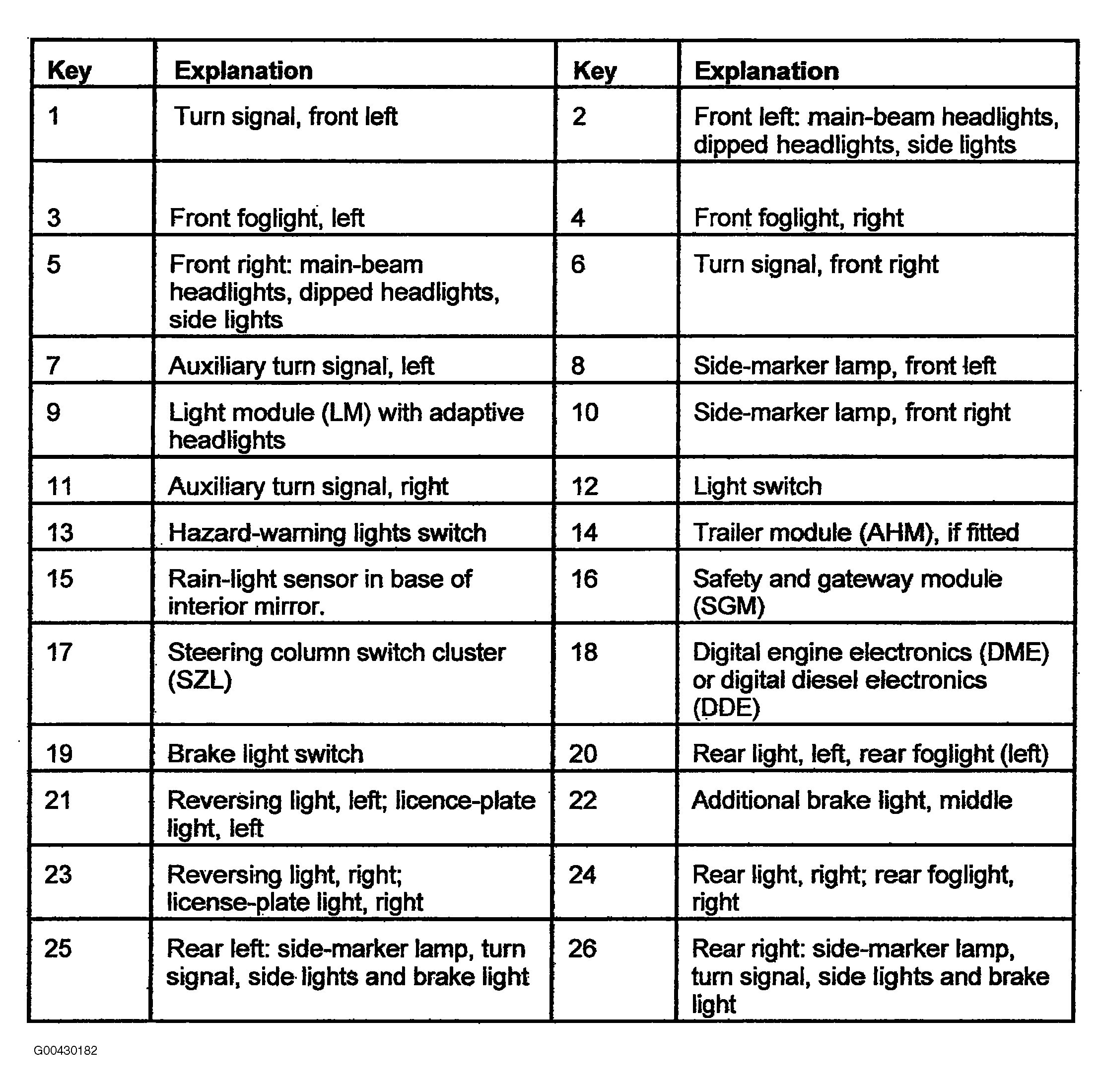

Fig 2: Legend For Light Module With Adaptive Headlights Circuit Block Diagram (E65, E66 From 03/2005)
G00430182Courtesy of BMW OF NORTH AMERICA, INC.
