E60, E61, E63, E64 Up To 03/2005: Construction

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Light Module And Lighting

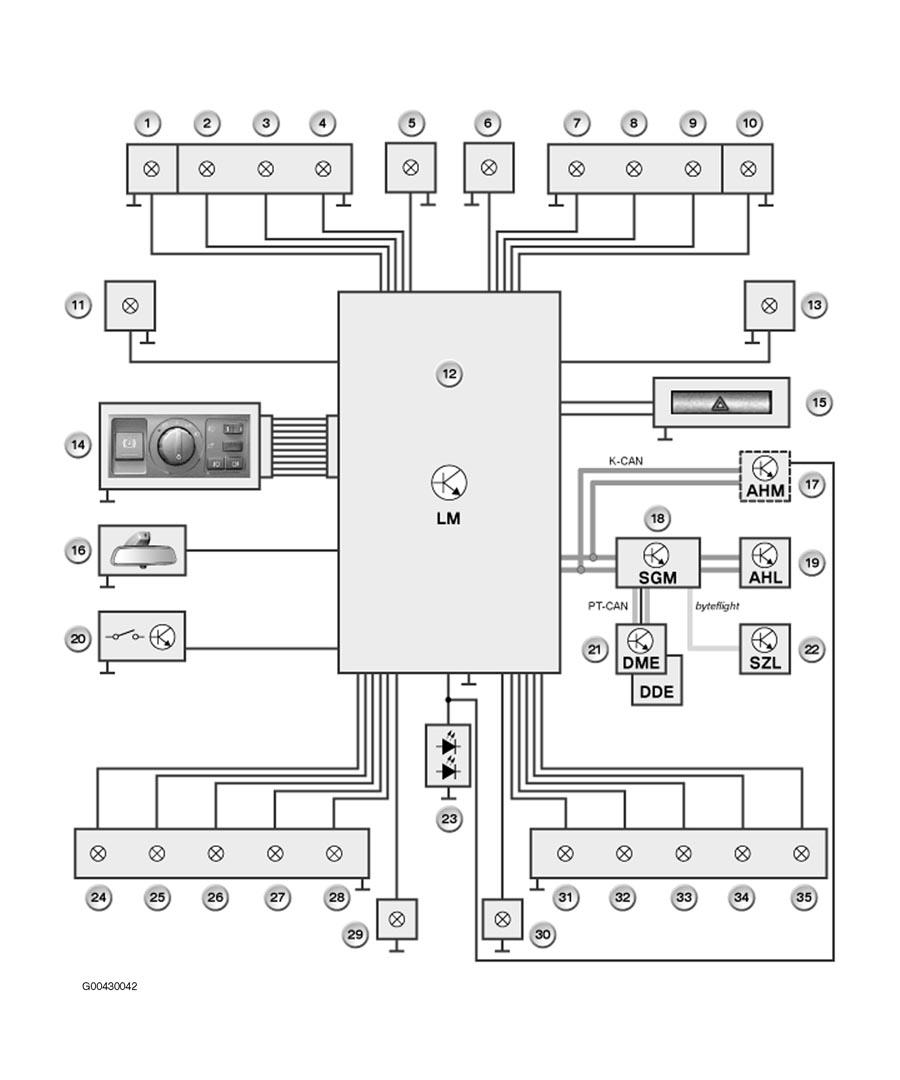

Fig 1: Light Module And Lighting Block Diagram
G00430042Courtesy of BMW OF NORTH AMERICA, INC.

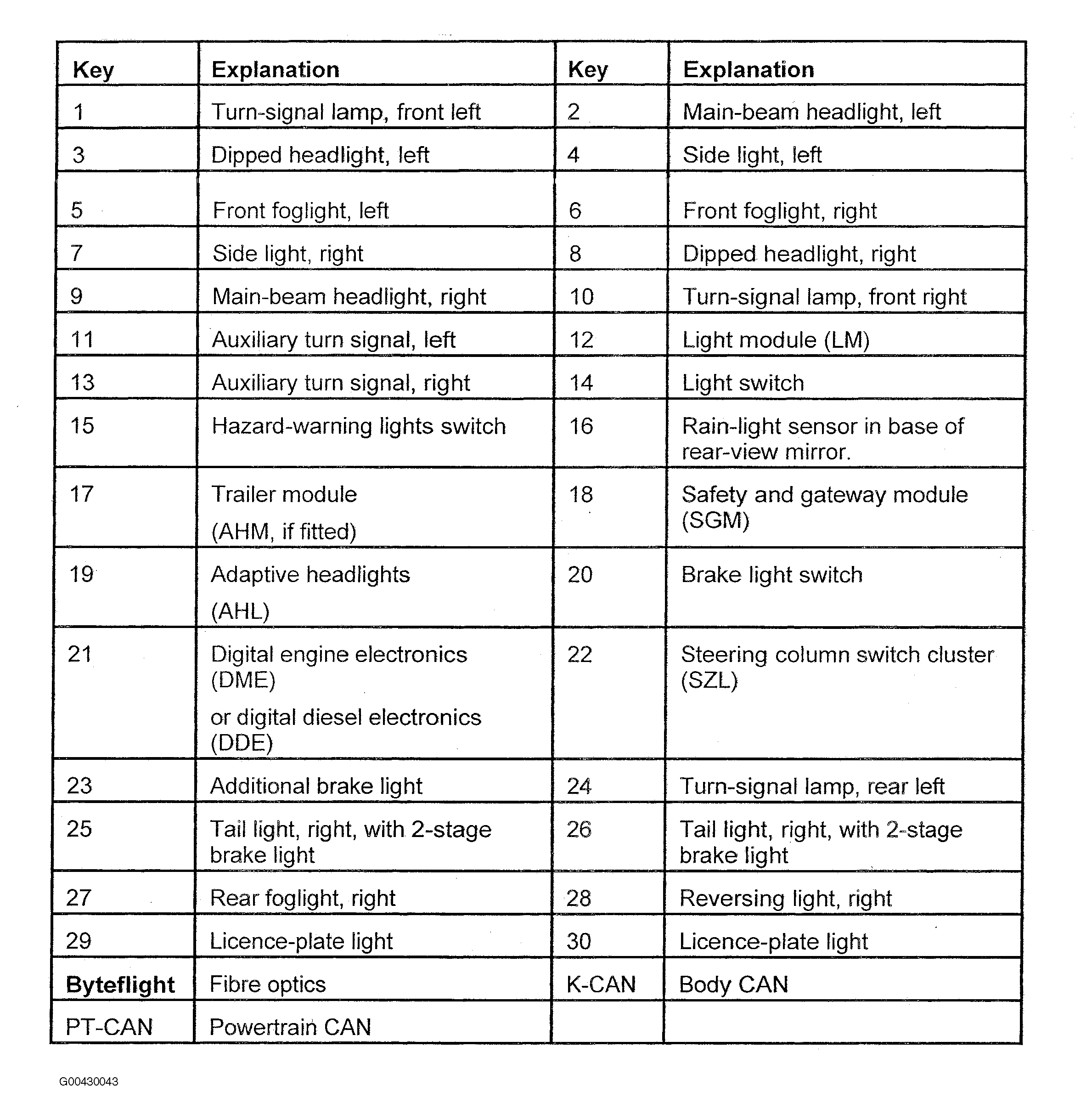

Fig 2: Legend For Light Module And Lighting Block Diagram
G00430043Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignment

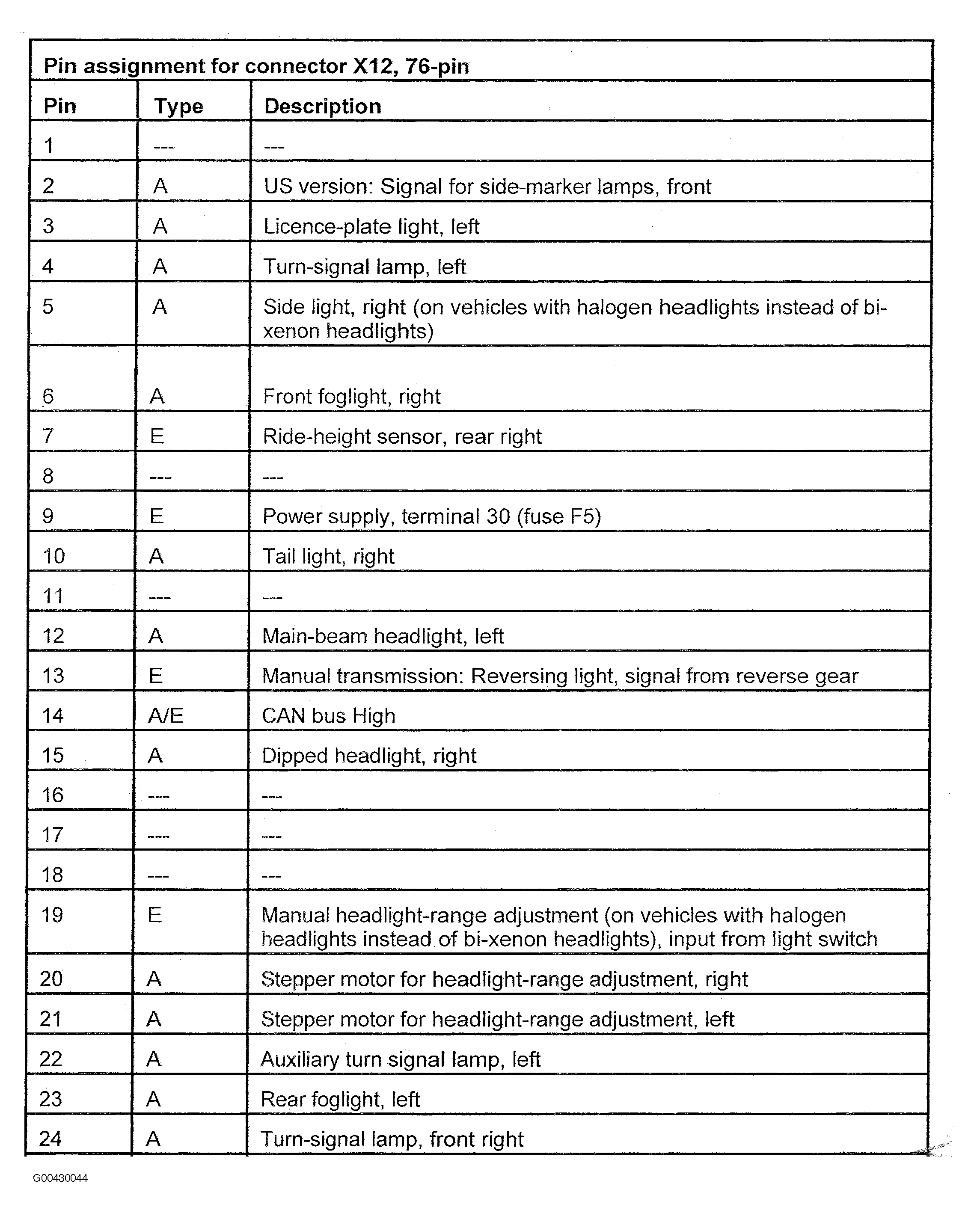

Fig 3: Pin Assignment For LM Connector X12, 76-Pin (Pins 1-24)
G00430044Courtesy of BMW OF NORTH AMERICA, INC.

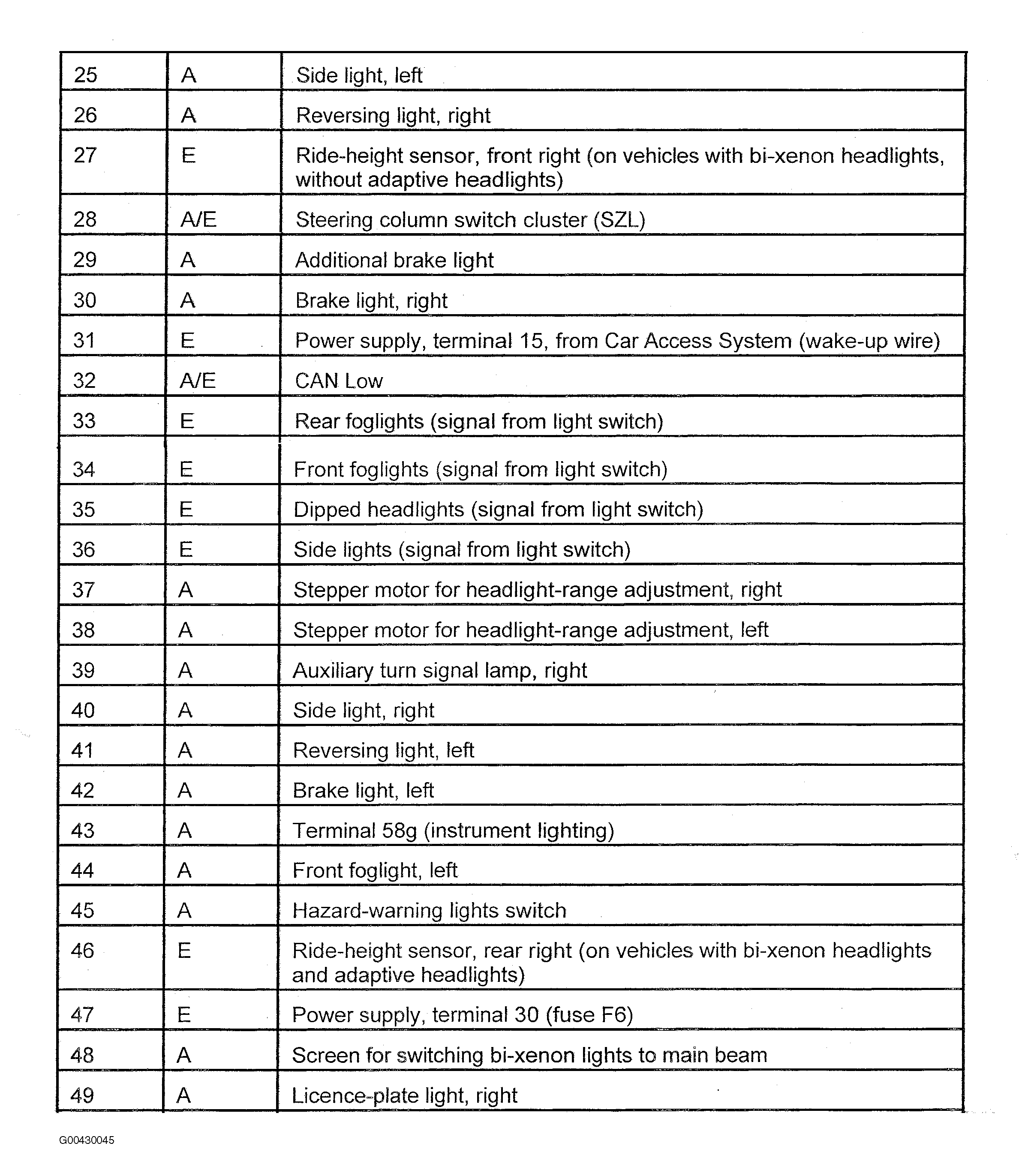

Fig 4: Pin Assignment For LM Connector X12, 76-Pin (Pins 25-49)
G00430045Courtesy of BMW OF NORTH AMERICA, INC.

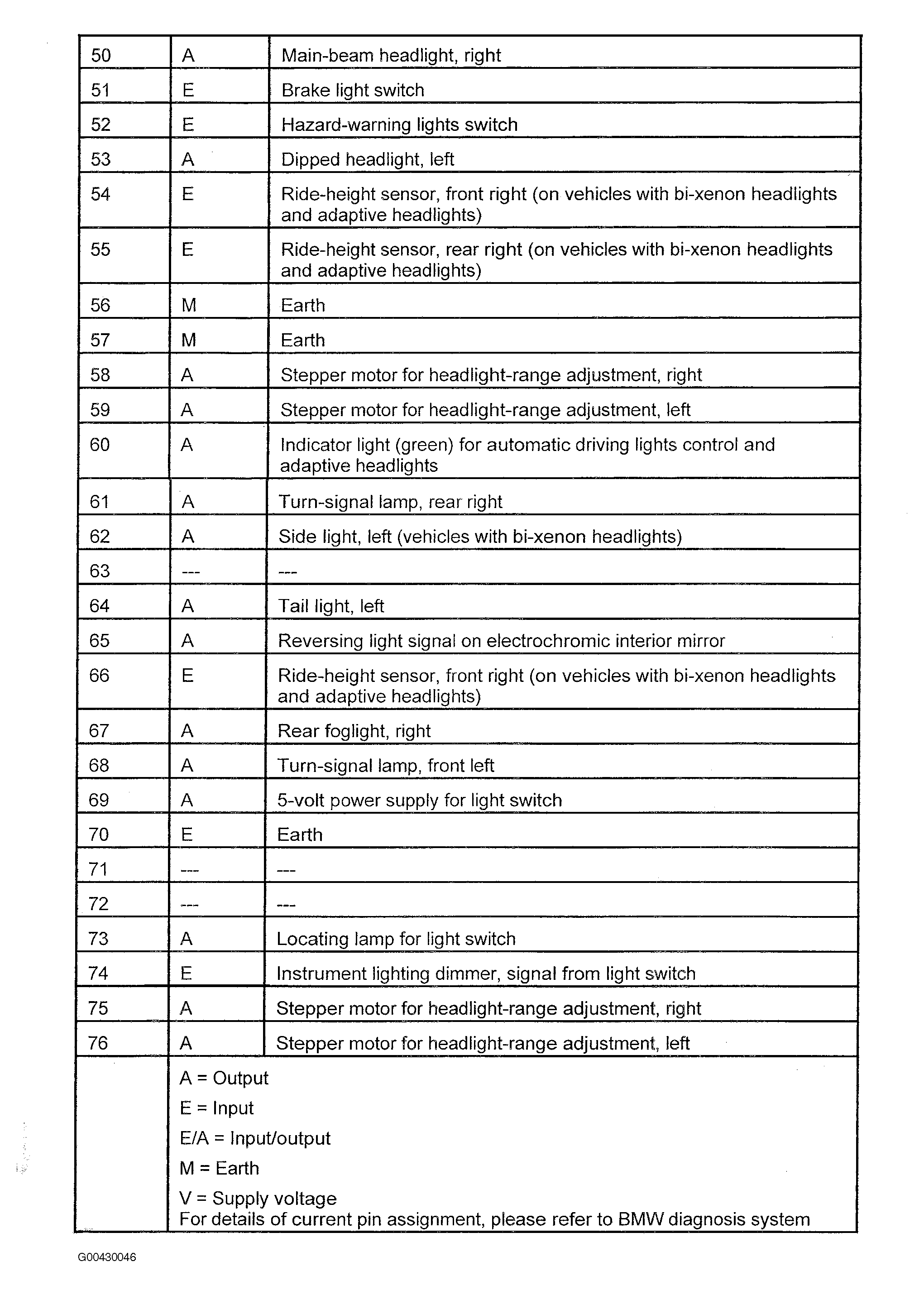

Fig 5: Pin Assignment For LM Connector X12, 76-Pin (Pins 50-76)
G00430046Courtesy of BMW OF NORTH AMERICA, INC.
