Pin Assignment

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

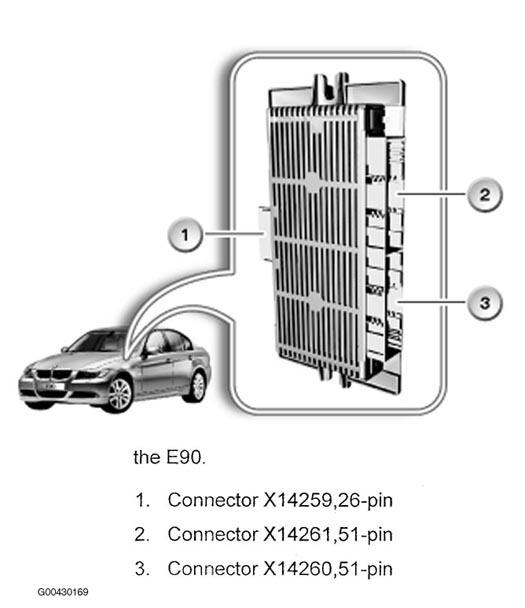

Fig 1: Identifying Footwell Module Locations & Connectors

G00430169

Courtesy of BMW OF NORTH AMERICA, INC.

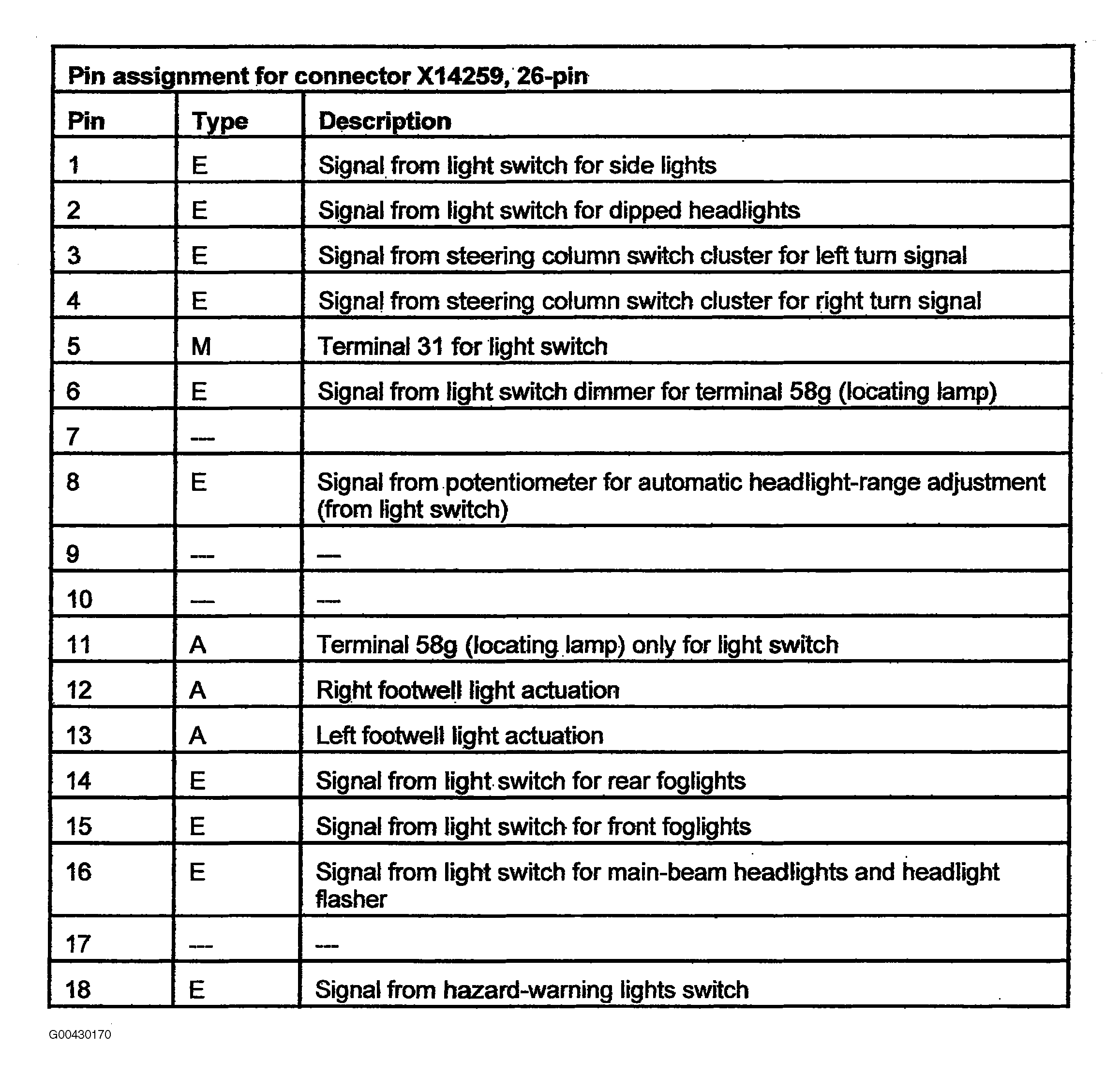

Fig 2: Pin Assignment For Footwell Module Connector X14259 (Pins 1-18)

G00430170

Courtesy of BMW OF NORTH AMERICA, INC.

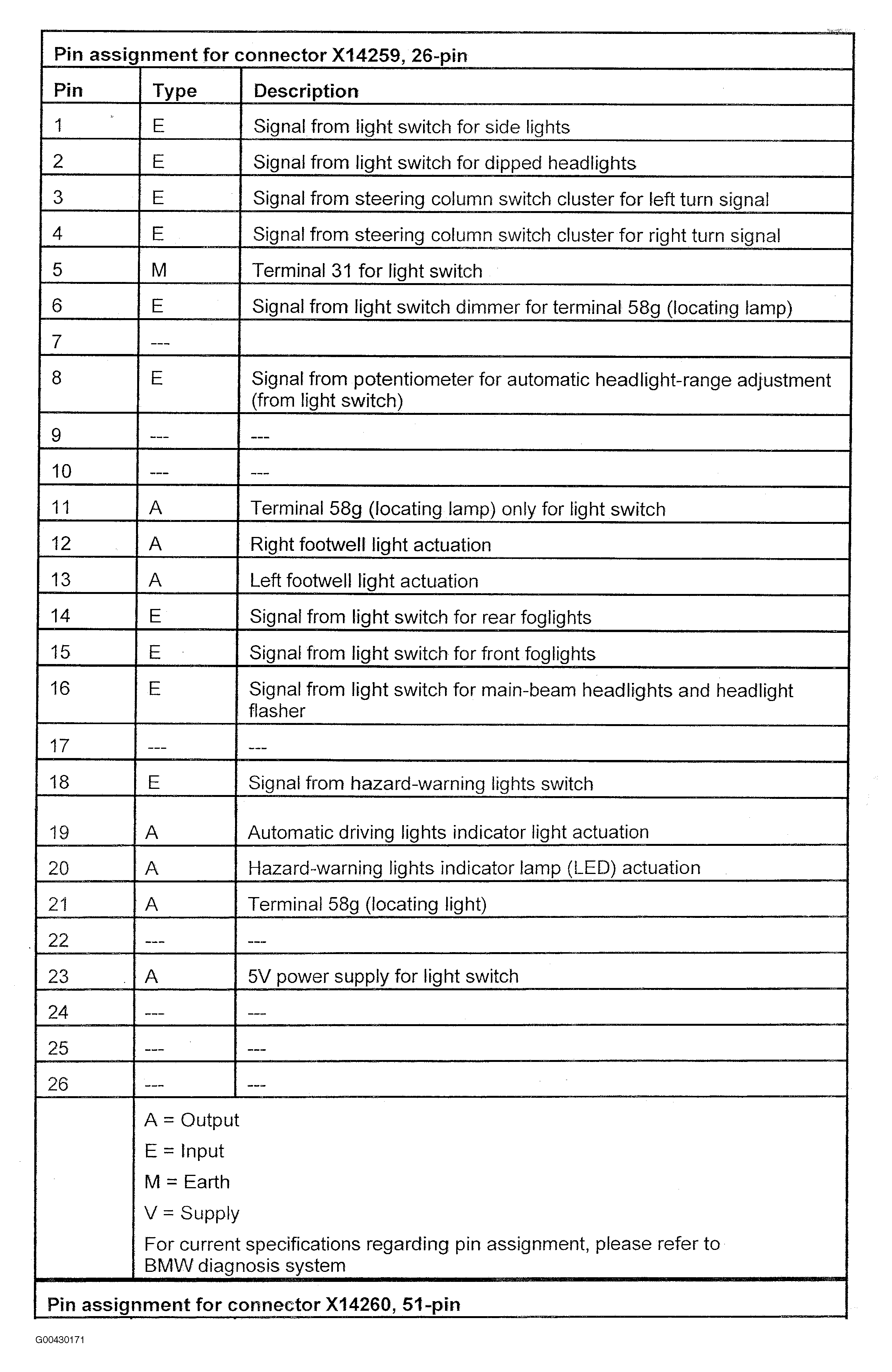

Fig 3: Pin Assignment For Footwell Module Connector X14259 (Pins 19-26)

G00430171

Courtesy of BMW OF NORTH AMERICA, INC.

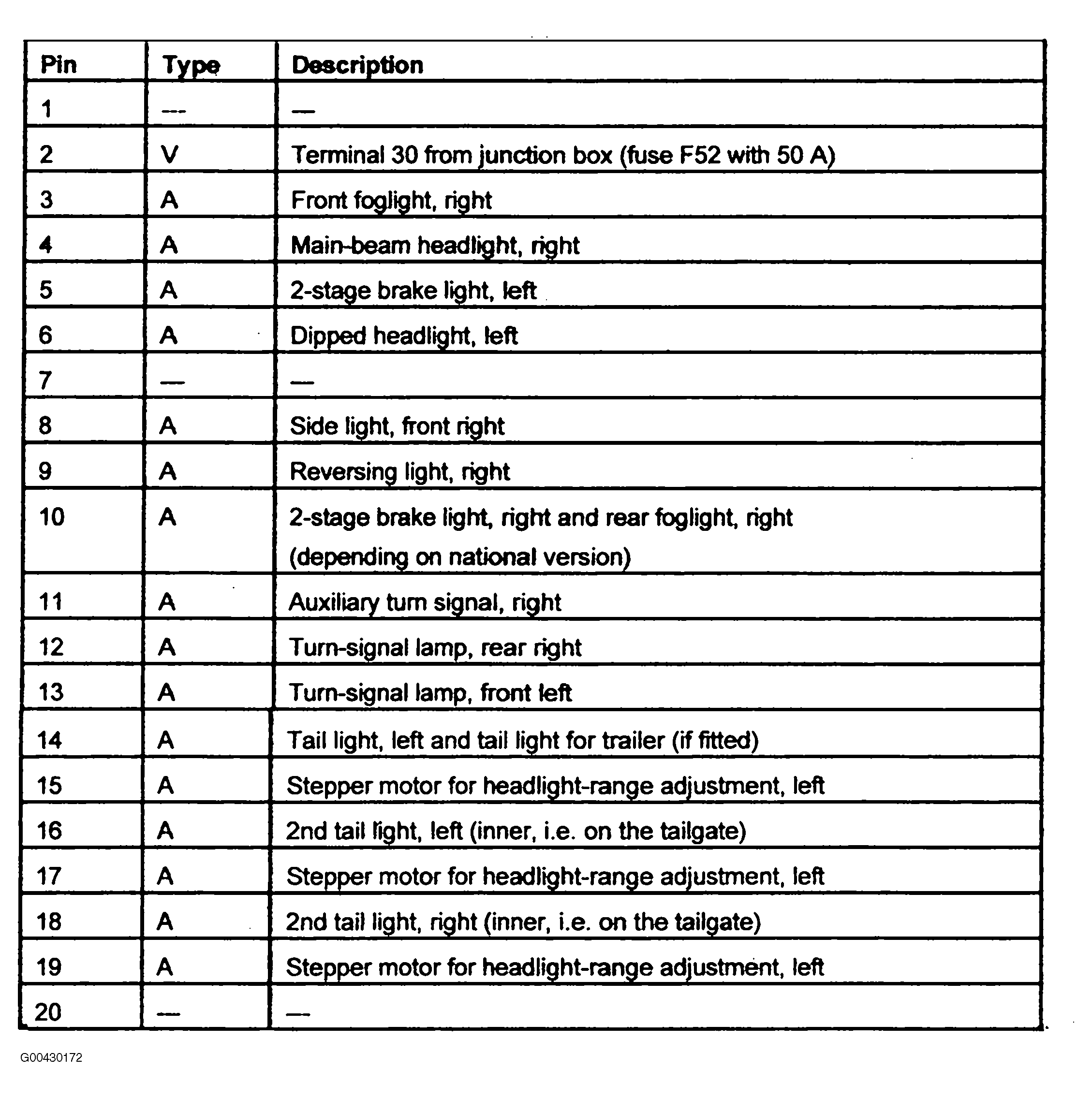

Fig 4: Pin Assignment For Footwell Module Connector X14260 (Pins 1-20)

G00430172

Courtesy of BMW OF NORTH AMERICA, INC.

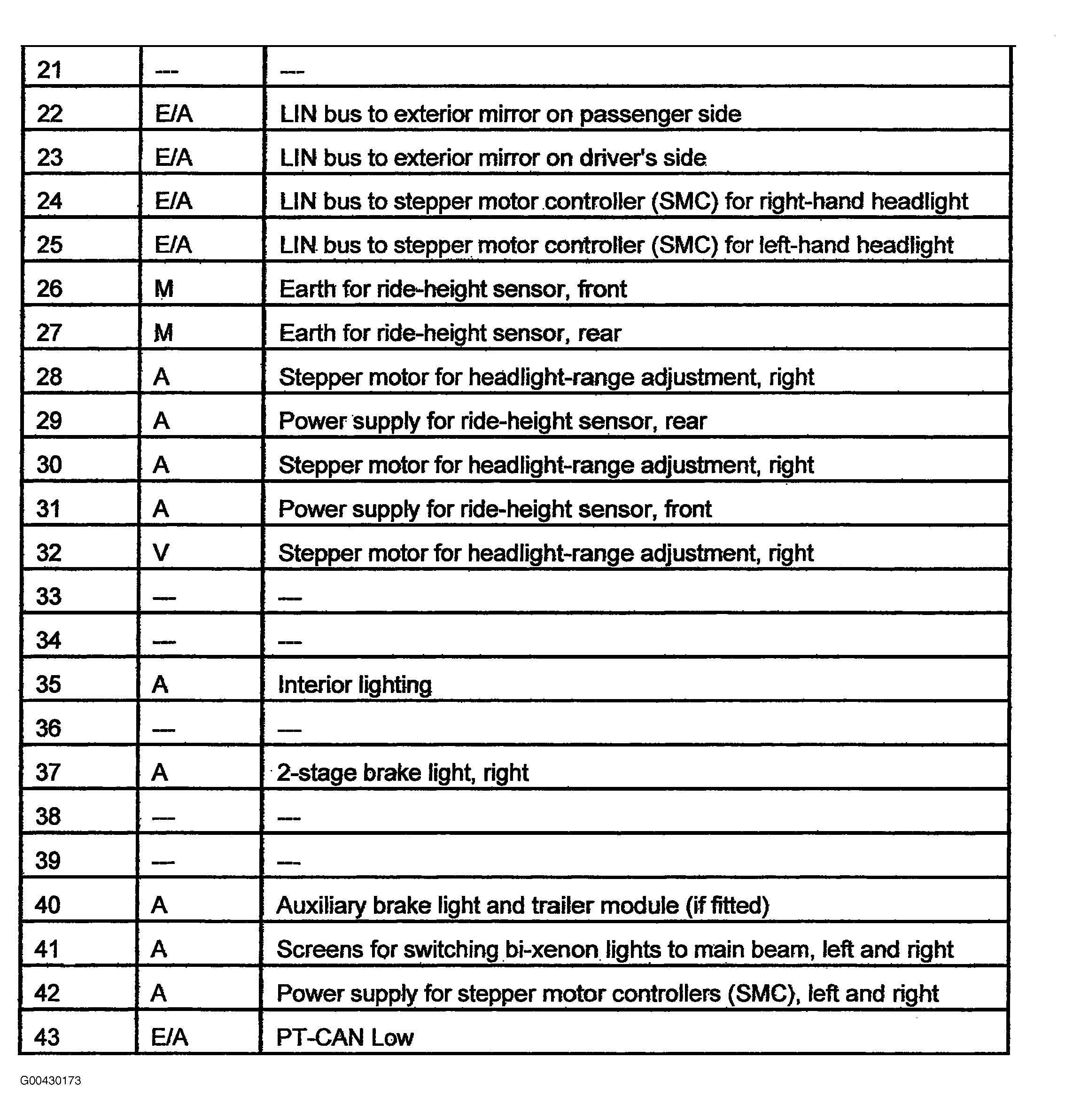

Fig 5: Pin Assignment For Footwell Module Connector X14260 (Pins 21-43)

G00430173

Courtesy of BMW OF NORTH AMERICA, INC.

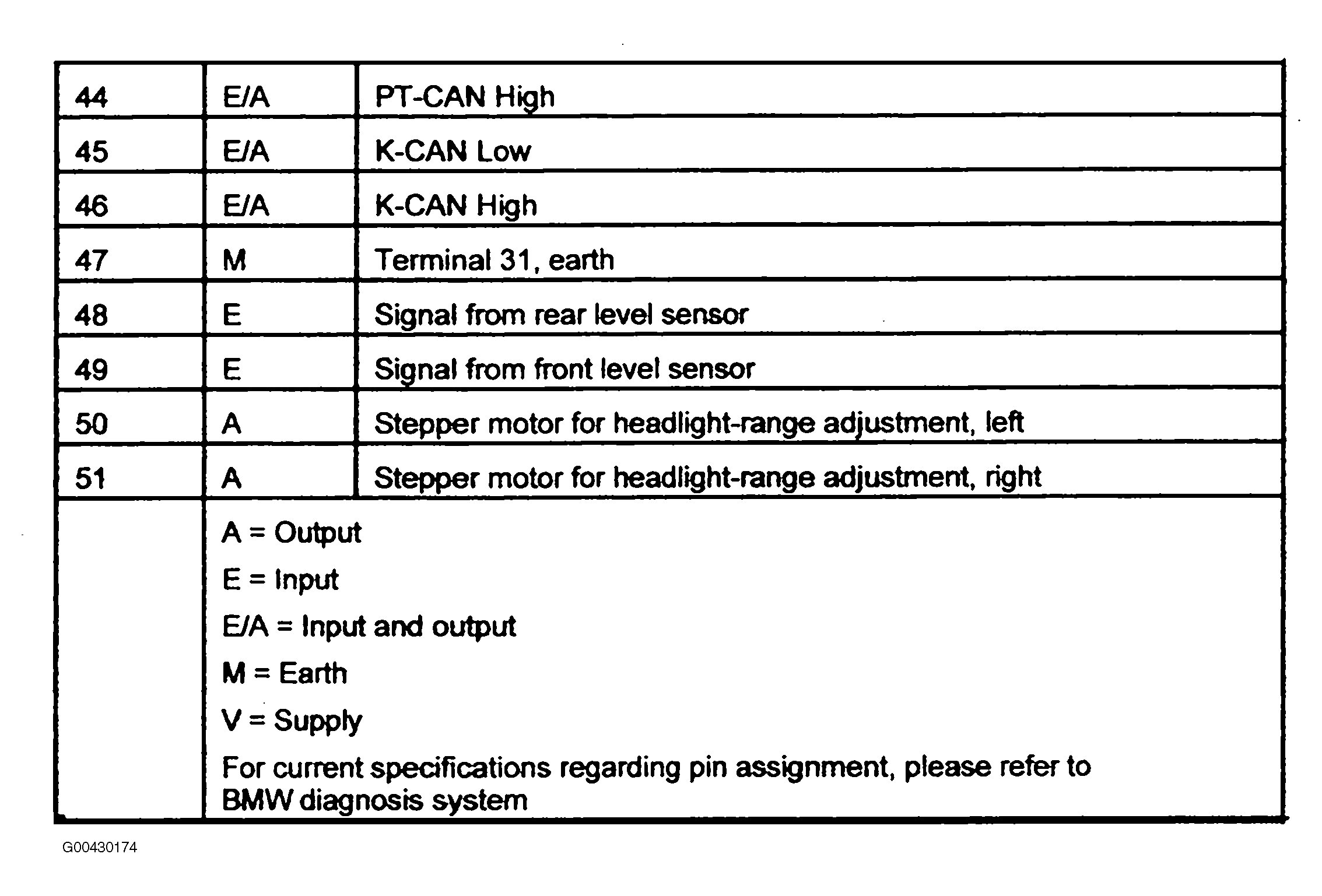

Fig 6: Pin Assignment For Footwell Module Connector X14260 (Pins 44-51)

G00430174

Courtesy of BMW OF NORTH AMERICA, INC.

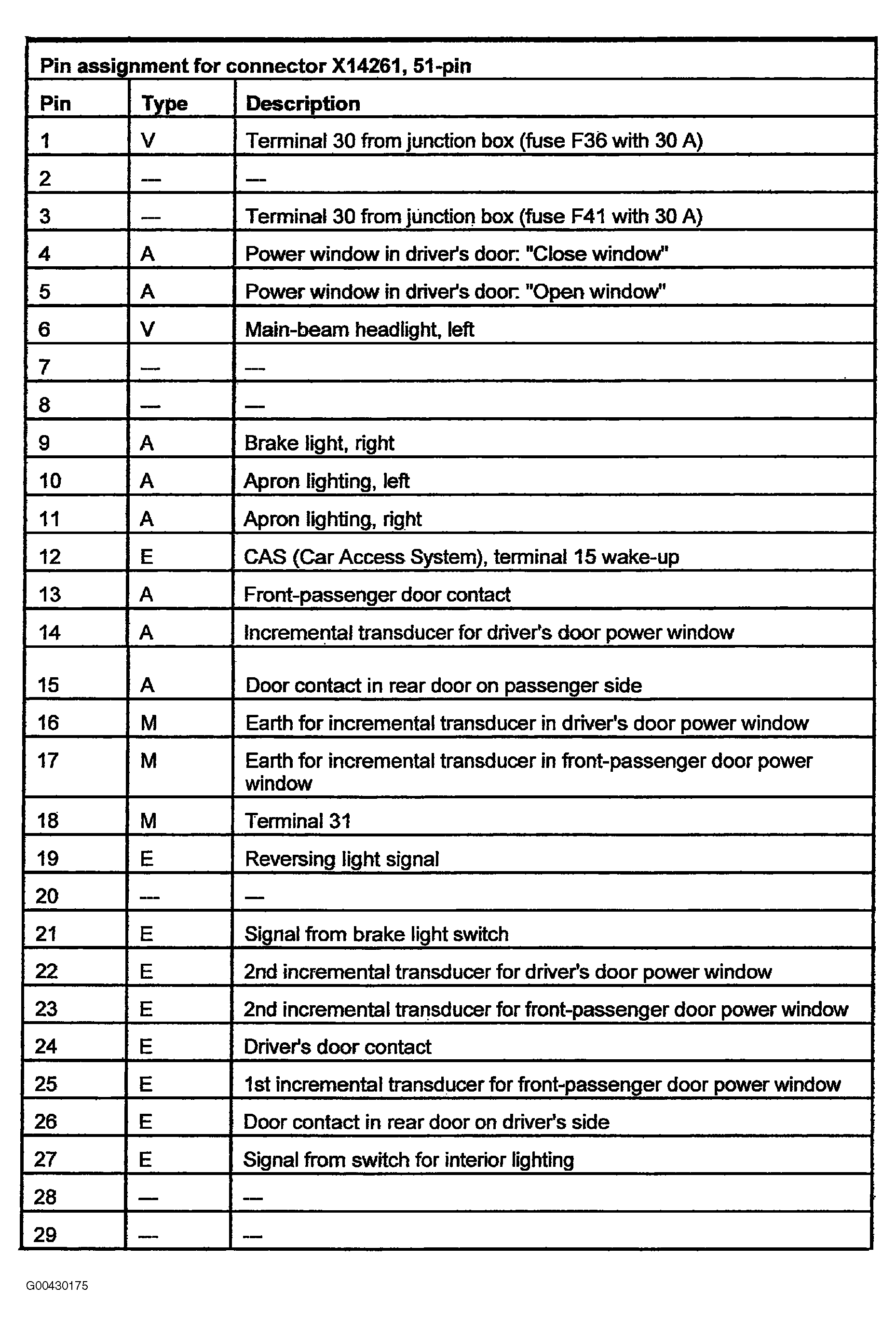

Fig 7: Pin Assignment For Footwell Module Connector X14261 (Pins 1-29)

G00430175

Courtesy of BMW OF NORTH AMERICA, INC.

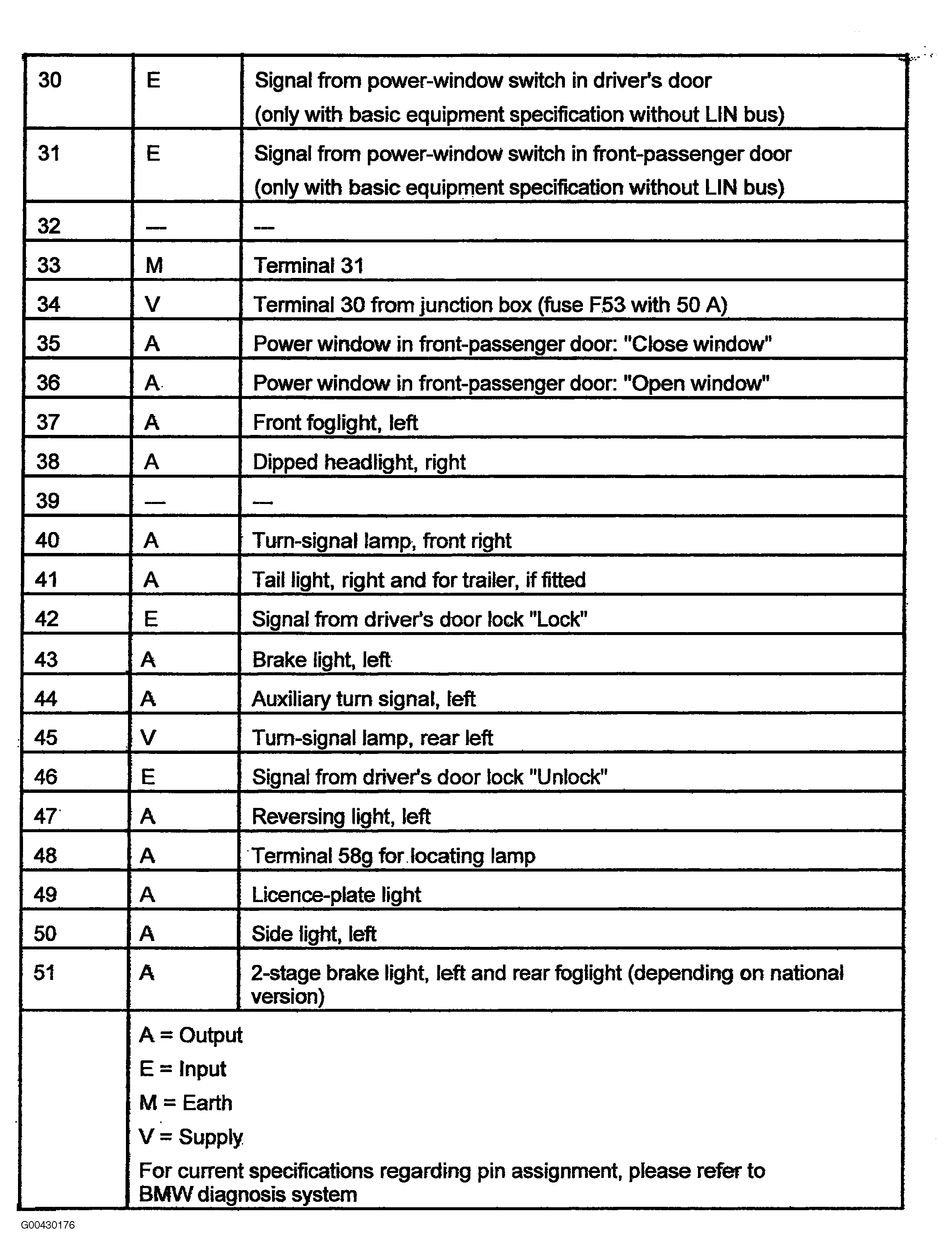

Fig 8: Pin Assignment For Footwell Module Connector X14261 (Pins 30-51)

G00430176

Courtesy of BMW OF NORTH AMERICA, INC.
