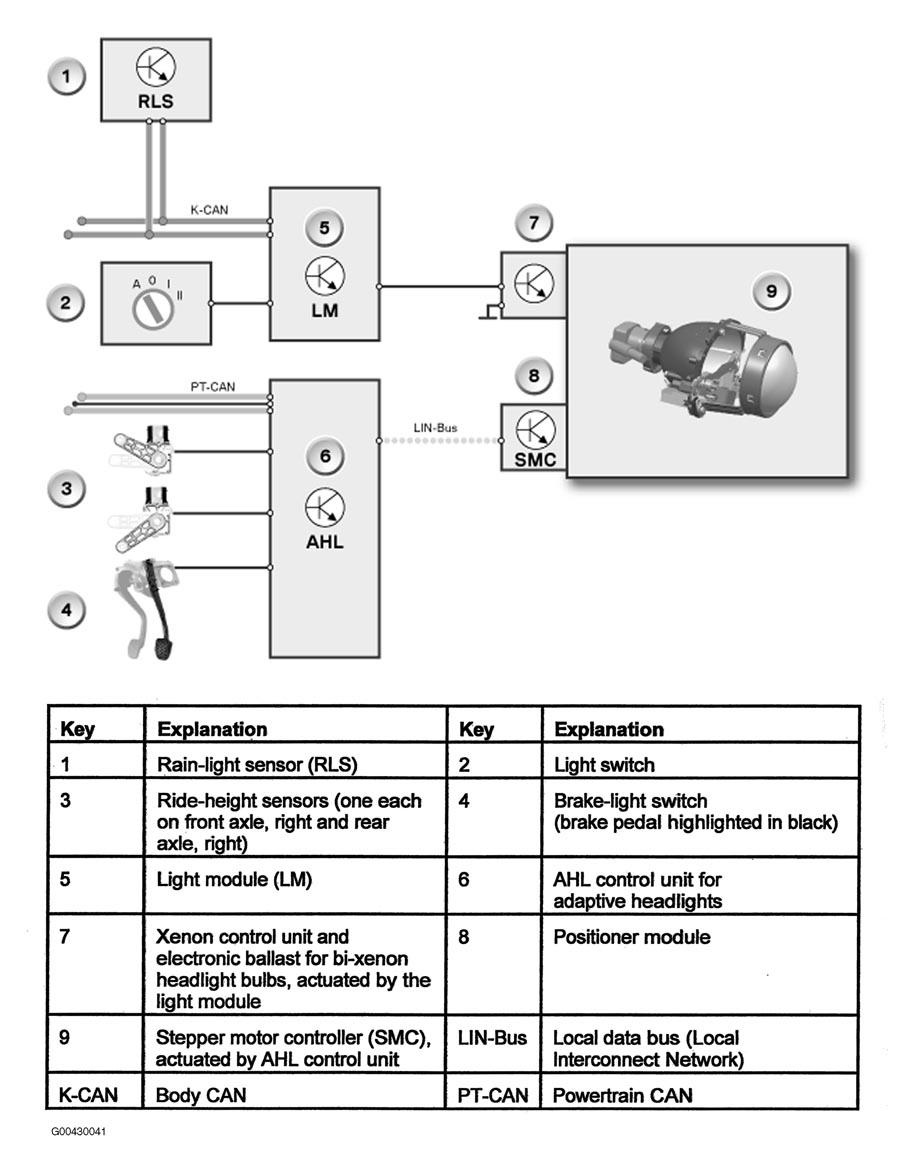

Adaptive Headlights Block Diagram
WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
The block diagram shows the following relationships for the E60, E61, E64:
- Headlight components that are actuated by the light module and by the AHL control unit
- Components supplying the necessary signals
- Data buses and direct wire connections
