E60, E61, E63, E64, E87, E90, E91 - iDrive

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2006 BMW Z4, 2006 BMW M3, 2006 BMW M Roadster, 2006 BMW M Coupe, and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Basic Layout Of The Display

The basic layout is shown using the E60 as an example.

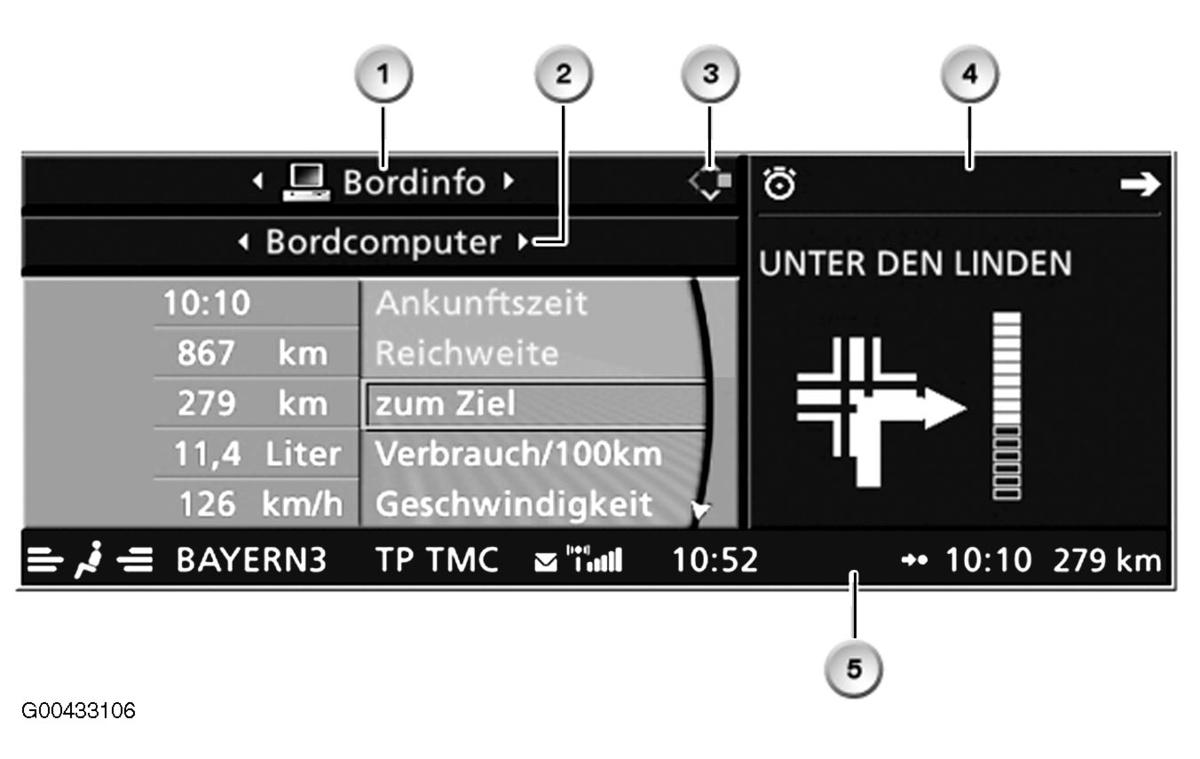

Fig 1: Identifying iDrive Basic Layout Of Display: E60, E61, E63, E64, E87, E90, E91

Courtesy of BMW OF NORTH AMERICA, INC.

IDRIVE BASIC LAYOUT OF DISPLAY: E60, E61, E63, E64, E87, E90, E91

Key	Explanation	Key	Explanation
1	1st hierarchical menu level (turn to scroll)	2	2nd hierarchical menu level (turn to scroll)
3	Orientation guide (Navigation highlighted)	4	Assistance window (Navigation with split-screen display, not included in E87)
5	Status line

"Communication" Menu

The functions that can be selected on the first menu level are as follows:

Telephone
SMS
BMW ASSIST
BMW On-line
Notebook

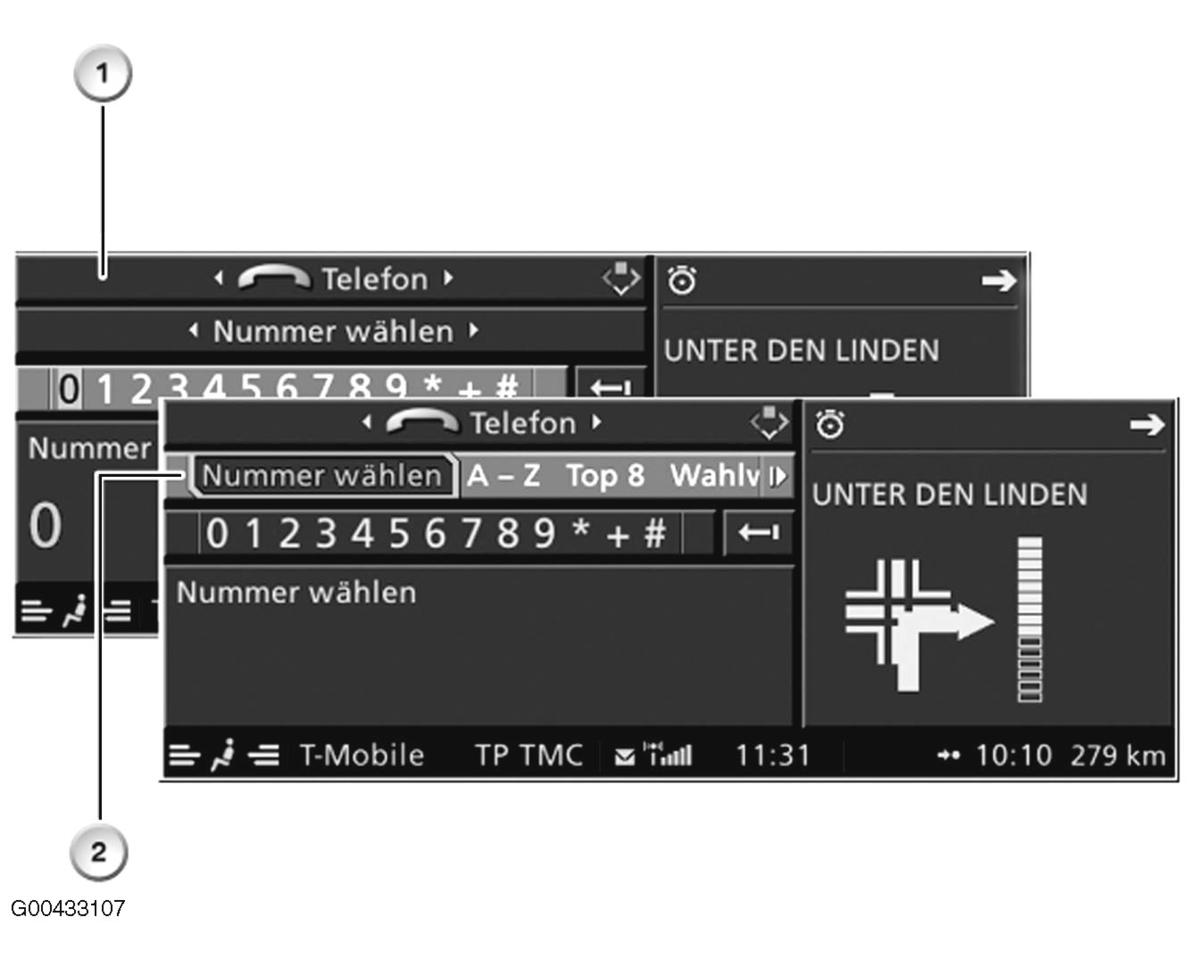

Fig 2: Identifying iDrive "Communication" Menu: E60, E61, E63, E64, E87, E90, E91

Courtesy of BMW OF NORTH AMERICA, INC.

IDRIVE "COMMUNICATION" MENU: E60, E61, E63, E64, E87, E90, E91

Key	Explanation	Key	Explanation
1	1st hierarchical menu level (turn to scroll) - Telephone - SMS - BMW Assist - BMW On-line - Notebook	2	2nd hierarchical menu level (turn to scroll) - Select number - A - Z - Top 8 - Last number redial - Missed calls - Received calls - Ongoing calls

Each menu item has certain associated input options or information.

For example, when "Telephone" is activated, the 2nd menu level opens. A number of other items are listed for selection on this menu level. Sliding the controller forward takes you up one level in the menu hierarchy.

"Navigation" Menu

The functions that can be selected on the first menu level are as follows:

Navigation
On-board info
Address book
Traffic information

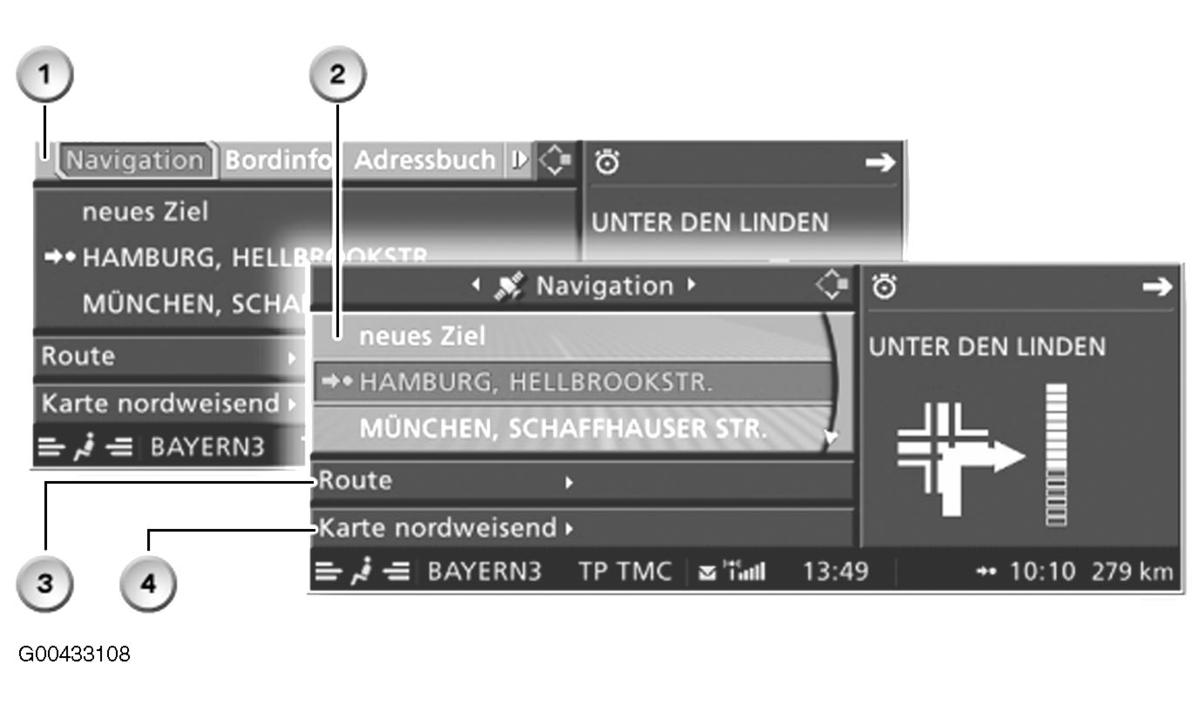

Fig 3: Identifying iDrive "Navigation" Menu: E60, E61, E63, E64, E87, E90, E91

Courtesy of BMW OF NORTH AMERICA, INC.

IDRIVE "NAVIGATION" MENU: E60, E61, E63, E64, E87, E90, E91

Key	Explanation	Key	Explanation
1	1st hierarchical menu level (turn to scroll) - Navigation - On-board information - Address book - Traffic information	2	2nd hierarchical menu level (turn to scroll) - New destination - Previous destinations
3	3rd hierarchical menu level (turn to scroll): - Route	4	4th hierarchical menu level (turn to scroll): - Map with northward orientation

Each menu item has certain associated input options or information.

For example, when "Navigation" is activated destination, route guidance, route selection and map display mode can all be set. Sliding the controller to the rear takes you down one level in the menu hierarchy. Each menu item has certain associated input options or information.

"Entertainment" Menu

The functions that can be selected on the first menu level are as follows:

FM
AM
Satellite tuner
CD
MD
TV
Teletext
DVD
AUX

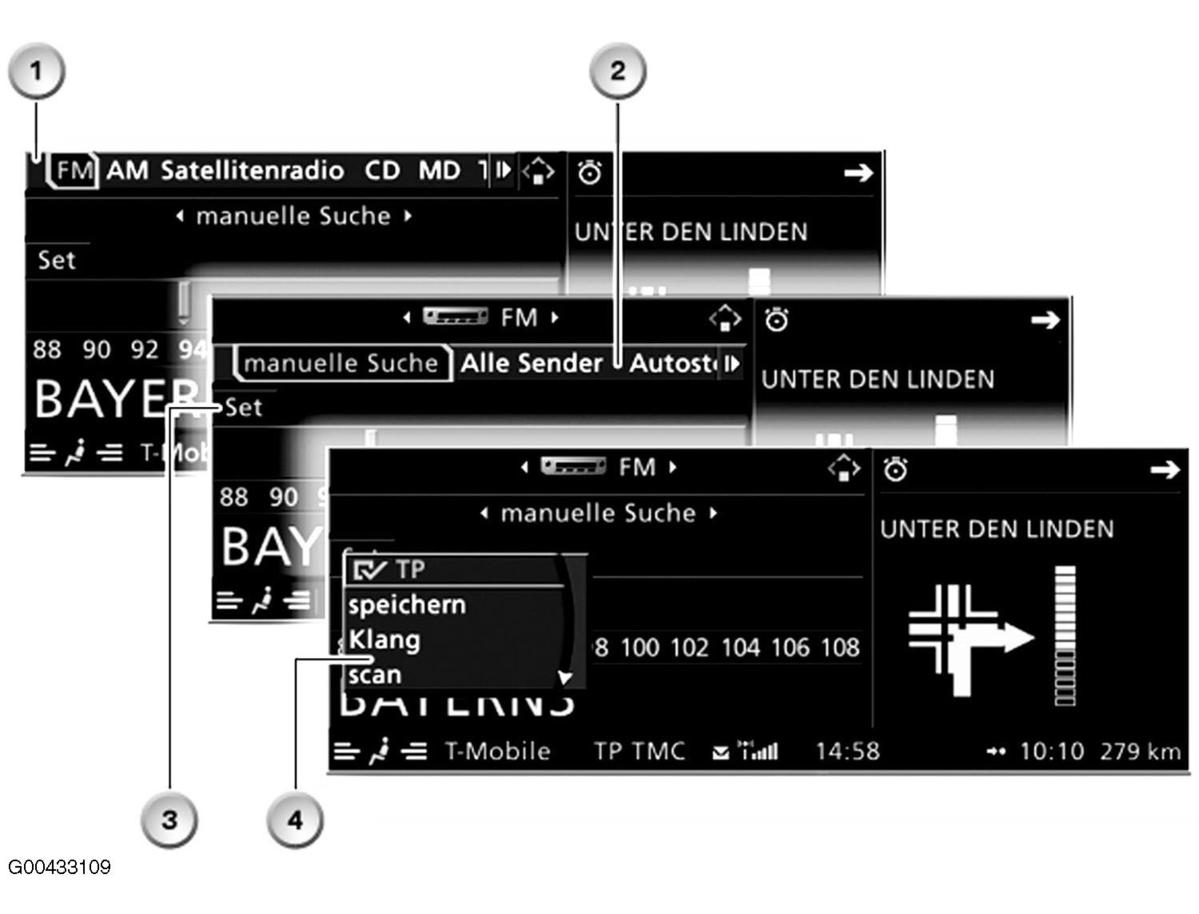

Fig 4: Identifying iDrive "Entertainment" Menu: E60, E61, E63, E64, E87, E90, E91

Courtesy of BMW OF NORTH AMERICA, INC.

IDRIVE "ENTERTAINMENT" MENU: E60, E61, E63, E64, E87, E90, E91

Key	Explanation	Key	Explanation
1	1st hierarchical menu level (turn to scroll) - FM - AM - Satellite tuner - CD - MD - TV - DVD - AUX	2	2nd hierarchical menu level (turn to scroll) - Manual search - All stations - Stored stations
3	3rd hierarchical menu level: - Set	4	4th hierarchical menu level (turn to scroll): - TP - RDS - RDS - TRF - Save - Sound (opens the "Settings" menu) - Scan - Divert

Each menu item has certain associated input options or information. For example, when "FM" is activated "Set" is automatically displayed. Pushing the controller down enables you to select a number of settings.

"Climate" Menu

The functions that can be selected on the first menu level are as follows:

Air distribution setting
Heat distribution, seat
Independent heating/ventilation

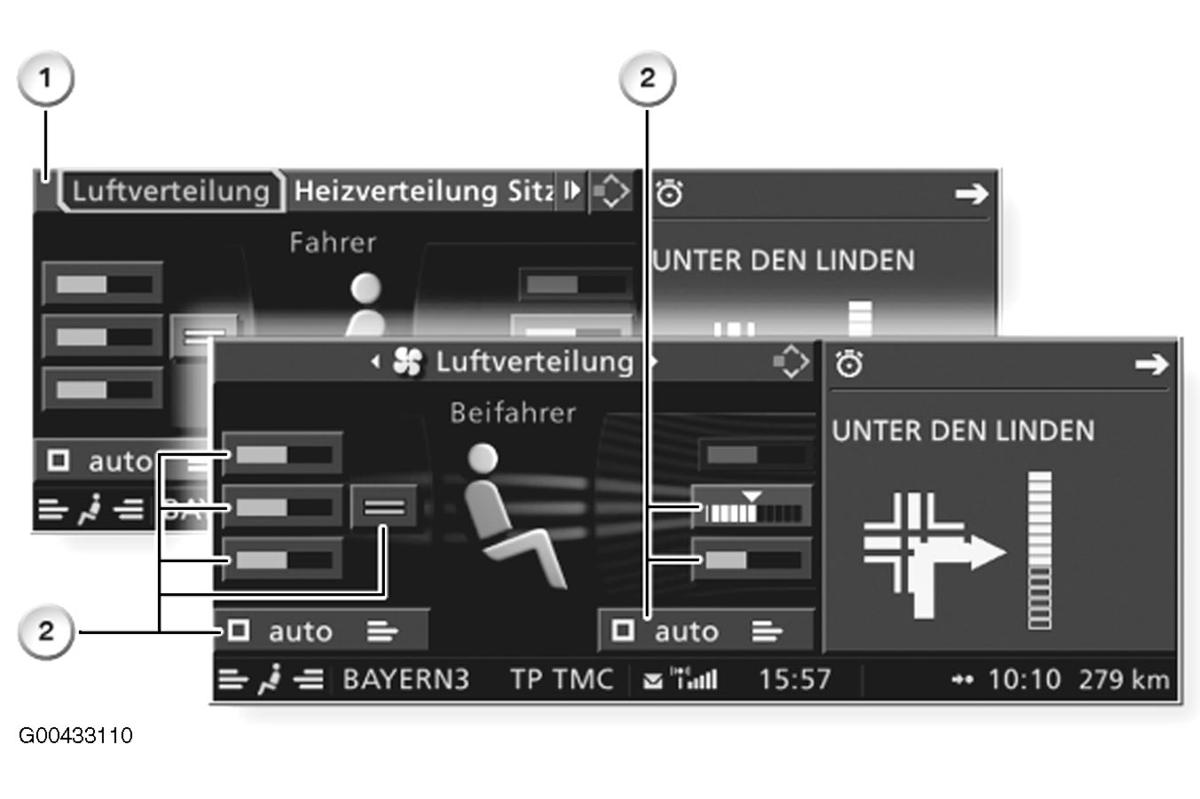

Fig 5: Identifying iDrive "Climate" Menu: E60, E61, E63, E64, E87, E90, E91

Courtesy of BMW OF NORTH AMERICA, INC.

IDRIVE "CLIMATE" MENU: E60, E61, E63, E64, E87, E90, E91

Key	Explanation	Key	Explanation
1	1st hierarchical menu level (turn to scroll) - Air distribution - Heat distribution, seat - Independent heating/ventilation	2	2nd hierarchical menu level (slide to select): - Air stratification, driver - Automatic mode
3	3rd hierarchical menu level (push to select): - Air stratification, front passenger - Automatic mode

Each menu item has certain associated input options or information. For example, when "Air distribution" is activated you can slide the controller (to left or right, as applicable) to toggle between air distribution for the driver's side and air distribution on the passenger side. In the same way, sliding the controller (to the rear or forward, as applicable) enables you to select the individual options.

"Settings" Menu (i = Information)

If the controller is pressed with the start menu selected, the "Settings" menu is called up. The individual user settings can be selected using this menu. The following menu items are available:

Screen OFF
Close screen (E87 only)
Display settings
Entertainment settings
Traffic information settings
Vehicle settings
Service
Communication settings

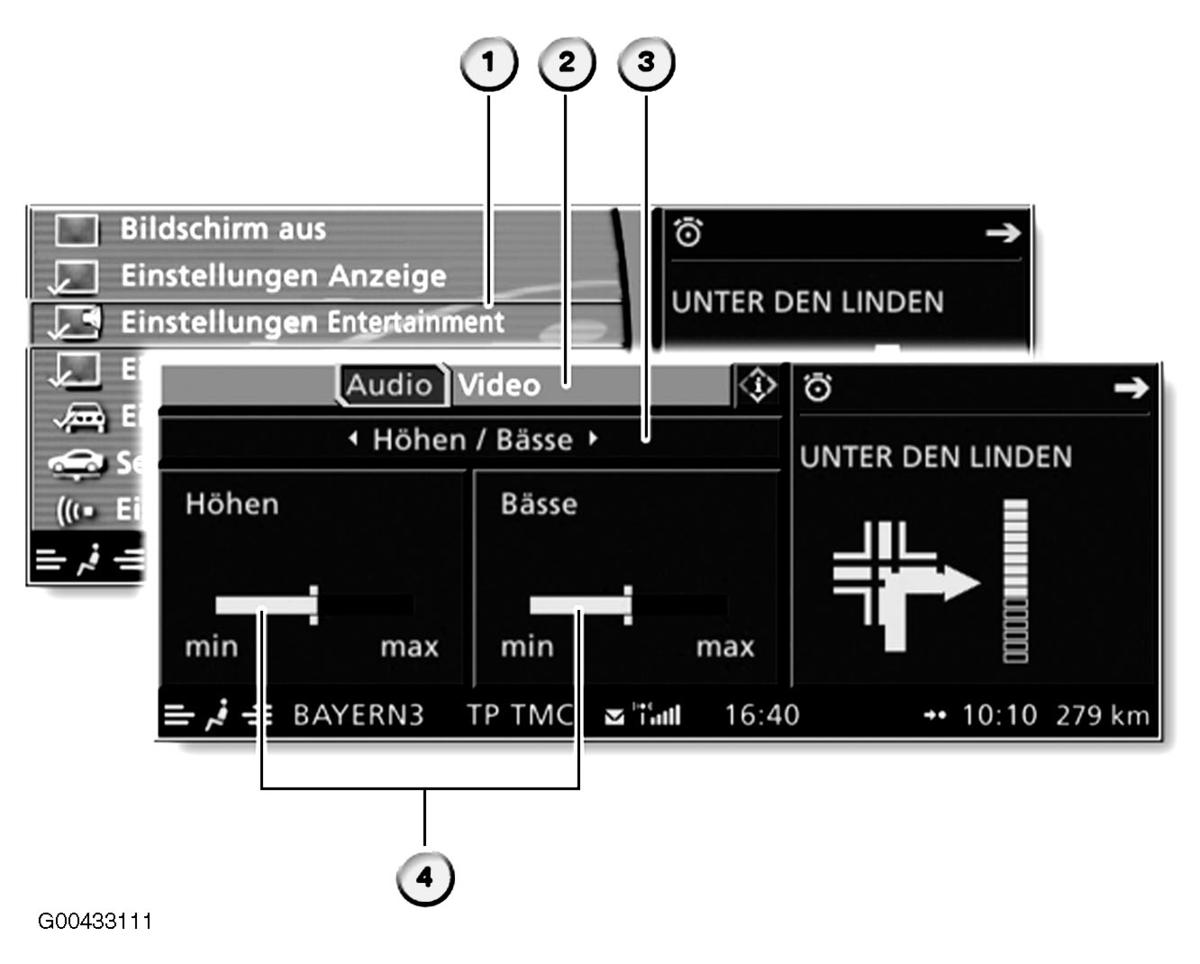

Fig 6: Identifying iDrive "Settings" Menu (i = Information): E60, E61, E63, E64, E87, E90, E91

Courtesy of BMW OF NORTH AMERICA, INC.

IDRIVE "SETTINGS" MENU (I = INFORMATION): E60, E61, E63, E64, E87, E90, E91

Key	Explanation	Key	Explanation
1	"Settings" menu (e.g. "Entertainment settings" can be selected by turning the Controller)	2	1st hierarchical menu level (turn to scroll) - Audio - Video
3	2nd hierarchical menu level (turn to scroll) - Treble/Bass - Balance/Fader - Speed-dependent volume - Equalizer - LOGIC7 spatial effect - Reset - Enable	4	3rd hierarchical menu level (turn to select)

Each menu item has certain associated input options or information.
