E60, E61, E63, E64, E87, E90, E91 - Controller
The controller is very easy to operate. The controller has a different design for each model series and depending on date of production launch.
Installation location
The controller is the central control element for all the functions that can be viewed on the Central Information Display. The controller is set in the center console, where it is immediately accessible to the users (driver and front passenger).

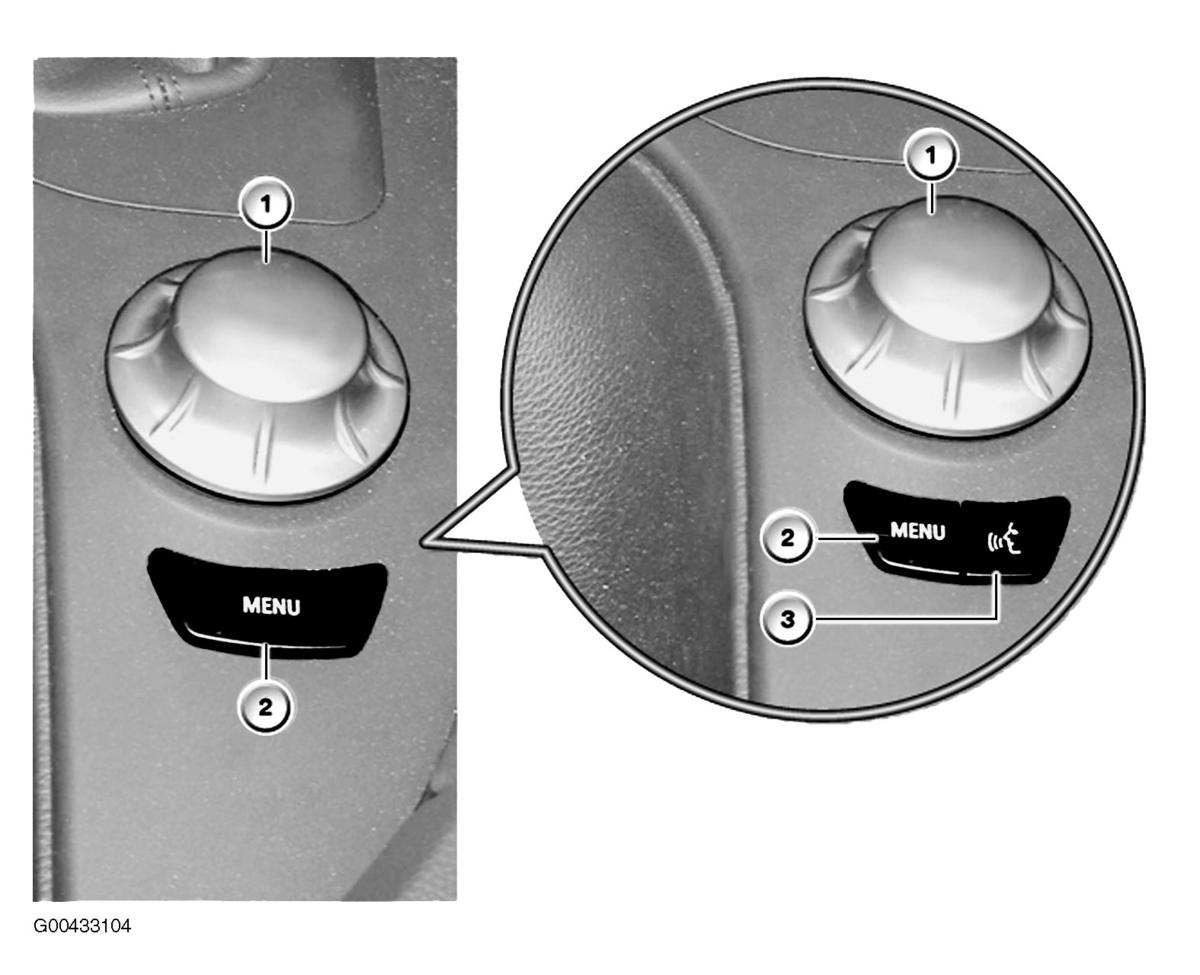

| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Control button for controller (E60 shown) | 2 | Menu button (one-part for M-ASK, two-part for CCC with voice recognition system) |
| 3 | Key for the voice recognition system (only in combination with CCC) |
Construction
A key unit is located behind the Controller. In the E87/E90/E91, the key unit is integrated into the controller (E60, E61, E63, E64: key unit is a separate component).
The following 2 variants of the key unit exist:
- Basic: 1 menu button, which can be used to call up the start menu in the Central Information Display.
- High: As an option, this version is available with 2 buttons. As well as the menu button, a button which switches the voice recognition system on and off can be installed (only in combination with CCC).

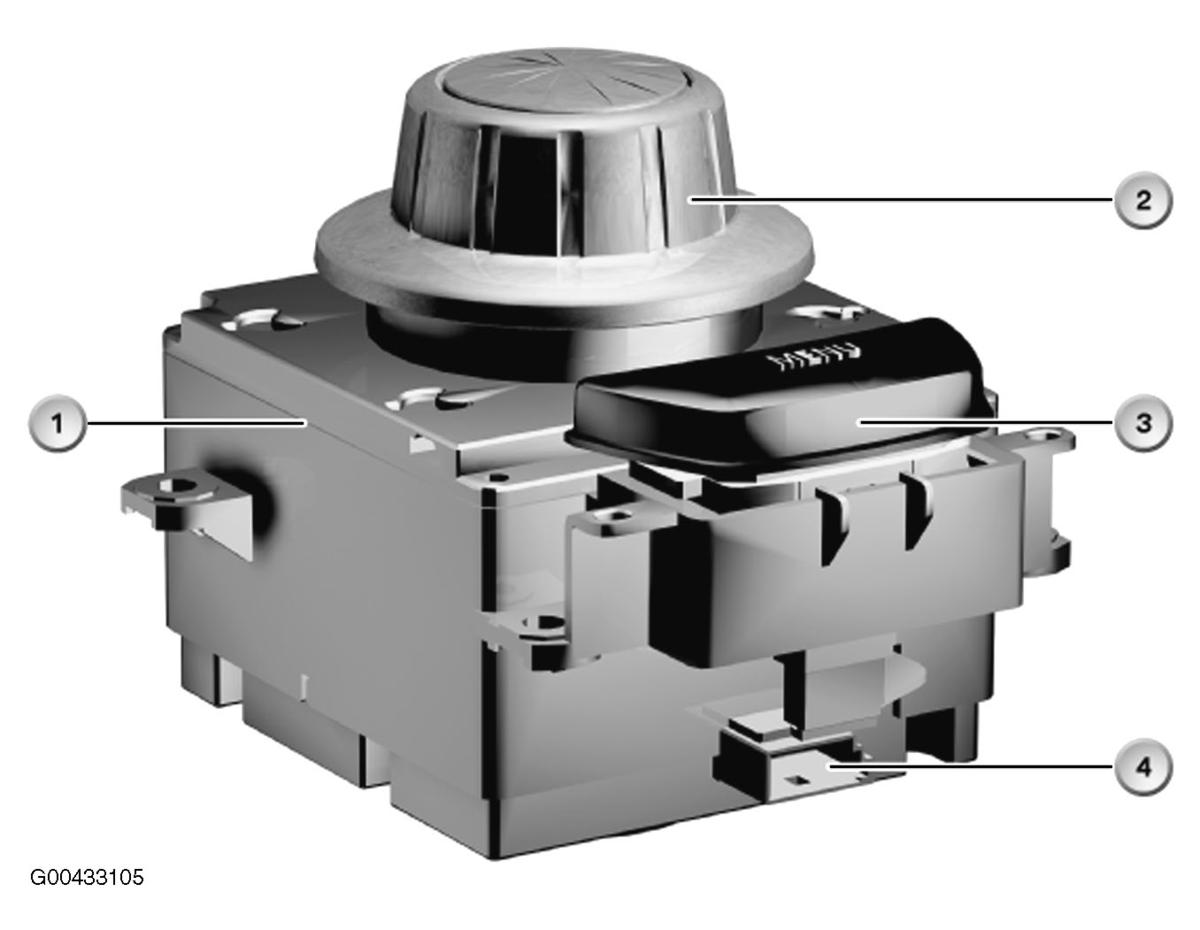

| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Controller (illustration shows E87, E90, E91) | 2 | Control button |
| 3 | Menu button | 4 | Connector for the onboard power supply |
E60, E61, E63, E64: Pin assignment X10387, 8-pin
| Pin | Type | Explanation |
|---|---|---|
| 1 | V | Power supply with terminal 30g (active) |
| 2 | M | Terminal 31, earth |
| 3 | A | Earth for the key unit |
| 4 | E/A | K-CAN High |
| 5 | E/A | K-CAN Low |
| 6 | E | Signal from menu button |
| 7 | E | Signal from voice recognition system button (only with CCC incorporating voice recognition system) |
| 8 | A | Terminal 58g for key unit |
| A = Output | ||
| E = Input | ||
| E/A = Input and output | ||
| M = Earth | ||
| V = Supply | ||
| For current specifications regarding pin assignment, please refer to BMW diagnosis system | ||
E87, E90, E91: Pin assignment X10387, 4-pin
| Pin | Type | Explanation |
|---|---|---|
| 1 | V | Power supply with terminal 30g (active) |
| 2 | M | Terminal 31, earth |
| 3 | E/A | K-CAN High |
| 4 | E/A | K-CAN Low |
| E/A = Input and output | ||
| M = Earth | ||
| V = Supply | ||
| For current specifications regarding pin assignment, please refer to BMW diagnosis system | ||
How it works
The controller uploads the signals from the buttons. The controller transforms these signals into messages on the K-CAN. These messages are processed by the M-ASK or the CCC, as applicable.
The controller is slid in one of several directions from its home position, to which the controller always returns when released. The significant features of operation are:
- The center is the home position (middle position).
- Slide: To select one of the 4 menus or navigate in the hierarchical menu structure
- Turn: To select the chosen function
- Press: To select the "Settings" menu from the start menu or select a chosen function
2 versions of the controller are available:
- Basic variant
The controller is equipped with an indexing mechanism. The controller has 24 stop positions per turn. The controller can be slid in 4 directions. - High variant (only with CCC)
The controller has variable haptics. The haptics for the rotary motion on the controller are generated by an electric motor. The controller has 8 sliding directions, but only when the function "Destination input with cross hairs" is selected.
Special feature of E87 controller:
The signal from terminal 58g for the buttons (locating lamp) is received by the controller via the K-CAN.
