Earth Point On Lightweight Aluminum Front End (Grav): E60, E61, E63, E64
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2006 BMW Z4, 2006 BMW M3, 2006 BMW M Roadster, 2006 BMW M Coupe, and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
The earth point on the lightweight aluminum front end (GRAV) is located on the left-hand side of the vehicle. The GRAV earth point is on the left-hand side member at the connection point between the lightweight aluminum front end and the steel body.

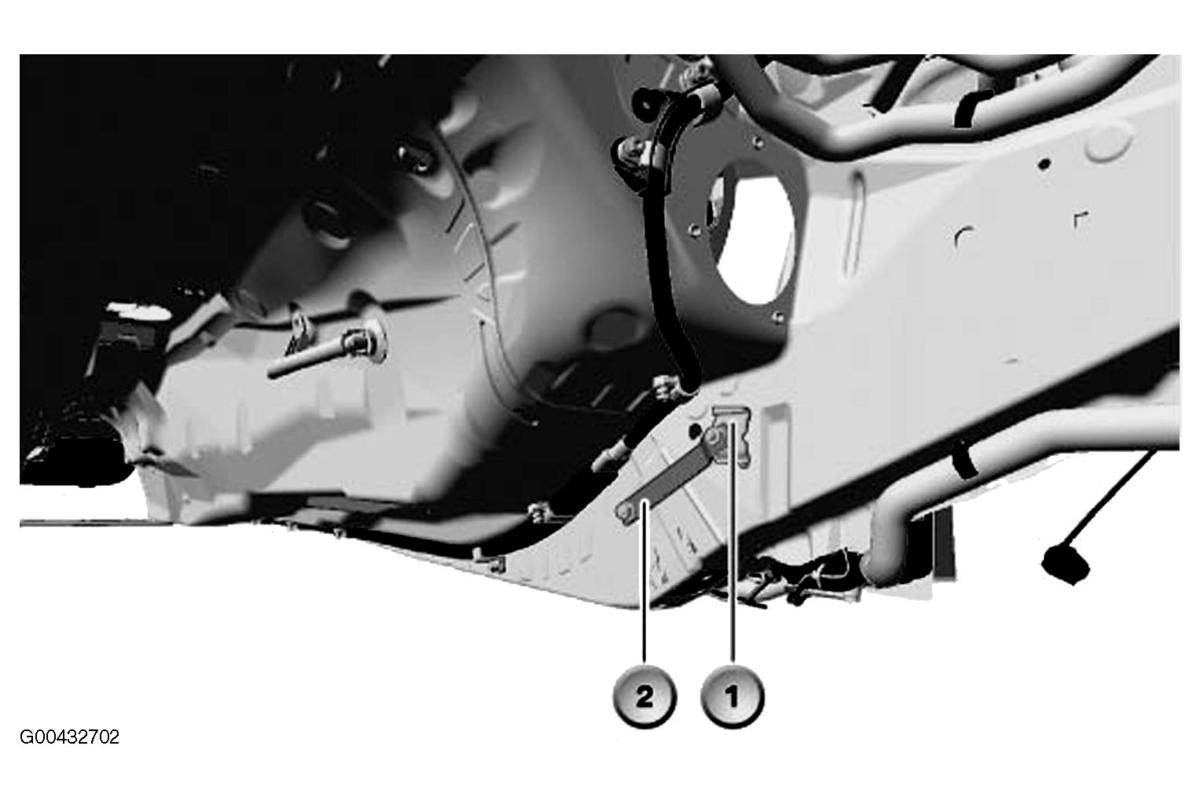

Example: E60
EARTH POINT ON LIGHTWEIGHT ALUMINUM FRONT END (GRAV): E60, E61, E63, E64
| Item | Description | Item | Description |
|---|---|---|---|
| 1 | Earth point (GRAV) | 2 | Earth lead |
Construction
The GRAV earth point consists of a profile connected to the aluminum front end with a threaded stud. An earth lead is connected to this threaded stud. The earth lead goes to the steel body.
How it works
The connection of the lightweight aluminum front end (GRAV) and the steel body with an earth lead improves the vehicle's electromagnetic compatibility (EMC). Contact resistances between the front end and the rest of the body are bridged.
