Ignition Starter Switch: E60, E61, E63, E64 Up To 09/2005:

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2006 BMW Z4, 2006 BMW M3, 2006 BMW M Roadster, 2006 BMW M Coupe, and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Installation location

The ignition starter switch is fitted on the right-hand side of the steering column.

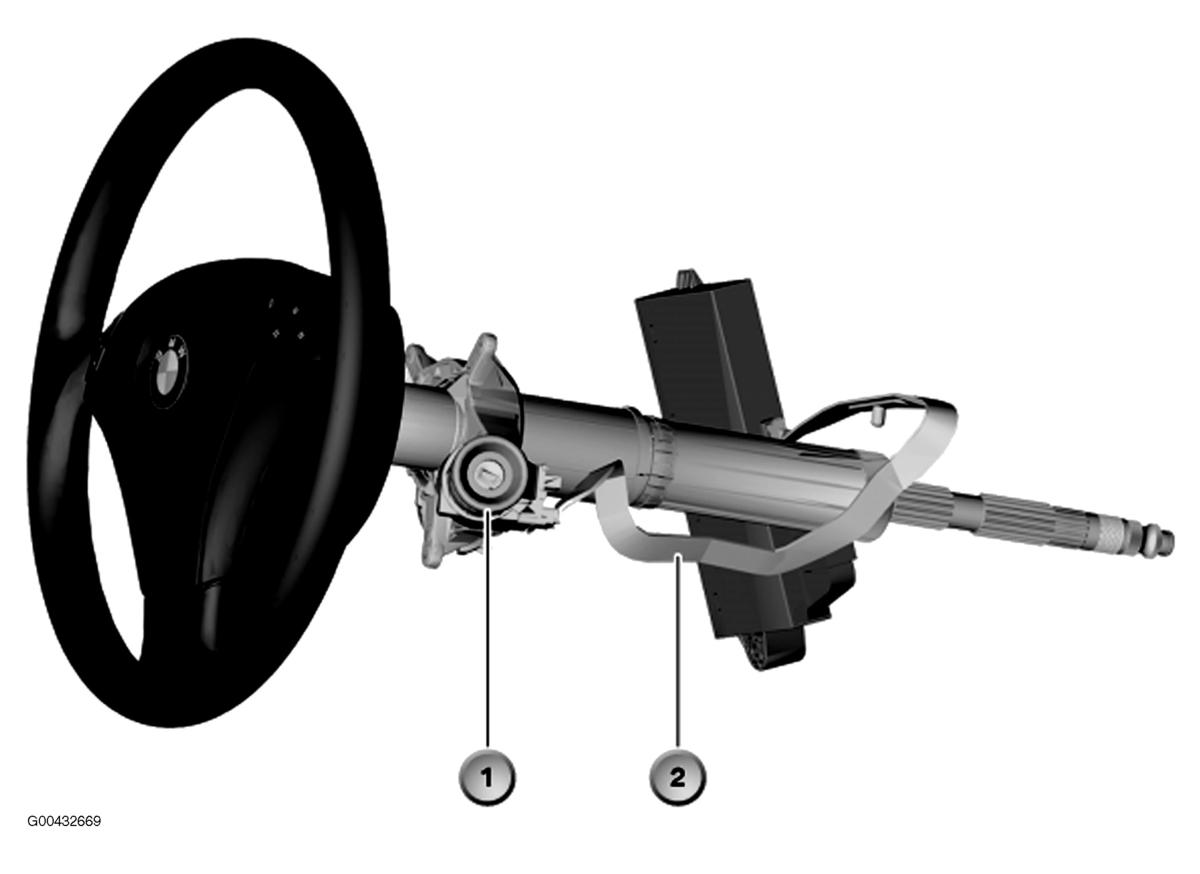

Fig 1: Identifying Ignition Starter Switch Components: E60, E61, E63, E64 Up To 09/2005
G00432669Courtesy of BMW OF NORTH AMERICA, INC.
IGNITION STARTER SWITCH COMPONENTS: E60, E61, E63, E64 UP TO 09/2005

Item Description Item Description
1 Ignition starter switch 2 Ribbon cable to the CAS

Construction

A gearwheel transfers the motion of the ignition key turning in the lock cylinder to the ignition starter switch. 4 Hall sensors are installed in the ignition starter switch. The Hall sensors read the ignition key position without contact being made. The ignition starter switch also contains the ring antenna for checking the transponder in the ignition key.

The ignition starter switch is connected to the CAS control unit by a 14-pin connector.

How it works

The ignition starter switch switches terminals R, 15 and 50.

The ignition key position is monitored electronically so that an ignition key without  a valid transponder does not  switch the various terminals mechanically. The terminal status is only forwarded to the electrical system if the ignition key has an authorized transponder. This fully electronic access to the vehicle has the following benefits:

Four Hall sensors are installed in the ignition starter switch. The Hall sensors read the status of the terminals via a matrix.

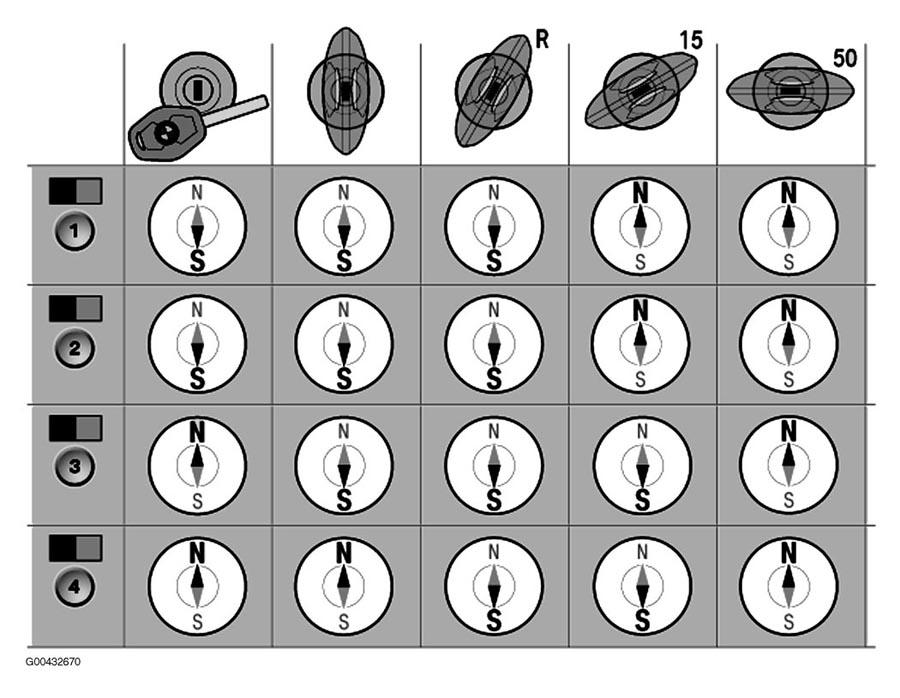

Fig 2: Identifying Hall Sensors
G00432670Courtesy of BMW OF NORTH AMERICA, INC.
HALL SENSORS

Item Description Item Description
1 Hall sensor 1 2 Hall sensor 2
3 Hall sensor 3 4 Hall sensor 4
