67 31 531 Removing and installing/replacing drive for backrest angle adjustment (front seat removed)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

NOTE: Secure drive for backrest angle adjustment (5) against falling out.

Release screws (3).

Remove drive for backrest angle adjustment (5) with fixture for plug connection (2) in direction of arrow from flange (4).

If necessary, remove inner drive shaft from drive for backrest angle adjustment (5).

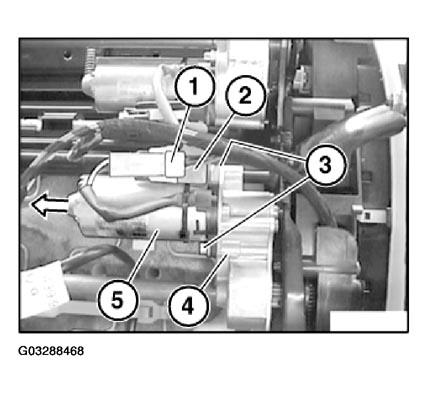

Fig 1: Removing Inner Drive Shaft From Drive For Backrest Angle Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive shaft (1) is exactly seated.

Ensure fixture for plug connection (3) and drive for backrest angle adjustment (4) on flange (2) are correctly seated.

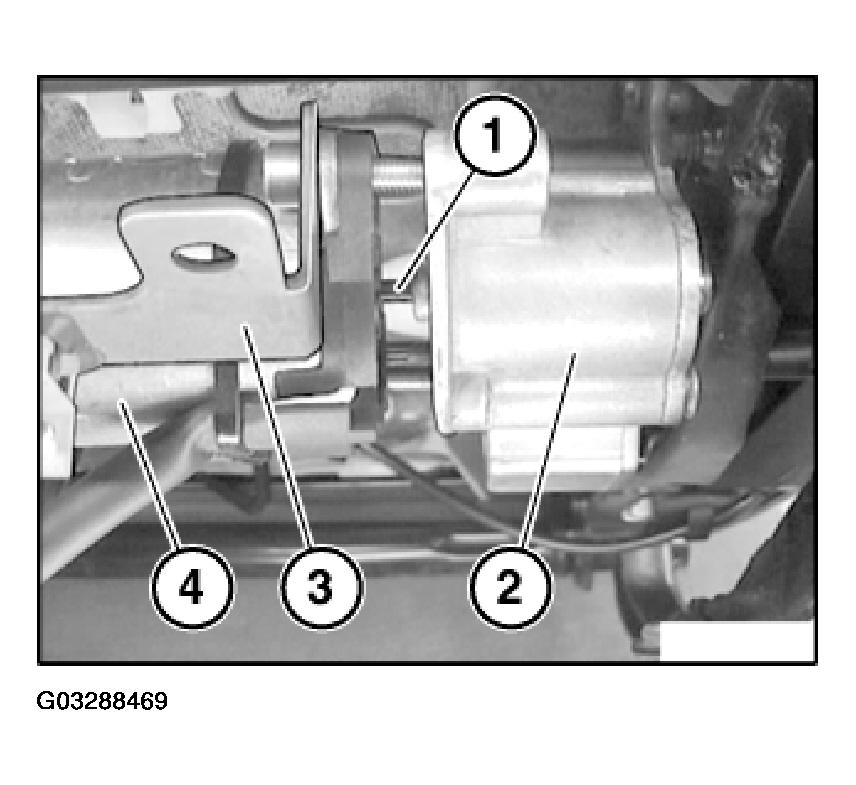

Fig 2: Identifying Drive For Backrest Angle Adjustment On Flange

Courtesy of BMW OF NORTH AMERICA, INC.
