67 31 511 Removing and installing/replacing drive for seat tilt adjustment (front seat removed)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (4).

NOTE: Secure drive for seat tilt adjustment (5) against falling out.

Loosen screws (1).

Remove drive for seat tilt adjustment (5) with fixture for plug connection (3) in direction of arrow from flange (2).

If necessary, remove inner drive shaft from drive for seat tilt adjustment (5).

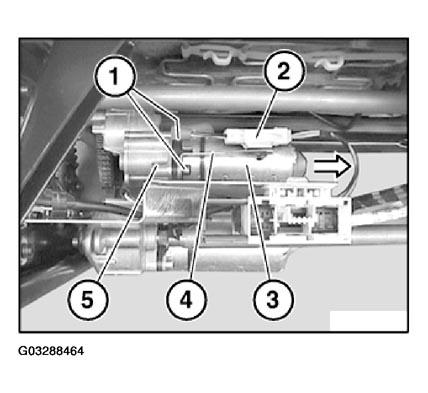

Fig 1: Removing Drive For Seat Tilt Adjustment With Fixture For Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive shaft (1) is correctly seated.

Ensure fixture for plug connection (3) and drive for seat tilt adjustment (4) on flange (2) are correctly seated.

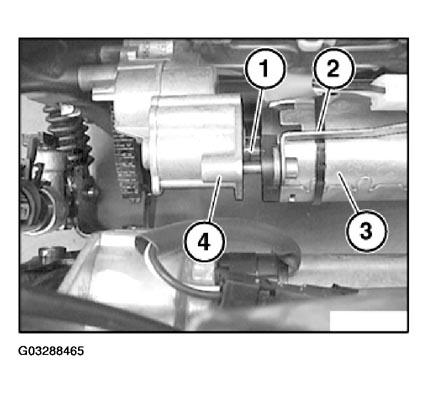

Fig 2: Identifying Plug Connection And Drive For Seat Tilt Adjustment On Flange

Courtesy of BMW OF NORTH AMERICA, INC.
