67 31 501 Removing and installing/replacing drive for longitudinal seat adjustment (front seat removed)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

Unclip plug housing (2) in direction of arrow from retaining fixture underneath.

NOTE: Secure drive for longitudinal seat adjustment (4) against falling out.

Release screws (3) and remove drive for longitudinal seat adjustment (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for longitudinal seat adjustment (4).

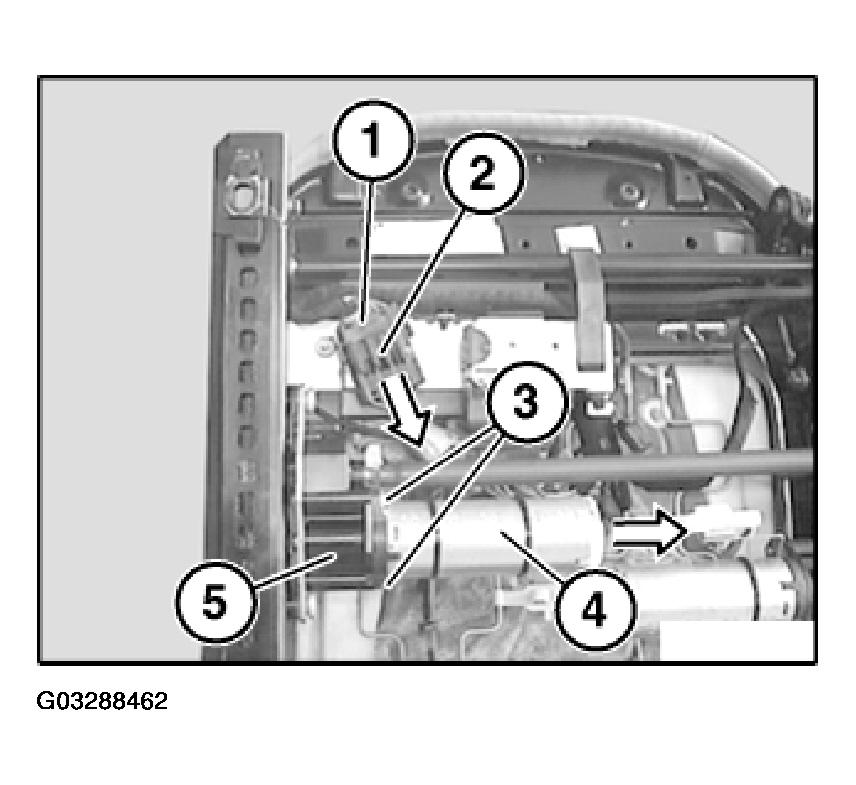

Fig 1: Removing Drive For Longitudinal Seat Adjustment In Direction Of Arrow From Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive shafts (1) is correctly seated.

Make sure drive for longitudinal seat adjustment (2) is correctly seated on flange (3).

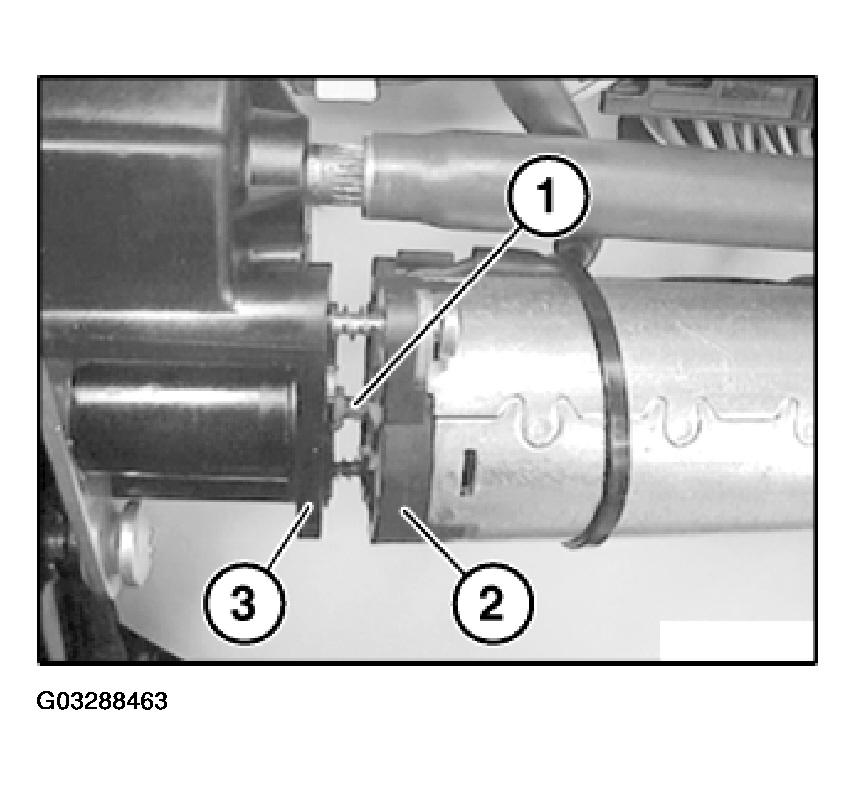

Fig 2: Identifying Drive Shaft And Flange

Courtesy of BMW OF NORTH AMERICA, INC.
