64 51 525 Removing and installing or replacing expansion valve
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Draw off refrigerant from A/C system, refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
- Remove fresh air duct, refer to 64 31 053 REMOVING AND INSTALLING OR REPLACING FRESH AIR DUCT .

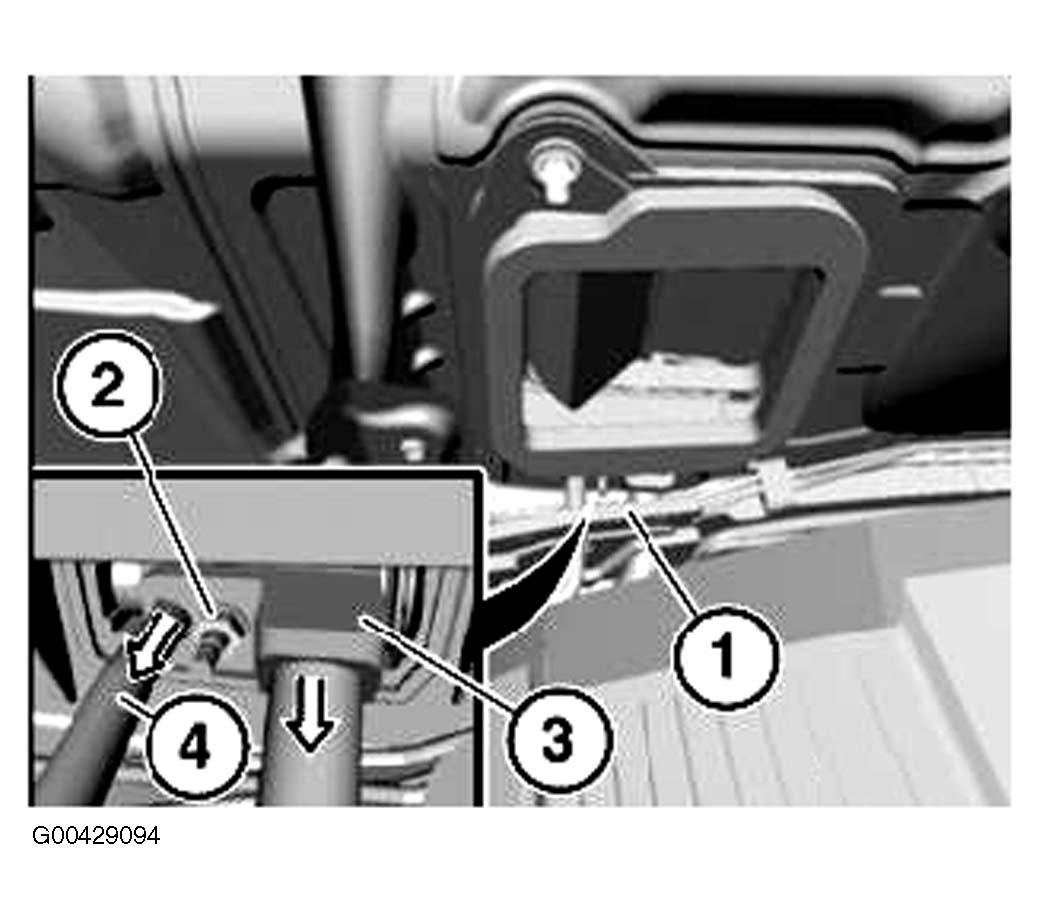

Feed out rubber grommet (1).
Installation:
Make sure rubber grommet (1) is correctly seated.
Unscrew nut (2).
Installation:
Tightening torque, refer to 64 53 7AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - 645CI .
Detach refrigerant lines (3) and (4) in direction of arrow.
Installation
Replace sealing rings.

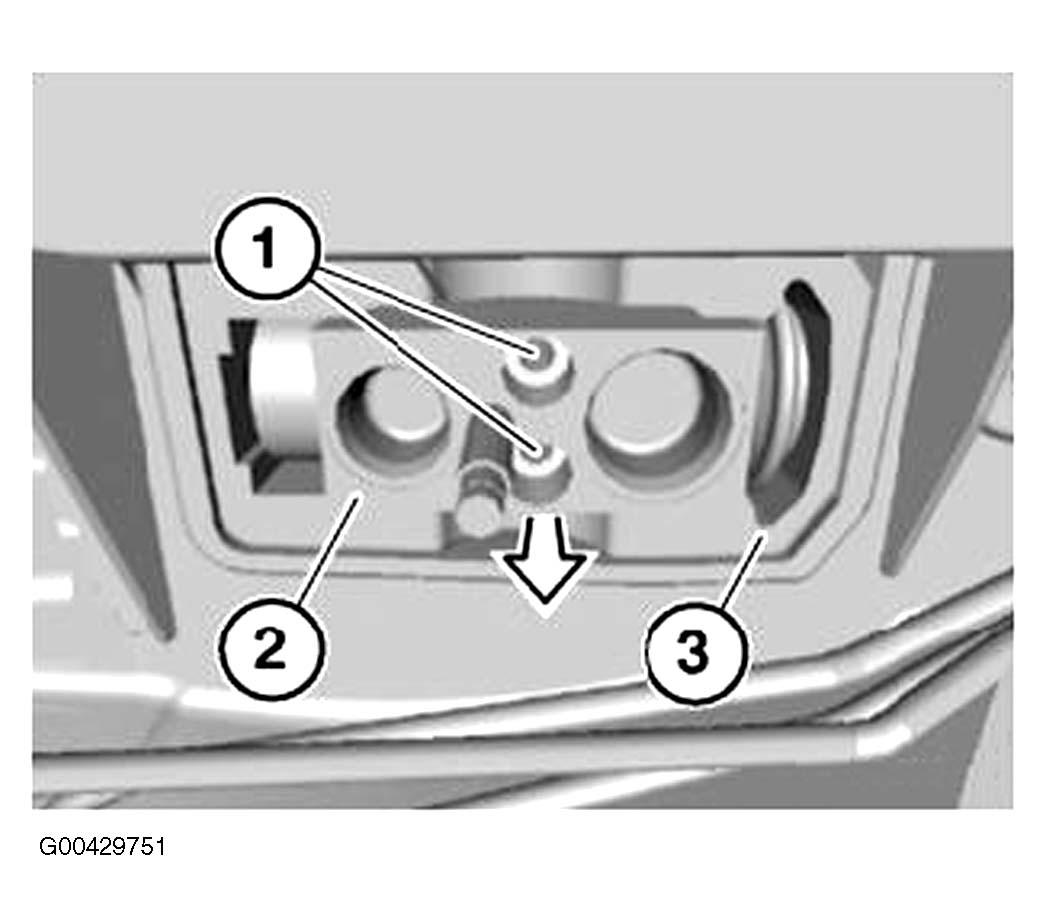

Release screws (1).
Installation:
Tightening torque, refer to 64 53 9AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - 645CI .
Detach expansion valve (2) in direction of arrow.
Installation:
Replace sealing rings.
Make sure soundproofing (3) is correctly seated.
