63 21 057 Replacing a socket housing for left or right rear light (on bumper trim)

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER .

Turn associated socket housing and remove from rear light (3).

Socket housing of bulb for rear fog light
Socket housing of bulb for reversing light

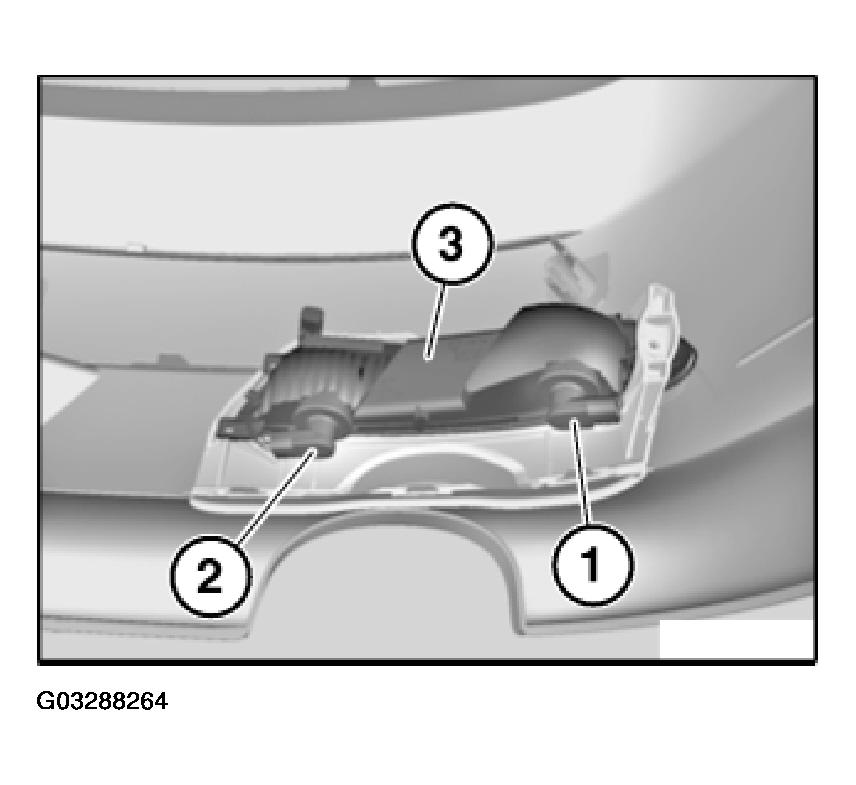

Fig 1: Turning Associated Socket Housing And Removing From Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Cut associated two-core lead with sufficient residual length remaining in vehicle and remove socket housing.

Installation:

Wiring is carried out with connectors.
