63 99 312 Replacing bulb(s) for left or right rear light (on bumper trim, rear fog light, reversing light)

WARNING: This page is about a different car, the 2006 BMW M6, 2006 BMW 650i, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER .

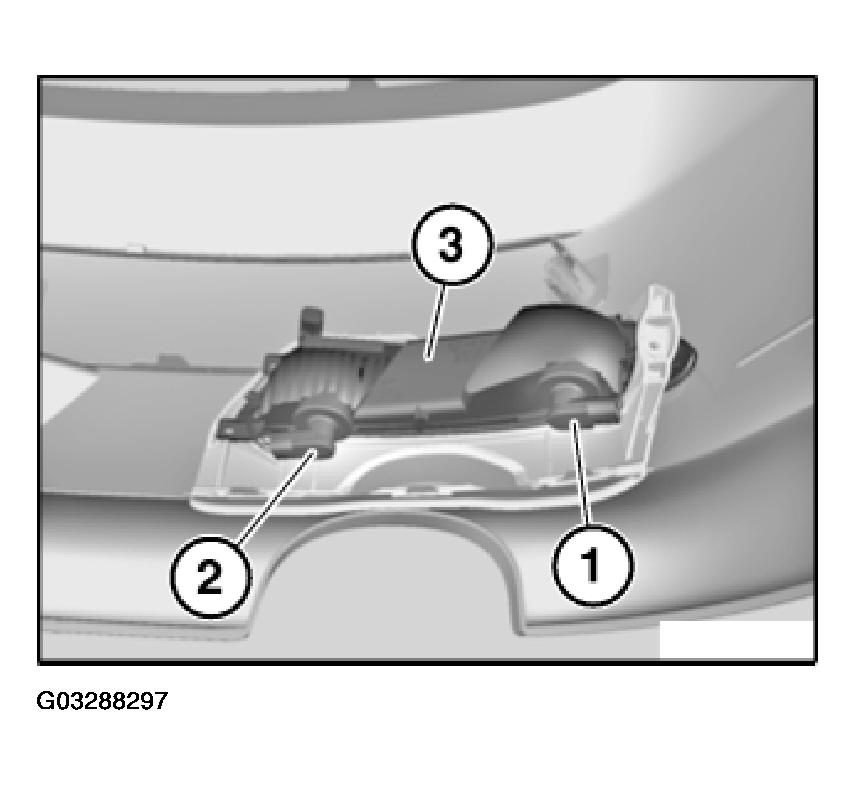

Turn associated bulb holder and remove from rear light (3).

Bulb holder of bulb for rear fog light
Bulb holder of bulb for reversing light

Fig 1: Turning Associated Bulb Holder And Removing From Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

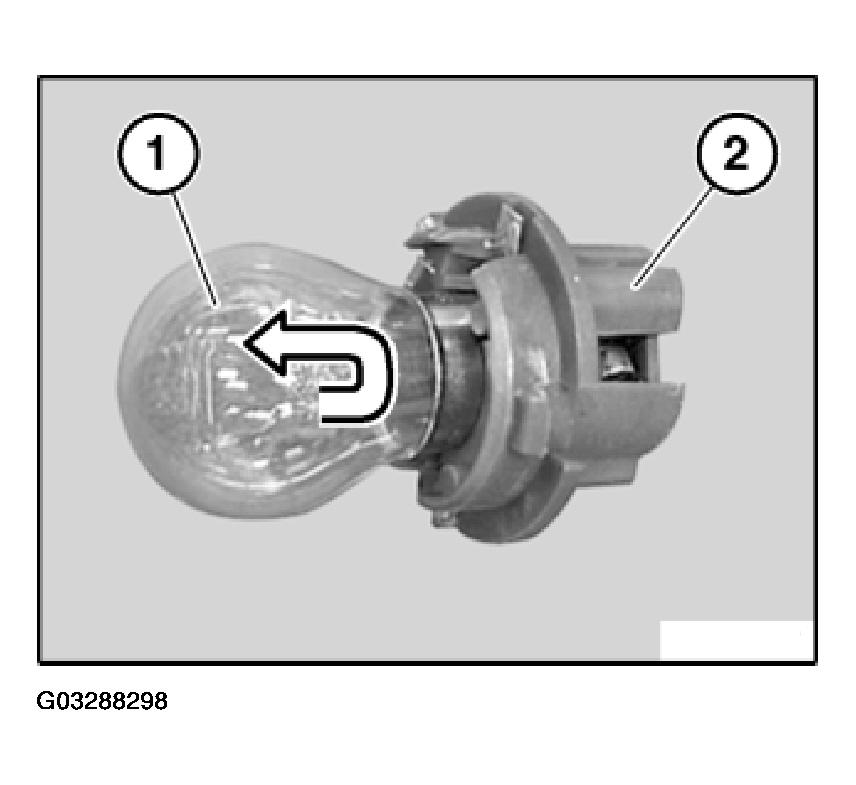

Remove bulb for rear light (1) in direction of arrow from bulb holder (2).

Fig 2: Removing Bulb For Rear Light From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb.
