Crimping Butt Connectors And Contact Sleeves For Fan Connectors Up To 2.5 MM2

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

The special tool 61 9 041 (crimping tool) in conjunction with 61 9 042 (matrix) are used for crimping stop parts (contacts), refer to 61 13 CRIMPING ON STOP PARTS .

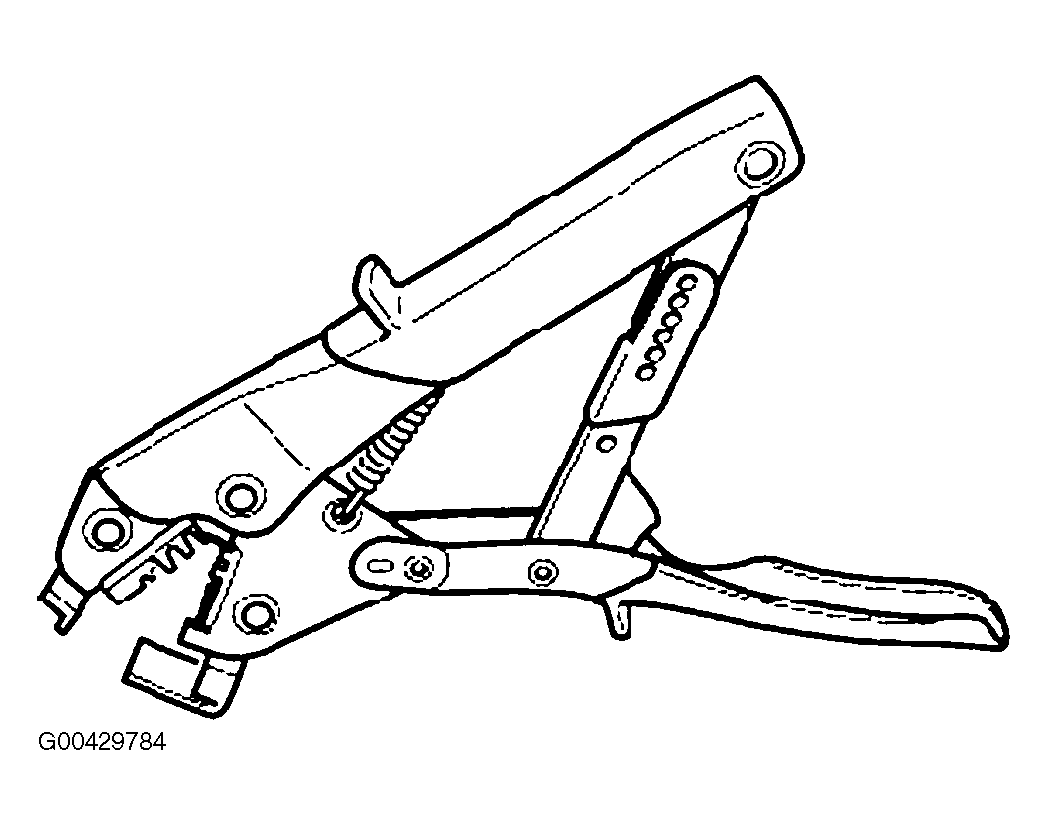

Fig 1: Identifying Special Tool 61 9 041 (Crimping Tool)
G00429784Courtesy of BMW OF NORTH AMERICA, INC.

Refer to repair instructions:

Special tools for wiring harness repairs, refer to 61 13 SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

Unlock special tool 61 9 041:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

OR:

Compress handles as far as they will go, tool unlocks automatically.

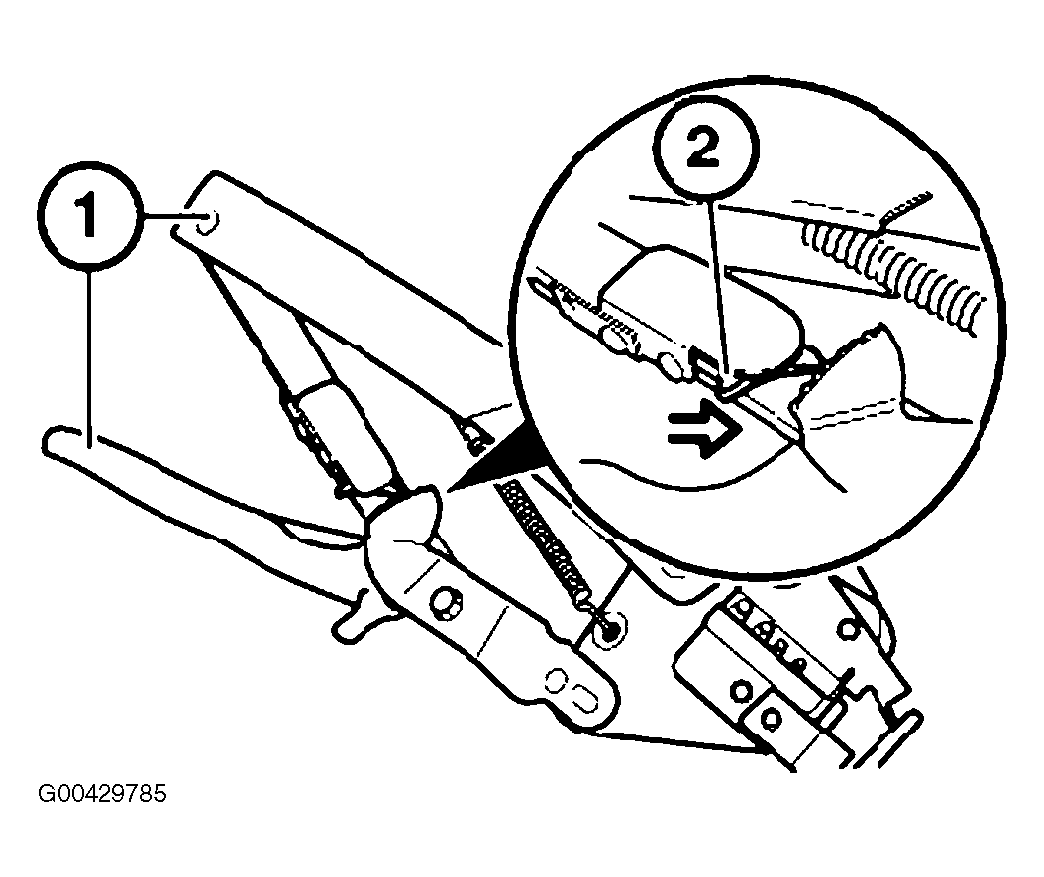

Fig 2: Unlocking Special Tool 61 9 041
G00429785Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Designation on nests (3) of special tool 61 9 042 indicate which contacts can be used in which crimping nests.

The following wire cross-section sizes and their corresponding stops can be used:

Wire cross-section size

  1. 0.35 ... 0.5 mm2
  2. 0.75 ... 1.0 mm2
  3. 1.5 mm3
  4. 2.5 mm2

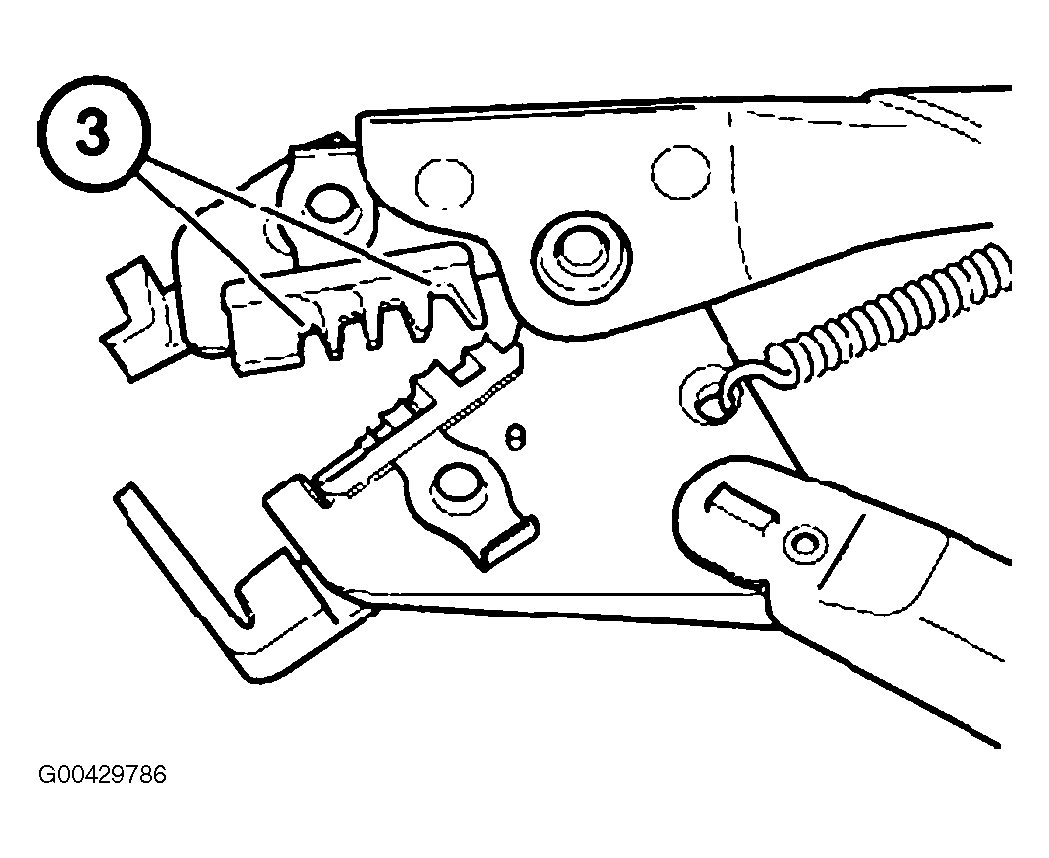

Fig 3: Identifying Cross-Section Sizes And Their Corresponding Stops
G00429786Courtesy of BMW OF NORTH AMERICA, INC.

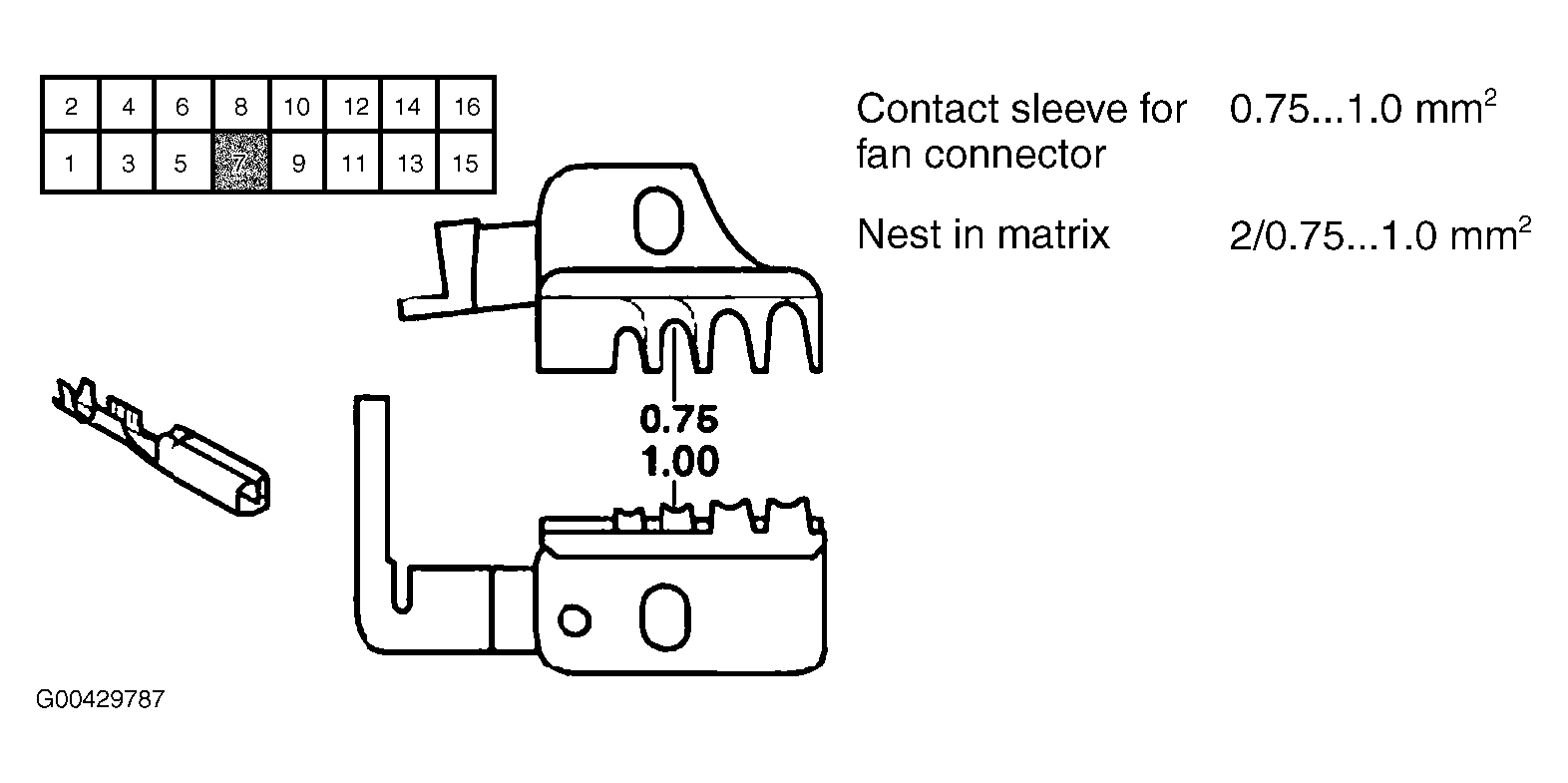

Example for choosing a nest:

Fig 4: Choosing A Nest
G00429787Courtesy of BMW OF NORTH AMERICA, INC.

For further operating instructions, refer to operating instructions for repair range IV for vehicle electrical system 61 9 020.

CAUTION: The contacts must be inserted in the matrix nest with utmost care. In so doing, ensure wire crimp and insulation crimp are exactly positioned.

Insert contact section of contact sleeves (4) for comb connector or crimp connector (5) in predetermined nest.

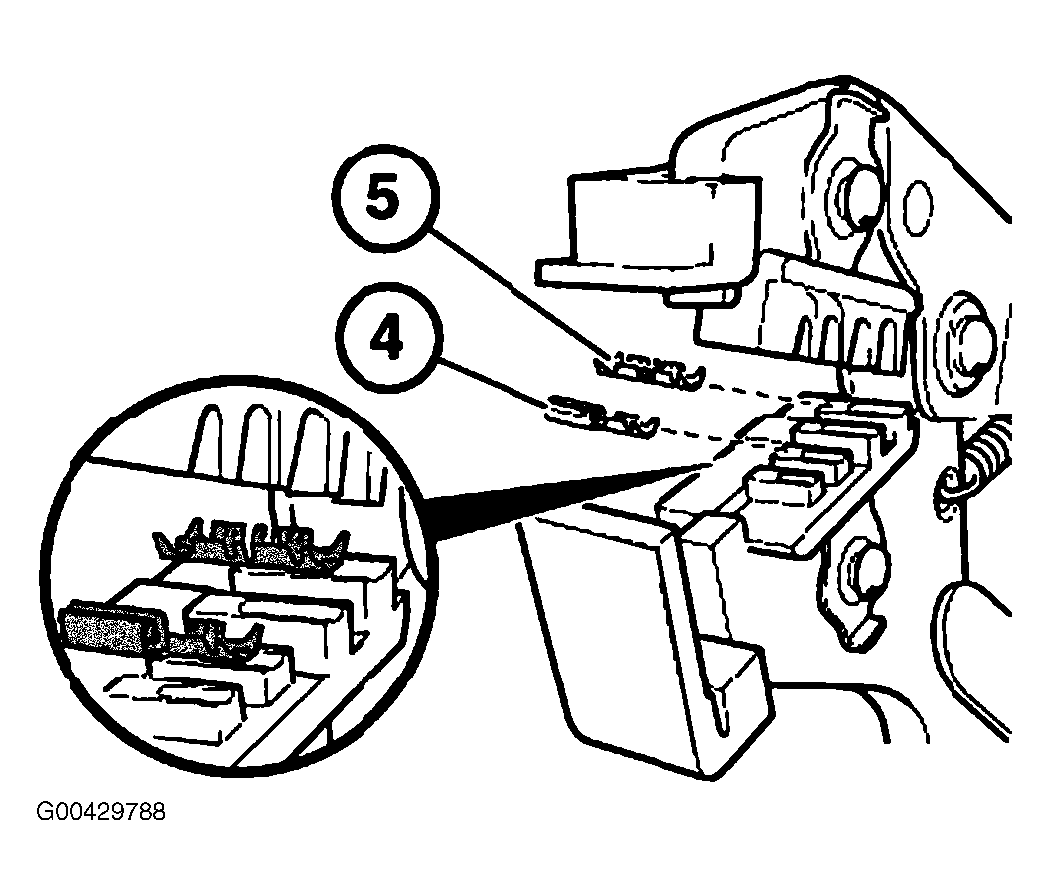

Fig 5: Identifying Contact Sleeves (4) And Connector (5)
G00429788Courtesy of BMW OF NORTH AMERICA, INC.

Preload contact by squeezing matrix in crimping tool. Grip contact (6) firmly only, do not crimp.

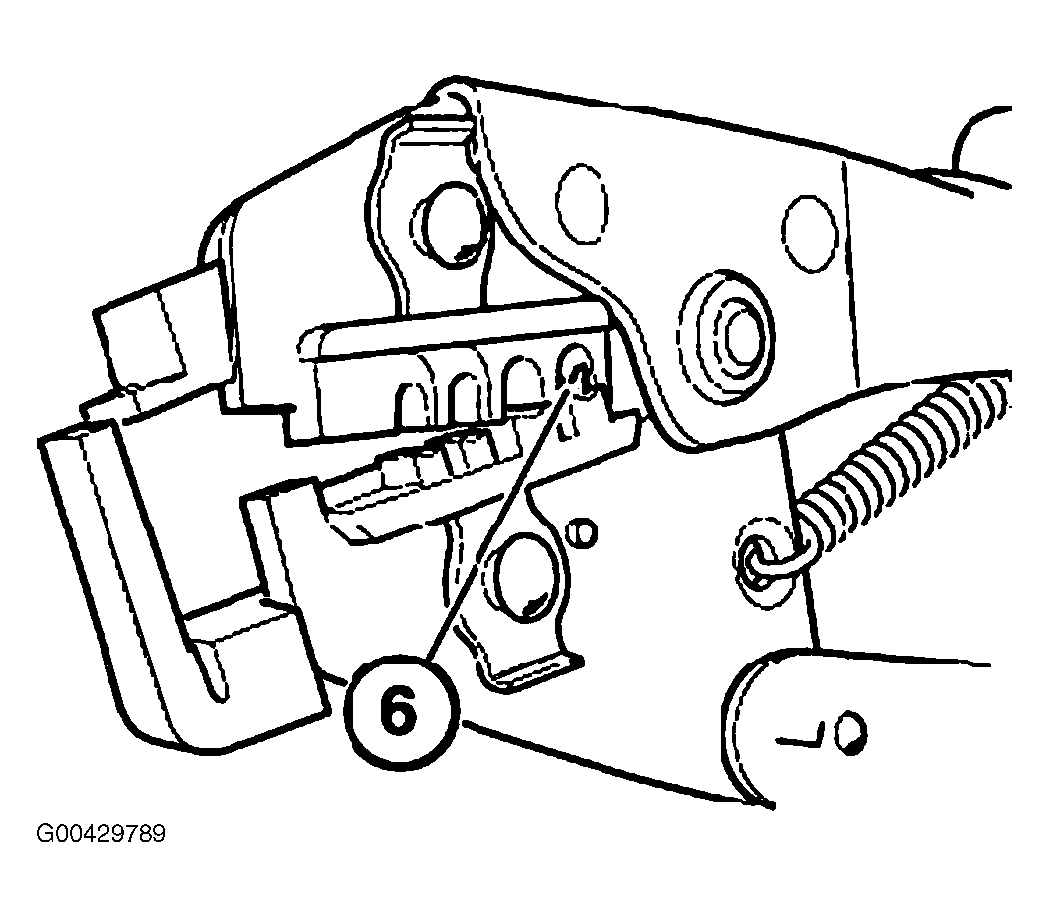

Fig 6: Preloading Contact By Squeezing Matrix In Crimping Tool
G00429789Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Follow procedure for cutting and stripping insulation from cable, refer to 61 13 Cutting To Length And Stripping Insulation From Cables .

Insert stripped end of wire (7) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

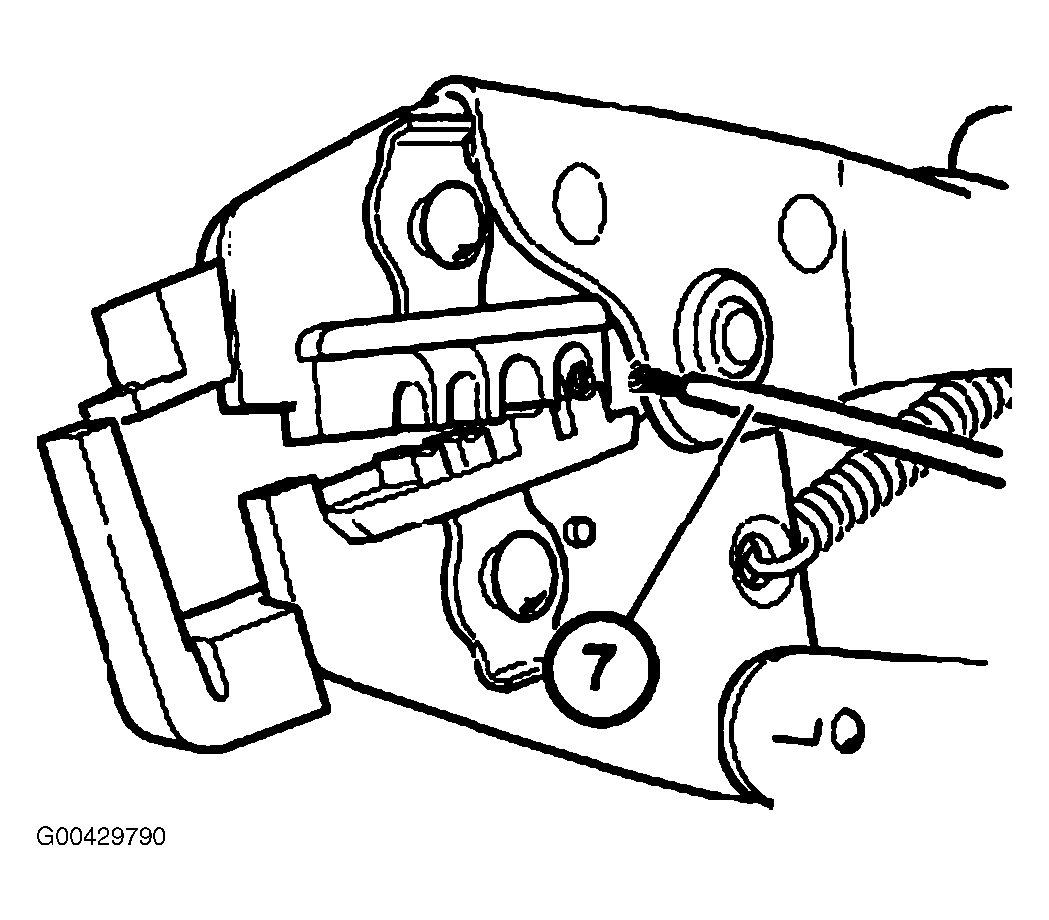

Fig 7: Inserting Stripped End Of Wire (7) In The Contact
G00429790Courtesy of BMW OF NORTH AMERICA, INC.

Compress crimping tool as far as it will go.

Crimping tool unlocks automatically.

Take contact out of crimping tool.
