61 33 060 Removing and installing/replacing both fanfare horns

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front right wheel arch trim, refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

Unlock plug connections (1) and disconnect.

Release nut (2) and remove low-pitch fanfare horn (3).

Release nut (4) and remove high-pitch fanfare horn (5) with retaining plate.

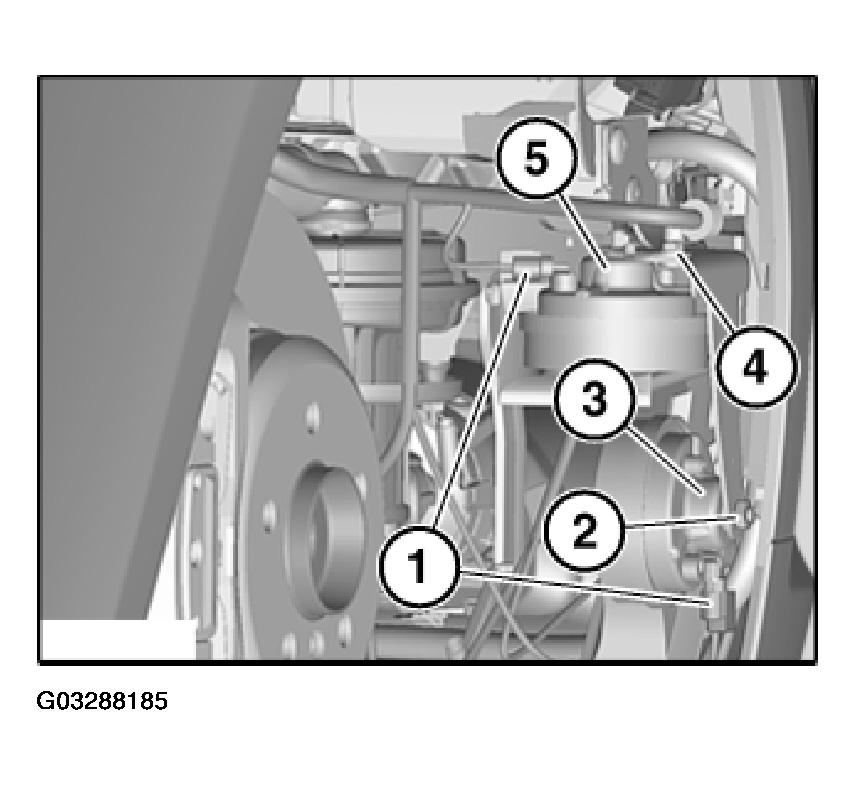

Fig 1: Releasing Nut And Removing High-Pitch Fanfare Horn With Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.
