52 24 408 Replacing backrest cover for left or right rear seat

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to SEATS - SPECIAL TOOLS - 645CI (E63) .

52 0 050
64 1 020

Necessary preliminary tasks:

Remove backrest for rear seat, refer to 52 24 010 REMOVING AND INSTALLING / REPLACING BACKREST .

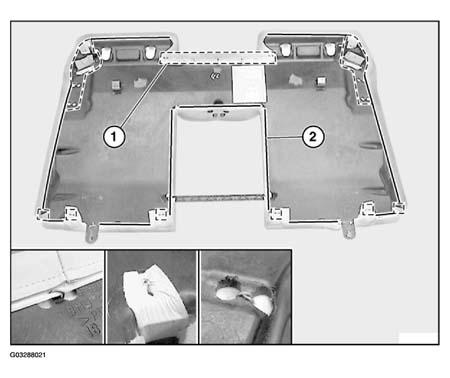

Detach retainers in areas (1).

Lever out piping in areas (2) with special tool 64 1 020.

Fig 1: Identifying Retainers And Piping On Right Rear Seat Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

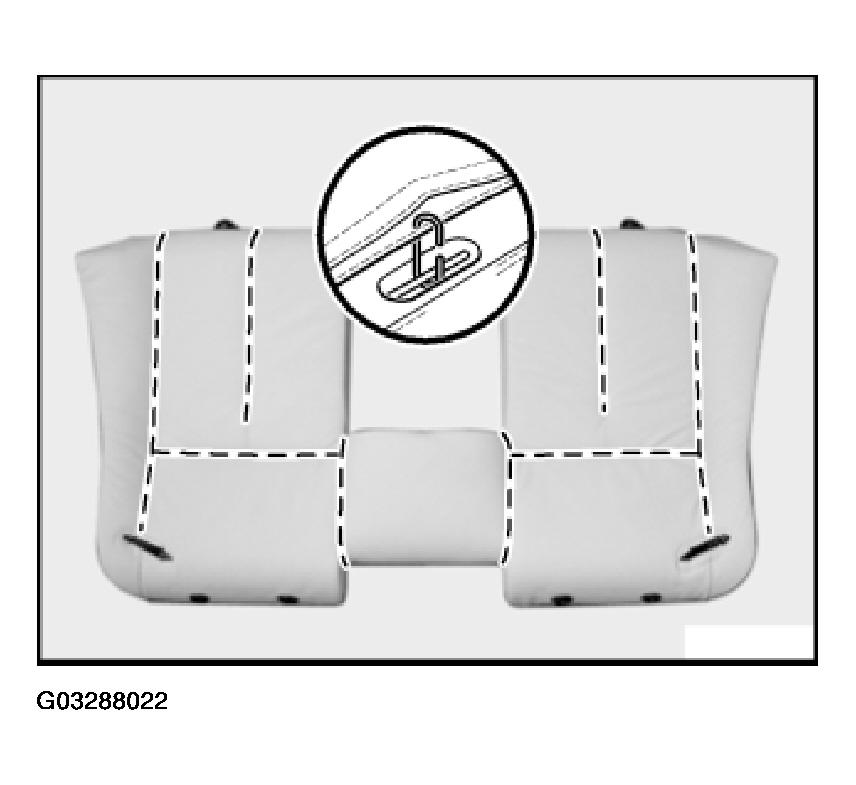

Detaching cover from padding:

Release all retainers in marked area.
Remove cover from padding.
Remove remaining retainers from cover and padding

Fig 2: Detaching Cover From Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainers with special tool 52 0 050.

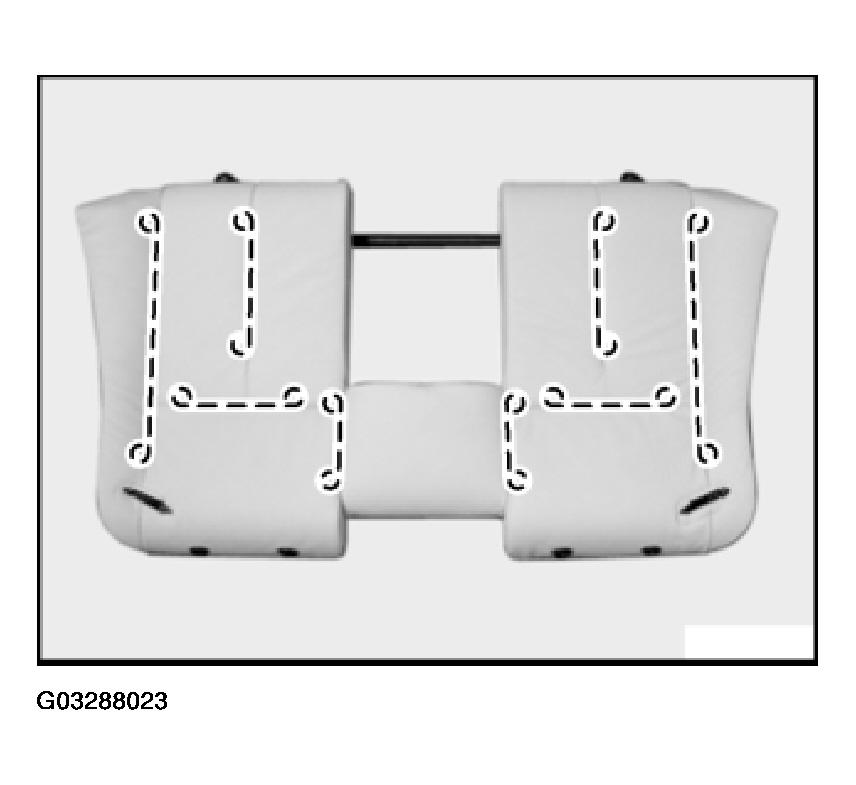

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into pockets

Fig 3: Replacing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

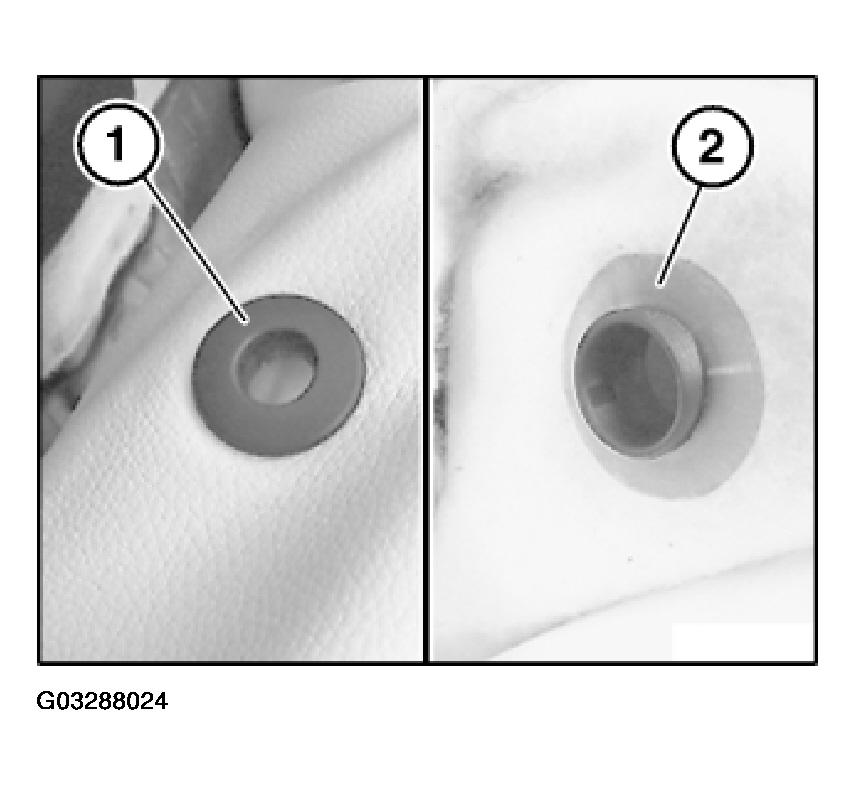

If necessary, replace head restraint guide (1).

Lever out detent ring (2) with plastic wedge.

Fig 4: Identifying Head Restraint Guide And Detent Ring

Courtesy of BMW OF NORTH AMERICA, INC.
